Overview

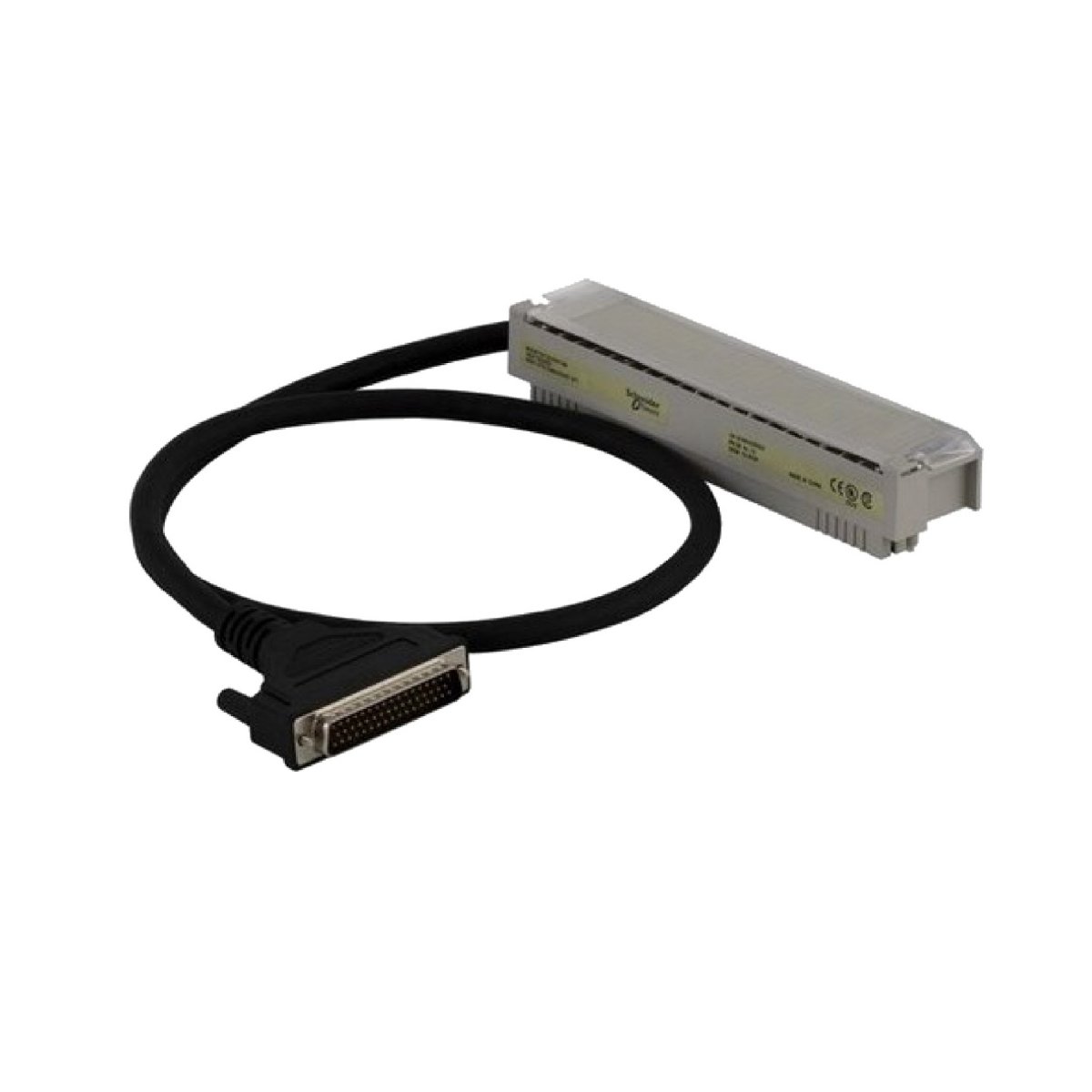

The Schneider Electric 140XTS00206 system cable connects Quantum I/O modules to SUB-D terminal blocks with factory-installed connectors. I use this 1.8-meter pre-terminated CableFast assembly to save installation time while maintaining consistent signal integrity. Its industrial-grade black jacket protects against mechanical wear and supports reliable operation in standard industrial environments.
Key Features
- I pre-terminate both ends to eliminate wiring errors and accelerate cabinet installation.
- I optimize the 1.8-meter length to provide ideal routing within most control panels.
- I reinforce the industrial-grade black jacket for chemical, mechanical, and environmental resistance.
- I equip the cable with a Quantum I/O plug and a SUB-D 50-pin socket for secure connections.
- I provide standard power handling suitable for typical Quantum system modules.
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | 140XTS00206 |
| Series | Modicon Quantum |
| Product Type | CableFast System Cable |
| Cable Length | 1.8 m (5.9 ft) |
| Connector A | Quantum I/O Module Plug |
| Connector B | SUB-D 50-Pin Socket |
| Cable Color | Industrial Black |
| Termination | Factory Pre-Terminated |
| Power Rating | Standard Capacity |
| Cable Style | Pre-Terminated Ends |
| Application | Module to Termination Panel |
| Package Weight | 740 g (26.1 oz) |
| Package Dimensions | 12.9 × 12.0 × 2.3 in |
Dimensions & Weight
- Length: 1.8 meters (5.9 ft)
- Weight: 740 g (26.1 oz)
- Package Size: 12.9 × 12.0 × 2.3 in
- Origin: USA
Compatibility
- Modicon Quantum automation platform
- Quantum I/O modules
- SUB-D 50-pin terminal blocks
Package Contents
- 1 × 140XTS00206 CableFast System Cable
- Ready-to-use industrial packaging included
Installation Benefits
- Pre-terminated connectors reduce installation time and prevent wiring errors
- Durable construction ensures long-term performance in manufacturing environments
- Plug-and-play design supports immediate use without field termination
- Ideal cable length simplifies routing and improves panel organization
- Standard power rating meets typical Quantum module requirements
Frequently Asked Questions
Which modules use this cable?
It works with all Quantum I/O modules requiring standard power connections.
Do I need field termination?
No, both ends come pre-terminated with factory-installed connectors.
What is the cable length?
The 1.8-meter (5.9 ft) length provides optimal reach in most control panels.
Can this cable handle vibration environments?
Yes, industrial-grade construction and secure connectors suit high-vibration manufacturing applications.
Is this a shielded cable?
It uses standard industrial construction to maintain reliable signal integrity in typical factory conditions.
