Overview

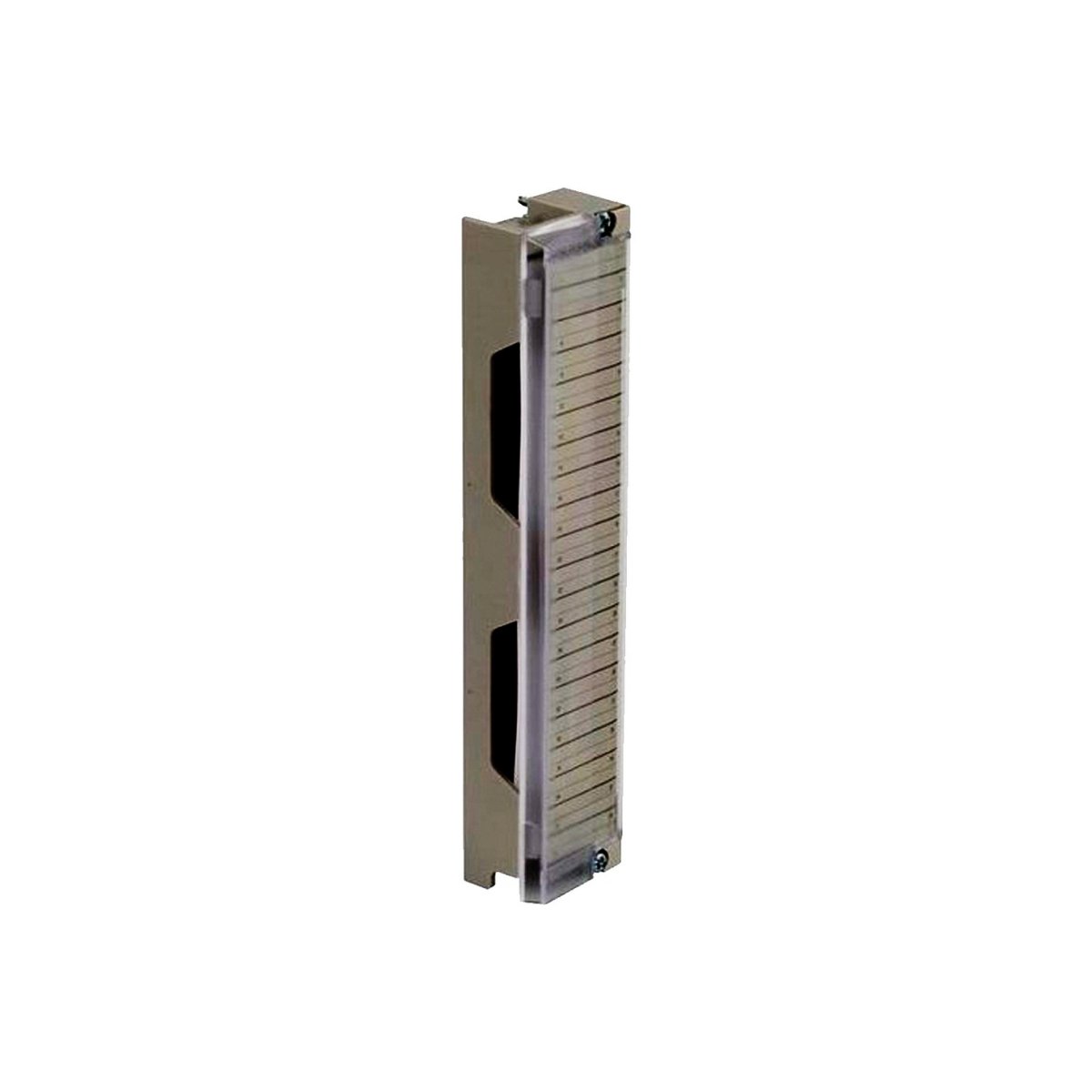

The Schneider Electric 140XTS00100 terminal block delivers reliable wiring for multiple Quantum I/O modules. I use this 40-point block to organize connections efficiently and maintain signal integrity across your automation system. Its industrial-grade plastic construction ensures durability and stable operation in standard industrial environments.
Key Features
- I provide 40 high-density connection points for comprehensive module wiring.
- I ensure wide compatibility with multiple Quantum analog and specialty I/O modules.
- I design the terminal block with IP20 protection to prevent contact with solid objects.
- I equip each point with secure screw terminals for consistent and reliable connections.
- I simplify installation with standard rail or direct mounting options.
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model / Part Number | 140XTS00100 |
| Product Type | 40-Point Terminal Block |
| Connection Points | 40 pins |
| Protection Rating | IP20 |
| Compatible Modules | 140ACO, 140ARI, 140AVI, 140AVO, 140ACI, 140ATI, 140AMM |
| Platform | Modicon Quantum |
| Mounting | Standard rail or direct |
| Material | Industrial-grade plastic |
| Weight | 192 g (6.8 oz) |
| Dimensions | 20.5 × 5 × 5 cm |
Module Compatibility
- Analog Modules: 140ACO, 140AVI, 140AVO, 140ACI, 140ATI
- Specialty Modules: 140ARI, 140AMM
- Automation Platform: Modicon Quantum
Package Contents
- 1 × 140XTS00100 Terminal Block
- Installation guide included
Installation Benefits
- Compatible with standard rail and direct mounting for flexible setup
- Secure screw terminals provide reliable, vibration-resistant connections
- High-density 40-point layout organizes multiple module connections efficiently
- Industrial-grade construction ensures long-term durability and stable operation
- Quick installation supports plug-and-play setup without special tools
Frequently Asked Questions
Which modules are compatible with this block?
It works with analog and specialty I/O modules including ACO, AVI, AVO, ACI, ATI, ARI, and AMM series.
How many wires can I connect?
The block provides 40 individual connection points for comprehensive wiring needs.
What does IP20 rating indicate?
It protects against solid objects larger than 12 mm but does not provide waterproofing.
Is installation straightforward?
Yes, standard screw terminals and compatible mounting enable fast and easy setup.
Does it support industrial environments?
Yes, the industrial-grade plastic construction ensures reliable operation under normal factory conditions.
Details
| Weight | 0.192 kg |
|---|---|
| Dimensions | 205 × 50 × 50 mm |
