Overview

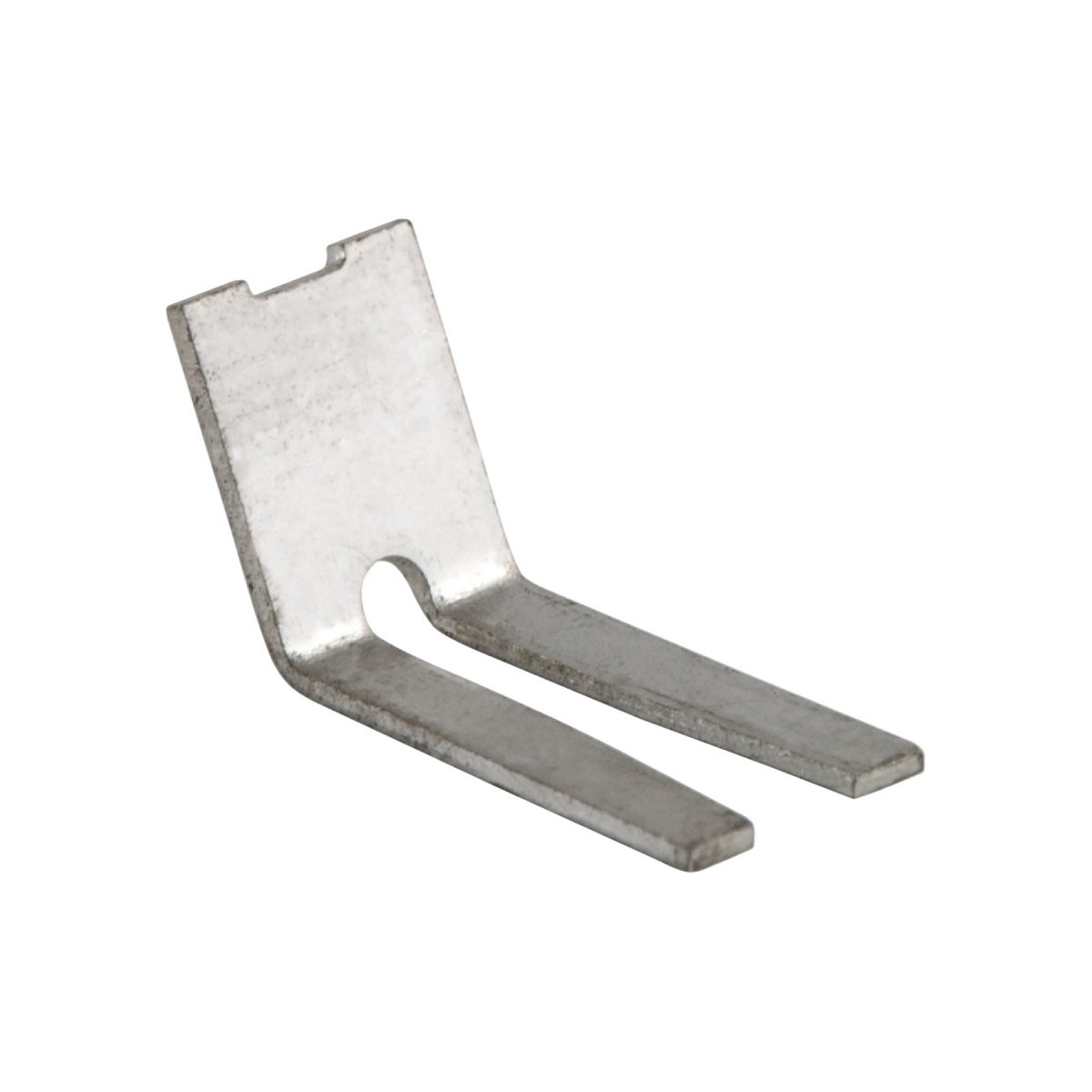

The Schneider Electric 140XCP60000 provides a complete set of 12 terminal jumpers designed for efficient wiring on 40-way terminal blocks. These jumpers simplify your Quantum system connections, reduce wiring errors, and save installation time with reliable screw terminal connections.
Key Features
- Includes 12 high-quality jumpers per pack for multiple wiring connections.
- Compatible with 40-way screw terminal blocks in the Modicon Quantum platform.
- Constructed from copper alloy with insulation for secure and durable electrical contact.
- Designed for fast and easy installation under standard terminal screws.
- Provides neat, consistent, and reliable connections across terminal points.
Technical Specifications
| Parameter | Description |
|---|---|
| Brand | Schneider Electric |
| Model | 140XCP60000 |
| Product Type | Terminal Block Jumpers |
| Quantity | 12 pieces per pack |
| Terminal Compatibility | 40-way screw terminals |
| Connection Type | Screw terminal |
| Material | Copper alloy with insulating coating |
| Weight | 9 g (0.3 oz) |
| Package Size | 13 × 11.5 × 2 cm |
| Platform | Modicon Quantum |
| Application | Terminal block wiring for I/O modules |
| Installation | Insert jumper under screw and tighten |
Compatibility
- Terminal Blocks: 40-way screw type, standard Quantum platform
- System: Modicon Quantum automation system
- Installation Method: Standard screw terminal connections
Package Contents
- 12 × 140XCP60000 Terminal Jumpers
- Ready for immediate use in wiring panels
Installation & Usage Advantages
- I reduce wiring time by connecting adjacent terminals quickly and efficiently.
- I ensure reliable electrical continuity without extra wires or soldering.
- I provide durable, insulated copper contacts that maintain long-term performance.
- I simplify wiring in complex Quantum control panels for organized and safe layouts.
Frequently Asked Questions
What is the main function of these jumpers?
They create electrical connections between adjacent terminals on 40-way terminal blocks.
How many jumpers are included in one package?
Each pack contains 12 individual jumpers to support multiple terminal connections.
Which terminal blocks are compatible?
They fit standard 40-way screw terminal blocks used in Modicon Quantum systems.
Are these jumpers easy to install?
Yes, insert each jumper under the terminal screw and tighten for secure connections.
Why use jumpers instead of individual wires?
Jumpers provide organized, reliable connections and save significant wiring time during installation.
Details
| Weight | 0.9 kg |
|---|---|
| Dimensions | 130 × 115 × 20 mm |
