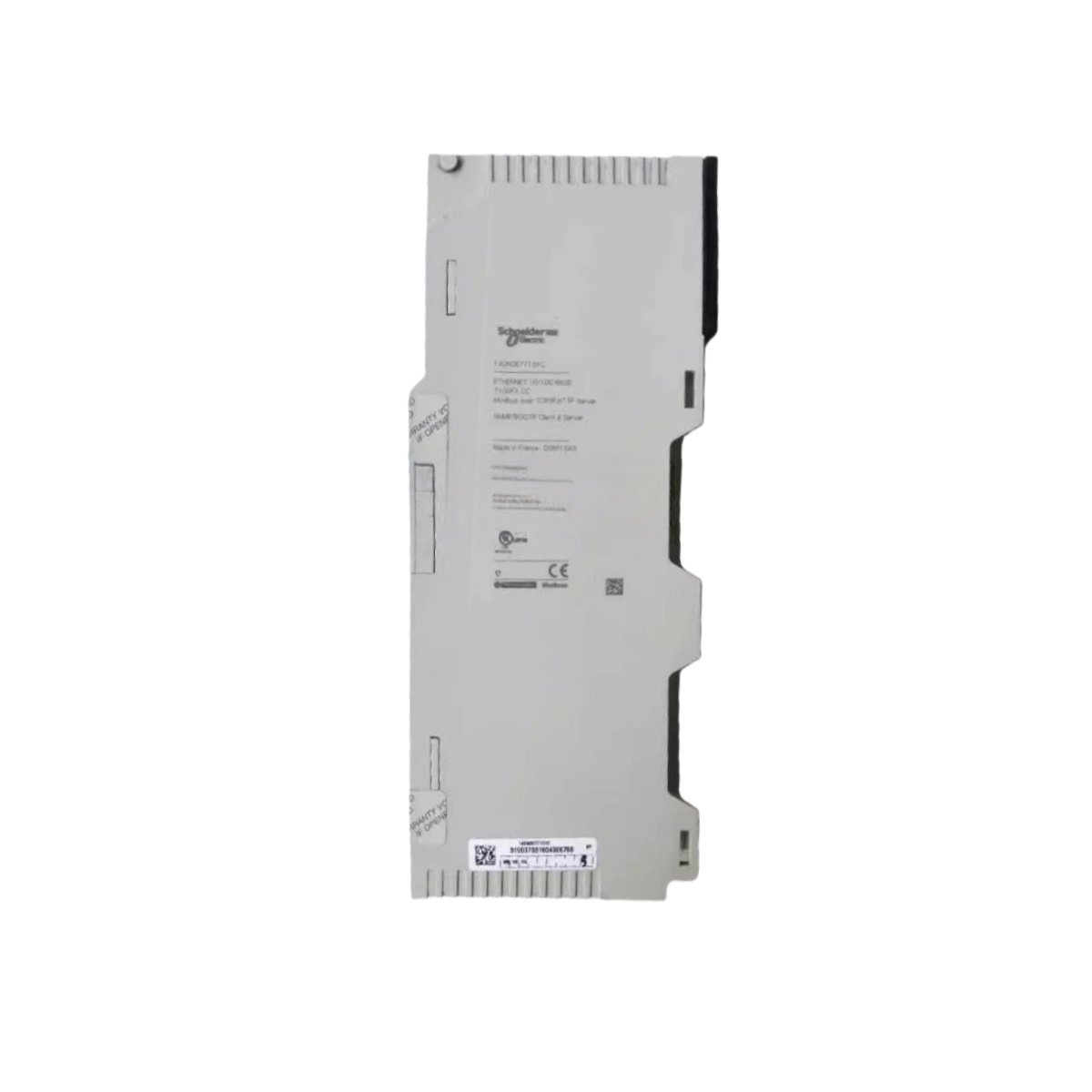

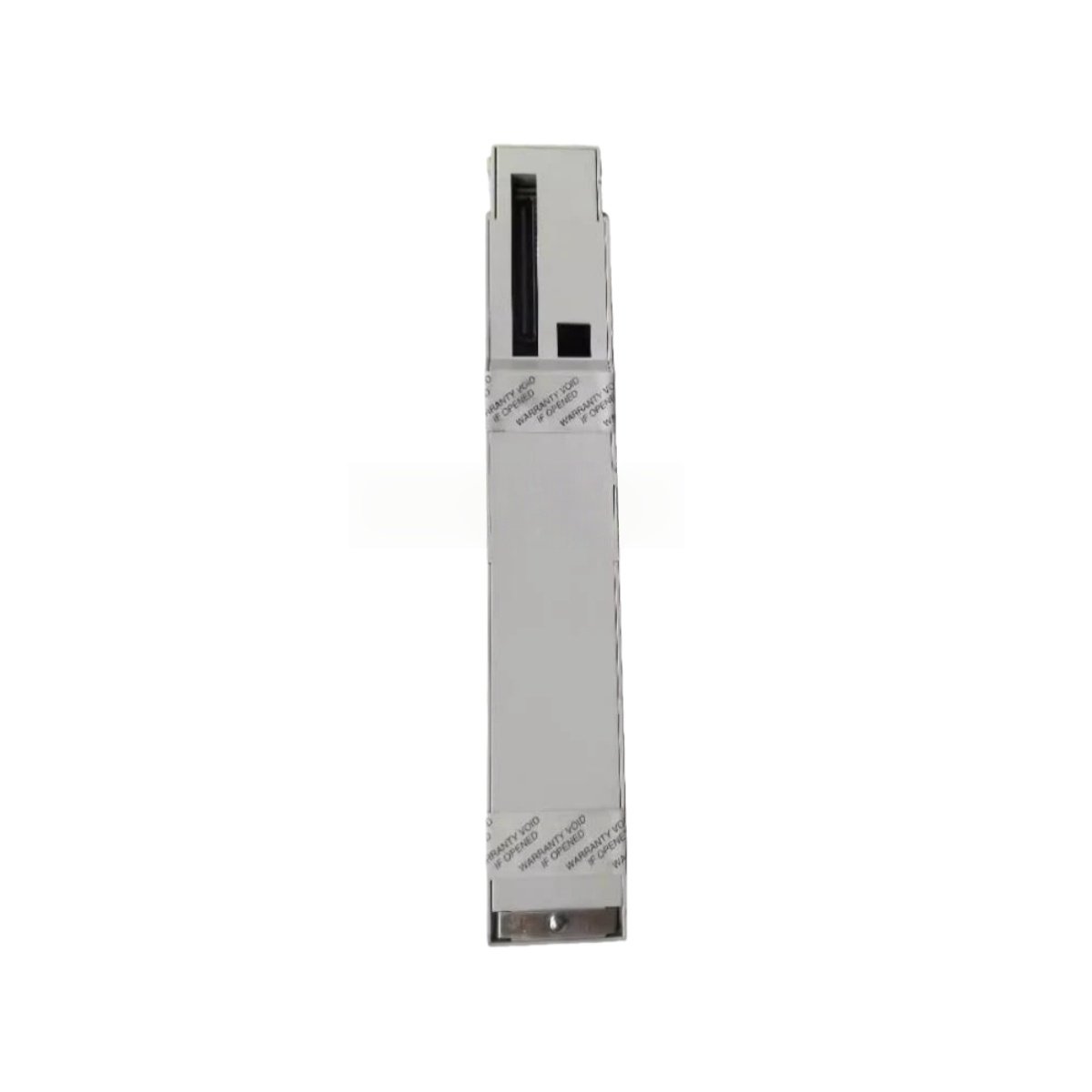

The Schneider 140NOE25110C module provides robust Ethernet communication for Modicon Quantum automation platforms. This TCP/IP interface unit supports both copper and fiber cable connectivity through its eight independent channels. Consequently, it enables seamless data exchange across material handling, packaging, and textile machinery applications.
Technical Specifications and Design
Engineers require precise dimensions and electrical characteristics for panel integration. Therefore, we provide the following detailed specifications for the Schneider 140NOE25110C:
| Parameter | Specification |
|---|---|
| Product Type | Ethernet TCP/IP Communication Module |
| Series | Modicon Quantum Automation Platform |
| Physical Dimensions | 110 mm (H) x 40 mm (W) x 140 mm (D) |
| Product Weight | 0.45 kg |
| Communication Channels | 8 independent ports |
| Interface Types | 10/100BASE-T Copper and 100BASE-FX Fiber |
| Data Transfer Rate | Auto-negotiating up to 100 Mbps |
| Supported Protocols | TCP/IP, UDP, Modbus TCP/IP, HTTP |
| Power Consumption | 4.5 Watts from Quantum backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Mounting Style | Quantum rack mounting, hot-swappable |
Advanced Connectivity Features
This 140NOE25110C module utilizes fiber optic links to eliminate electrical interference in noisy industrial settings. Additionally, it supports web-based configuration for simplified network setup without specialized software tools. The unit integrates directly with Schneider Electric’s Unity Pro software, enabling straightforward device parameterization. Furthermore, its eight-channel design allows simultaneous communication with multiple distributed devices. You can find similar connectivity solutions like the RMS TSG TZ C static trip unit for comprehensive system integration.
Operational Benefits and Applications
The Schneider 140NOE25110C significantly reduces installation time due to its hot-swappable design. Moreover, it maintains deterministic network performance through advanced traffic management features. This module supports redundancy protocols to ensure continuous operation during network path failures. Its compact form factor fits perfectly within existing Quantum automation racks without requiring additional space modifications. Ultimately, this Ethernet module enhances overall system reliability through superior thermal management and robust component selection.
Typical applications include automated assembly lines, conveyor systems, packaging machinery, and textile processing equipment. The Schneider 140NOE25110C excels in environments requiring high-speed data exchange between programmable logic controllers and enterprise systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
