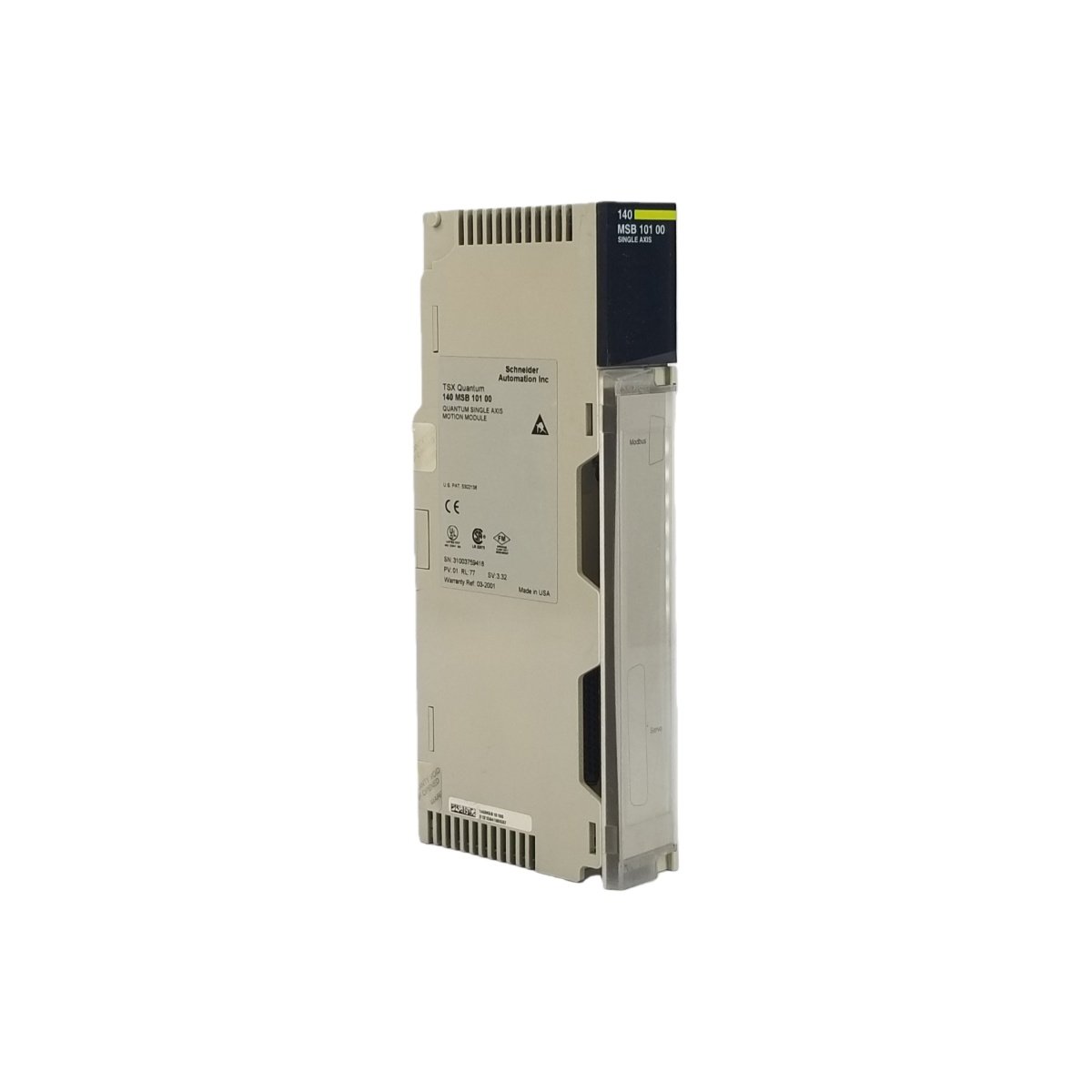

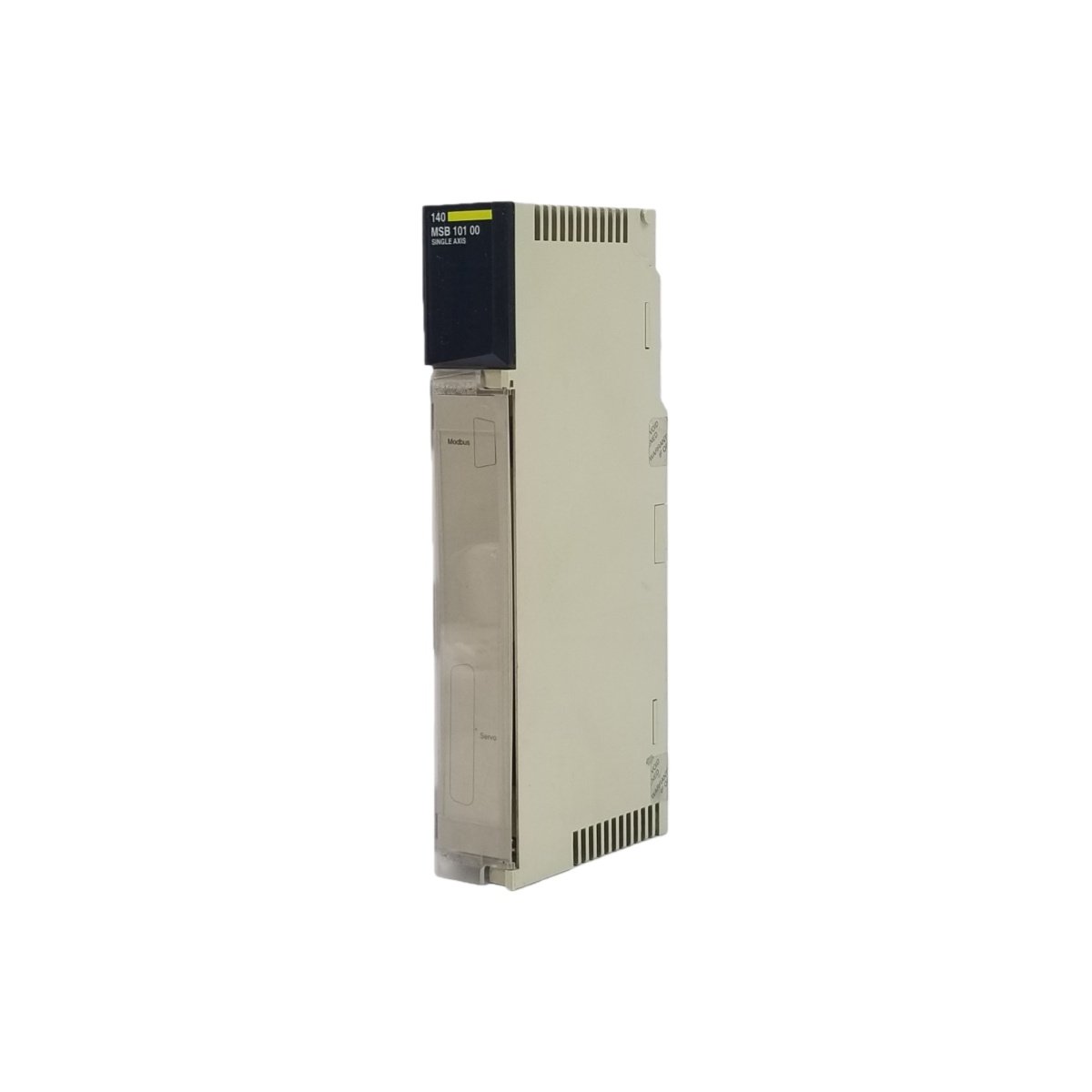

The 140MSB10100 from Schneider Electric operates as a dedicated single-axis motion module within the Modicon Quantum automation platform. This unit provides precise position and velocity control for servo motors in industrial applications requiring accurate point-to-point movement. Its integrated design combines motion profiling, PID loop closure, and feedback processing into a single module. Consequently, engineers can implement sophisticated axis control without burdening the main Quantum processor with real-time motion calculations.
Weighing approximately 1.10 lbs (0.50 kg), the 140MSB10100 features a robust housing suitable for standard Quantum rack mounting in industrial control panels. The module draws operational power directly from the Quantum backplane, consuming 5 Volts at 1.2 Amperes during normal operation. This efficient power profile makes it ideal for multi-rack systems where multiple motion modules share backplane capacity. Additionally, the unit operates reliably across temperatures from 0°C to 60°C, ensuring consistent performance in demanding manufacturing environments.
Comprehensive Motion Control Capabilities
The 140MSB10100 supports multiple motion modes, including point-to-point positioning, electronic gearing, and velocity profiling for diverse application requirements. It provides dedicated encoder interfaces for incremental feedback devices, ensuring precise position maintenance even under varying load conditions. Built-in digital inputs accept limit switches, home sensors, and drive fault signals directly without requiring additional interface modules. These integrated features significantly simplify wiring while reducing overall system component count and potential failure points.
Advanced Feedback and Diagnostic Features
This single-axis module incorporates dedicated analog outputs for torque or velocity commands to connected servo drives. It supports multiple feedback types, including incremental encoders and resolvers, providing flexibility for various motor and drive combinations. Onboard LED indicators deliver immediate visual confirmation of module status, axis activity, and fault conditions during normal operation. These diagnostic features enable maintenance personnel to quickly identify motion-related issues without specialized software tools.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Single-Axis Motion Module |
| Product Line | Modicon Quantum |
| Part Number | 140MSB10100 |
| Series | MSx Motion Series |
| Axis Control | Single axis |
| Weight | 1.10 lbs (0.50 kg) approximately |
| Power Requirements | 5 VDC at 1.2 A |
| Mounting Type | Quantum rack mounting |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Motion Modes | Point-to-point, Electronic gearing, Velocity profiling |
| Feedback Support | Incremental encoders, Resolvers |
| Dedicated I/O | Limit switch inputs, Home sensor inputs, Drive fault inputs |
| Output Type | Analog torque/velocity command |
| Diagnostic Indicators | LED status indicators |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
