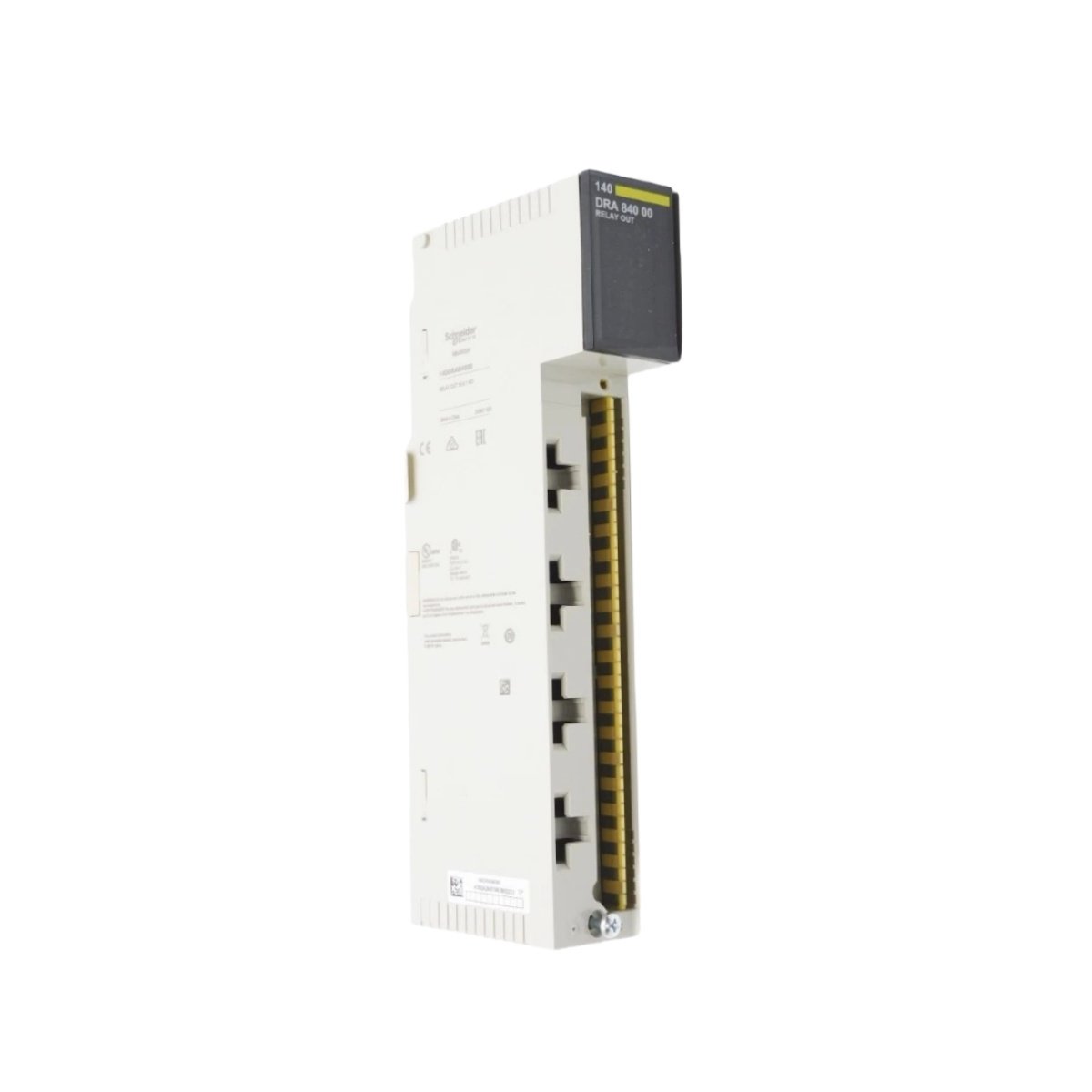

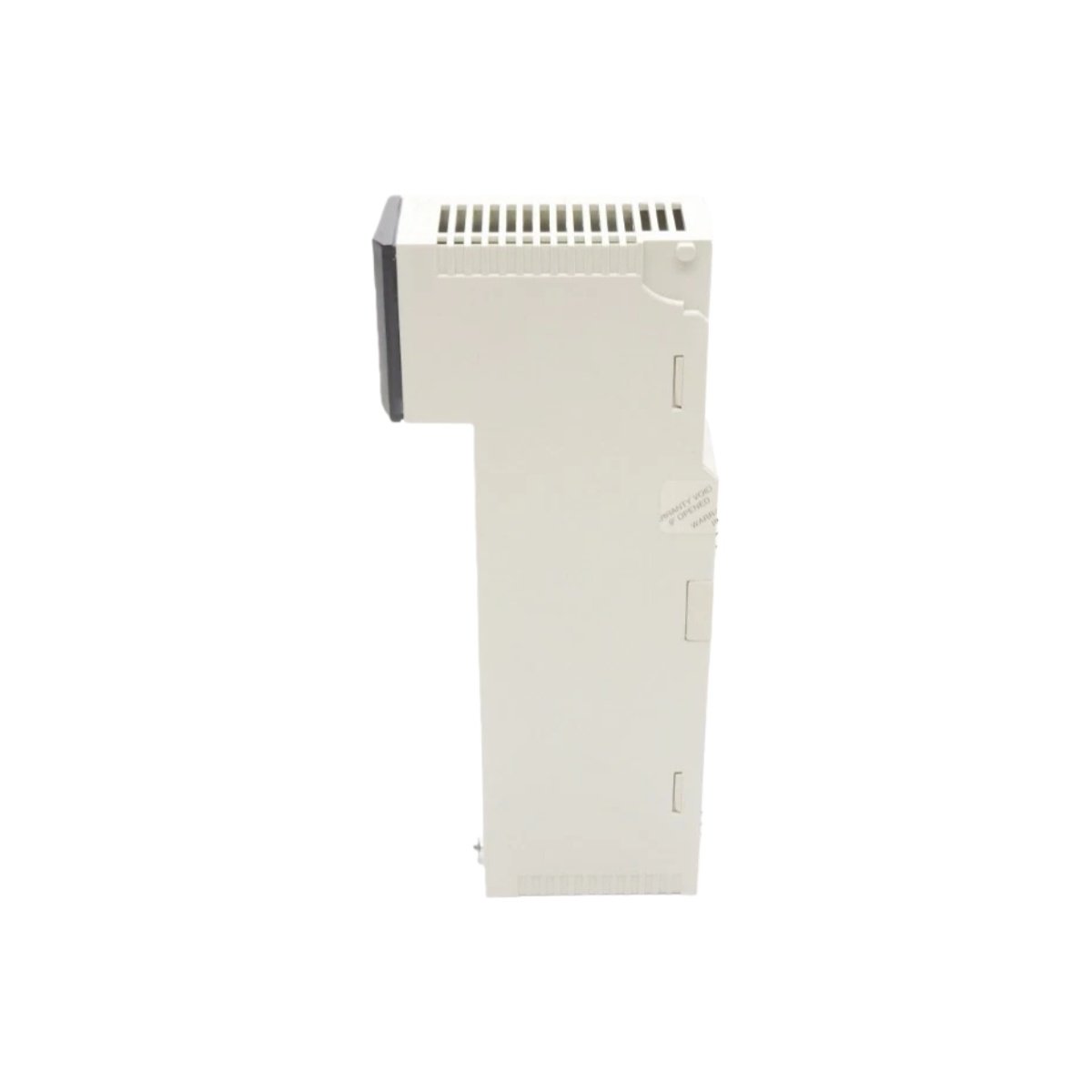

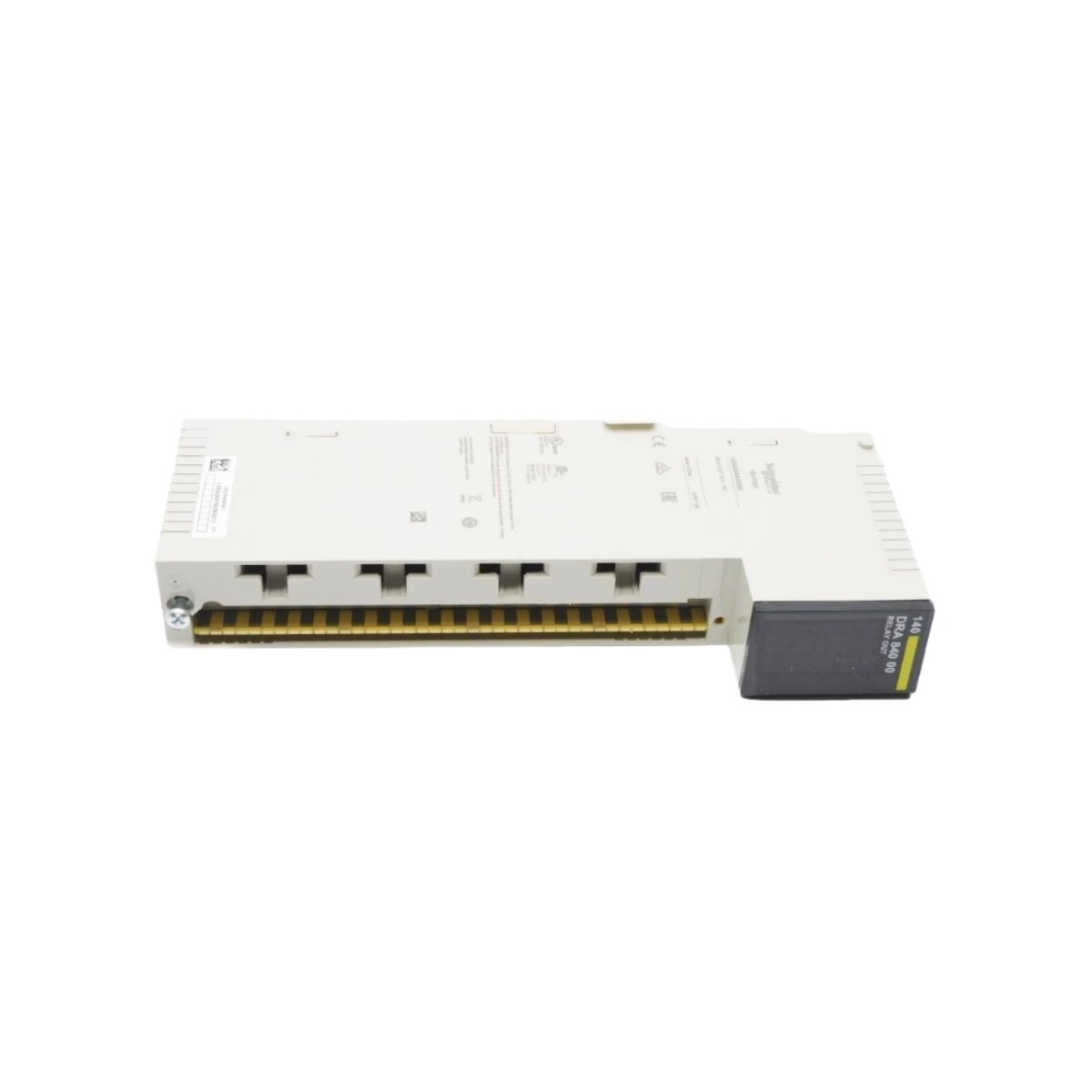

Schneider Electric designed the 140DRA84000 relay output module for flexible and robust control. This unit provides sixteen discrete output channels, ensuring reliable operation in demanding automation environments. Furthermore, each channel features a single Form A (normally open) contact for straightforward integration.
Technical Specifications and Design
The Modicon Quantum 140DRA84000 module supports a wide range of output voltages for application versatility. Consequently, it handles loads from 20 to 250V AC, 30 to 150V DC, and 5 to 30V DC. Each channel manages a minimum load of 50 mA and a resistive switching capacity of 500 VA.
The module’s design prioritizes durability within industrial settings. It operates reliably within a temperature range of 0°C to 60°C. Additionally, it can withstand storage temperatures from -40°C to 85°C. The unit also functions in environments with up to 95% relative humidity without condensation.
Integration and Physical Attributes
Integrating the 140DRA84000 into your Modicon Quantum rack is simple. The module requires the addressing of one output word in the PLC configuration. Physically, it is rack-mountable and weighs 2.00 lbs (0.91 kg), providing a solid and compact form factor. Moreover, it carries CE Marking for compliance with European health and safety standards.
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 140DRA84000 |
| Output Type | 16-Channel Relay Discrete Outputs |
| Contact Type | 1 NO Contact (Form A) per channel |
| Output Voltage Range | 20 to 250V AC, 30 to 150V DC, 5 to 30V DC |
| Switching Capacity | 500 VA Resistive |
| Minimum Load | 50 mA |
| Surge Current | 10 mA at 10 ms Capacitive |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 95% (Non-condensing) |
| Weight | 0.91 kg (2.00 lbs) |
| Mounting Type | Rack Mountable |
| Addressing Requirement | 1 Output Word |
| Compliance | CE Marking |
Details
| Weight | 0.48 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
