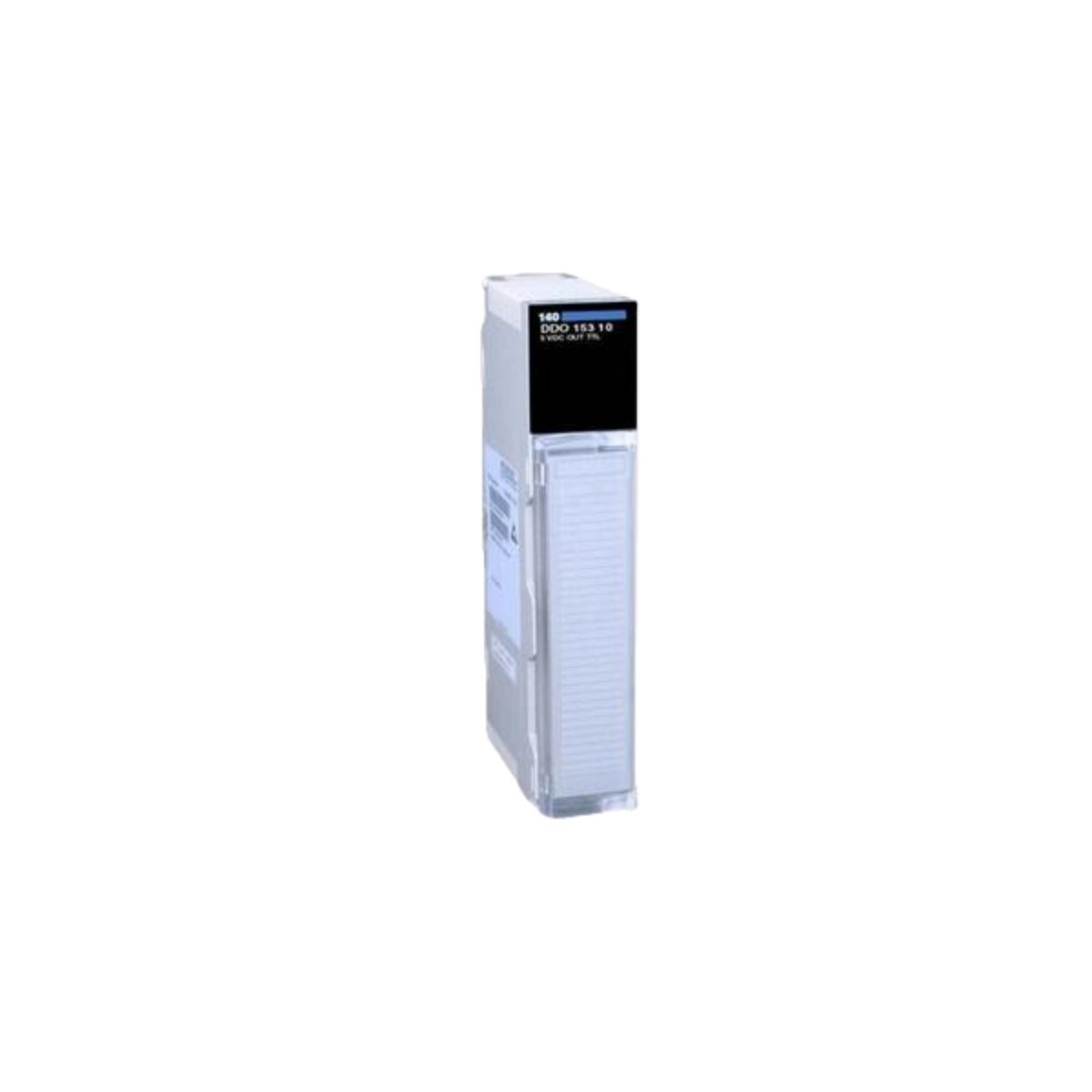

The Schneider Electric 140DDO35300 module provides a robust interface for industrial control systems. This discrete output module belongs to the proven Modicon Quantum automation platform. Furthermore, it reliably connects your PLC to critical external actuators and devices.
Core Technical Capabilities
This module offers 32 discrete digital output channels for comprehensive control. Each channel handles a 24V DC signal, with an operational range from 19.2 to 30V DC. Consequently, it ensures stable performance under typical industrial voltage conditions.
For detailed planning, please review the module’s complete technical specifications below.
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Model | Schneider Electric 140DDO35300 |
| Platform/Series | Modicon Quantum |
| Module Category | Discrete Output Module |
| Number of Channels | 32 |
| Output Type | Digital, Discrete |
| Nominal Output Voltage | 24 V DC |
| Output Voltage Range | 19.2 – 30 V DC |
| Output Current (per channel) | Max. 0.5 A |
| Total Module Output Current | Max. 16 A |
| Max. Inrush Current (per point) | 30 A for 10 ms |
| Maximum Switching Frequency | 100 Hz |
| Response Time (Turn On/Off) | 1 ms / 1 ms |
| 5V DC Internal Current Consumption | 175 mA |
| Maximum Power Dissipation | 3 W |
Design for Reliable Performance
The module manages a significant total output current of up to 16 amps. Moreover, its design includes protection against high inrush currents up to 30A. Finally, the fast 1ms response time enables precise control for demanding automation sequences.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
