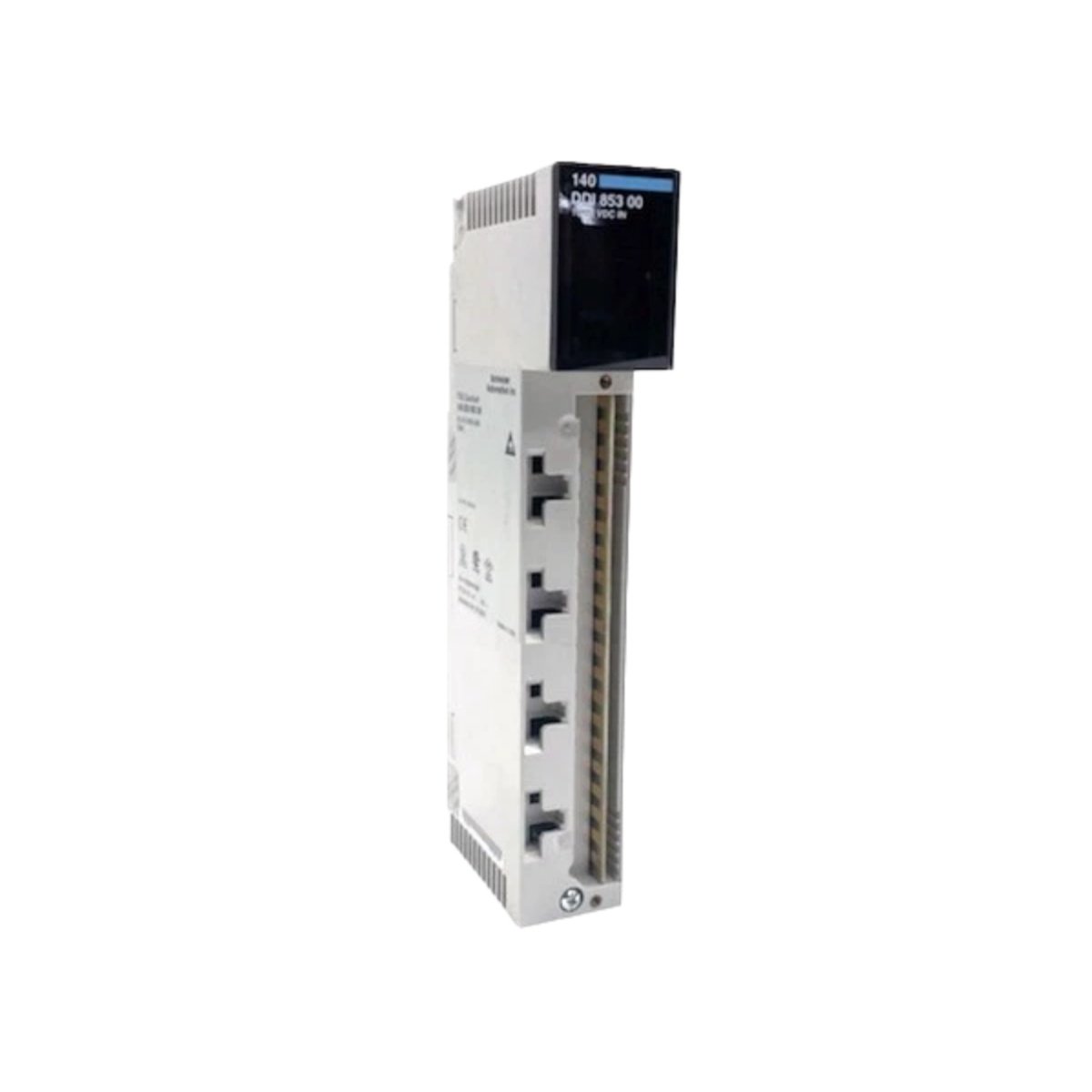

The 140DDI85300 from Schneider Electric expands I/O capacity in Modicon Quantum systems. This discrete input module reliably handles 32 separate DC sensor signals. It accepts a wide voltage range from 10 to 60 VDC for versatile application use. Furthermore, it groups these inputs into four channels for efficient diagnostics and wiring.
Engineers will appreciate the module’s rapid 4-millisecond response time for fast sensing. The 140DDI85300 also provides clear local signaling for immediate status indication. This design ensures straightforward integration and reliable operation in demanding environments. Moreover, its standard module format fits seamlessly into your existing Quantum rack.
Core Specifications and Environmental Ratings
The 140DDI85300 is built for durability within defined industrial conditions. Its technical parameters guarantee stable performance from the factory floor to high-altitude installations.
Primary Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Line | Modicon Quantum |
| Part Number | 140DDI85300 |
| UPC Code | 785901794561 |
| Module Type | Discrete DC Input |
| Number of Inputs | 32 |
| Channel Groups | 4 |
| Input Voltage Range | 10 – 60 VDC |
| Response Time | 4 ms |
| Local Signaling | Yes |
| Bus Current Draw | 300 mA |
| Module Format | Standard |
| Weight | 0.69 lbs (0.31 kg) |
| Max Operating Altitude | 5000 m |
| Ambient Temperature Range | 0°C to 60°C |
| Environment Requirement | No corrosive gases |
This Schneider Electric module operates reliably within a 0°C to 60°C temperature range. Additionally, it functions at altitudes up to 5000 meters without performance loss.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
