Overview

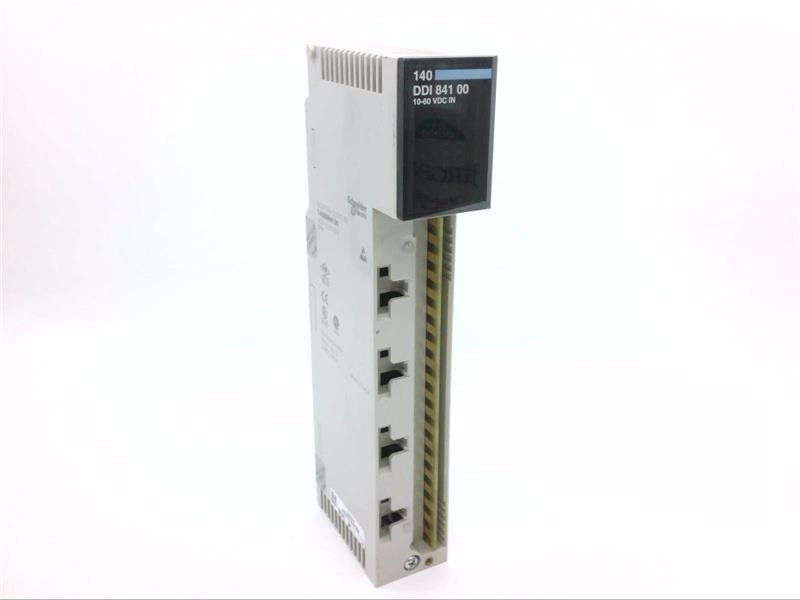

The 140DDI84100 Discrete Input Module is designed for precise monitoring of external devices and sensors in industrial automation systems. Compatible with Modicon Quantum controllers, it provides 16 digital inputs organized in 8 groups. The module supports a wide DC voltage range from 10 to 60 V and includes LED indicators for communication, fault detection, and input status, ensuring clear system visibility and quick diagnostics.
Key Features
- 16 Digital Inputs: Enables monitoring of multiple external devices or sensors simultaneously.
- Wide Voltage Support: Operates from 10–60 V DC for versatile industrial applications.
- Positive Logic (Sink) Input: Standard configuration for safe and reliable operation.
- Fast Response: 4 ms response time for state changes ensures real-time monitoring.
- LED Indicators: Display bus communication, fault detection, and input activity.
- Robust Isolation: 2500 Vrms between bus and groups, 700 Vrms between groups.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | DC Discrete Input Module |
| Platform | Modicon Quantum |
| Input Channels | 16 inputs (8 groups) |
| Input Voltage | 12 V DC: 5–10 mA 24 V DC: 6–30 mA 48 V DC: 2–15 mA 60 V DC: 1–5 mA |
| Voltage State (ON) | 12–60 V depending on input |
| Voltage State (OFF) | 0–10 V depending on input |
| Response Time | 4 ms |
| Switching Frequency | ≤100 Hz |
| Bus Current | 200 mA |
| Power Dissipation | 1 W + 0.62 W per active point |
| Isolation | Group-to-bus: 2500 Vrms / Groups: 700 Vrms |
| Operating Temperature | 0 to 60 °C (32–140 °F) |
| Storage Temperature | -40 to 85 °C (-40–185 °F) |
| Humidity | 95% non-condensing |
| Altitude | Up to 5000 m (16404 ft) |
| Certifications | UL 508, CSA C22.2 No. 142, FM Class 1 Div 2, C-tick |
| Module Weight | 0.3 kg (0.7 lb) |
| Package Weight | 0.44 kg (0.97 lb) |
| Package Dimensions (H×W×L) | 4.64 × 16.64 × 31.21 cm (1.83 × 6.55 × 12.29 in) |
| Country of Origin | USA |
| GTIN | 3595861000094 |
| Returnable | Yes |
Applications
The 140DDI84100 is ideal for:
- Industrial automation monitoring in manufacturing, utilities, and process plants.
- Integration with Modicon Quantum controllers for precise discrete input handling.
- Applications requiring high-speed response and reliable voltage detection.
- Environments demanding industrial-grade isolation and compliance with safety standards.
Ordering Information
- Model / Part Number: 140DDI84100
- Type: Discrete Input Module, 16 Channels
- Platform Compatibility: Modicon Quantum
