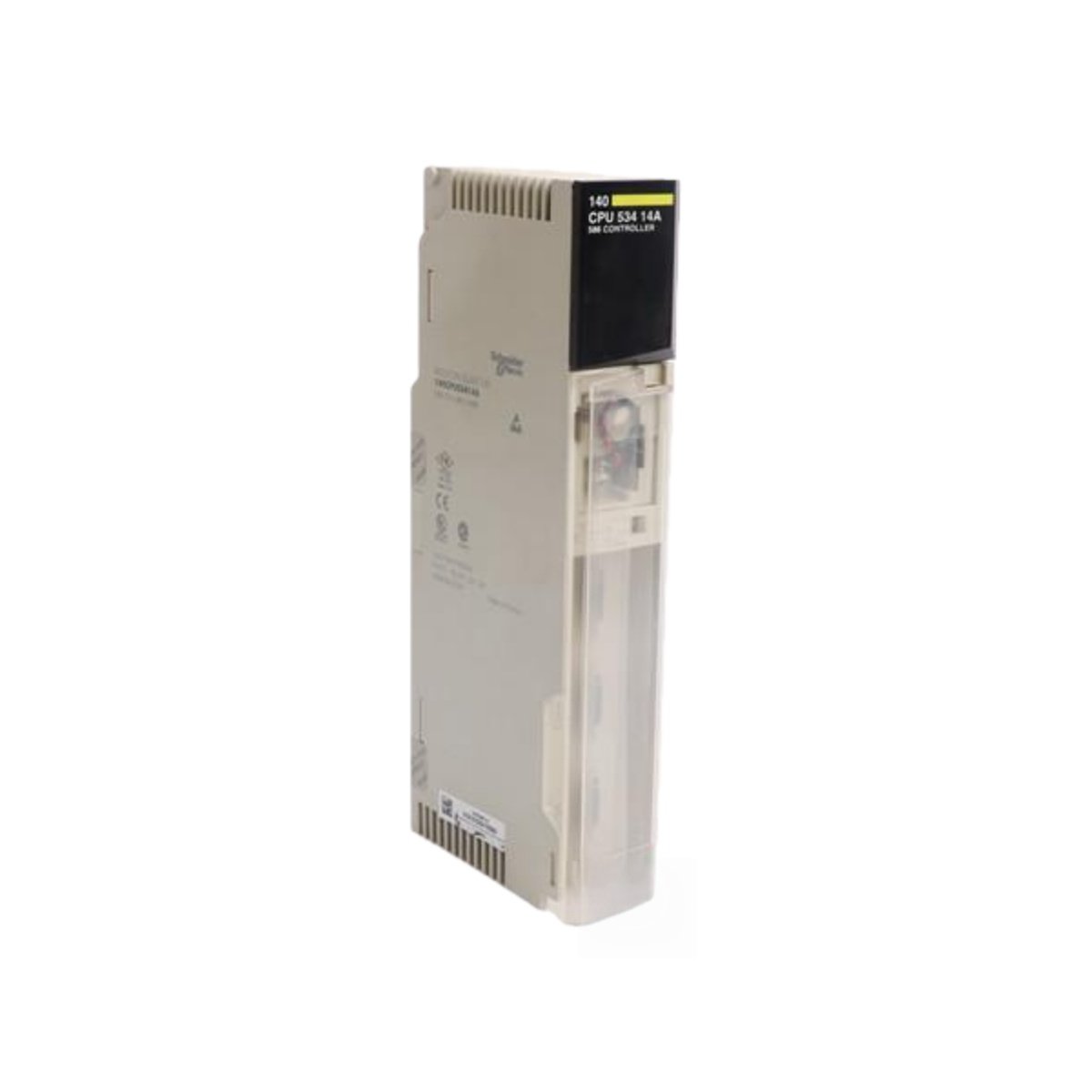

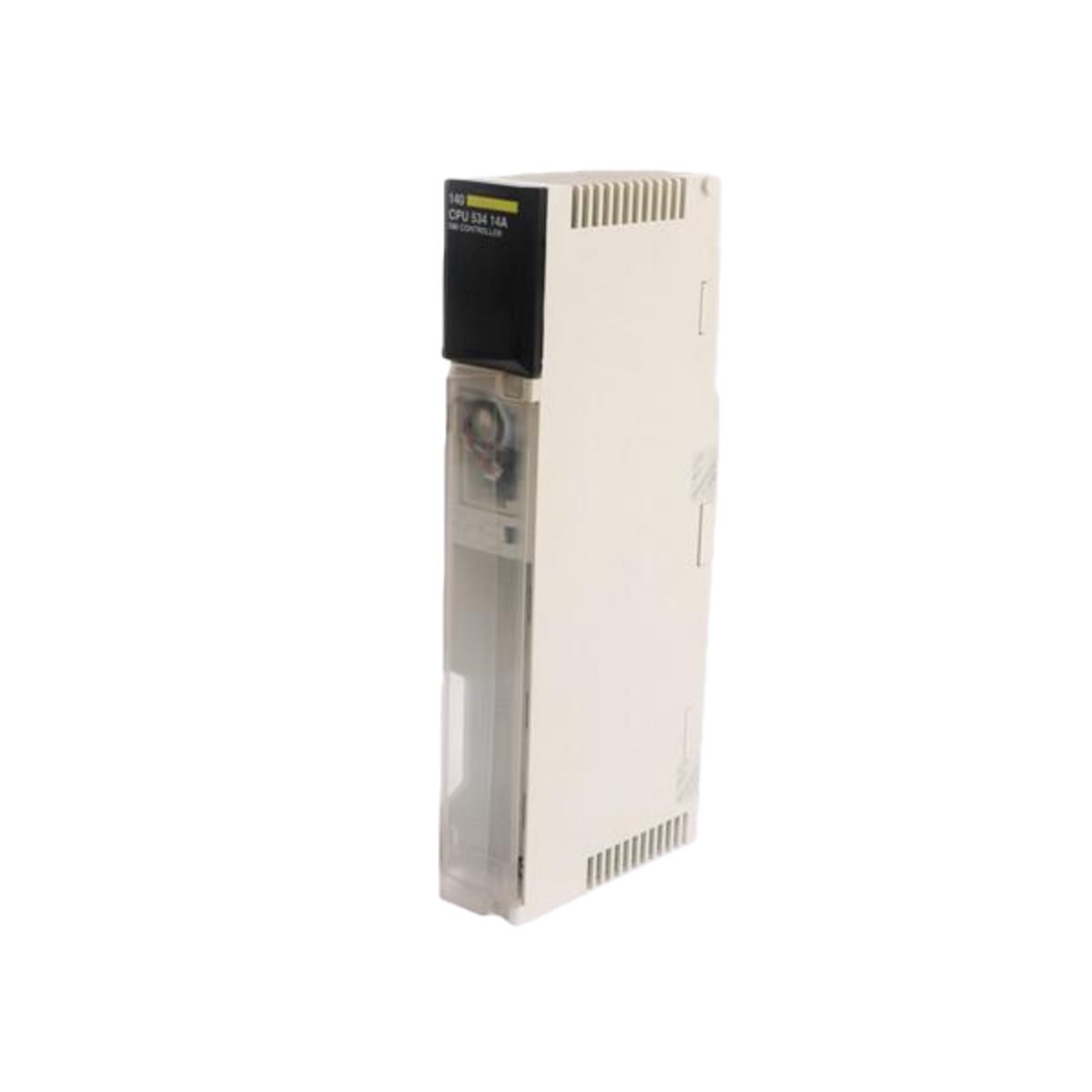

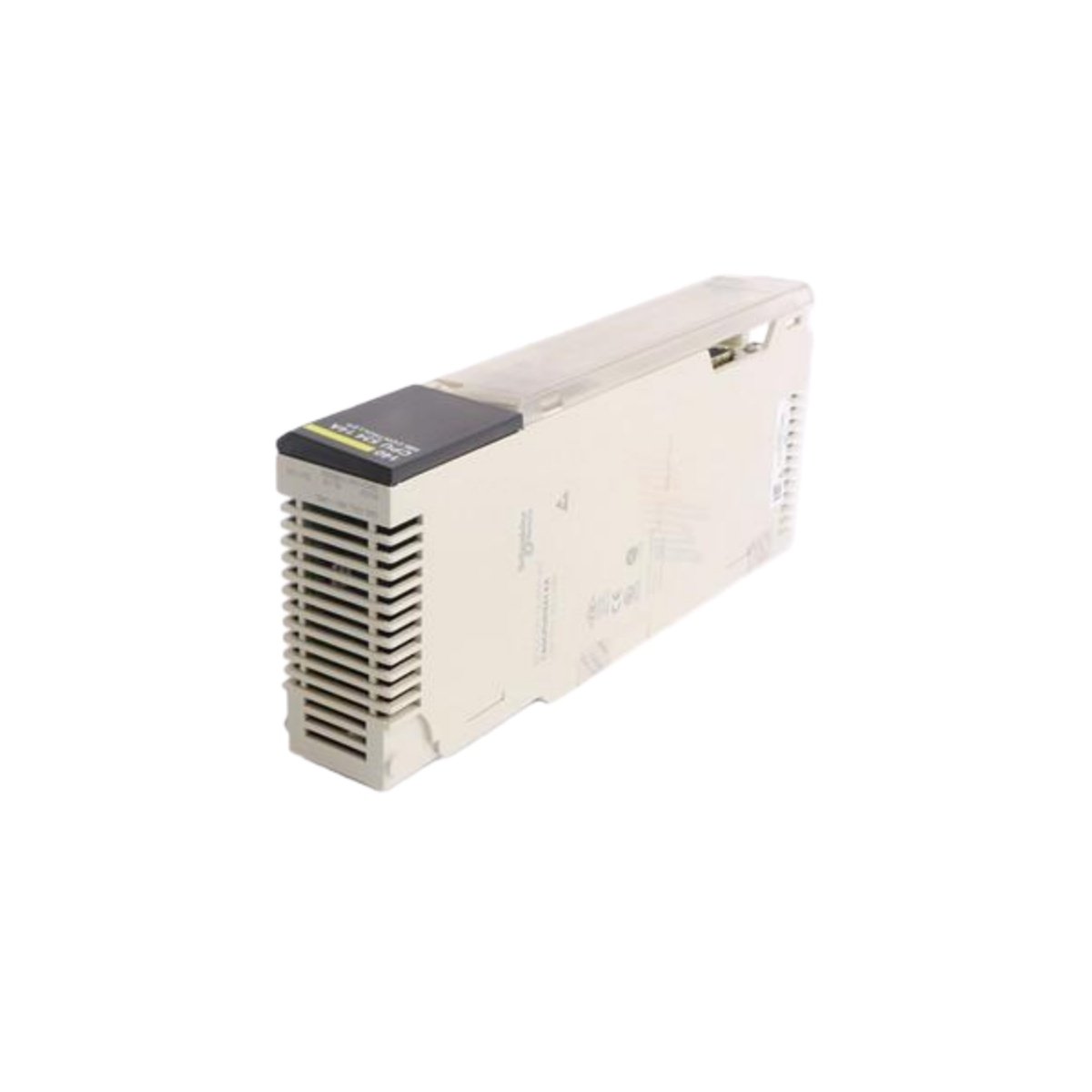

The Schneider Electric 140CPU53414A serves as a powerful central processing unit for the Modicon Quantum series. This module features a reliable 80586 processor with a 133 MHz clock frequency for solid performance. Consequently, it provides a robust control foundation for mid-range industrial automation applications.

Processing Power and Memory Architecture

This CPU module includes 2.7 MB of internal user memory for program and data storage. The integrated math coprocessor significantly accelerates complex arithmetic and logic operations. Therefore, the 140CPU53414A efficiently handles demanding processing tasks in real-time control environments.

System Expansion and Physical Specifications

The module supports the integration of up to six additional I/O or specialty modules locally. It features standard communication ports including RS-232 and RS-485 for programming and network connectivity. Furthermore, a physical key switch on the unit provides control over operational modes like Run, Stop, and Remote.

Environmental Durability and Power Backup

Designed for industrial environments, this CPU operates reliably from 0°C to 60°C. It includes a 3V, 1200 mAh lithium battery to retain memory and real-time clock data during power loss. Additionally, its compact design weighs just 0.91 kg (2.00 lbs) for straightforward DIN rail mounting.

Detailed Technical Specifications

Core Application in Industrial Control

This CPU is ideal for controlling complex machinery, process skids, and material handling systems. Its balanced performance and expansion capability make it suitable for standalone applications or as part of a distributed network. Thus, the 140CPU53414A provides a scalable and durable control solution for various manufacturing and infrastructure projects.
