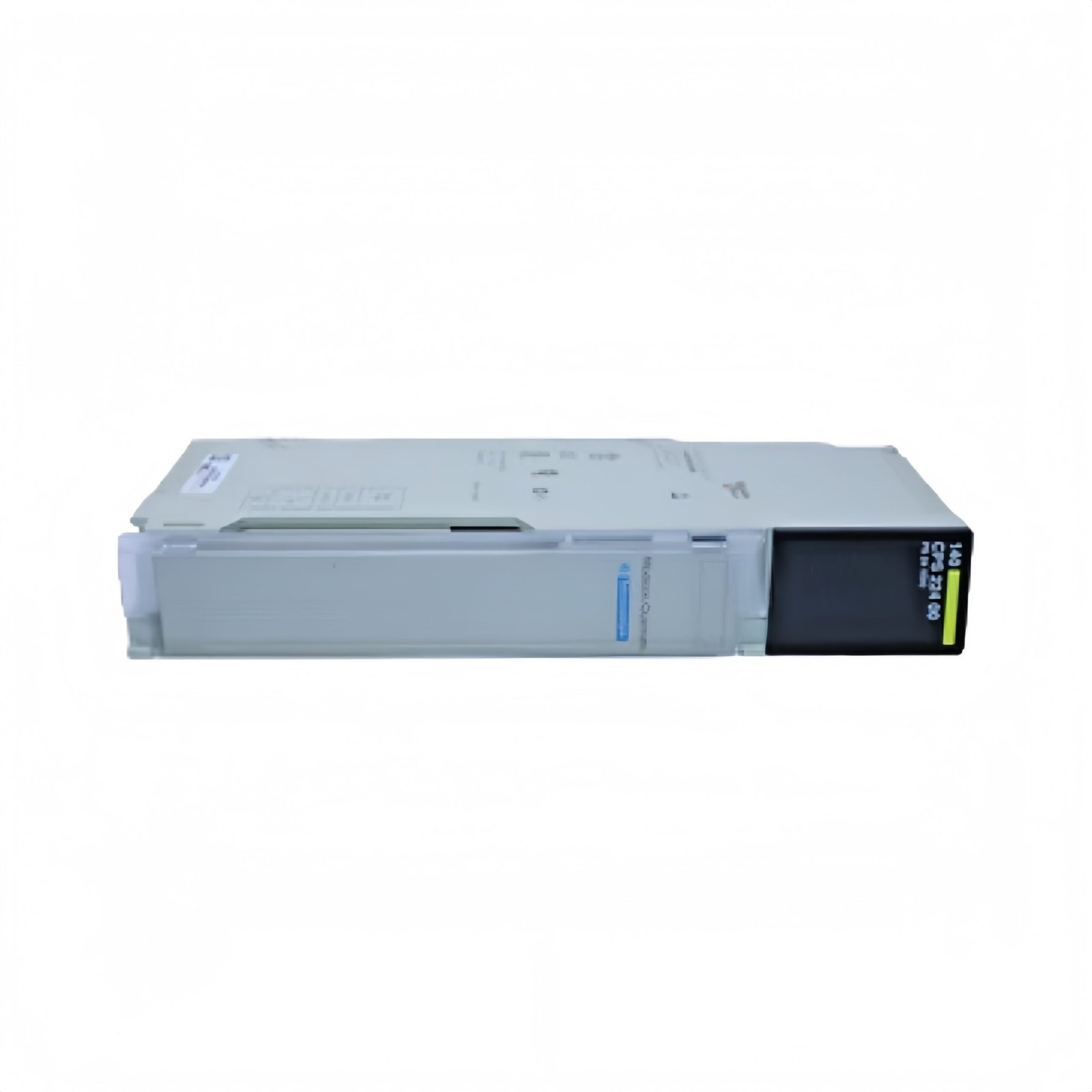

The Schneider Electric Modicon Quantum 140CPS22400 delivers robust and reliable power for your automation system. This module accepts a 24V DC input, which can safely range from 20 to 30 volts. Moreover, it incorporates internal overvoltage protection to guard against electrical spikes.
Core Technical Specifications
The 140CPS22400 provides a steady 5.1V DC output with a redundant 8A current capacity. Consequently, it ensures continuous operation for critical control components. Its design tolerates input power interruptions of up to 100 milliseconds without disruption.
Built for Demanding Environments
This power supply module maintains full performance in temperatures from 0°C to 60°C. Furthermore, it can be stored in environments as cold as -40°C or as hot as 85°C. The unit also operates reliably at up to 95% relative humidity in non-condensing conditions.
Safety and Physical Details
For safety, the 140CPS22400 includes a 5A slow-blow fuse and features CE marking. It has a standard module format and a manageable weight of 0.91 kg (2.00 lbs). Finally, this design ensures seamless integration into any Modicon Quantum rack configuration.
Key Parameters at a Glance
| Parameter | Specification |
|---|---|
| Manufacturer & Series | Schneider Electric Modicon Quantum |
| Model Number | 140CPS22400 |
| Input Voltage | 24 V DC (20-30 V range) |
| Input Current | 3800 mA |
| Output Voltage | 5.1 V DC |
| Output Current | 8 A (Redundant) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | 0.91 kg (2.00 lbs) |
| Rated Fuse | 5 A, slow-blow |
| Power Interruption Hold | 100 ms max |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
