Product Overview

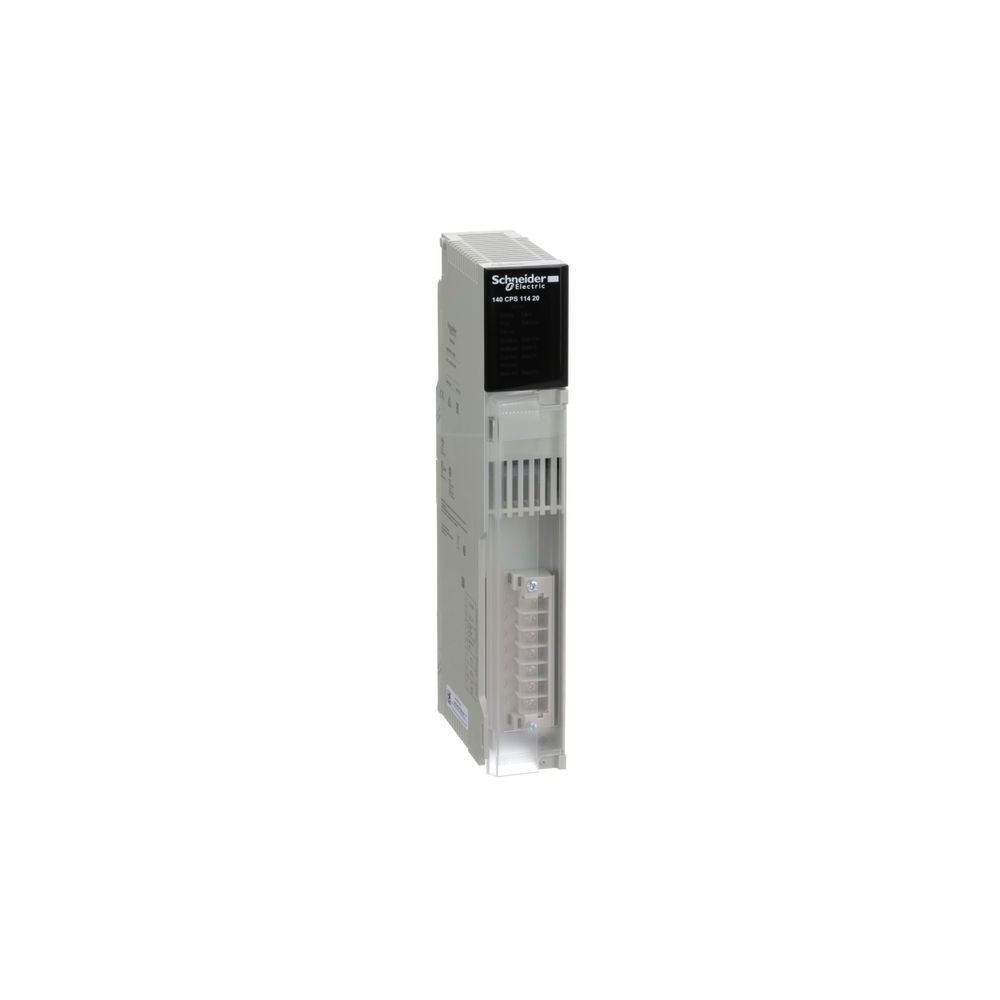

The Schneider Electric 140CPS11420 Modicon Quantum Power Supply Module is a high-performance unit designed for reliable operation within Quantum™ automation platforms. It provides consistent power for process and control systems, supporting both standalone and summable configurations. With advanced protection circuits and durable construction, it ensures stable 5.1 V DC output even under challenging industrial conditions. Moreover, its compatibility with a wide range of Modicon Quantum controllers makes it an excellent choice for large-scale process applications.
Functional Highlights
This power supply module delivers superior stability and low harmonic distortion, ensuring minimal interference in automation systems. In addition, its internal overvoltage and overload protection enhance reliability and operational safety. The built-in LED power indicator and alarm relay output allow quick fault detection, while the conformal-coated PCB guarantees long-term durability in harsh environments.
Key Benefits:
- Compatible with Modicon Quantum PAC systems
- Wide input range of 115/230 V AC, 47–63 Hz
- Supports summable operation up to 20 A total current
- Certified to UL 508 and CSA C22.2 No 142 standards
- Compact, lightweight design (0.65 kg) for easy cabinet integration
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Schneider Electric |
| Model Number | 140CPS11420 |
| Product Type | Modicon Quantum Power Supply Module |
| Input Voltage | 115 V AC (93–132 V) / 230 V AC (170–276 V) |
| Input Current | 1.3 A @ 115 V / 0.75 A @ 230 V |
| Inrush Current | 19 A @ 230 V / 38 A @ 115 V |
| Rated Power | 130 VA |
| Output Voltage | 5.1 V DC |
| Output Current | 11 A (standalone) / 20 A (summable) |
| Protection | Internal overvoltage & overload |
| Alarm Output | 1 NC 6 A 220 V (fault) |
| Indicators | LED (green) – Power OK |
| Operating Temperature | 0 – 60 °C (32 – 140 °F) |
| Storage Temperature | −40 – 85 °C (−40 – 185 °F) |
| Humidity | ≤ 95% RH (non-condensing) |
| Altitude | ≤ 5,000 m (16,404 ft) |
| Certifications | UL, CSA, cUL |
| Compliance | CE Mark, TUV Certified |
| Net Weight | 0.65 kg (1.43 lb) |
| Country of Origin | United States |
Typical Applications
The 140CPS11420 module is ideal for process industries, water treatment plants, energy systems, and infrastructure automation. It integrates seamlessly into Modicon Quantum architectures, supporting daisy-chain, loop, ring, star, and bus Ethernet topologies. Furthermore, it ensures dependable operation in mission-critical control environments where uptime is essential.
FAQ
Q1: Is the Schneider Electric 140CPS11420 an original product?
Yes, all 140CPS11420 modules are brand-new and 100% original Schneider Electric products, available in stock.
Q2: What is the estimated delivery time?
Typical delivery takes 3 days – 2 weeks, depending on order quantity. We ship globally via DHL, FedEx, or UPS.
Q3: What warranty and return support are provided?
This module includes an 18-month warranty and supports returns within 30 days for any verified quality issues.
Details
| Weight | 0.785 kg |
|---|
