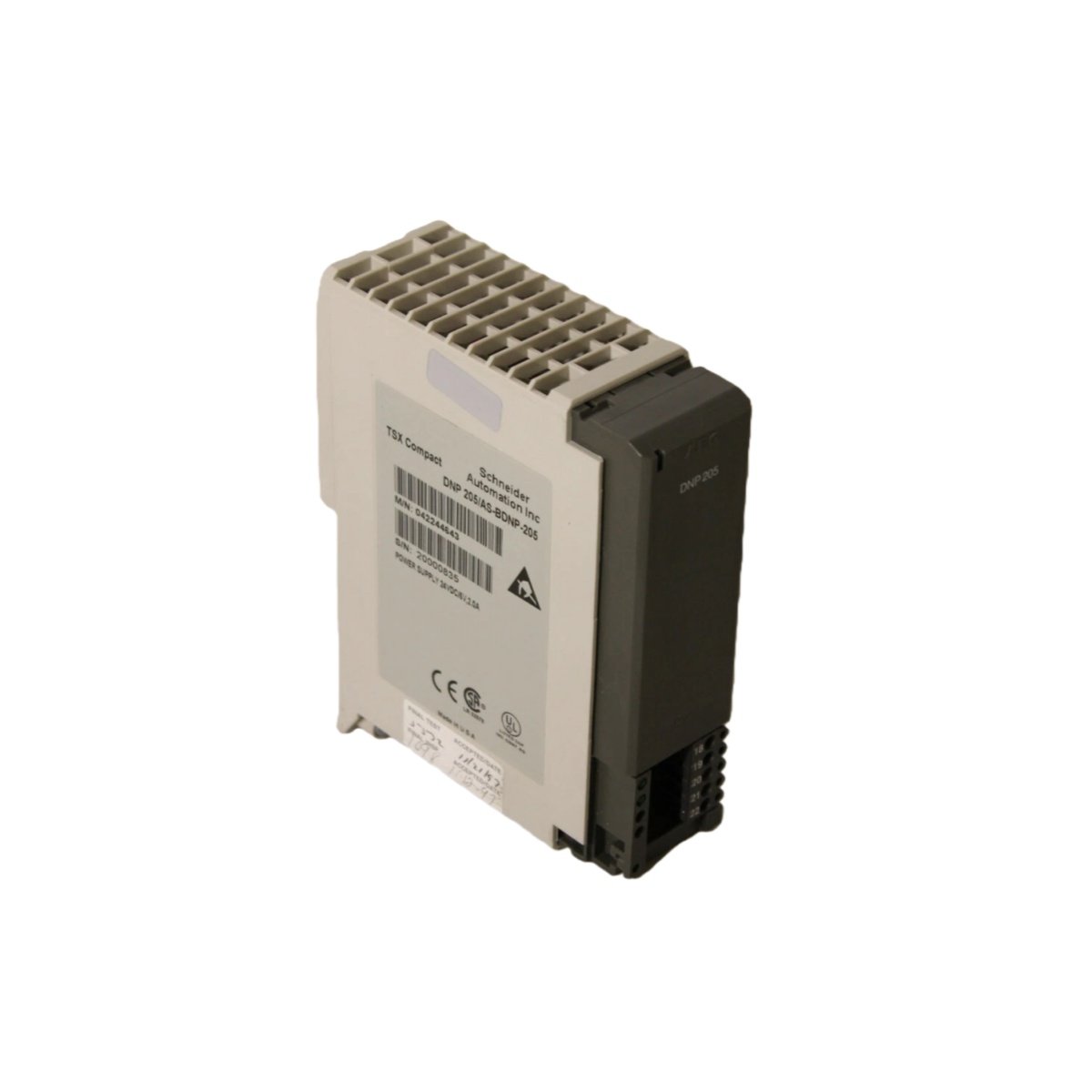

The Schneider DNP 210 functions as a reliable power supply unit designed for industrial automation and control applications. This module converts main AC voltage into stable DC power for connected field devices and controllers. Consequently, it ensures uninterrupted operation of sensors, actuators, and communication equipment in manufacturing environments.
Technical Specifications and Physical Characteristics
Engineers require precise electrical and mechanical data for effective system integration. Therefore, we present the complete specifications for the Schneider DNP 210:
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Industrial Power Supply Unit |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Output Voltage | 24 VDC ± 1% |
| Output Current | 10 A continuous |
| Output Power | 240 Watts |
| Dimensions | 130 mm x 70 mm x 115 mm |
| Weight | 0.85 kg |
| Efficiency | > 90% at full load |
| Energy Storage | > 20 ms hold-up time |
| Protection Features | Overload, overvoltage, short circuit |
| Isolation | 3000 VAC input to output |
| Connector Type | Screw terminals (input and output) |
| Operating Temperature | -25°C to 70°C (derating above 60°C) |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | DIN rail TS35 |
Advanced Power Management Features
The DNP 210 incorporates active power factor correction to minimize harmonic distortion on the main supply. Additionally, it delivers full output power continuously even under demanding industrial conditions. This unit includes LED indicators for power presence and output status monitoring. You can integrate this power solution with protection devices like the RMS TSG TZ C static trip unit for comprehensive system safety. Furthermore, the Schneider DNP 210 provides electronic short-circuit protection with automatic recovery after fault clearance.
Operational Benefits and Energy Storage
This power supply maintains output voltage within 1% regulation despite input fluctuations or load changes. Moreover, its energy storage capacitors guarantee >20 ms hold-up time during brief mains interruptions. The DNP 210 achieves over 90% efficiency, significantly reducing waste heat inside control cabinets. Its compact DIN rail design saves valuable panel space while allowing side-by-side mounting without derating. Typical applications include PLC systems, industrial sensors, access control, and process instrumentation.
Installation Guidelines
Mount the Schneider DNP 210 securely onto a standard TS35 DIN rail within a ventilated enclosure. Ensure proper wire sizing for the 10 A output capacity to minimize voltage drop. Maintain adequate spacing around the unit for natural convection cooling. Finally, verify correct input voltage selection before applying power to the module.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
