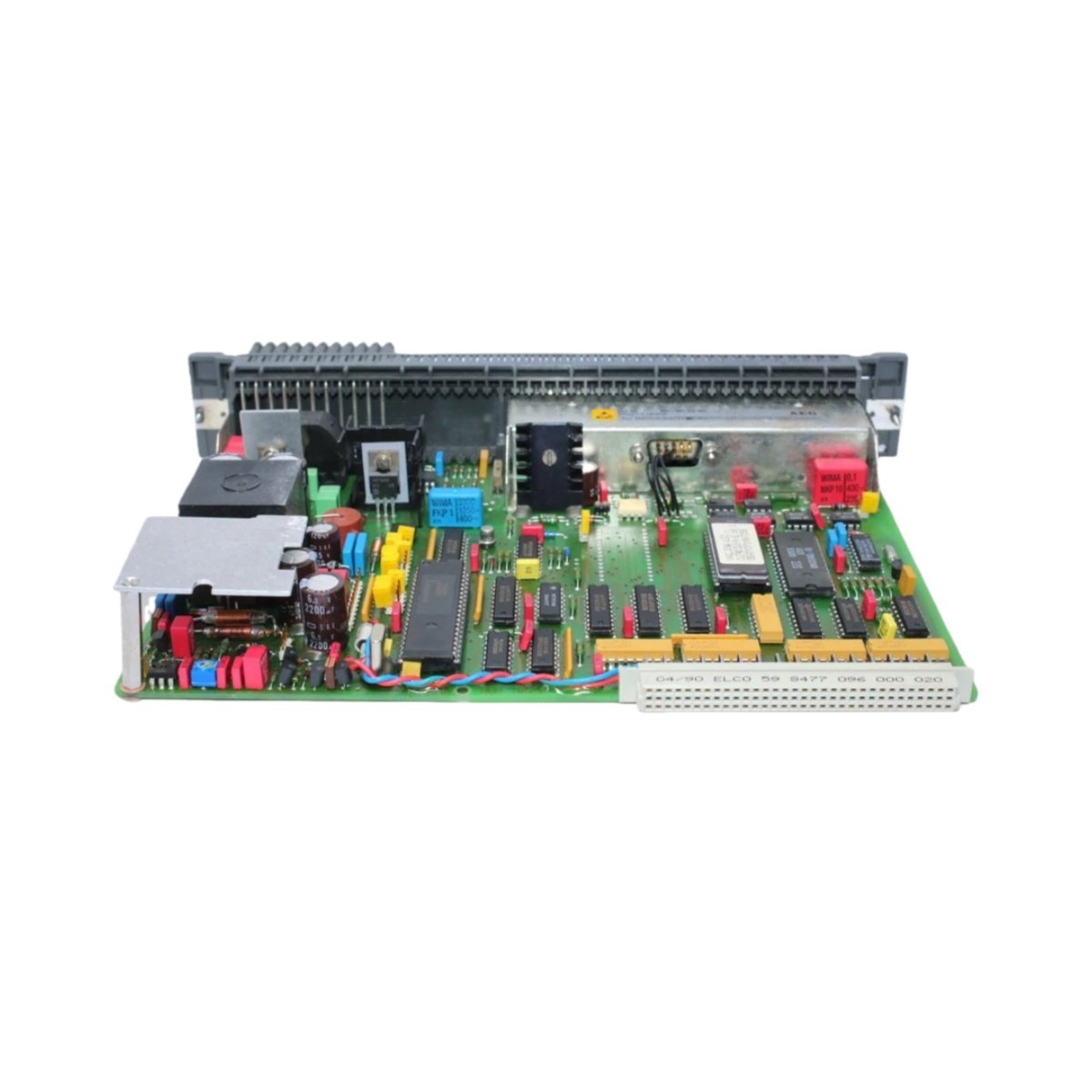

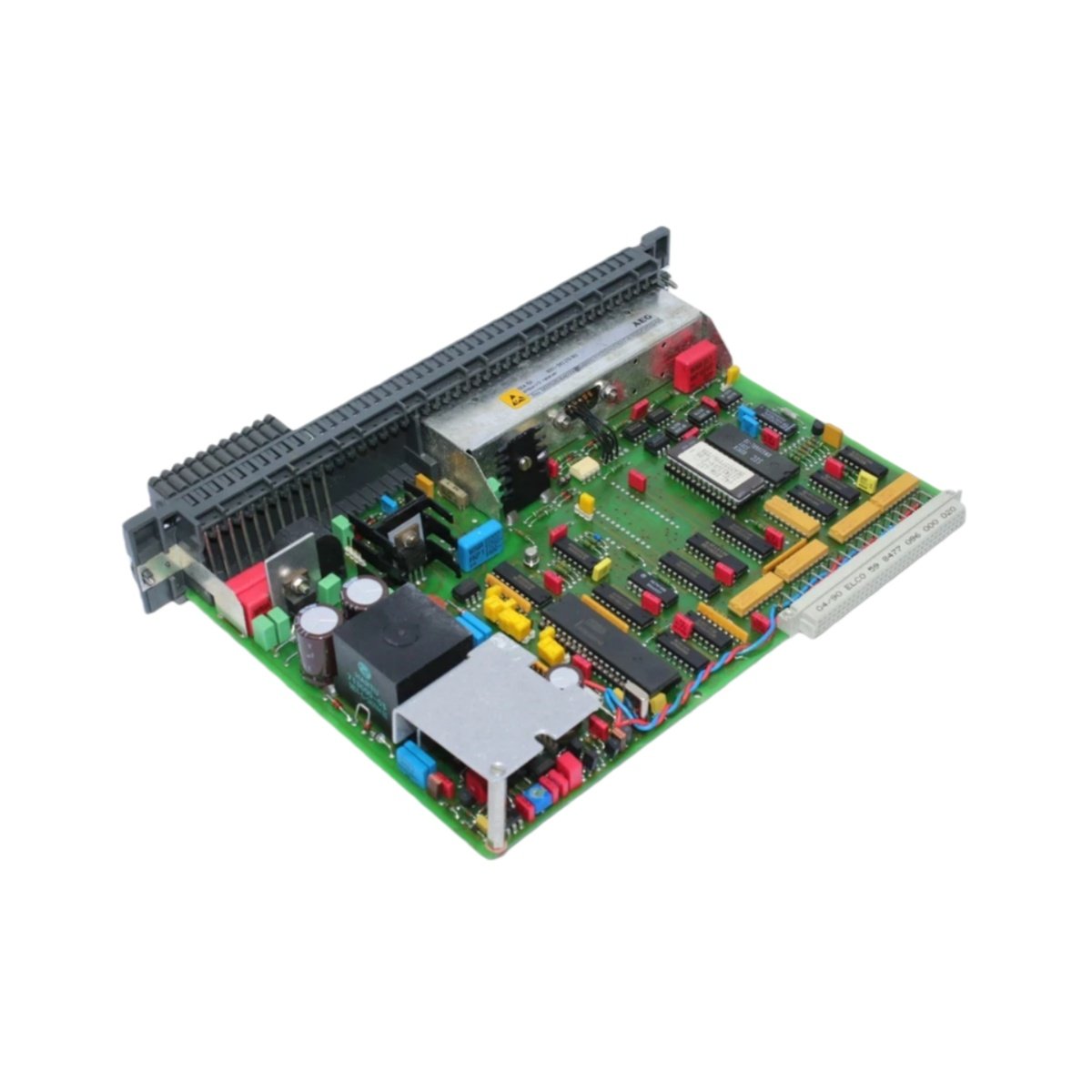

Industrial control systems require reliable communication interfaces for seamless data acquisition. The DEA 156 from Schneider Electric serves as a dedicated Bitbus-I/O receiver module for distributed control architectures. It facilitates robust signal reception and processing within complex automation networks.

Precision Signal Reception for Distributed Networks

The DEA 156 functions as a critical interface component within Schneider’s distributed I/O solutions. It specifically handles Bitbus protocol communication, ensuring accurate data transfer between field devices and the central controller. Therefore, this module maintains signal integrity across extended network distances.

Engineers value the DEA 156 for its deterministic performance in noisy industrial environments. It effectively decodes incoming Bitbus messages for processing by the host system. Moreover, its compact design allows for efficient installation within crowded control panels.

Technical Specifications

Below are the key technical details for the DEA 156 Bitbus-I/O receiver module:

• Manufacturer: Schneider Electric

• Product Type: Bitbus-I/O Receiver Module

• Product Line: Bitbus I/O

• Part Number: DEA 156

• Function: Bitbus protocol signal reception and conversion

• Form Factor: Compact module for panel mounting

• Compatibility: Schneider Electric Bitbus-based I/O systems

• Input Interface: Bitbus compatible (RS-485 based)

• Output Interface: Parallel I/O bus

• Isolation: Typically provides optical isolation for signal integrity

• Power Supply: 5V DC from backplane or external source (verify per system)

• Indicators: LED status indicators for power and communication activity

Integration and Application Details

Integrating the DEA 156 into your existing setup requires attention to network topology and termination. It typically connects to the main Bitbus trunk cable through a dedicated port. Consequently, you can extend your distributed I/O network reliably across manufacturing cells.

This module supports various industrial applications requiring robust fieldbus communication. For instance, it works well in material handling systems alongside protective components like the RMS TSG TZ C Static Trip unit. Additionally, its straightforward addressing simplifies configuration within larger Schneider Electric automation architectures.

The DEA 156 remains a reliable choice for maintaining legacy Bitbus networks. Its focused functionality ensures minimal latency in signal processing. Ultimately, this receiver module exemplifies Schneider Electric’s commitment to durable and precise industrial communication components.
