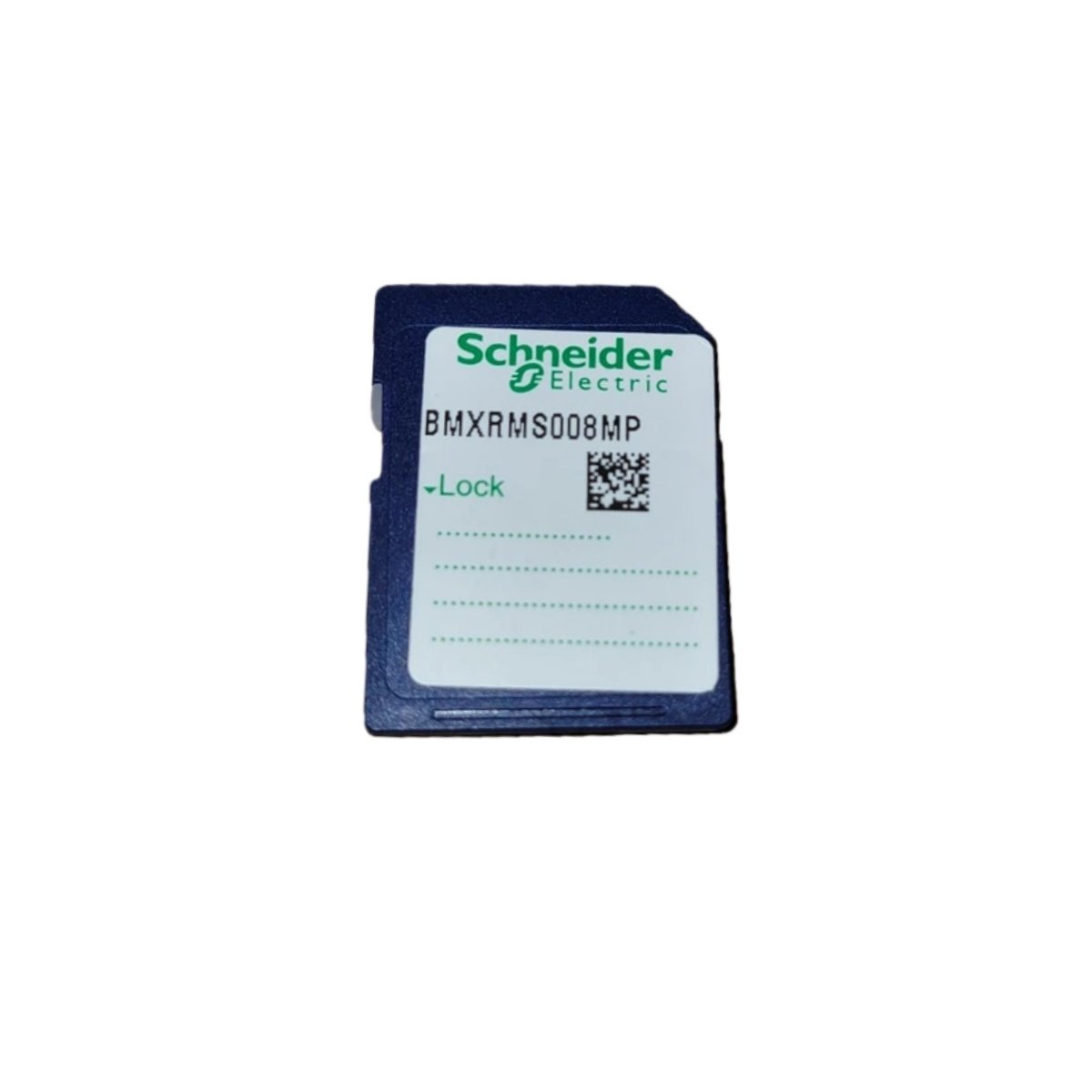

This SD flash memory card stores project data for Schneider Modicon M340 PLC systems. It provides non-volatile storage for user programs and configuration files. Therefore, this accessory enables quick controller replacement without reprogramming.
Physical Dimensions and Weight Specifications
The Schneider BMXRMS008MP features a compact plastic housing for easy handling. Its dimensions match standard SD card specifications. The card weighs approximately 0.01 kg for straightforward transportation. Consequently, technicians can carry multiple cards in a standard pocket.
| Parameter | Specification |
|---|---|
| Product Model | Schneider BMXRMS008MP |
| Form Factor | SD (Secure Digital) |
| Width | 24 mm |
| Length | 32 mm |
| Thickness | 2.1 mm |
| Weight | 0.01 kg |
Interface Types and Connection Layout
The Schneider BMXRMS008MP uses a 9-pin SD card interface for communication. This interface supports both SPI and SD bus modes. The card inserts directly into compatible M340 PLC slots. Hence, users can install this memory card without tools or adapters.
Component Count and Memory Architecture
This flash memory card contains one PCB with NAND flash chips. The board holds 8 MB of non-volatile storage for user data. You will also find a controller IC for interface management. An onboard write-protect switch prevents accidental data deletion or overwriting.
| Technical Feature | Description |
|---|---|
| Memory Type | NAND flash (non-volatile) |
| Storage Capacity | 8 MB |
| Compatible PLCs | Modicon M340 series |
| Write Protection | Mechanical slider switch |
| Data Retention | 10 years minimum |
Energy Storage and Power Requirements
The Schneider BMXRMS008MP draws 25 mA during read operations. It requires 35 mA when writing data to flash memory. The card contains no internal battery or supercapacitor. Therefore, it retains all data without any external power source indefinitely.
Installation and Data Transfer Performance
Users can copy projects from a PC using a standard SD card reader. The card transfers data at up to 2 MB per second. A status LED on the PLC indicates active read or write operations. This feature prevents card removal during critical data transfers.
