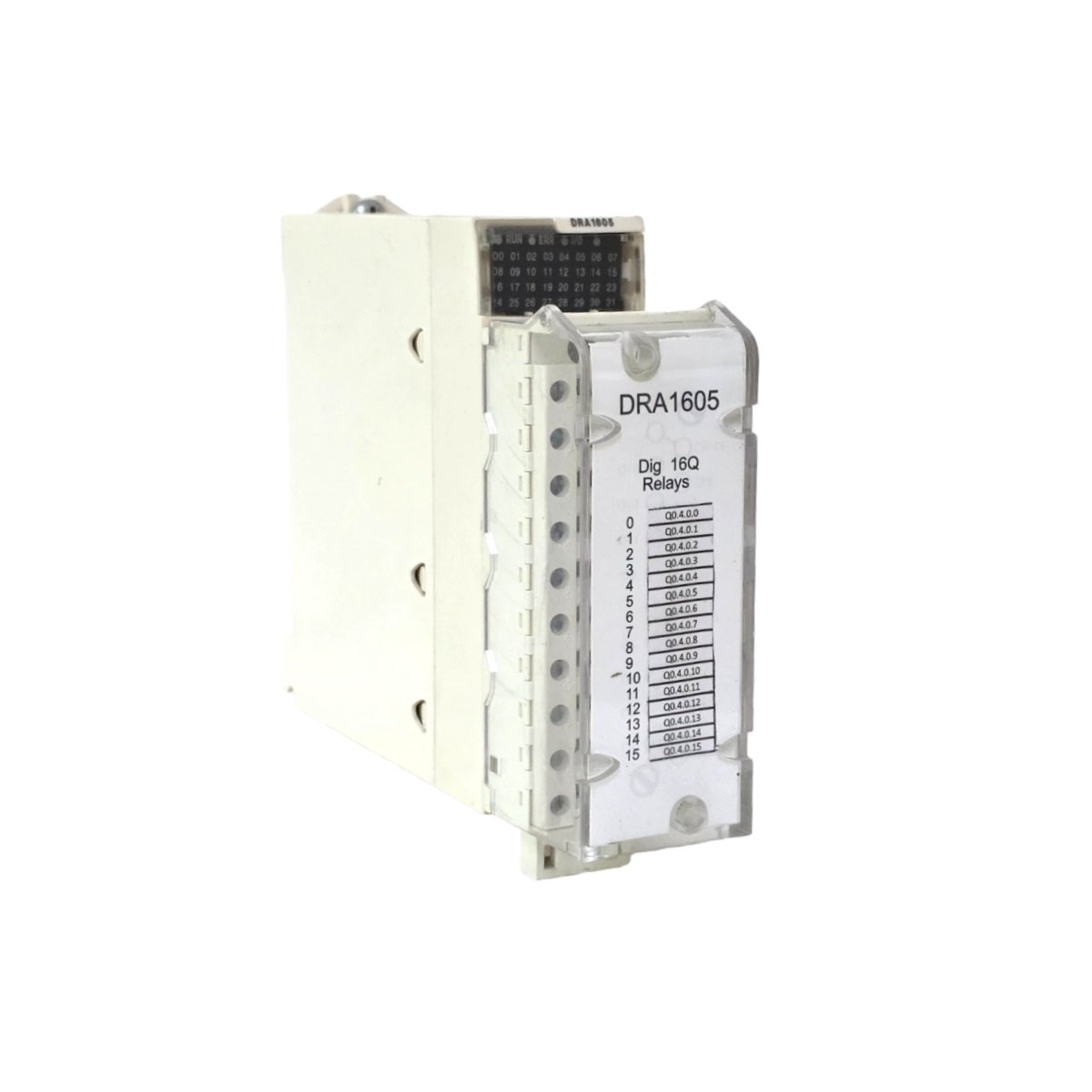

The BMXDRA1605 discrete output module delivers robust switching capabilities for industrial automation systems. Schneider Electric engineered this unit for seamless integration into Modicon X80 series architectures. It controls actuators, solenoids, and indicator lamps with consistent precision. You can deploy this module in both new installations and existing control cabinet upgrades.
Technical Specifications
The BMXDRA1605 combines high-density output channels with reliable electrical performance. The following parameters define its technical capabilities.
| Specification | Detail |
|---|---|
| Model | BMXDRA1605 |
| Manufacturer | Schneider Electric |
| Category | Discrete Output Module |
| Number of Channels | 16 |
| Output Type | Relay, normally open |
| Output Voltage | 24 V DC to 240 V AC |
| Output Current per Channel | 2 A |
| Dimensions (H x W x D) | 105 mm x 32 mm x 125 mm |
| Weight | 0.28 kg |
| Power Dissipation | 4.5 W max |

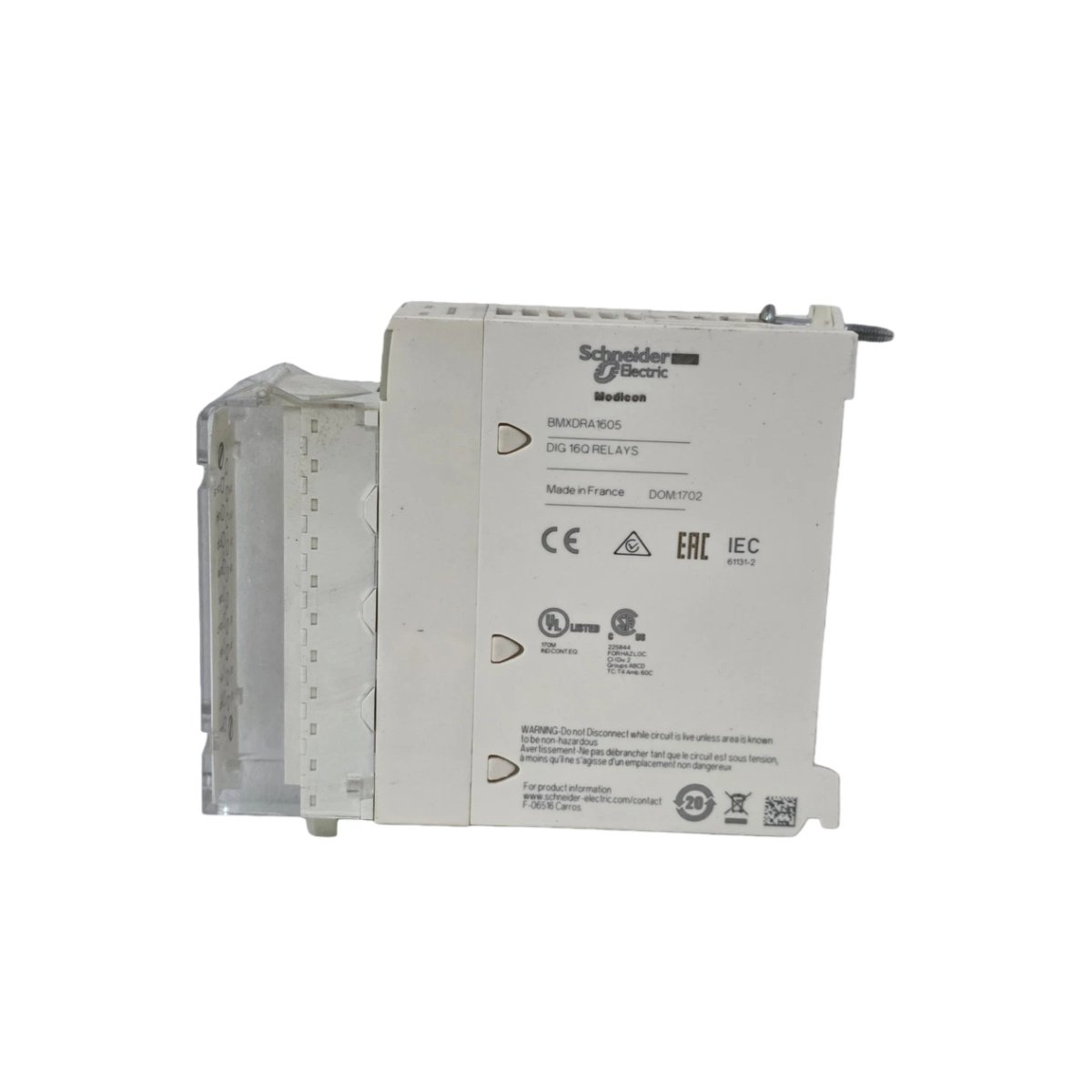

Physical Design and Mounting
The module measures 105 mm in height and 125 mm in depth. Its width occupies just 32 mm for space-efficient cabinet layouts. The unit weighs approximately 0.28 kilograms for straightforward handling during installation. This slim profile supports high-density configurations within control enclosures.
Connectivity and Channel Architecture

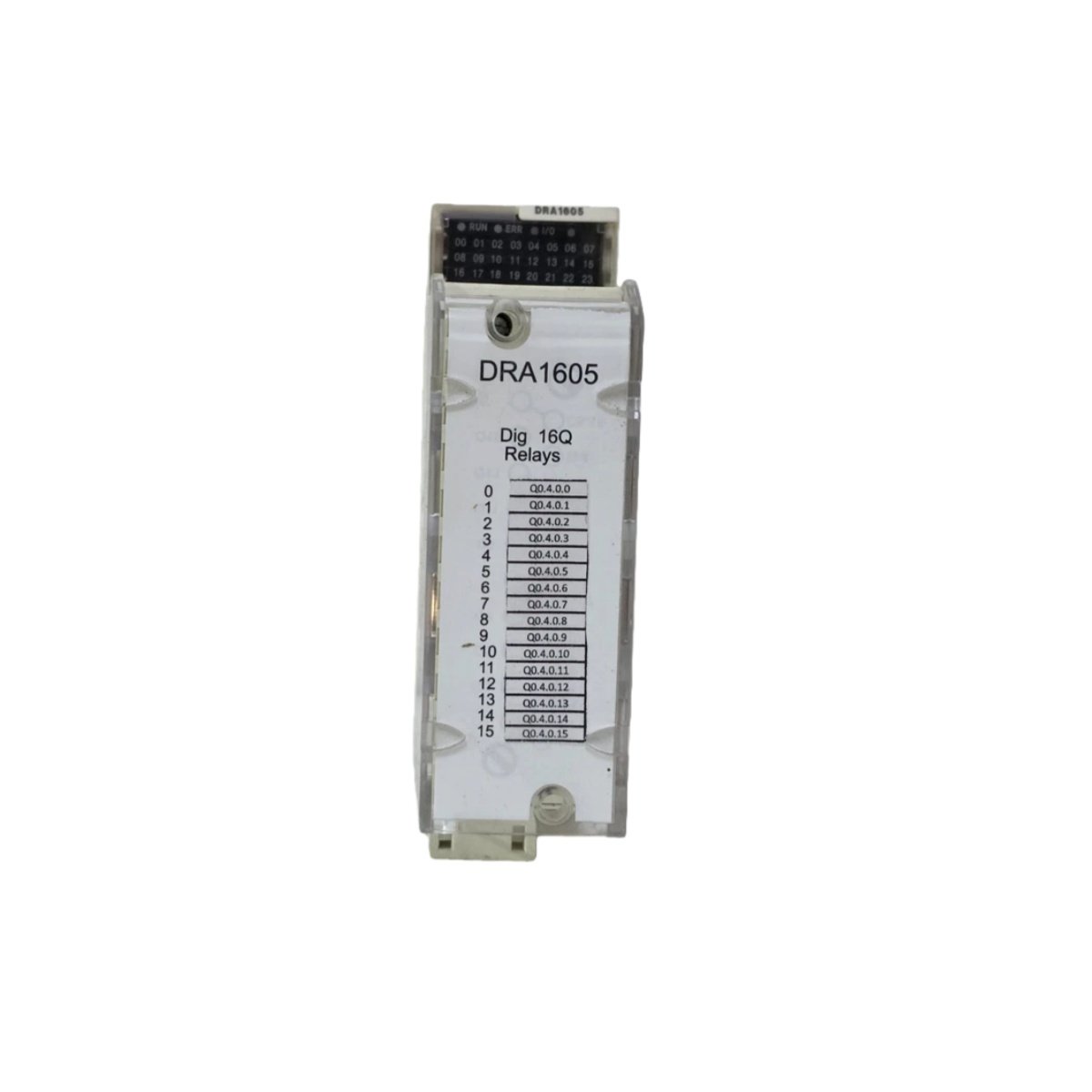

This output module provides 16 independent relay channels for load switching. Each channel uses a normally open contact configuration for reliable operation. The BMXDRA1605 accepts field wiring through a removable terminal block. You can access all connections from the front panel for simplified maintenance tasks.
Power Management and Protection
The system operates with a maximum power dissipation of 4.5 watts. This low thermal output reduces cooling requirements within the control cabinet. Furthermore, each channel includes built-in snubber circuits for inductive load protection. This feature extends contact life when switching motors or solenoids.
Application Scenarios
Engineers select this module for discrete output control in manufacturing environments. It performs reliably in conveyor systems, packaging machinery, and material handling equipment. The BMXDRA1605 also supports lighting control and alarm annunciation tasks. For similar high-quality automation components, you can explore options like the RMS TSG TZ C static trip unit from the same industrial ecosystem.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
