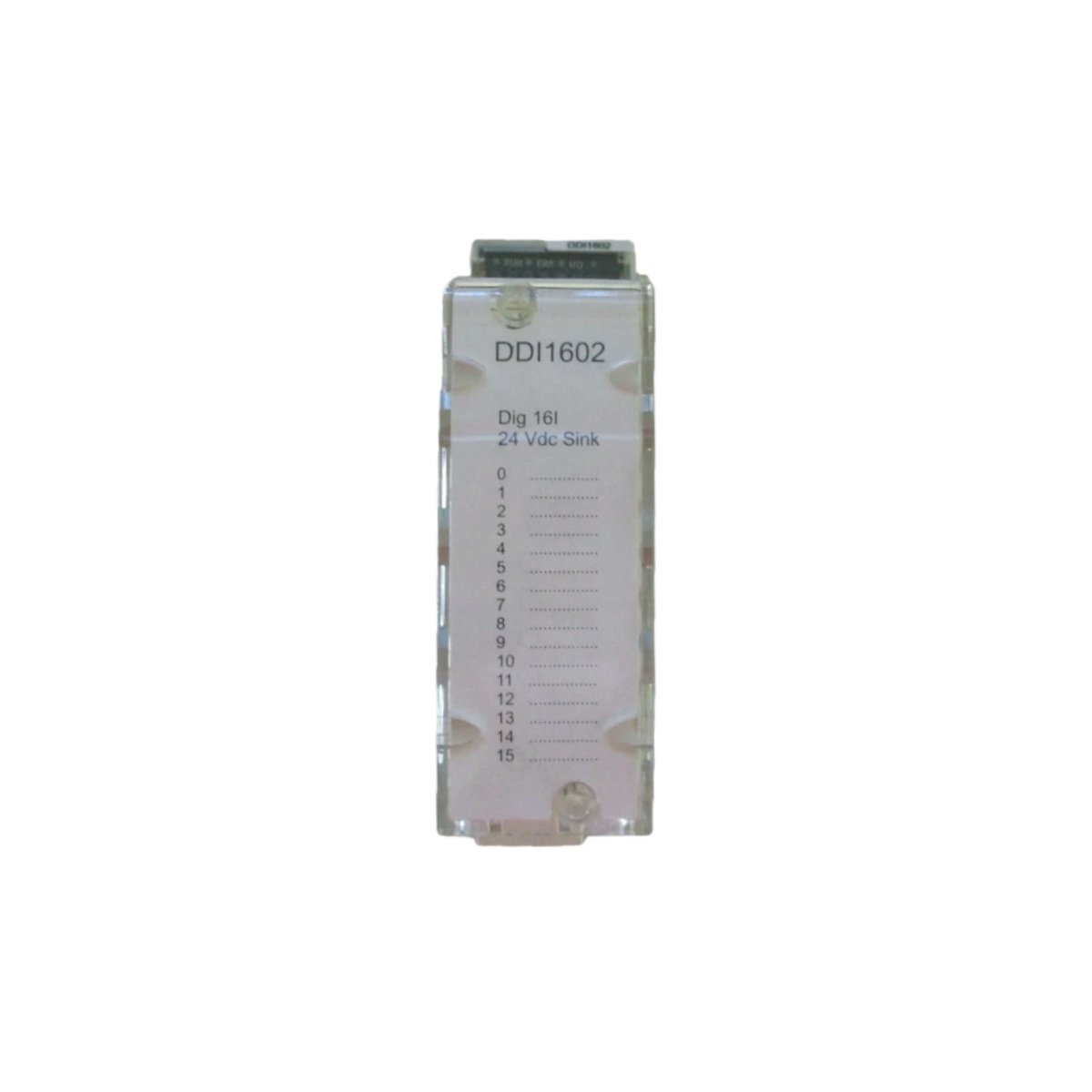

The Schneider BMXDDI1602 functions as a discrete input module within the Modicon M340 automation platform. This unit acquires digital signals from field devices such as limit switches and proximity sensors. Consequently, it provides reliable status monitoring for manufacturing equipment and process control systems.
Technical Specifications and Physical Design
Automation engineers require precise input characteristics for accurate signal detection and system integration. Therefore, we present the complete specifications for the Schneider BMXDDI1602:
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Digital Input Module |
| Series | Modicon M340 |
| Number of Channels | 16 discrete inputs |
| Input Type | Sink/source (positive/negative logic) |
| Input Voltage Rating | 24 VDC |
| Input Voltage Range | 19.2 V to 30 VDC |
| Input Current | 4 mA typical at 24 VDC |
| Isolation Voltage | 1000 Vrms between field and logic |
| Response Time | < 4 ms for OFF to ON transition |
| Input Groups | 2 groups of 8 channels |
| Common Type | 2 commons (one per group) |
| Dimensions | 100 mm x 45 mm x 110 mm |
| Weight | 0.18 kg |
| Power Consumption | 60 mA at 3.3 VDC from backplane |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | M340 rack mounting |
Advanced Input Processing Features
The BMXDDI1602 module detects both sinking and sourcing field devices without requiring wiring modifications. Additionally, each input channel includes built-in LED indicators for immediate visual status confirmation. This module filters electrical noise to prevent false triggering from industrial interference. You can integrate this input module with protection devices like the RMS TSG TZ C static trip unit for comprehensive system monitoring. Furthermore, the Schneider BMXDDI1602 provides optical isolation between field wiring and the internal logic circuits.
Channel Configuration and Electrical Characteristics
This digital input module organizes its sixteen channels into two isolated groups of eight inputs. Each group shares a common connection, simplifying wiring for sensors with similar reference potentials. The BMXDDI1602 requires only 4 mA per channel, minimizing power consumption in large I/O configurations. Its 24 VDC nominal input voltage matches standard industrial sensor outputs without additional signal conditioning. Typical applications include packaging lines, material handling, machine tools, and process monitoring systems.
Installation and Wiring Guidelines
Mount the Schneider BMXDDI1602 securely into any standard M340 rack slot for immediate operation. Use shielded cable for input wiring in electrically noisy environments to maintain signal integrity. Connect all field devices according to the sink/source configuration label on the module front. Finally, verify proper group isolation when mixing different voltage references within the same module.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
