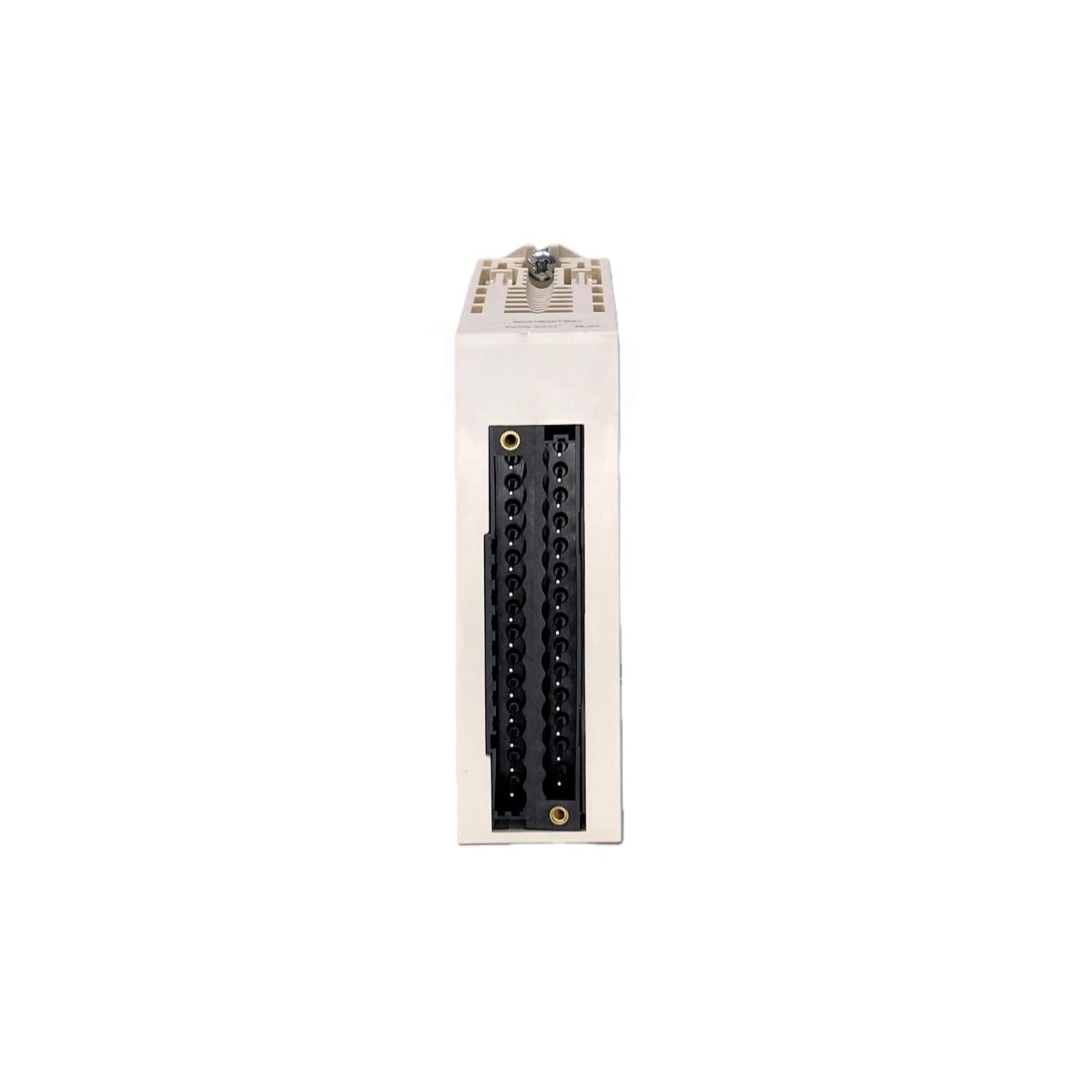

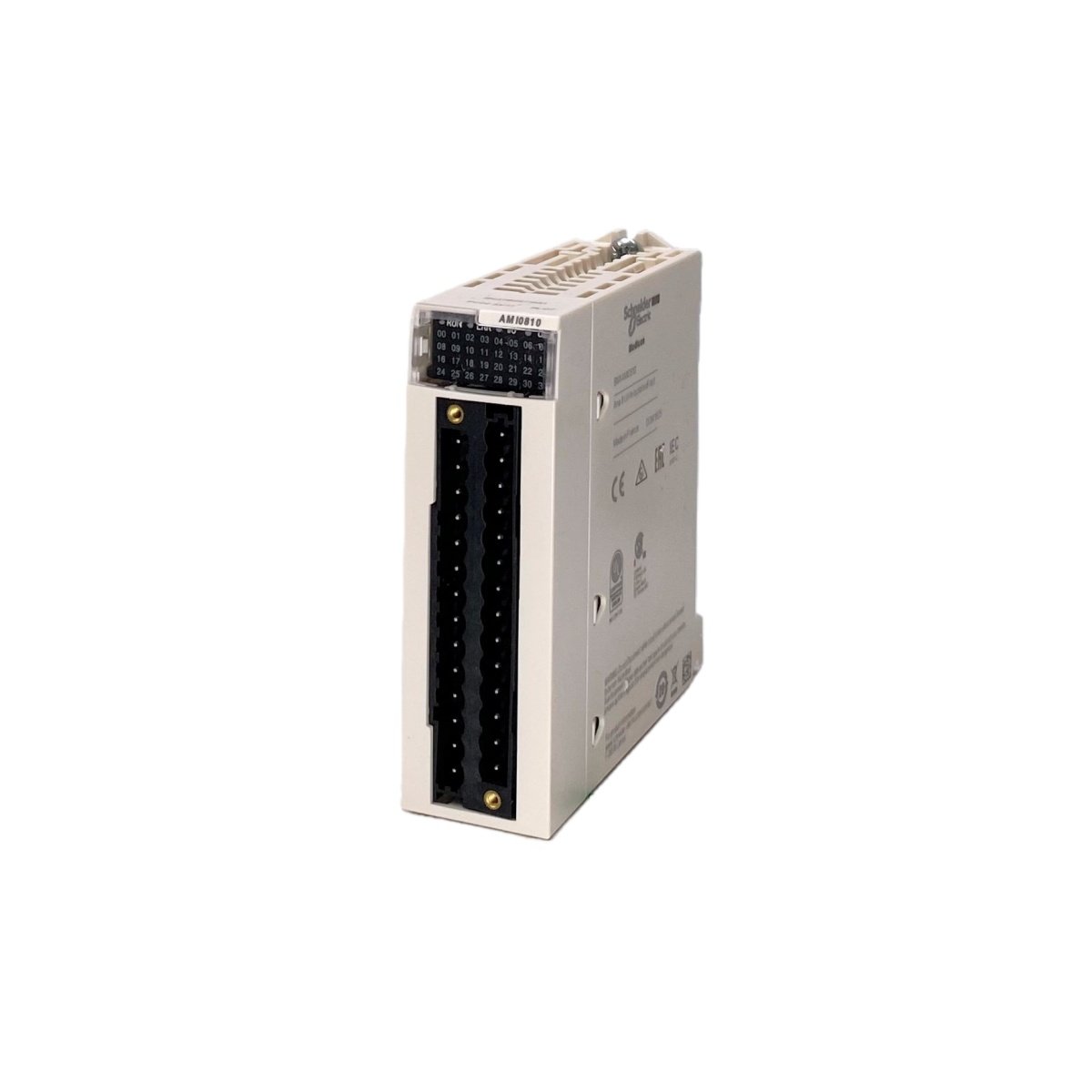

The BMXAMI0810 from Schneider Electric functions as a high-resolution analog input module within the Modicon M340 automation platform. This unit acquires and converts analog signals from industrial sensors, transmitters, and field instruments into digital values for processing. Its 8-channel design accommodates multiple analog inputs while maintaining signal integrity through individual channel configuration. Therefore, engineers can mix voltage and current signals within the same module for maximum wiring flexibility.

Weighing approximately 0.44 lbs (0.20 kg), the BMXAMI0810 features an ultra-compact form factor suitable for DIN rail mounting in space-constrained control panels. The module draws operational power directly from the M340 backplane, consuming 240 mA at 3.3 VDC and 60 mA at 24 VDC. This efficient power consumption makes it ideal for distributed I/O architectures where multiple analog modules share backplane capacity. Additionally, the unit operates reliably across temperatures from 0°C to 60°C, ensuring consistent measurement accuracy in demanding industrial environments.

Comprehensive Analog Input Capabilities

The BMXAMI0810 supports multiple analog signal types, including 0-10 VDC, 0-20 mA, and 4-20 mA current loops for diverse field instrument compatibility. Each of the eight differential inputs provides 16-bit resolution, ensuring precise measurement of process variables such as pressure, temperature, or flow rate. Built-in channel-to-channel isolation protects connected instruments and the backplane from ground loop interference and voltage transients. These isolation features significantly improve measurement accuracy while extending the lifespan of connected field devices.

Advanced Configuration and Diagnostic Features

This analog input module incorporates software-configurable input ranges per channel, eliminating the need for hardware jumpers or switches during installation. It provides high-speed conversion with update rates suitable for most industrial process control and monitoring applications. Onboard LED indicators deliver immediate visual confirmation of module status, active channels, and communication activity during normal operation. These diagnostic features enable maintenance personnel to quickly verify proper operation without connecting to programming software.
