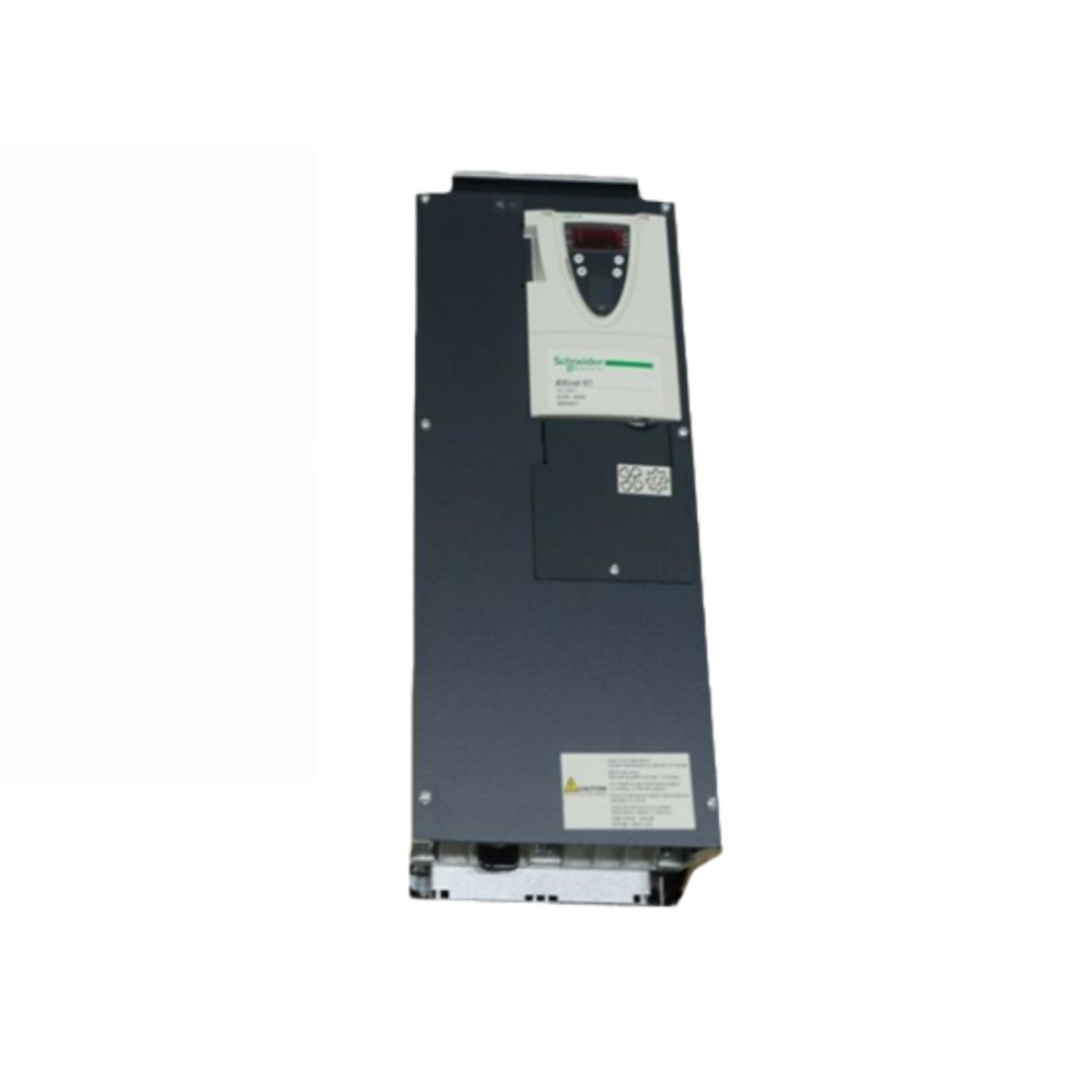

The Schneider Electric Altivar 61 ATV61HD37N4 delivers precise motor control for demanding industrial applications. This robust variable speed drive offers a power rating of 37 kW (50 HP). Furthermore, it ensures reliable performance in high-power environments with complex load demands.

Core Power and Electrical Specifications

The ATV61HD37N4 operates on a standard 380-480V, 3-phase power supply. It manages a line current of 84A at 380V or 69A at 480V during steady operation. Moreover, this drive can handle a substantial transient current of 94.8A for up to 60 seconds. Its apparent power rating reaches 55.3 kVA for significant electrical loads.

Advanced Control and Protection Features

This Altivar 61 drive features an adjustable switching frequency from 1 to 16 kHz. Its nominal switching frequency is typically set at an efficient 12 kHz. The integrated Level 3 EMC filter significantly minimizes electromagnetic interference. Consequently, it protects sensitive equipment and ensures stable system performance.

Durable Construction and Safety

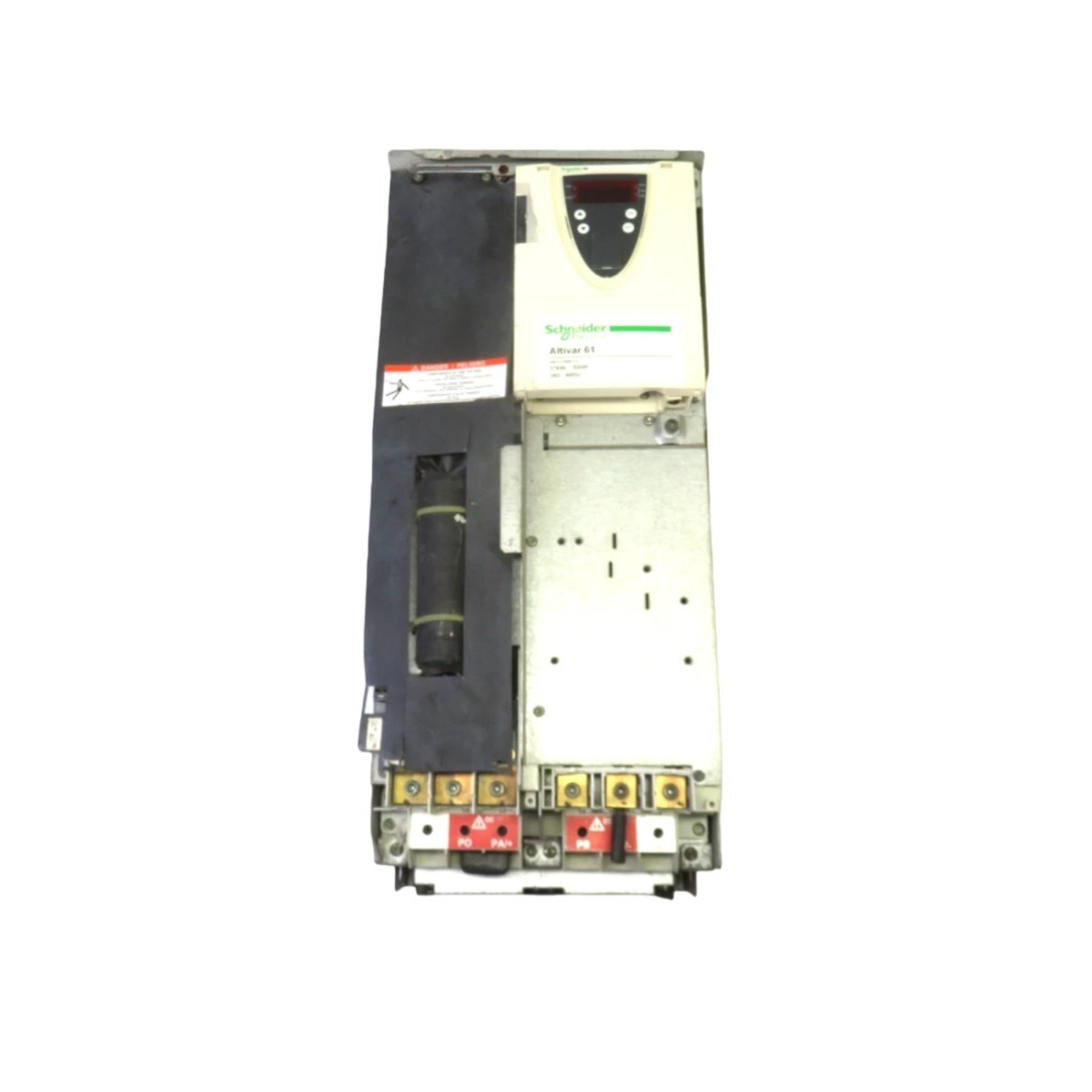

Built with an integrated heat sink assembly, the drive optimizes thermal management. It carries a robust protection rating of IP20 for its internal components. The unit can withstand a maximum prospective line short-circuit current of 22 kA. With a substantial weight of 27.22 kg (60 lbs), it features a durable industrial design.
