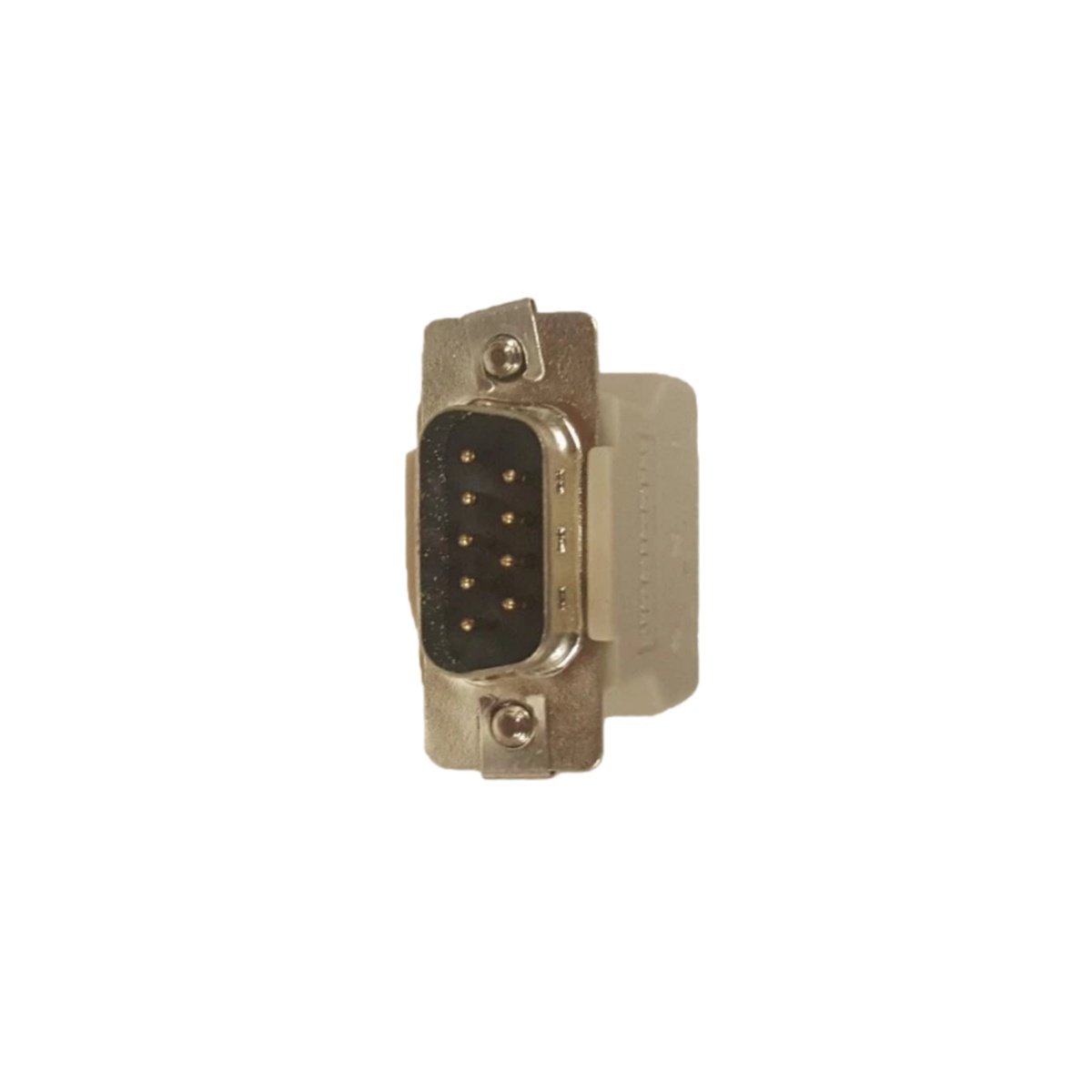

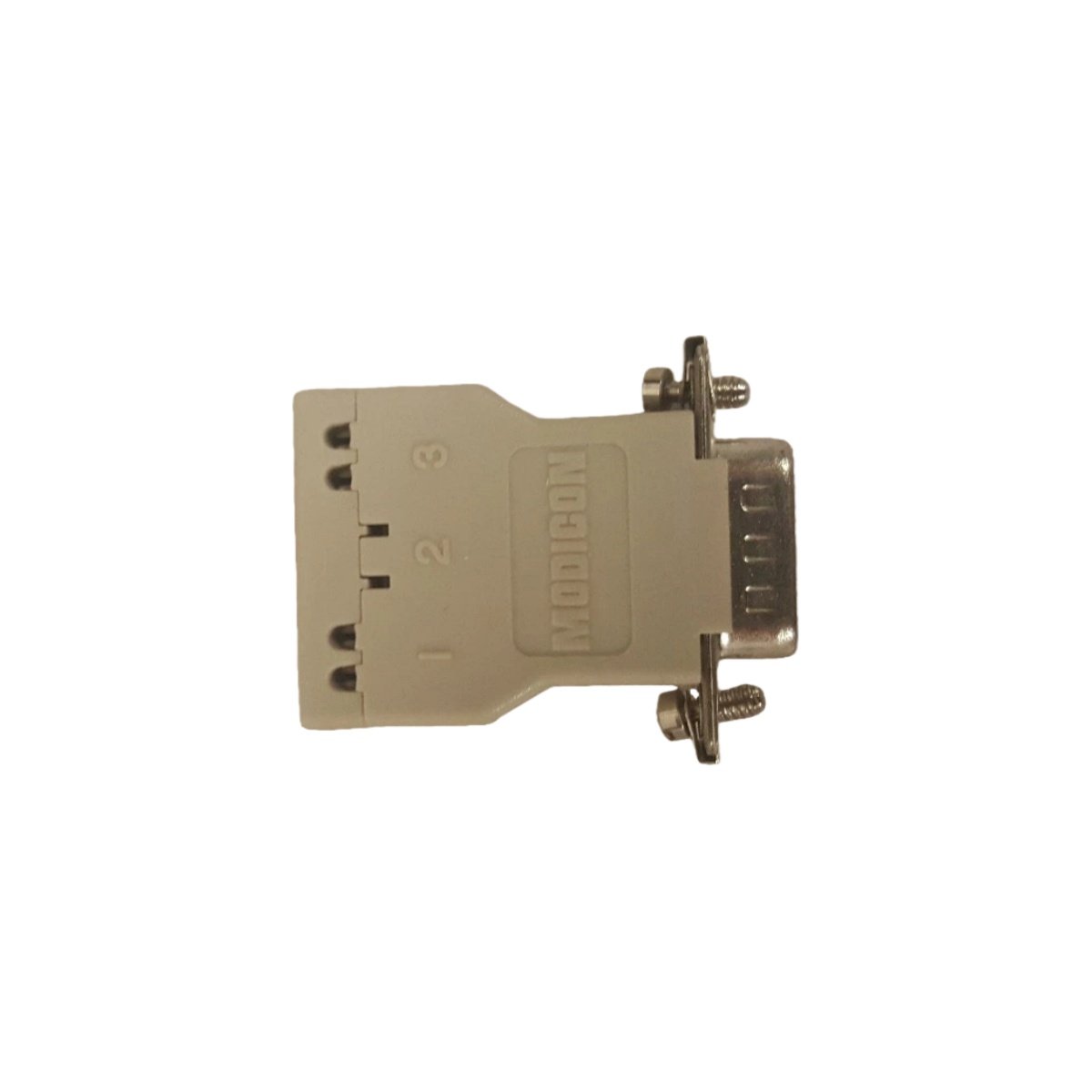

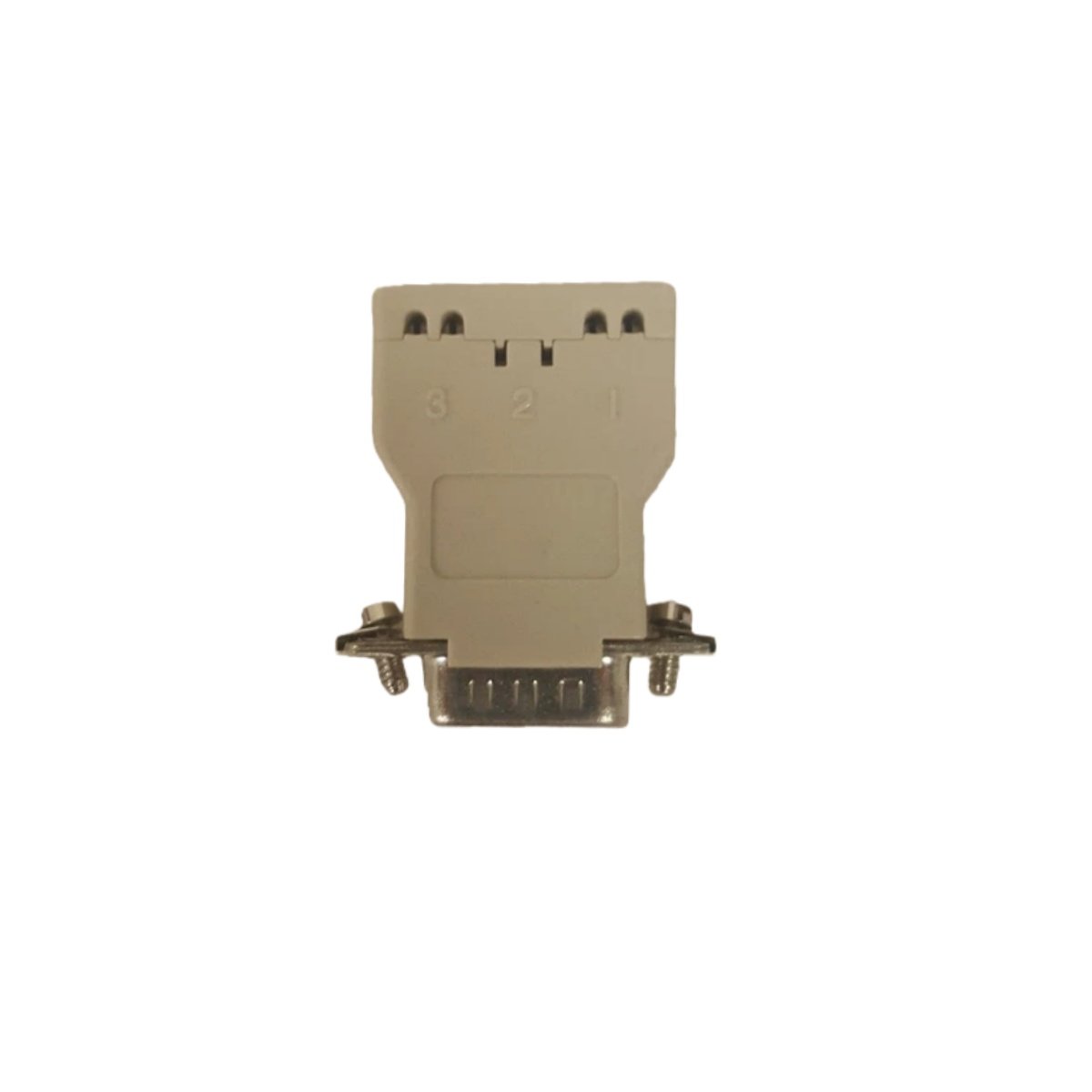

The Schneider ASMBKT185 functions as an essential network termination component for Modicon Modbus Plus communication systems. We design this line terminator to prevent signal reflections and ensure data integrity on Modbus Plus networks. Its proper installation at cable ends maintains communication reliability across the entire automation system. This small component plays a critical role in maintaining error-free industrial network performance.

Key Features and Operational Benefits

The Schneider ASMBKT185 delivers reliable signal termination through its precision-engineered impedance matching circuitry. This line terminator connects at physical endpoints of Modbus Plus trunk cables to absorb signal energy. Consequently, it eliminates reflections that would otherwise corrupt data transmissions between devices. Furthermore, its compact design installs directly on standard screw terminals without requiring additional hardware.

Detailed Technical Specifications

Manufacturers construct the Schneider ASMBKT185 using industrial-grade materials for long-term reliability in control panels. The terminator measures approximately 40 millimeters in height, 25 millimeters in width, and 15 millimeters in depth. Its lightweight design adds negligible mass to network installations while providing critical termination functionality. Additionally, the unit features clearly marked connections for simple and error-free field wiring.

Network Termination Principles

The ASMBKT185 implements proper termination essential for reliable Modbus Plus network operation. Every Modbus Plus trunk cable requires termination at both physical ends to prevent signal reflections. This terminator matches the characteristic impedance of the cabling to absorb arriving signals completely. Therefore, it ensures clean data transmission without ghost signals or corrupted messages.

Physical Connection and Installation

Technicians install the Schneider ASMBKT185 directly onto the two signal wires at cable endpoints. The terminator connects to the data lines using the integrated screw terminals for secure attachment. Its compact size allows installation inside control panels without consuming significant space. Consequently, adding proper termination requires minimal panel space and wiring effort.

Signal Integrity and Communication Reliability

Proper termination using the Schneider ASMBKT185 directly impacts Modbus Plus network communication quality. Without correct termination, signal reflections cause data errors, retransmissions, and network timeouts. The terminator ensures clean signal edges and reliable data reception by all connected devices. Therefore, this component proves essential for maintaining deterministic network performance.

Compatibility with Modicon Systems

Engineers designed the ASMBKT185 specifically for Schneider Electric Modicon Modbus Plus networks. It works with all Modicon processors, I/O modules, and communication adapters using this protocol. The terminator matches the electrical characteristics of standard Modbus Plus cabling perfectly. Consequently, it provides the exact termination impedance required by the network specification.

Industrial Applications and Use Cases

Manufacturing facilities use the Schneider ASMBKT185 across all Modbus Plus network installations. Plant-wide control systems require proper termination at each trunk cable end for reliable operation. Cell controllers, drives, and operator interfaces all benefit from the clean signals this terminator provides. Therefore, this small component supports reliable communication for the entire automation system.

Installation Guidelines and Best Practices

Proper installation of the Schneider ASMBKT185 follows simple but important guidelines for effectiveness. Always install terminators at both physical ends of the main trunk cable, never at intermediate points. Remove any terminators installed at devices when they connect to spurs rather than trunk ends. Following these practices ensures your Modbus Plus network operates with maximum reliability and data integrity.

Maintain Network Performance with Genuine Schneider Components

Choosing the genuine Schneider ASMBKT185 guarantees proper impedance matching for your Modbus Plus network. Aftermarket terminators may not provide the exact electrical characteristics required for signal integrity. Therefore, always source this line terminator from authorized Schneider Electric distributors and partners. For additional automation components, explore our selection of PLC modules similar to the RMS-TSG-TZ-C Static Trip Unit.
