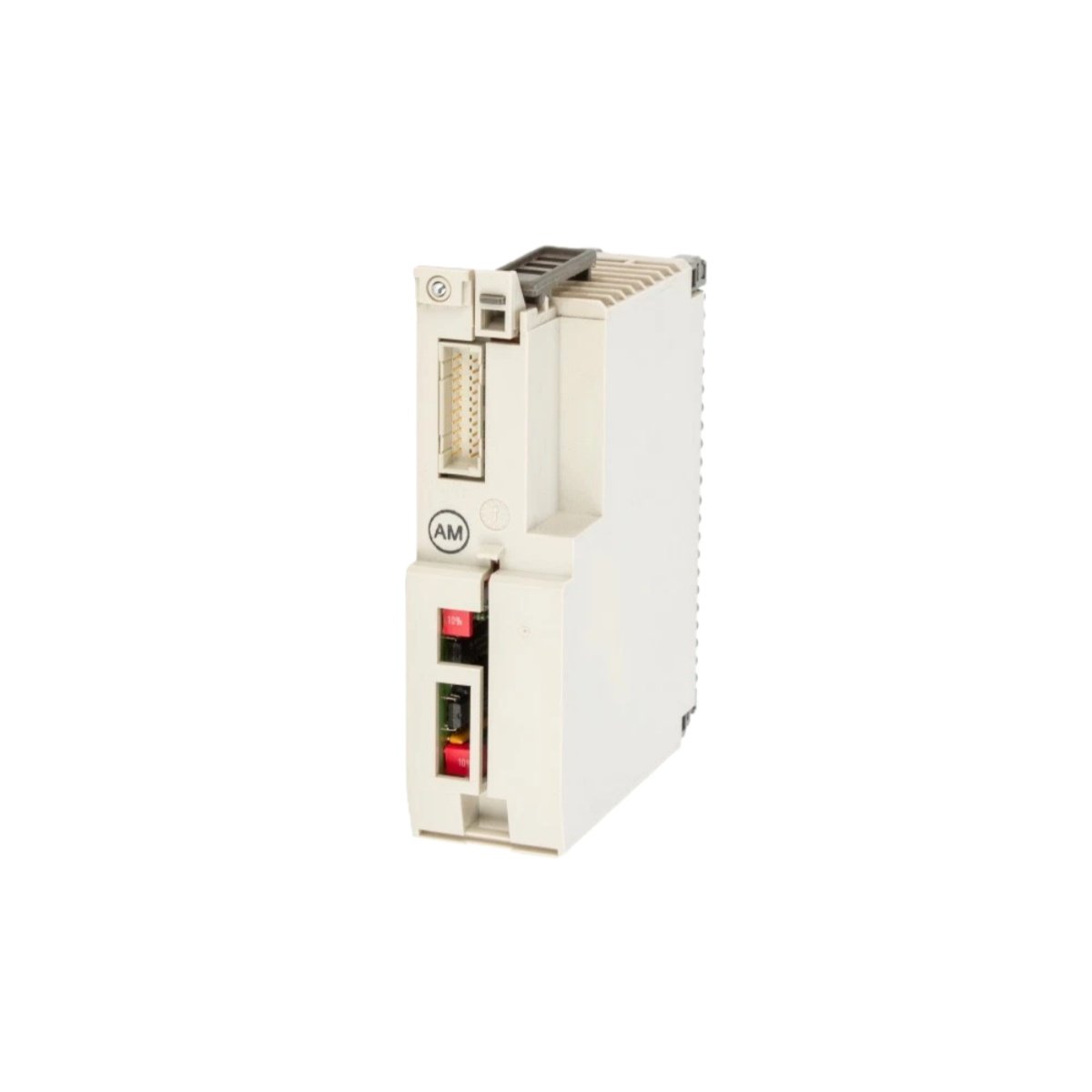

The ASBDEP209 from Schneider Electric functions as a dedicated discrete input module for the legacy 984 Series programmable controllers. Engineers use this unit to interface directly with 115 VAC field devices like sensors and pushbuttons. It provides reliable signal conversion between high-voltage AC inputs and the PLC logic level.

Core Hardware Architecture and Physical Specifications

This input module features a compact form factor designed specifically for 984 Series racks. The unit measures approximately 200 mm x 100 mm x 50 mm and weighs around 0.5 kg. Its rugged thermoplastic housing withstands industrial environmental conditions. Additionally, the front panel includes clear LED indicators for visual status monitoring of each channel.

Input Channel Configuration and Electrical Ratings

The ASBDEP209 provides eight discrete input channels specifically engineered for 115 VAC operation. Each channel accepts voltages ranging from 95 VAC to 132 VAC at 50 or 60 Hz. The input impedance sits at approximately 15 kΩ, ensuring compatibility with standard AC field devices. Furthermore, the module includes built-in filtering to reject electrical noise.

Isolation and Protection Features

Each group of inputs features optical isolation rated at 1500 Vrms from the backplane. This isolation protects the PLC processor from potentially damaging voltage transients. The module also incorporates RC snubber circuits across each input for surge suppression. Consequently, it maintains reliable operation even in electrically noisy environments.

Technical Specifications

Installation and Integration Benefits

The ASBDEP209 mounts easily into any standard 984 Series rack slot with screw terminals. Its dedicated wiring layout simplifies field termination and maintenance access. Users can combine this module with discrete output and specialty modules freely. Therefore, it offers flexible configuration for machine control and process monitoring applications.
