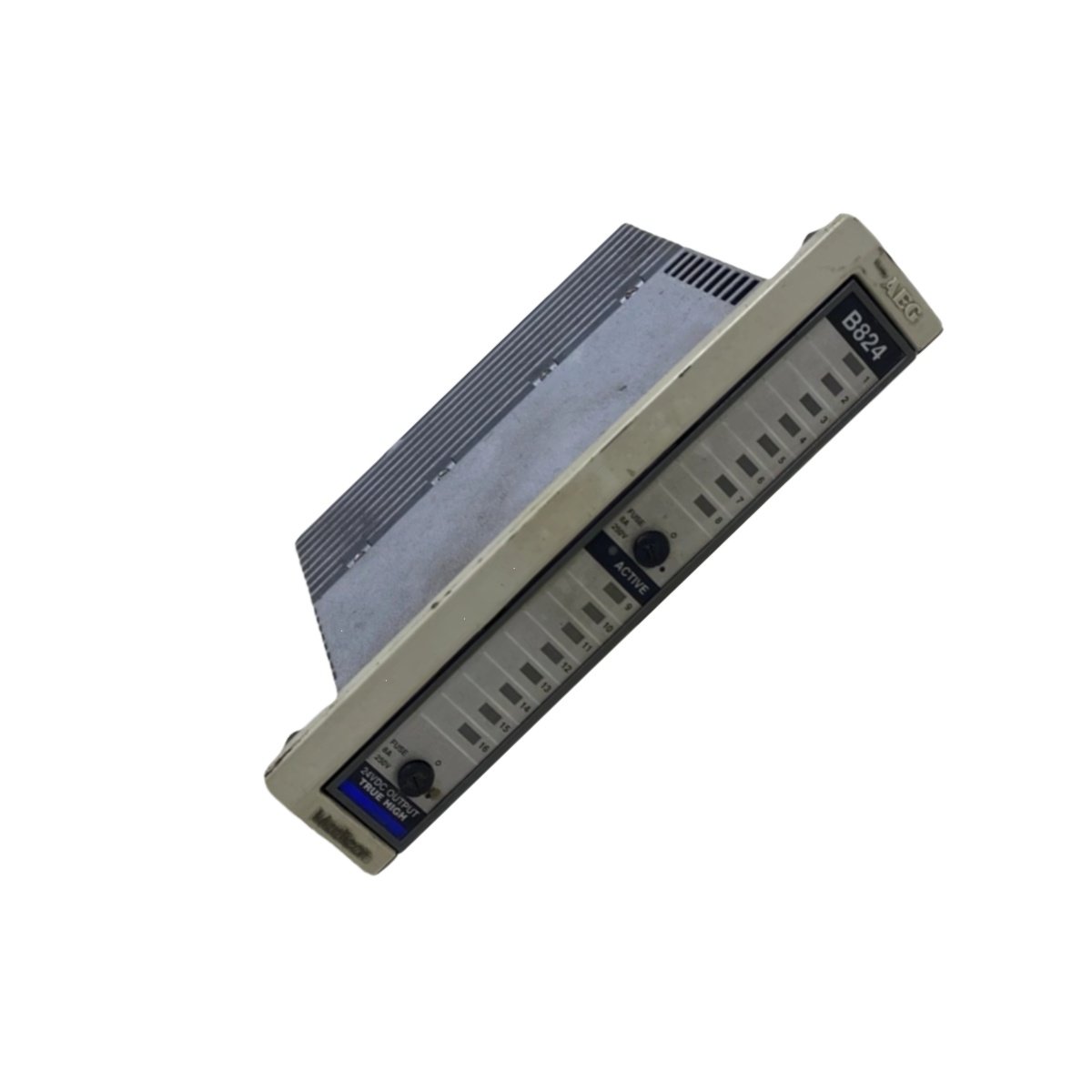

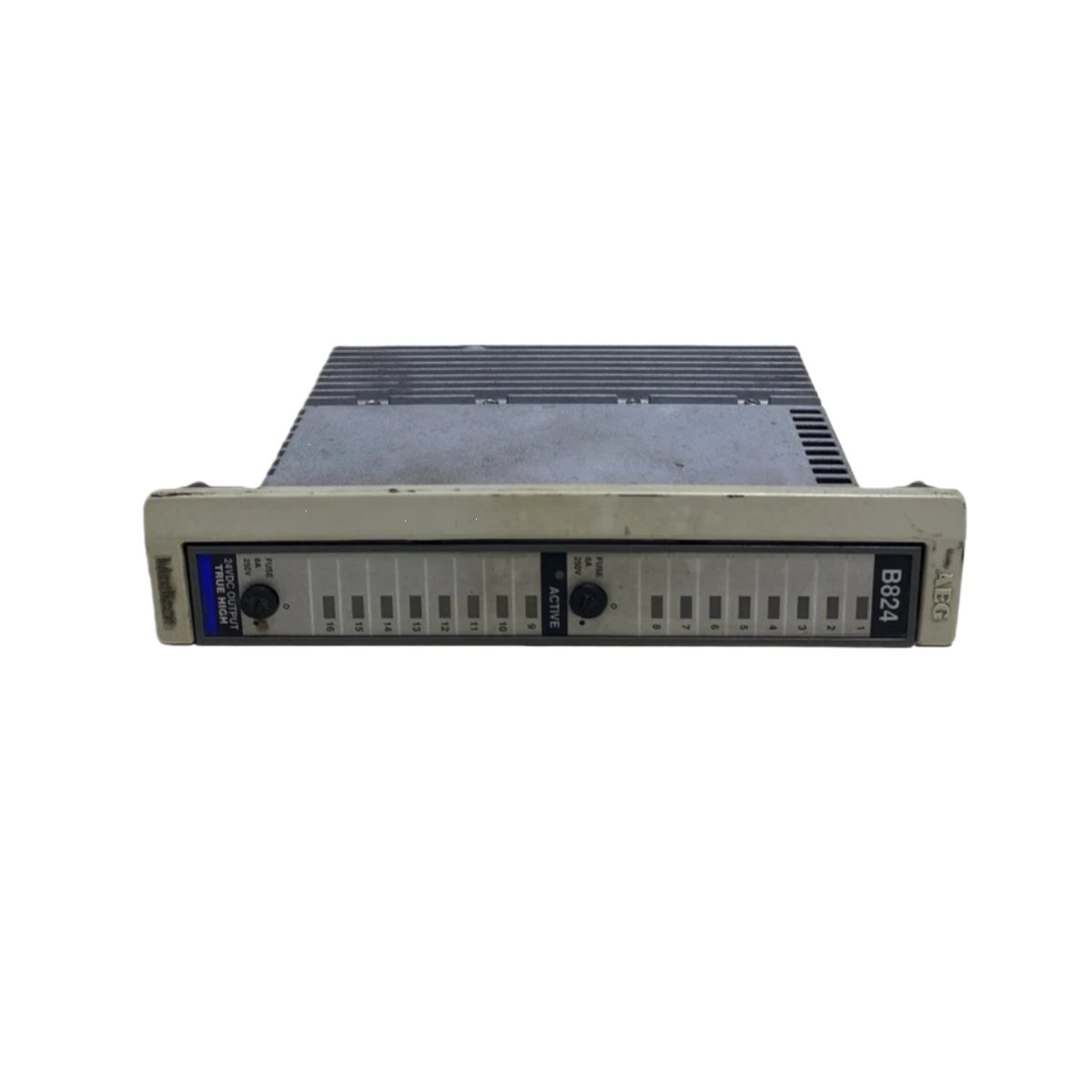

The Schneider ASB824016 provides sixteen discrete output channels for Modicon Quantum automation systems. This module delivers reliable switching for various industrial actuators and indicators. Each output channel supports 24 Vdc operation with built-in protection features. The ASB824016 utilizes advanced transistor technology for fast and precise switching performance. Field wiring connects easily through a detachable terminal block for simplified installation.
Technical Specifications and Physical Characteristics
Precise technical specifications allow engineers to integrate the Schneider ASB824016 confidently into control panels. The module’s robust design ensures long-term reliability in harsh industrial environments.
| Specification | Details |
|---|---|
| Product Type | Discrete Output Module |
| Series | Schneider Electric Modicon Quantum |
| Output Channels | 16 Points (Discrete) |
| Output Type | Transistor (Positive Logic) |
| Voltage Range | 20.4 to 28.8 Vdc (24 Vdc Nominal) |
| Output Current | 0.5 Amps per channel, 8 Amps per module |
| Protection | Short Circuit Protection, Overload Protection, Thermal Shutdown |
| Isolation | 500 Vdc between field and logic |
| Response Time | OFF to ON: 1 ms max / ON to OFF: 2 ms max |
| Module Width | 40 mm (single slot) |
| Height | 140 mm |
| Depth | 115 mm |
| Weight | 0.55 kg |
| Power Consumption | 300 mA @ 5 Vdc from backplane |
| Connection Type | Detachable Screw Terminal Block (40-pin) |
| LED Indicators | Individual channel status indicators |
| Internal Energy Storage | Filter capacitors for stable switching |
| Operating Temperature | 0°C to 60°C |
Advanced Protection and Diagnostic Features
The ASB824016 incorporates multiple protection mechanisms to safeguard both the module and connected field devices. Short circuit protection immediately disconnects faulty outputs to prevent damage. Thermal shutdown activates automatically if the module exceeds safe operating temperatures. Individual LED indicators per channel provide immediate visual feedback on output states. This real-time diagnostic capability simplifies troubleshooting during system commissioning. The module’s design includes internal filter capacitors for stable switching performance.
Seamless Integration with Quantum Control Systems
Engineers commonly pair the Schneider ASB824016 with processors and input modules in Quantum racks. Its 40-pin connector accepts standard wiring harnesses for organized field terminations. The module’s positive logic output simplifies programming and troubleshooting tasks. Similar to protective devices like the RMS TSG TZ C Static Trip unit, this module ensures reliable control through robust design. The ASB824016 occupies a single slot, maximizing I/O density in space-constrained panels. It communicates directly with the backplane without requiring additional interface hardware.
Application Versatility in Industrial Automation
The ASB824016 suits a wide range of industrial output control applications. Common uses include controlling solenoid valves, motor contactors, and indicator lights. Its fast response times support applications requiring precise actuation sequences. The module’s 0.5 Amp per channel capacity handles most pilot duty industrial loads. Engineers appreciate the modular design for simplified maintenance and replacement procedures. This output module represents a fundamental building block for reliable discrete control systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
