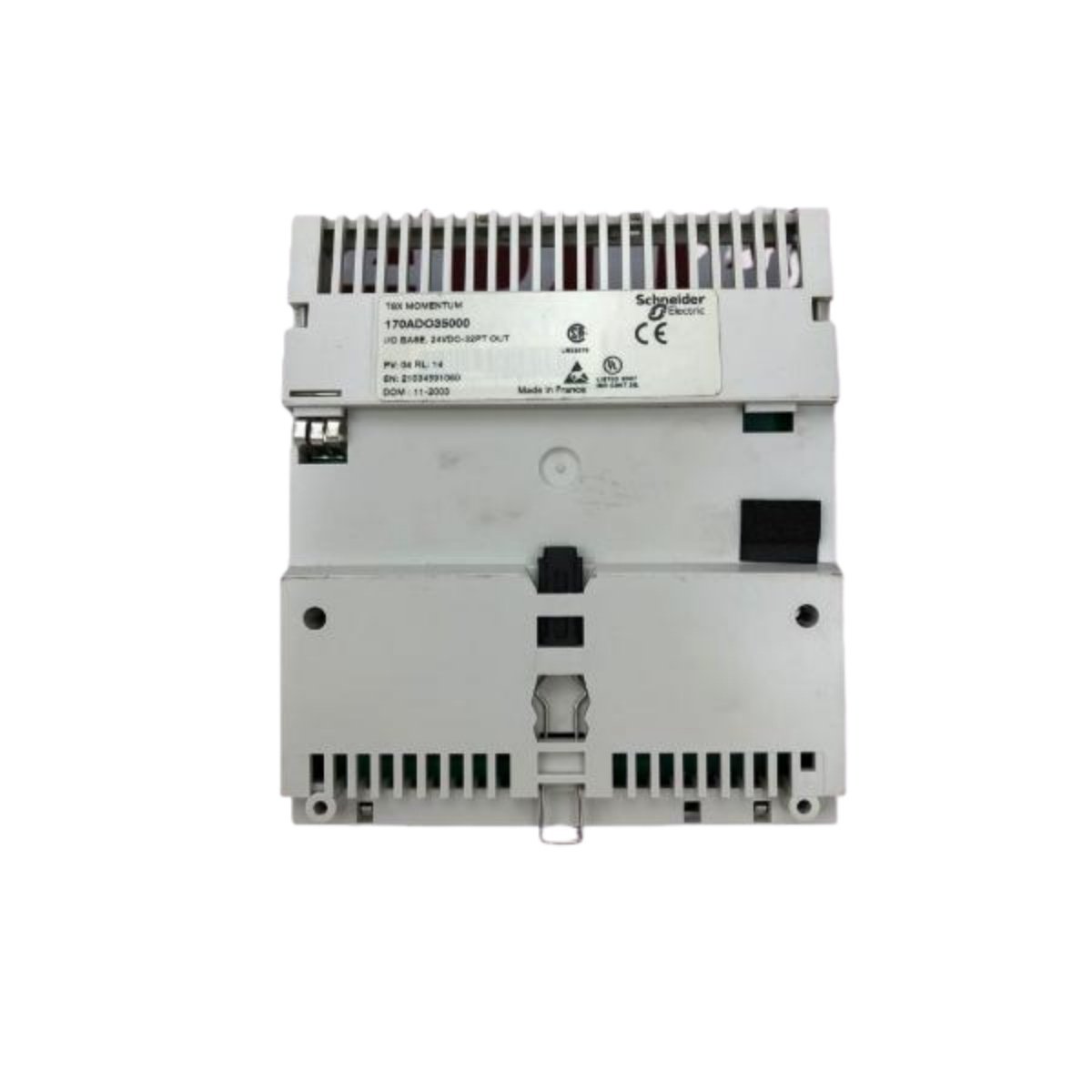

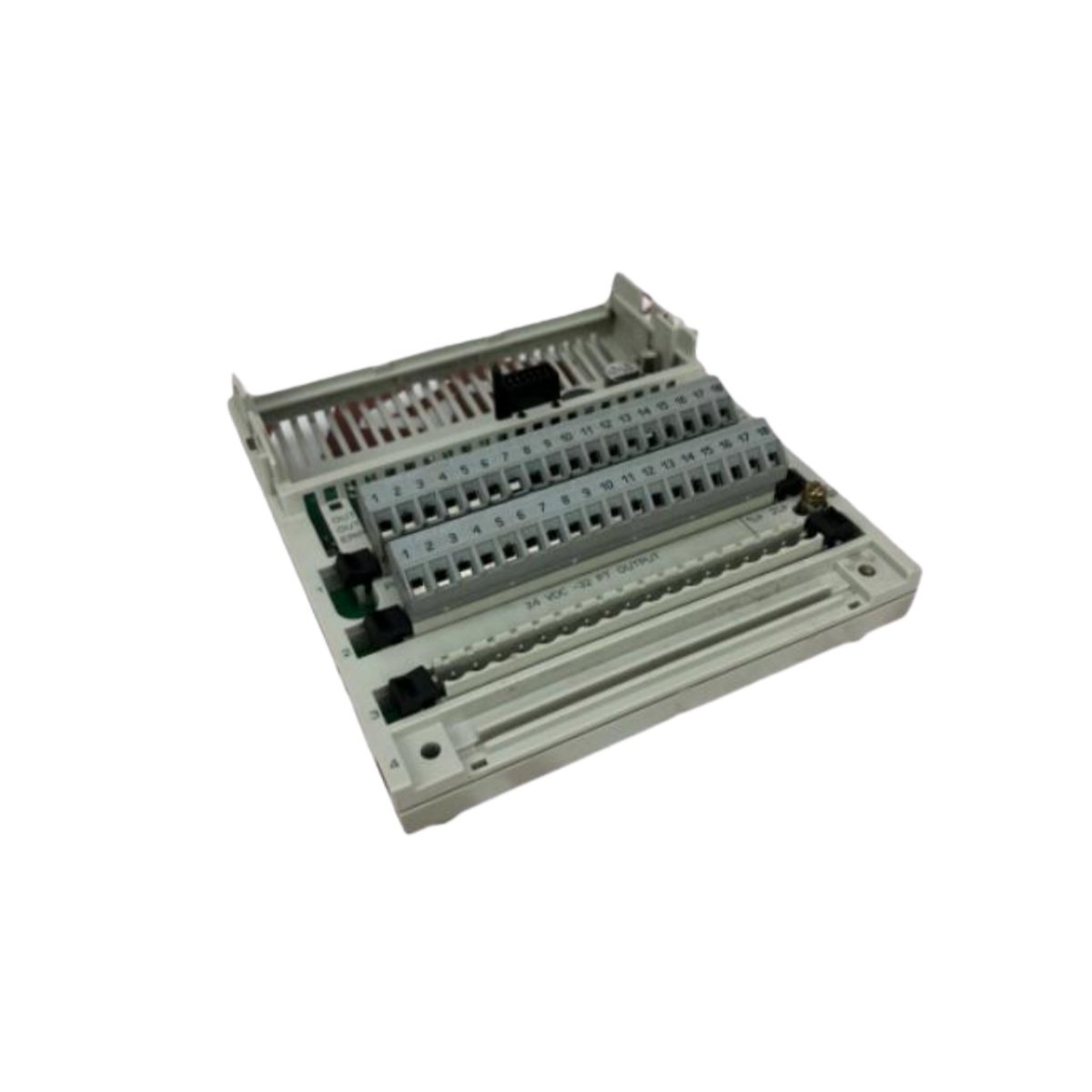

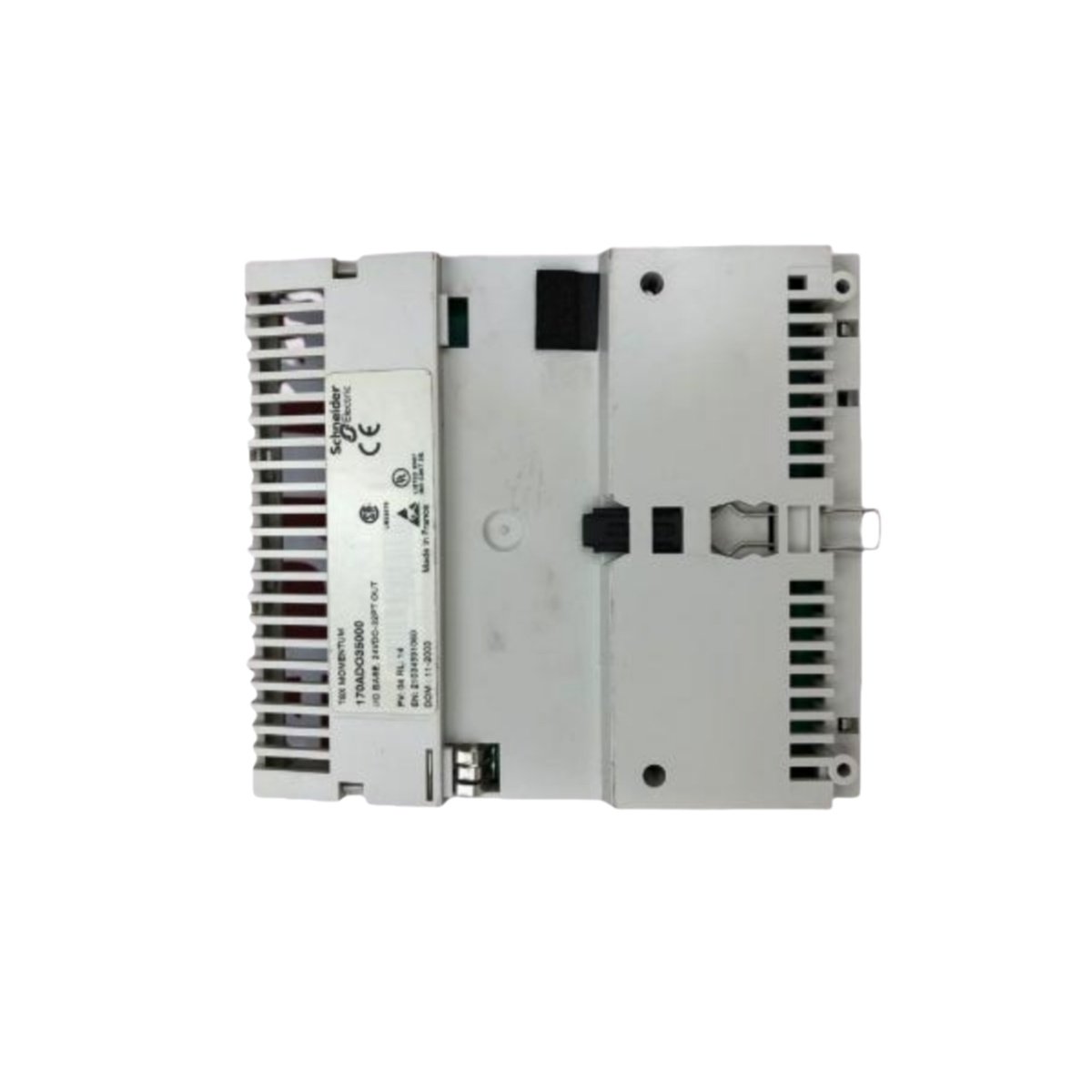

The Schneider Electric 170ADO35000 is a high-density discrete output module for the Modicon Momentum automation platform. This unit provides 32 solid-state output channels for precise control of DC loads. Consequently, it offers a compact and reliable solution for demanding industrial applications.

This module organizes its 32 outputs into two logical groups of 16 channels each. Each channel features a solid-state switch rated for 24 VDC operation at 0.5A. Moreover, the design includes electronic short-circuit and overload protection for enhanced system safety.

Core Electrical Performance and Protection

The 170ADO35000 delivers robust performance with a total module current of 16A and 8A per group. Each output has a remarkably fast response time of just 0.1 milliseconds for switching. Therefore, this speed ensures precise timing control for actuators, solenoids, and indicator devices.

Key protection features include a surge current handling of 5A for 1 millisecond. Additionally, the low maximum voltage drop of <0.5V at 0.5A minimizes power loss. This efficient design results in a typical power dissipation of only 6 watts for the entire module.

Detailed Technical Specifications

For a complete overview, please review the primary specifications of this discrete output module.

Integration and Operational Features

The module integrates seamlessly into the Modicon Momentum distributed I/O system. It provides clear local signaling via 32 individual LEDs for real-time channel status monitoring. Furthermore, the 500 VAC isolation between channels and the bus ensures high noise immunity.

Its compatibility with the Momentum platform simplifies wiring and system architecture. This design makes the 170ADO35000 an ideal choice for controlling multiple devices from a centralized point. Ultimately, it enhances reliability and reduces installation complexity in control panels.
