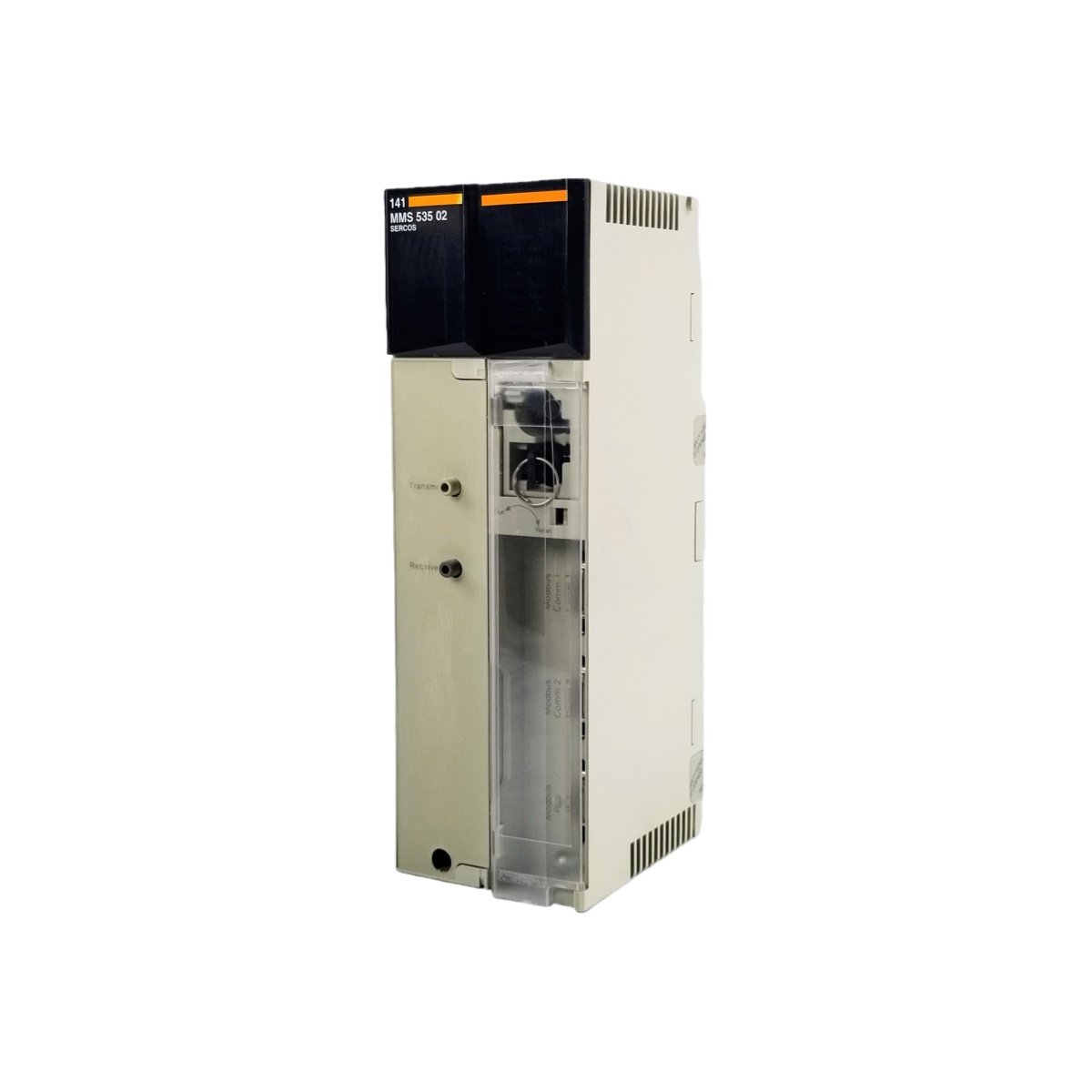

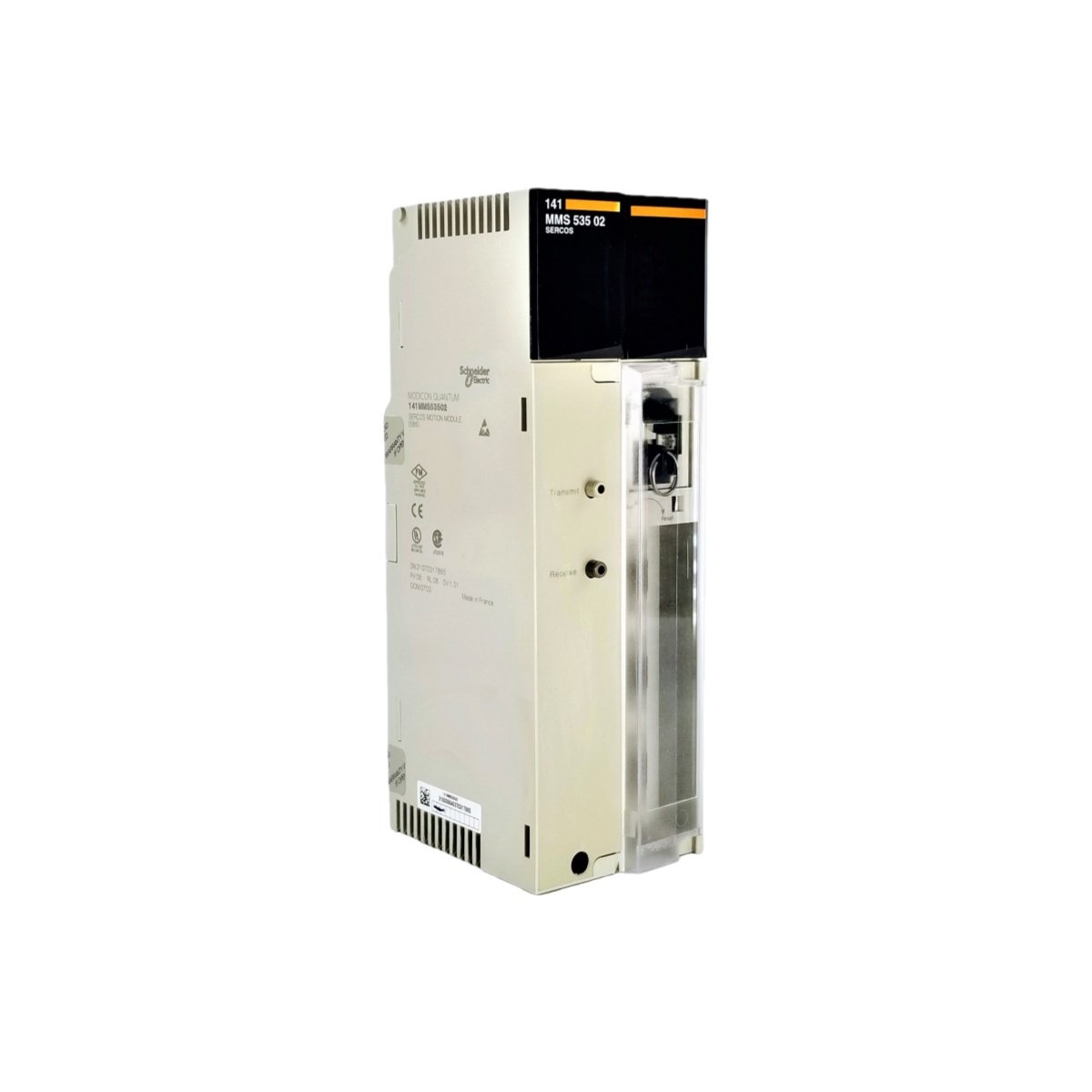

The 141MMS53502 from Schneider Electric serves as a sophisticated SERCOS multi-axis motion controller within the Modicon Quantum automation series. This advanced module orchestrates complex motion sequences for up to multiple servo axes in synchronized industrial applications. Its powerful onboard memory architecture supports extensive motion programs without burdening the central processor. Consequently, manufacturers can achieve precise coordination between axes for packaging, printing, or material handling systems.
Weighing 2.06 lbs (0.94 kg), the 141MMS53502 features a rugged construction suitable for standard Quantum rack mounting in industrial control cabinets. The module requires 5 Volts at 3 Amperes maximum from the backplane, ensuring reliable operation even during intensive motion calculations. This power efficiency makes it ideal for multi-axis systems where multiple controllers share backplane capacity. Additionally, the unit operates with five LED indicators providing immediate visual feedback on operational status, communication activity, and fault conditions.
Extensive Memory Architecture and Configuration
The 141MMS53502 incorporates a sophisticated multi-tier memory structure to handle demanding motion applications. It contains 500 kilobytes of ROM for firmware storage and 4,000 kilobytes of read-write memory for user programs and parameters. The RAM configuration includes 380 kilobytes of upper memory, 640 kilobytes of conventional memory, and 7,168 kilobytes of extended memory for complex motion profiles. Furthermore, the module supports up to 60,000 words of holding register capacity, enabling intricate data logging and recipe management.
Advanced Communication and Connectivity
This motion controller supports both Modbus and Modbus Plus communication protocols for seamless integration with Quantum processors and HMI systems. The SERCOS interface operates at configurable baud rates from 2 to 4 megabauds, allowing optimization between speed and distance requirements. Connection options include two SERCOS fiber optic connectors for noise-immune ring topology and three 9-pin DB9 connectors for auxiliary communications. Two BCD rotary switches enable manual node address configuration without software tools, simplifying installation and replacement procedures.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | SERCOS Multi-Axis Motion Controller |
| Product Line | Modicon Quantum |
| Part Number | 141MMS53502 |
| Series | I/O Modules |
| Weight | 2.06 lbs (0.94 kg) |
| ROM Capacity | 500 kilobytes |
| Read & Write Memory | 4,000 kilobytes |
| RAM Configuration | 380 KB (upper), 640 KB (conventional), 7,168 KB (extended) |
| Maximum Holding Registers | 60,000 words |
| Communication Protocols | Modbus, Modbus Plus |
| SERCOS Baud Rate | 2 to 4 megabauds (software configurable) |
| Power Requirements | 5 VDC at 3 A maximum |
| Connector Types | 2x SERCOS fiber optic, 3x DB9 |
| Status Indicators | 5 LED indicators |
| Configuration Switches | 2x BCD rotary switches |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
