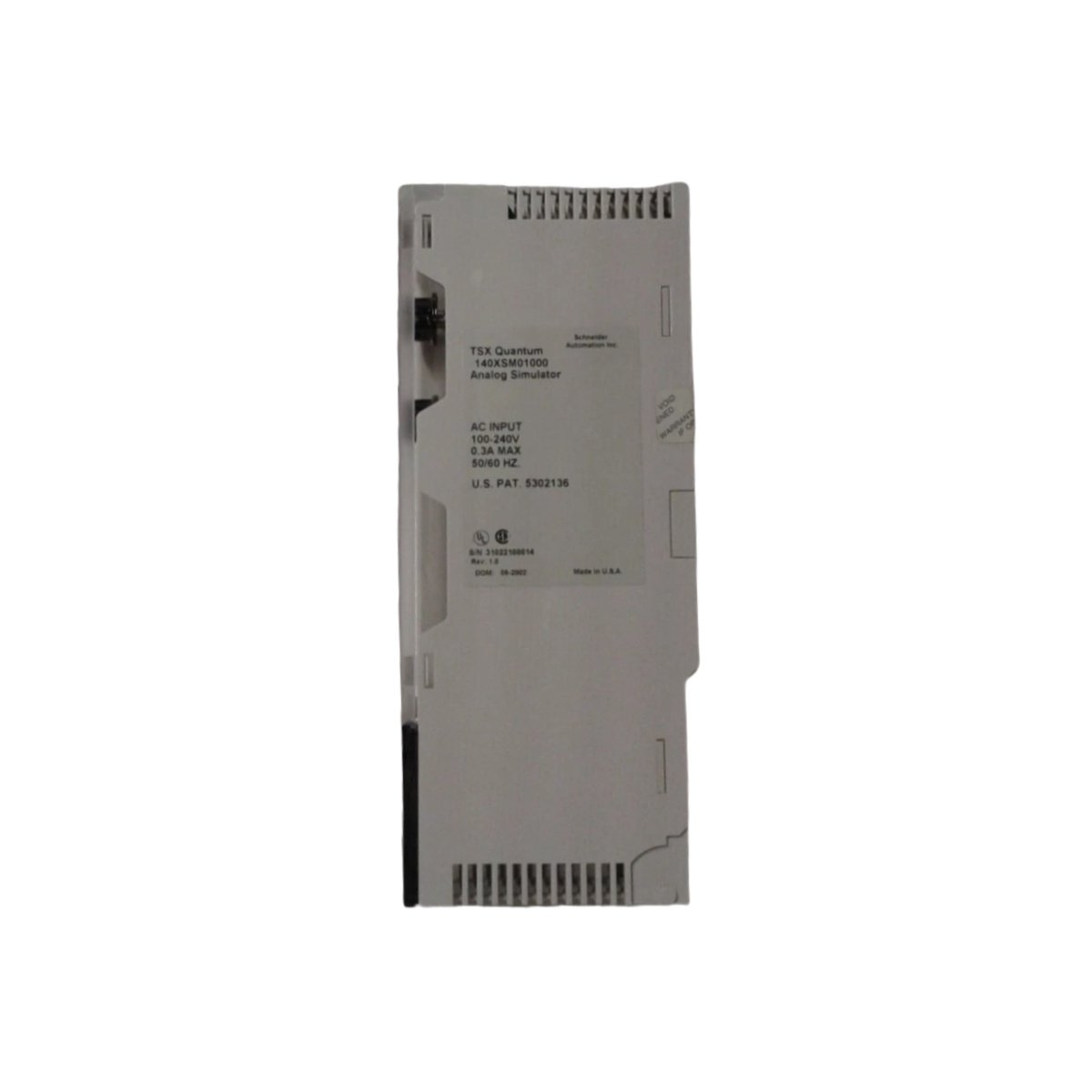

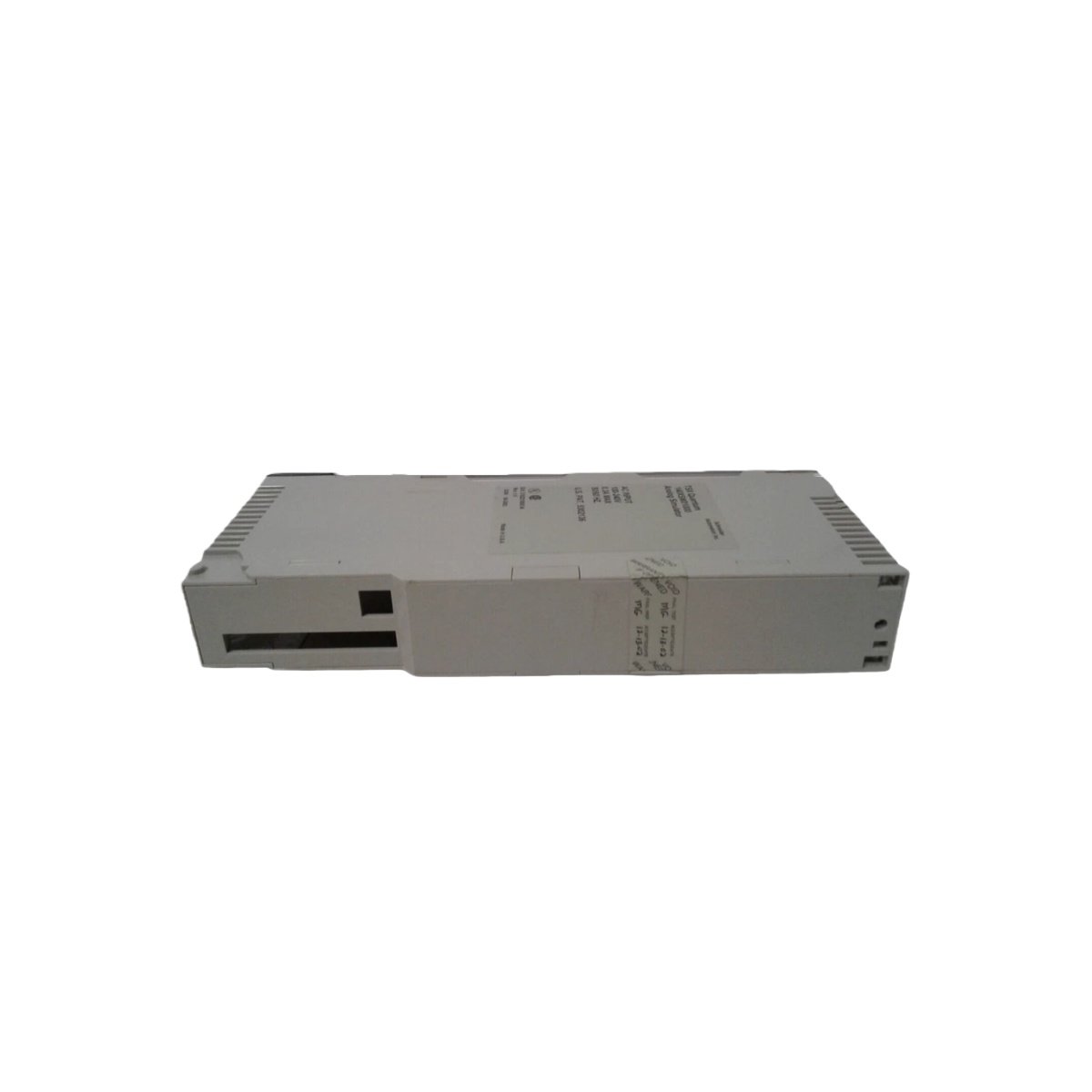

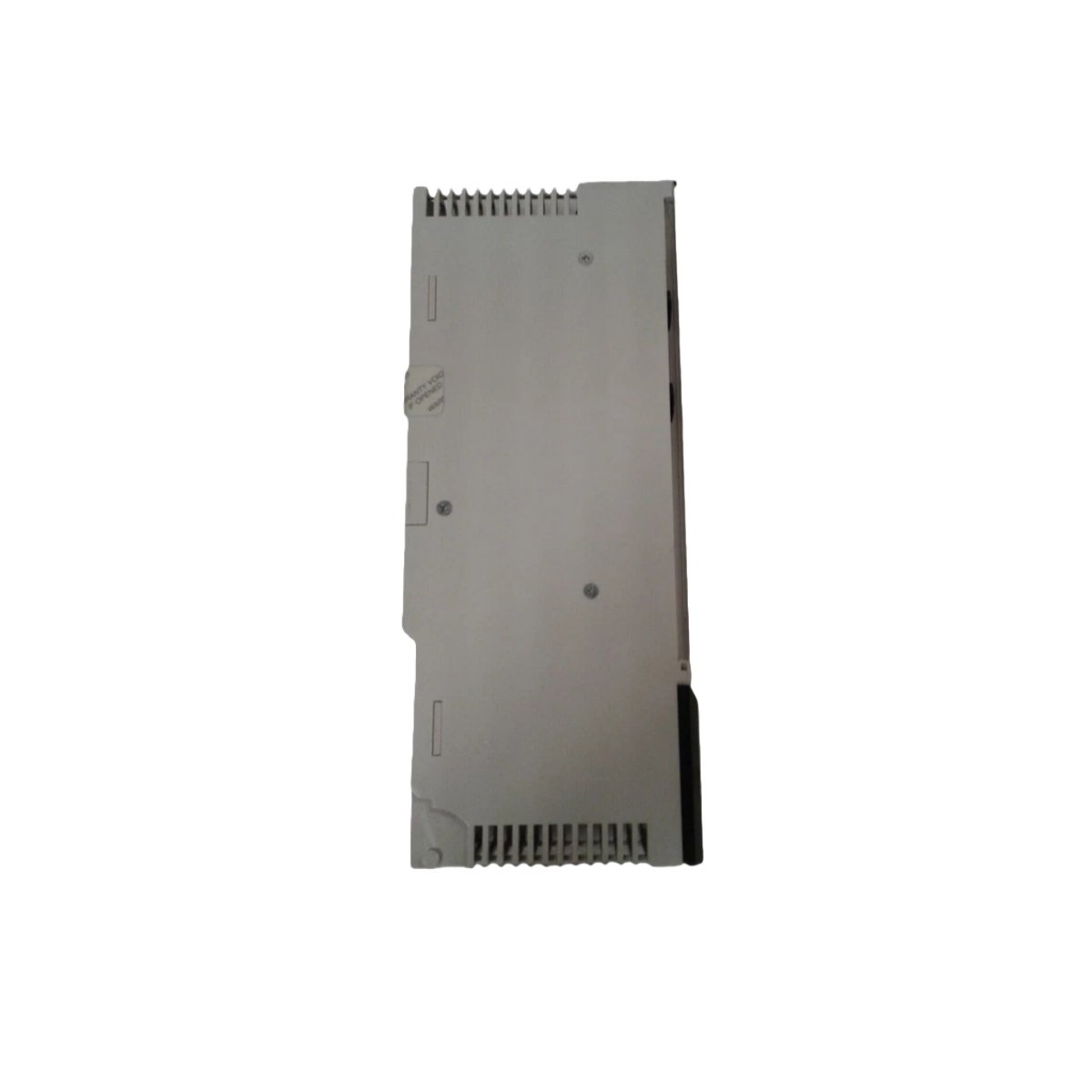

The Schneider 140XSM01000 functions as a specialized analog I/O simulator for testing and commissioning control systems. Unlike process interface modules such as the RMS-TSG-TZ-C Static Trip Unit which protects equipment, this simulator focuses on validating system logic. It allows engineers to safely mimic field device signals before connecting actual sensors or actuators. Consequently, this capability significantly reduces commissioning time and prevents potential damage during initial startup. This module truly exemplifies Schneider Electric’s commitment to practical and intelligent automation tools.
Key Technical Specifications
We engineer the 140XSM01000 to provide precise signal simulation for Schneider Electric Modicon Quantum automation platforms. The table below details its essential technical parameters for accurate system testing.
| Specification | Detailed Value |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Analog I/O Simulator Module |
| Series | Modicon Quantum |
| Model Number | 140XSM01000 |
| Simulated Channels | 8 individually configurable channels |
| Output Simulation | 0 to 10 VDC or 0 to 20 mA selectable per channel |
| Input Simulation | 0 to 10 VDC or 0 to 20 mA sink capability |
| Resolution | 12 bits for precise simulation accuracy |
| Backplane Current | 350 mA from 5 VDC backplane supply |
| Dimensions (H x W x D) | Approx. 103 mm x 40 mm x 112 mm (4.05 in x 1.57 in x 4.41 in) |
| Net Weight | Approximately 0.30 kg (0.66 lbs) |
| Interface | Direct Quantum backplane connector with diagnostic LEDs |
| Internal Components | Precision resistor networks and solid-state switches |
| Energy Storage | No internal battery; all settings volatile on power-down |
Precise Simulation for Thorough Testing
The primary value of the 140XSM01000 lies in its ability to generate precise analog signals on demand. You can manually adjust each of the 8 channels to produce specific voltage or current values for controller testing. This hands-on approach lets you verify programming logic, alarm setpoints, and control loop responses comprehensively. Therefore, you can identify and correct software issues without risking actual process equipment. This simulator ultimately saves both time and resources by enabling thorough offline validation.
Seamless Integration and Visual Diagnostics
Installing the 140XSM01000 into a Modicon Quantum rack proves straightforward due to its standard form factor. It occupies a single slot and communicates directly with the backplane for power and bus connectivity. Furthermore, the front panel includes clear diagnostic LEDs that indicate channel activity and module status. These visual indicators allow technicians to quickly confirm simulation signals at a glance. As a result, you can troubleshoot and verify signal flow without needing external meters for basic checks.
Physical Design and Operational Considerations
We designed the Schneider 140XSM01000 with a rugged yet compact housing suitable for industrial environments. Its dimensions match standard Quantum modules, ensuring proper fit and airflow within the enclosure. Importantly, this simulator operates without internal energy storage for its settings, meaning it powers up in a default state. Therefore, always reconfigure the module after a complete power cycle to match your specific test requirements. This design choice simplifies the hardware and enhances long-term reliability for bench testing and panel simulation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
