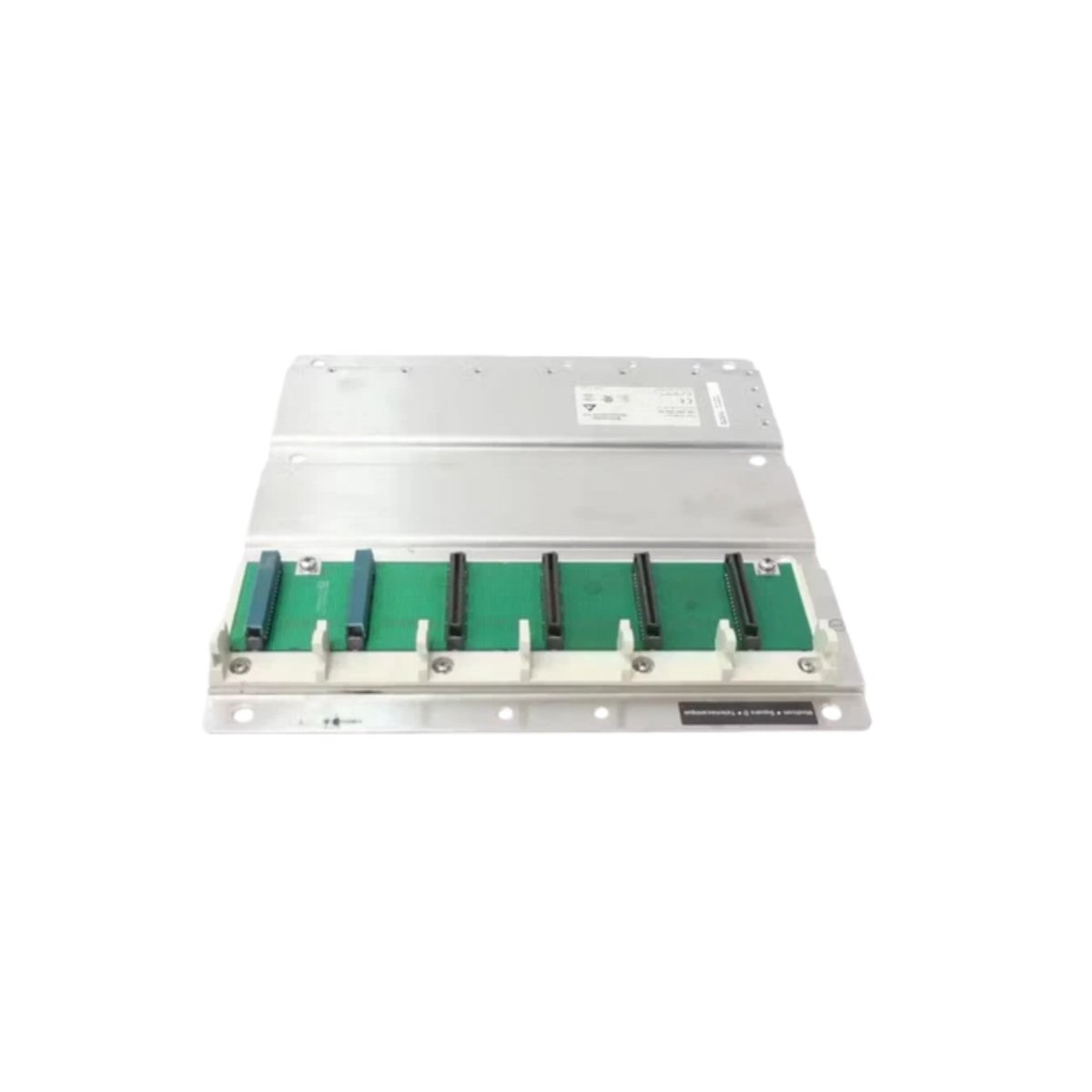

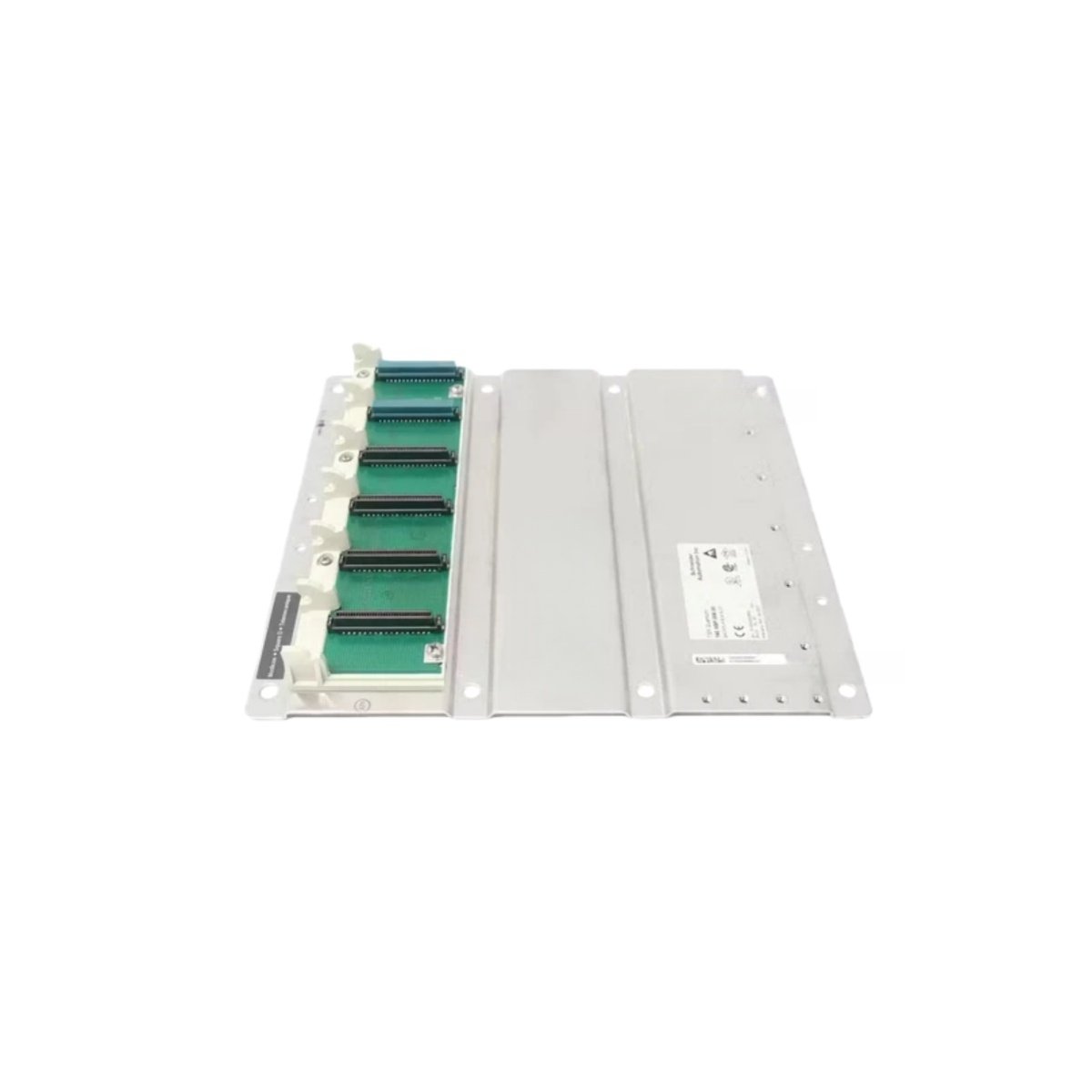

The Schneider 140XBP00600 is a 6-slot rack backplane that forms the structural and electrical foundation for Modicon Quantum systems. This unit provides the essential mounting platform and communication bus for up to six Quantum modules. It supports a versatile mix of local, remote, and distributed I/O modules within a single chassis. Consequently, it enables flexible and scalable control system configurations for diverse industrial applications.

Versatile Module Support and Robust Mounting

This backplane accommodates various Quantum modules, including processors, communication interfaces, and I/O cards. It features a secure screw-fixing mode to ensure all modules remain firmly connected during operation. The 140XBP00600 is designed for straightforward installation onto a standard mounting plate within a control cabinet. Furthermore, its robust construction maintains reliable performance across a wide range of industrial temperatures.

Detailed Technical Specifications

Engineered for reliability, this backplane operates effectively within the standard Quantum temperature range. Its design ensures stable bus communication and power distribution to all installed modules. The following table details its slot capacity, compatibility, environmental ratings, and physical parameters.

Application in Building Control Systems

Use this backplane as the core of a compact Quantum controller for machine automation or process skid control. It is ideal for applications requiring a moderate number of I/O points and communication cards in a single rack. The Schneider 140XBP00600 provides the necessary infrastructure for building a reliable and organized control system enclosure. Therefore, proper assembly and grounding of this backplane are critical first steps in any Quantum system installation.
