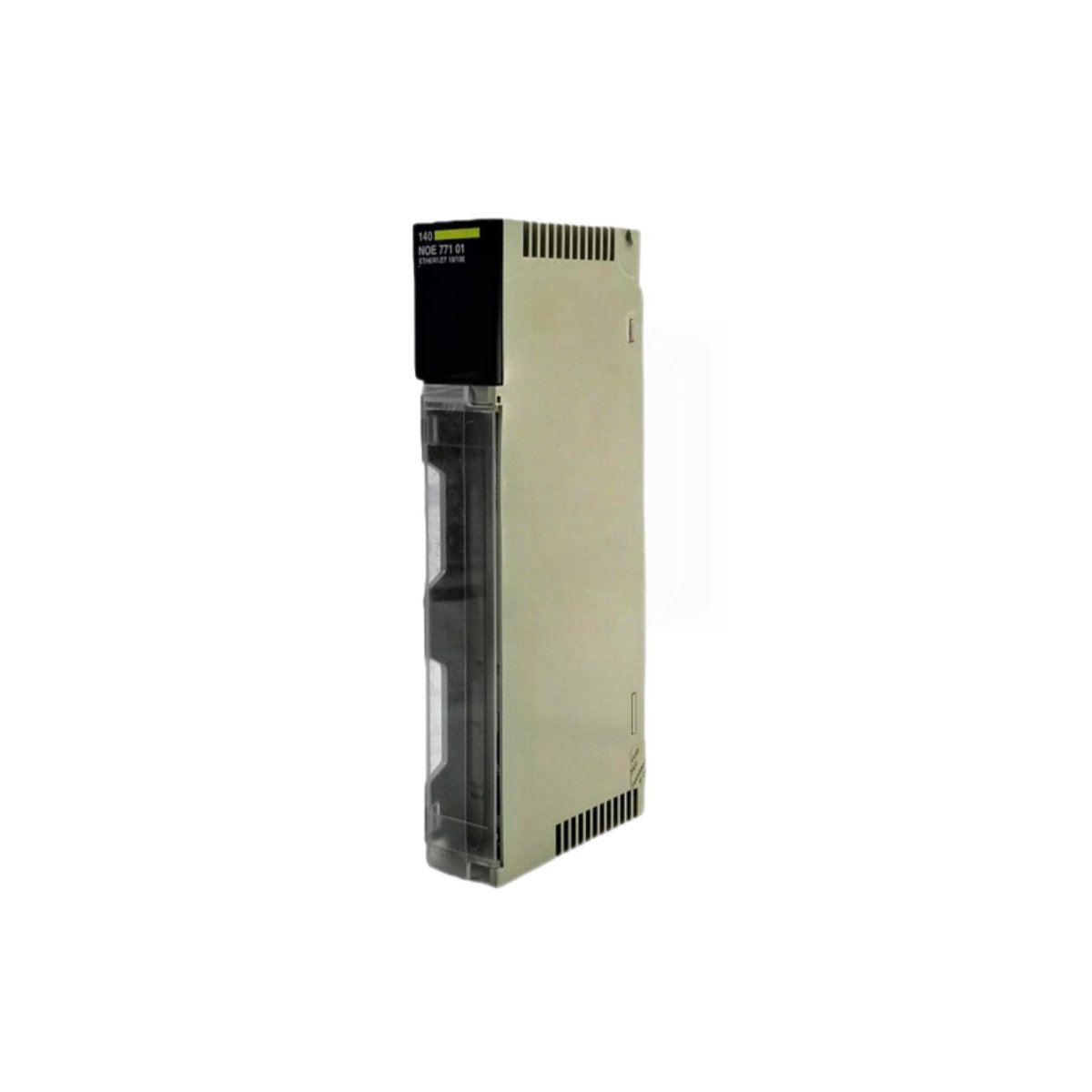

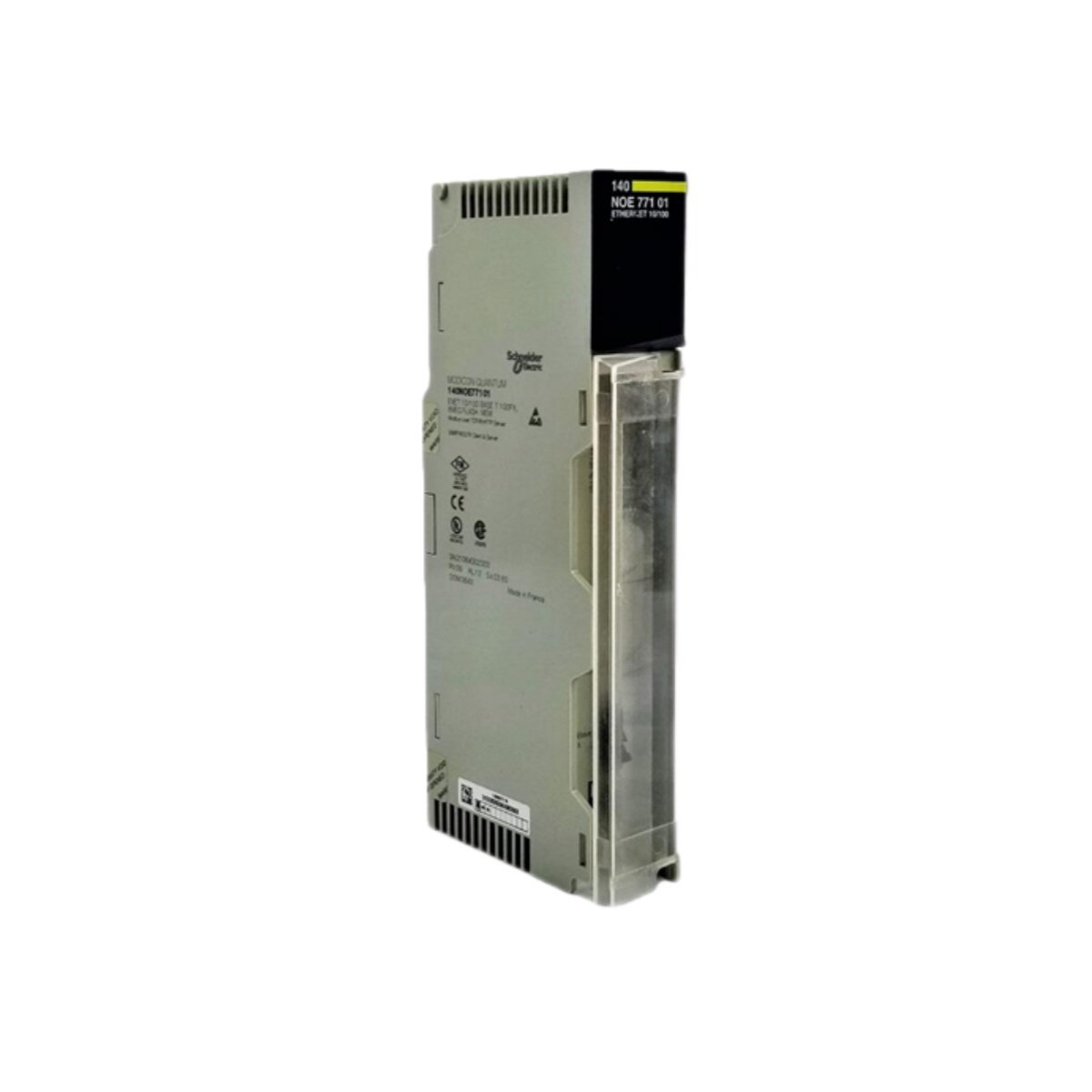

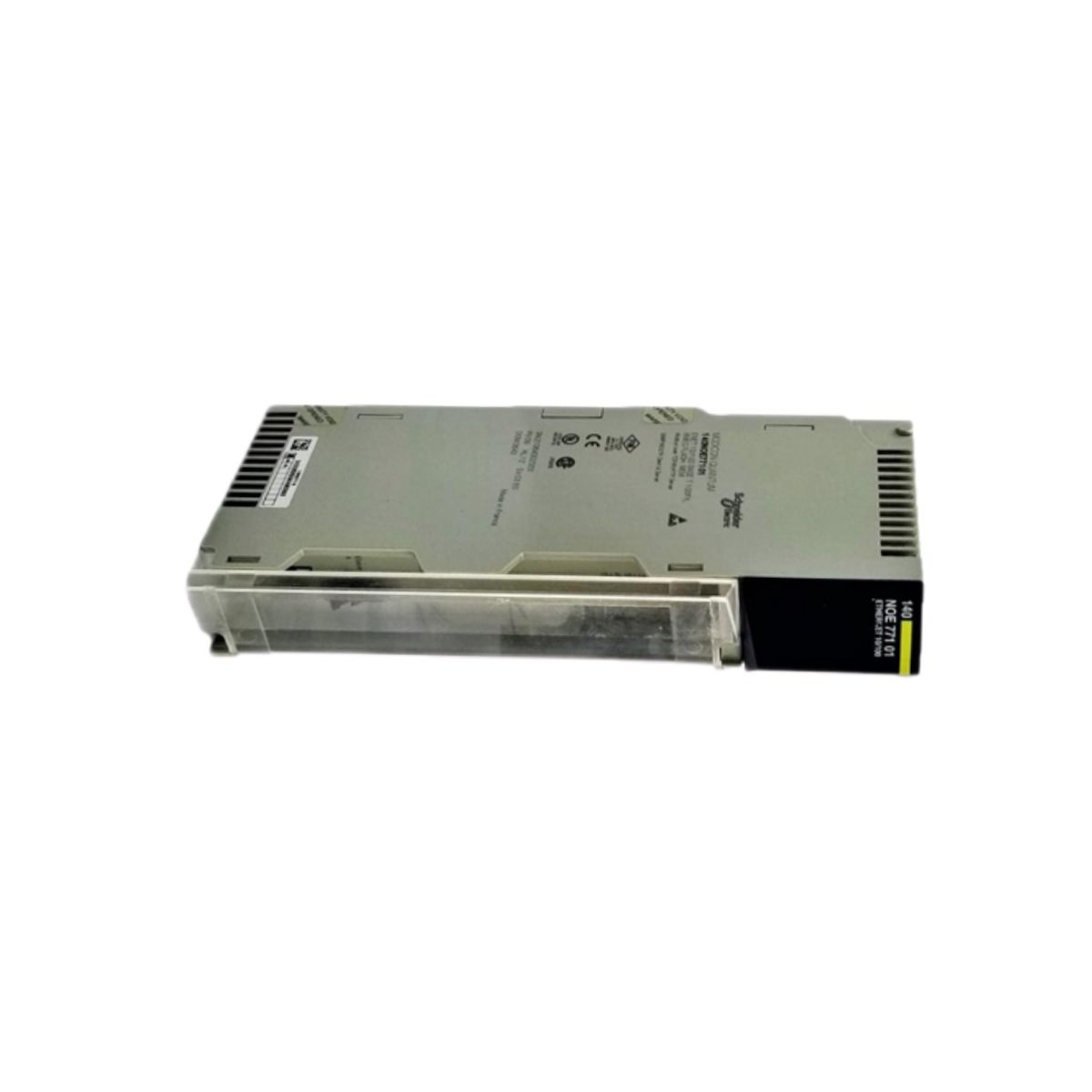

The Schneider 140NOE77110 is an advanced Ethernet TCP/IP communication module for the Modicon Quantum series. This unit enables Quantum PLCs to connect directly to high-speed industrial Ethernet networks. Consequently, it facilitates seamless data exchange using the Modbus TCP/IP protocol and other standards.
Engineers rely on this module for real-time control and data acquisition across distributed systems. Furthermore, its dual-port design supports daisy-chaining and network flexibility. This makes the 140NOE77110 a cornerstone for modern, interconnected automation architectures.
Detailed Technical Specifications
The Schneider 140NOE77110 delivers robust connectivity with precise electrical and environmental tolerances. Below are its core technical parameters presented for clarity.
| Parameter | Specification |
|---|---|
| Product Series | Modicon Quantum |
| Model Number | 140NOE77110 |
| Primary Function | Ethernet TCP/IP Communication Module |
| Transmission Rate | 10/100 Mbps, Full Duplex |
| Copper Interface | RJ45 for 10BASE-T/100BASE-TX |
| Fiber Optic Interface | MT-RJ for 100BASE-FX |
| Redundancy Support | Hot Standby Operation |
| Power Supply | 5 VDC from Quantum Backplane |
| Current Draw | 750 mA |
| Mounting Type | Rack-mounted in Quantum Chassis |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 95% RH (non-condensing) |
| Max Operating Altitude | < 4500 m |
| Protection Rating | IP20 |
| Dimensions (H x W x D) | 84 x 110 x 40 mm |
| Weight | 0.8 lbs (approx. 0.36 kg) |
Key Features and System Integration
This module provides critical network connectivity for Quantum controllers. Its dual media ports allow for both copper and fiber optic cabling, thus enhancing network design options. Additionally, the hot standby redundancy feature ensures maximum network availability for critical processes.
The module draws power directly from the Quantum backplane, which simplifies cabinet wiring. Moreover, its compact dimensions and IP20 rating make it suitable for installation in standard control enclosures. Therefore, the Schneider 140NOE77110 effectively bridges your reliable Quantum PLC with modern Ethernet-based plant networks.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
