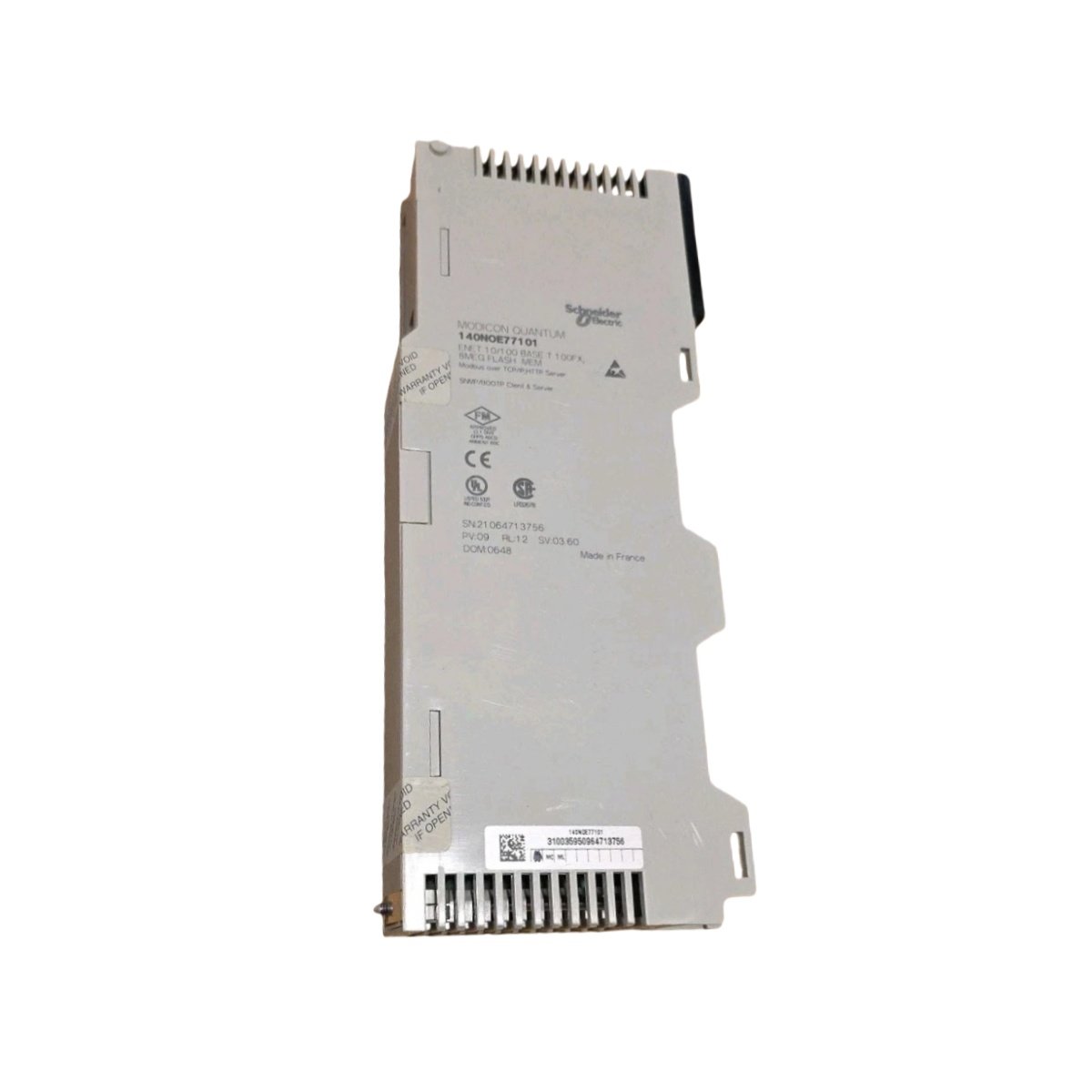

Industrial networks demand high-performance communication interfaces for seamless data integration. The 140NOE77100C from Schneider Electric provides advanced Ethernet connectivity within the Modicon Quantum automation platform. It enables TCP/IP-based communication for real-time monitoring and control applications across manufacturing facilities.
High-Performance Ethernet Connectivity for Modern Automation
The 140NOE77100C supports 10/100 Mbps auto-negotiating Ethernet speeds for flexible network integration. It automatically detects and configures to the appropriate network speed for optimal performance. Consequently, this module ensures reliable data exchange with plant-wide control systems and enterprise networks.
Engineers value the module’s support for multiple simultaneous connections to various client devices. It facilitates seamless communication with HMIs, SCADA systems, and other Ethernet-enabled equipment. Therefore, the 140NOE77100C serves as a critical bridge between the Quantum control system and the broader industrial network infrastructure.
Technical Specifications
Below are the comprehensive technical details for the 140NOE77100C Ethernet module presented in a clear table format:
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Ethernet Network Module |
| Product Line | Modicon Quantum |
| Part Number | 140NOE77100C |
| Network Protocol | TCP/IP |
| Ethernet Speed | 10/100 Mbps auto-negotiating |
| Connector Type | RJ45 |
| Physical Layer | 10Base-T/100Base-TX |
| Supported Services | Modbus TCP/IP, HTTP, FTP, BOOTP, DHCP |
| Simultaneous Connections | Multiple client sessions supported |
| Addressing | Static IP or DHCP configurable |
| Diagnostic LEDs | Link, Activity, Speed, Module Status |
| Power Consumption | 5.5 W maximum |
| Backplane Current | 450 mA at 5 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Mounting Type | Quantum rack mountable |
| Weight | 1.50 lbs (0.68 kg) |
| Certifications | CE, UL, CSA |
Protocol Support and Network Services
The 140NOE77100C supports native Modbus TCP/IP for seamless integration with Schneider Electric devices. It also provides embedded web server functionality for remote monitoring via standard browsers. Additionally, the module supports FTP for file transfers and BOOTP/DHCP for automatic IP configuration.
Operators can access diagnostic information through the module’s comprehensive LED indicators. These display link status, network activity, connection speed, and overall module health. Furthermore, the embedded web pages offer detailed status reporting without specialized software tools.
Integration and Application Details
Installing the 140NOE77100C follows standard Modicon Quantum rack-mounting procedures. It occupies a single slot position within the Quantum I/O rack configuration. Consequently, you can add Ethernet connectivity without sacrificing excessive panel space.
The module communicates directly with the Quantum CPU through the backplane interface. It requires 450 mA at 5 VDC from the rack power supply for normal operation. For instance, it pairs effectively with plant monitoring systems alongside protection components like the RMS TSG TZ C Static Trip unit.
The 140NOE77100C operates reliably across industrial temperature ranges from 0°C to 60°C. Its robust design ensures continuous performance in demanding manufacturing environments. Ultimately, this Schneider Electric Ethernet module delivers essential network connectivity for modern industrial automation systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
