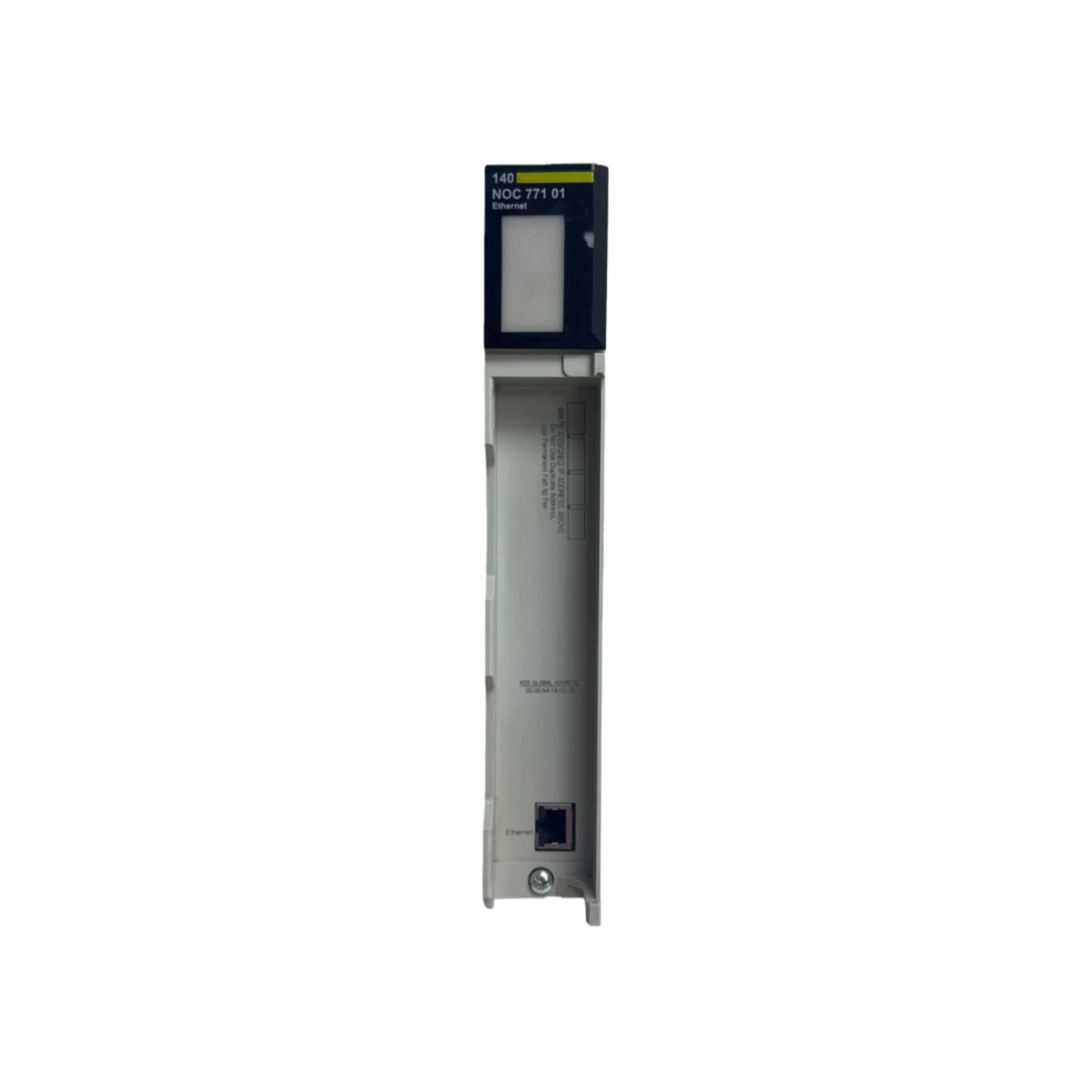

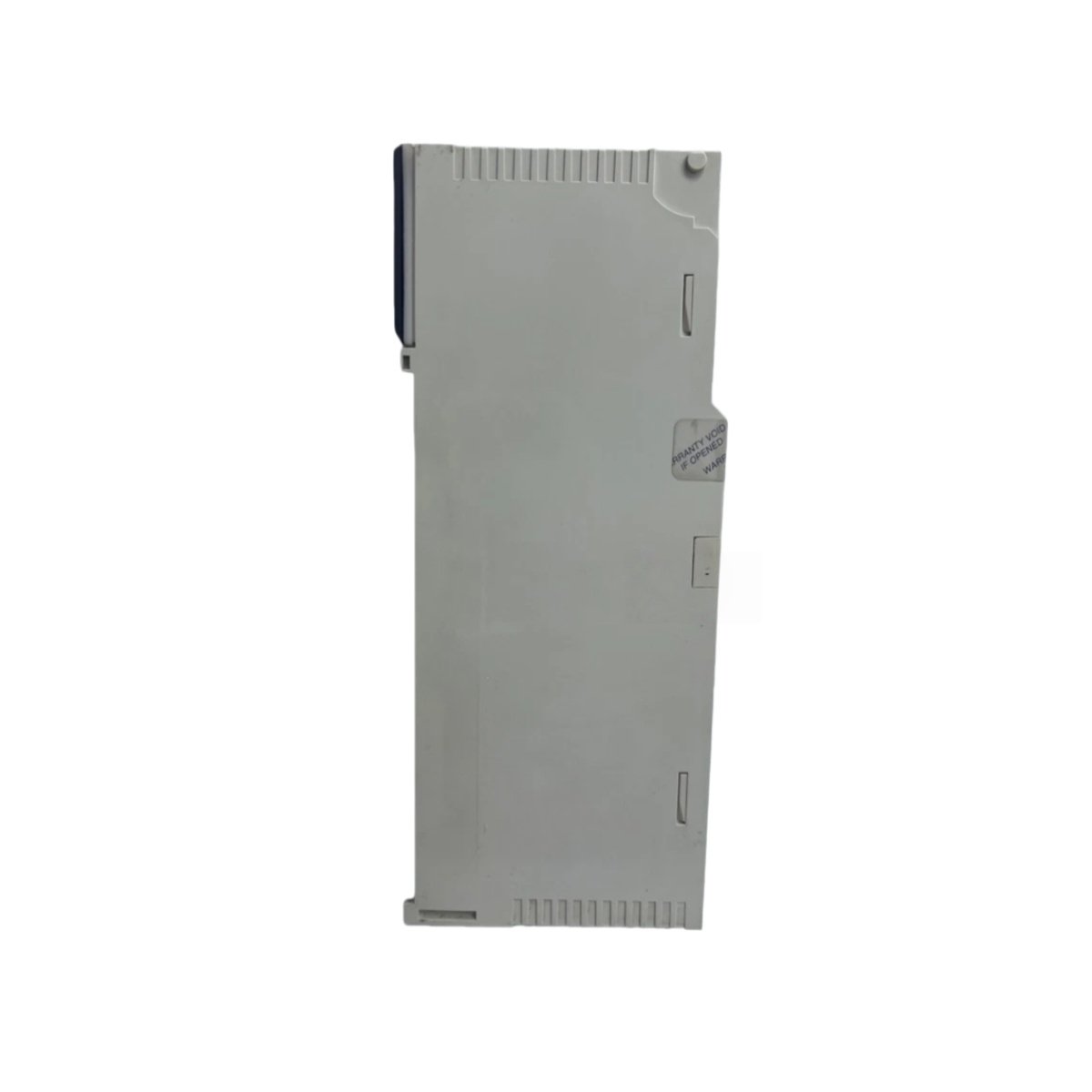

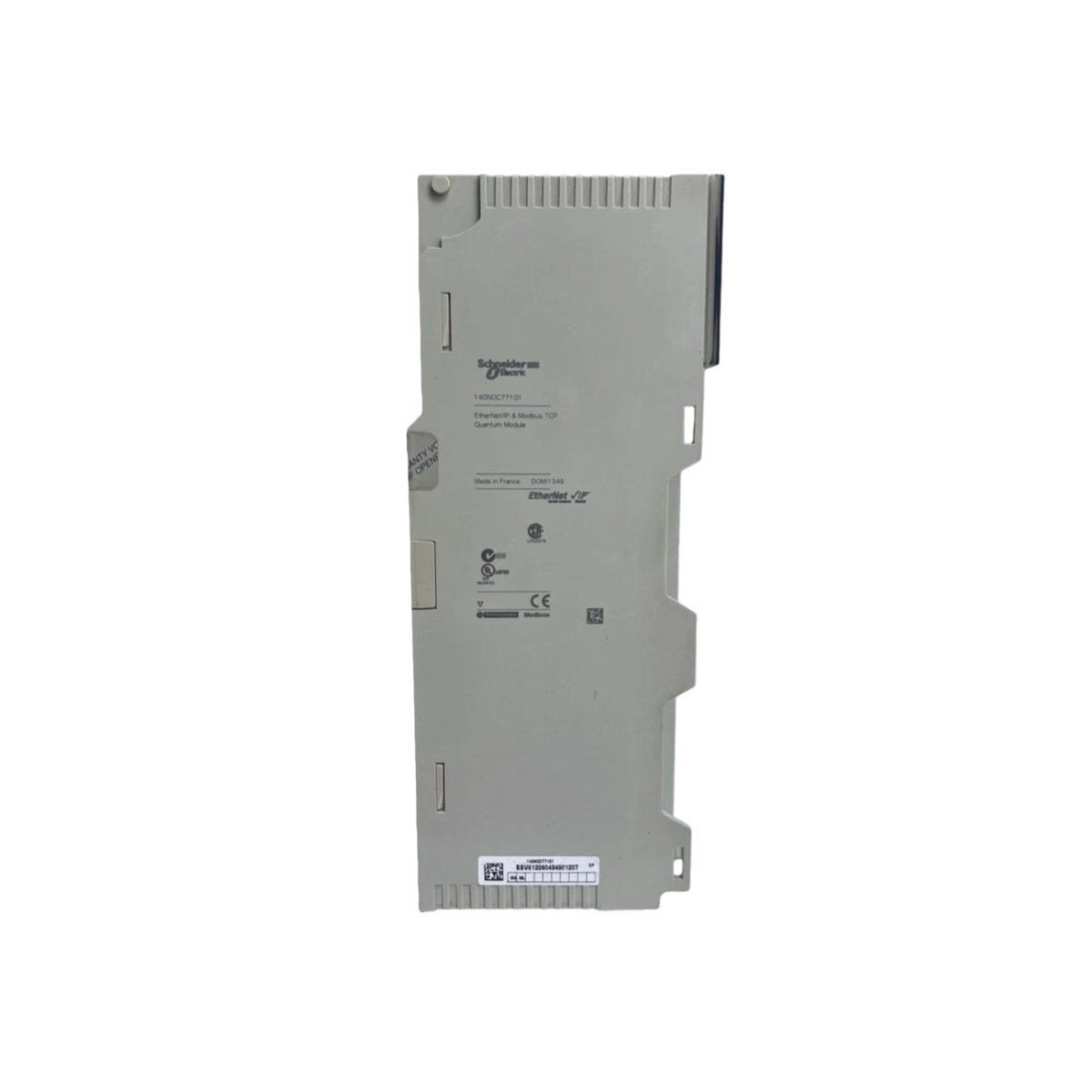

The Schneider 140NOC77101 is a critical Ethernet interface module for Modicon Quantum PLC systems. This module seamlessly bridges your legacy control hardware to modern TCP/IP industrial networks. Moreover, it enables efficient real-time data exchange and centralized diagnostics across your automation architecture.
Core Technical Specifications & Physical Design
This robust module delivers reliable performance in demanding industrial environments. Its design ensures stable operation where electrical noise and vibration are present. Key engineering parameters define its integration and capabilities.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Schneider Electric |
| Series / Platform | Modicon Quantum |
| Product Model | 140NOC77101 |
| Network Interface | 1 x 10/100 Mbps RJ45 Ethernet Port |
| Supported Protocols | Modbus TCP, Ethernet Global Data (EGD), SRTP |
| Electrical Isolation | 1500V for network noise immunity |
| Module Width | Single Slot in Quantum Rack |
| Typical Weight | 0.5 kg (1.1 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Integration and Network Performance
You can install the 140NOC77101 directly into a spare slot in your Modicon Quantum or Momentum rack. It facilitates direct communication with HMIs, SCADA systems, and other PLCs using standard Ethernet. Consequently, this simplifies system architecture and reduces wiring complexity for plant-wide control.
For complete compatibility and firmware details, always refer to the official manuals from Schneider Electric. This module provides a proven, upgrade path for enhancing connectivity, similar to other industrial communication solutions. Ultimately, it is essential for achieving integrated and future-ready industrial automation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
