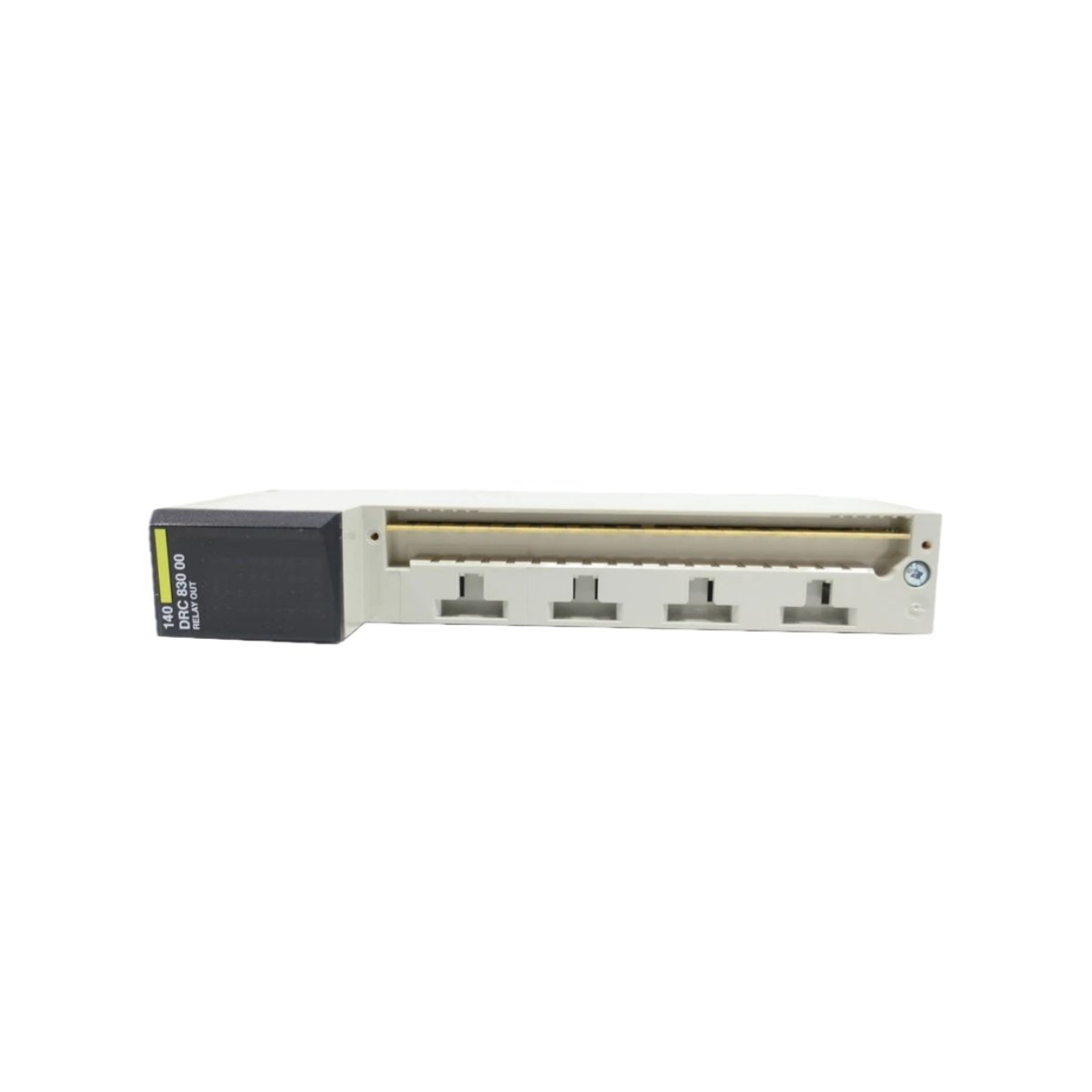

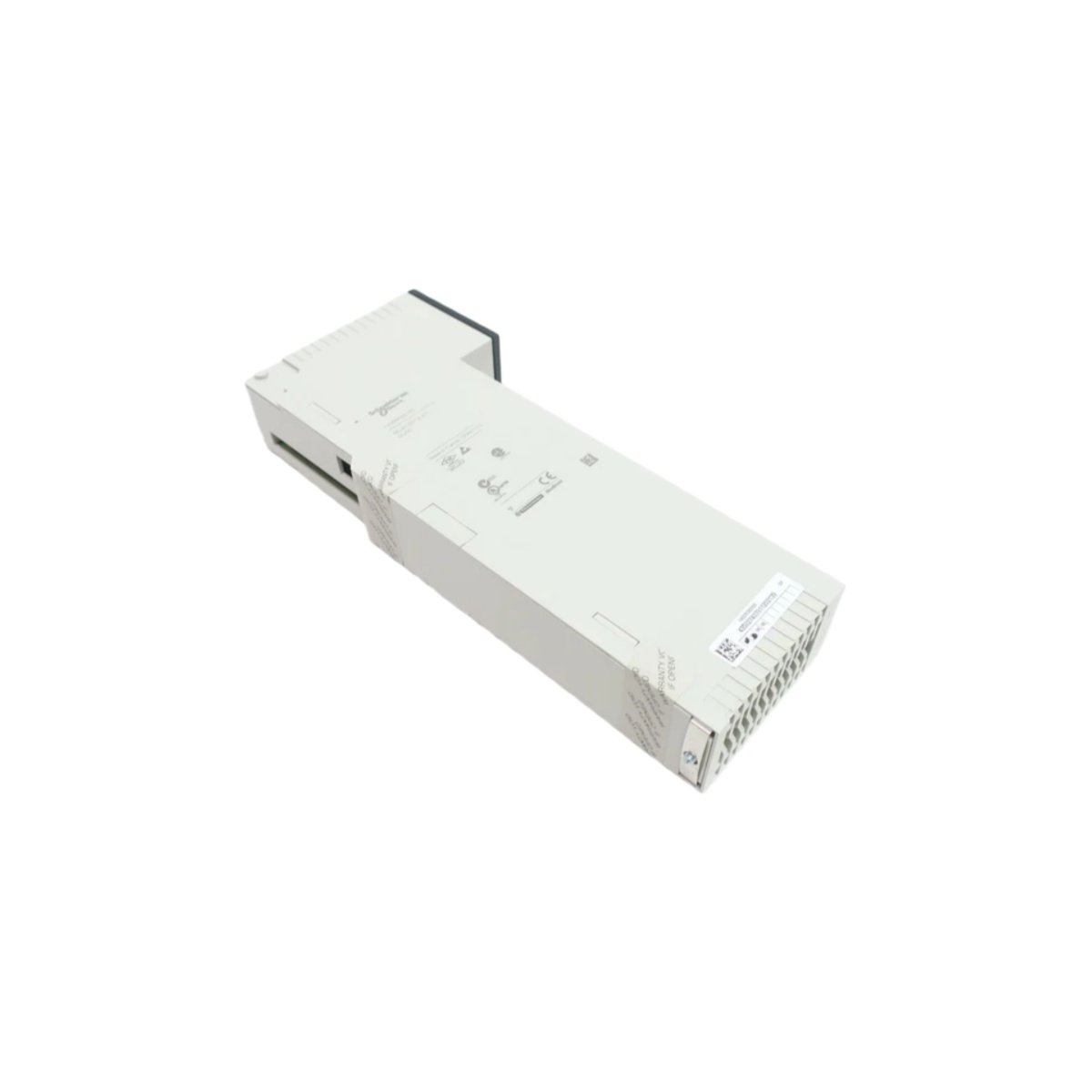

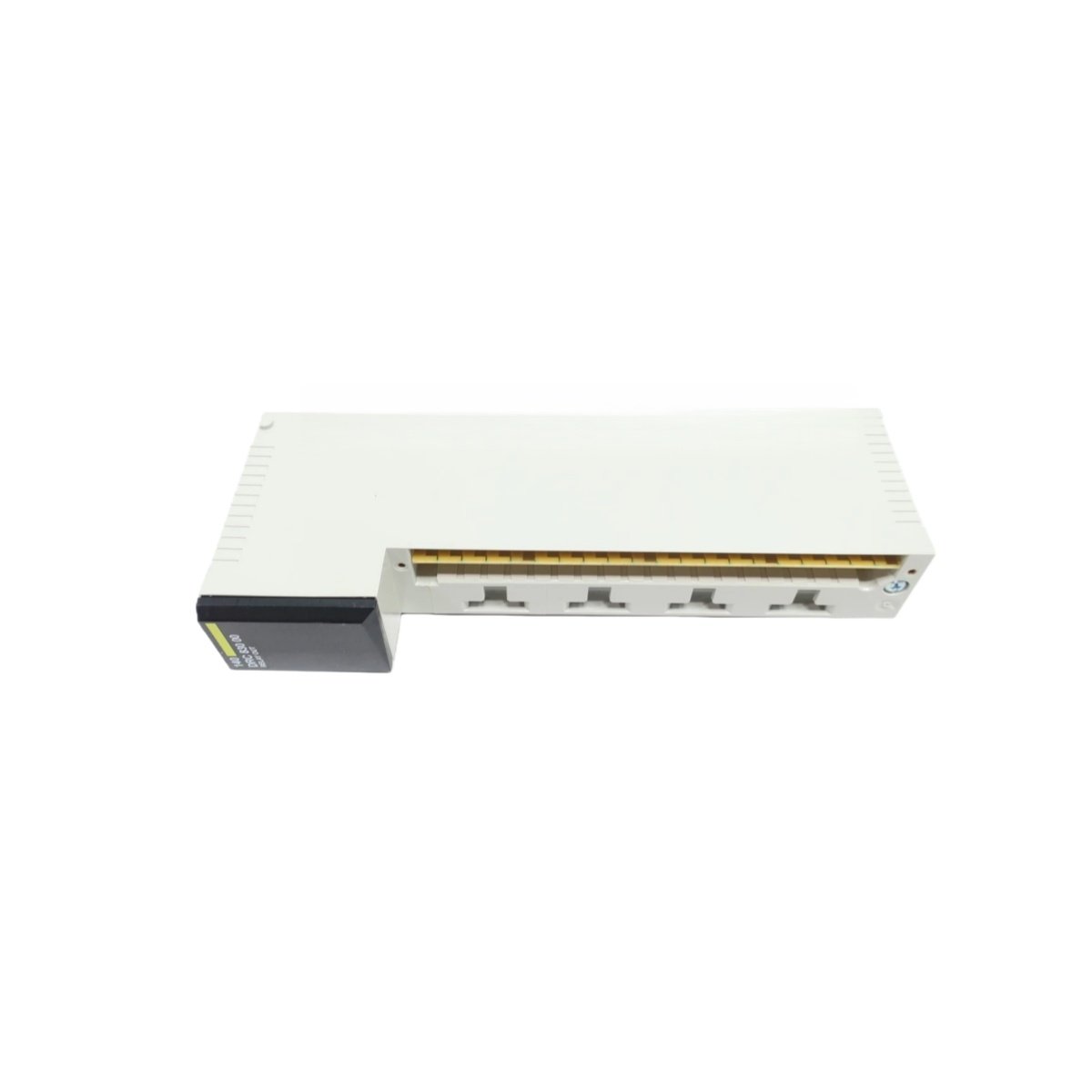

The Schneider Electric Modicon Quantum 140DRC83000 provides versatile and reliable control for your industrial applications. This eight-channel relay output module handles a wide range of voltage levels with precision. Consequently, it offers seamless integration for diverse automation and control tasks.
Flexible Output and Robust Design
Each of the eight channels on the 140DRC83000 uses a durable Form C contact. Therefore, you get one normally open and one normally closed contact per channel. This module supports voltages from 20 to 250V AC and 30 to 150V DC. Additionally, it manages lower DC voltages from 5 to 30V DC for sensitive devices.
Key Performance Specifications
The module delivers a high resistive switching capacity of 1250 VA. Its design ensures a stable switching frequency of 30 Hz under resistive loads. Moreover, it can handle a surge current of 20 mA for up to 10 ms for capacitive loads. This robust performance guarantees reliable operation in demanding environments.
Built for Industrial Environments
The 140DRC83000 operates flawlessly within a temperature range of 0°C to 60°C. For storage, it withstands temperatures from -40°C to 85°C. The module also performs reliably at up to 95% relative humidity without condensation. Its rack-mountable design and weight of 0.91 kg ensure easy installation.
Comprehensive Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer & Series | Schneider Electric Modicon Quantum |
| Model Number | 140DRC83000 |
| Module Type | Relay Output Module |
| Number of Channels | 8 Discrete Channels |
| Contact Type / Form | 1 NO/NC / Form C |
| Output Voltage Range | 20-250V AC, 30-150V DC, 5-30V DC |
| Switching Capacity | 1250 VA (Resistive) |
| Switching Frequency | 30 Hz (Resistive) |
| Surge Current | 20 mA at 10 ms (Capacitive) |
| Addressing Requirement | 0.5 Output Words |
| Operating Temperature | 0°C to 60°C |
| Weight | 0.91 kg (2.00 lbs) |
| Certification | CE Marked |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 55 × 180 × 260 mm |
