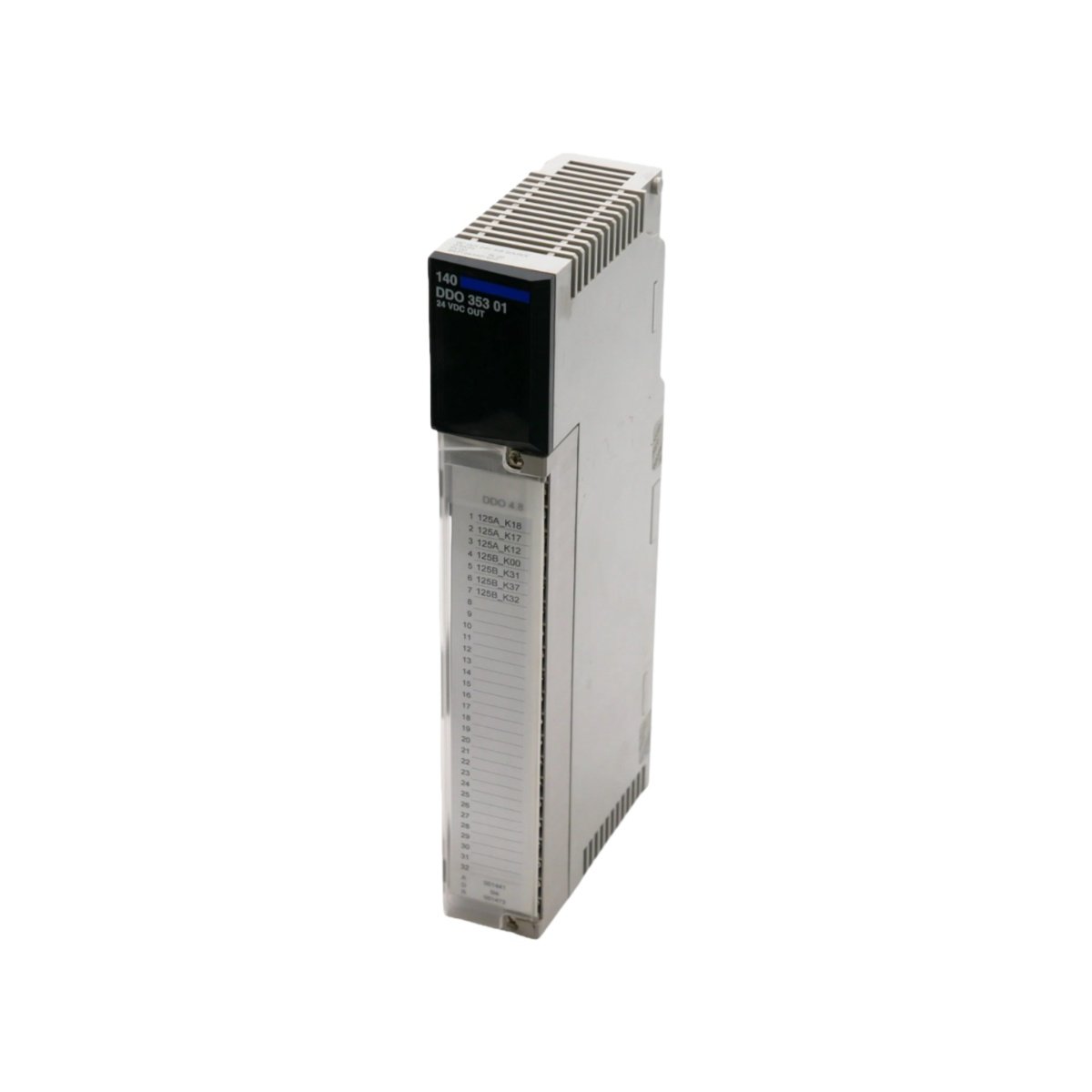

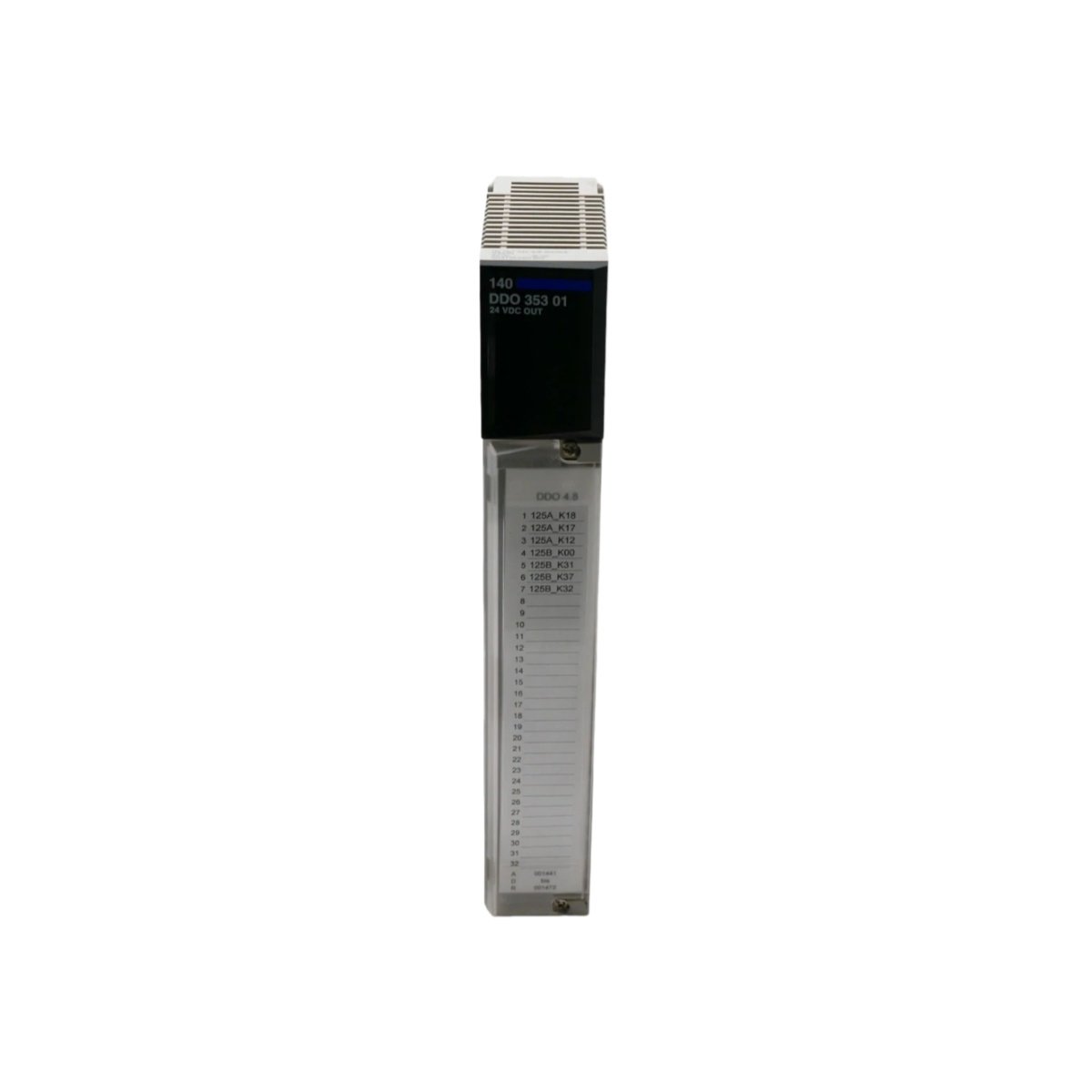

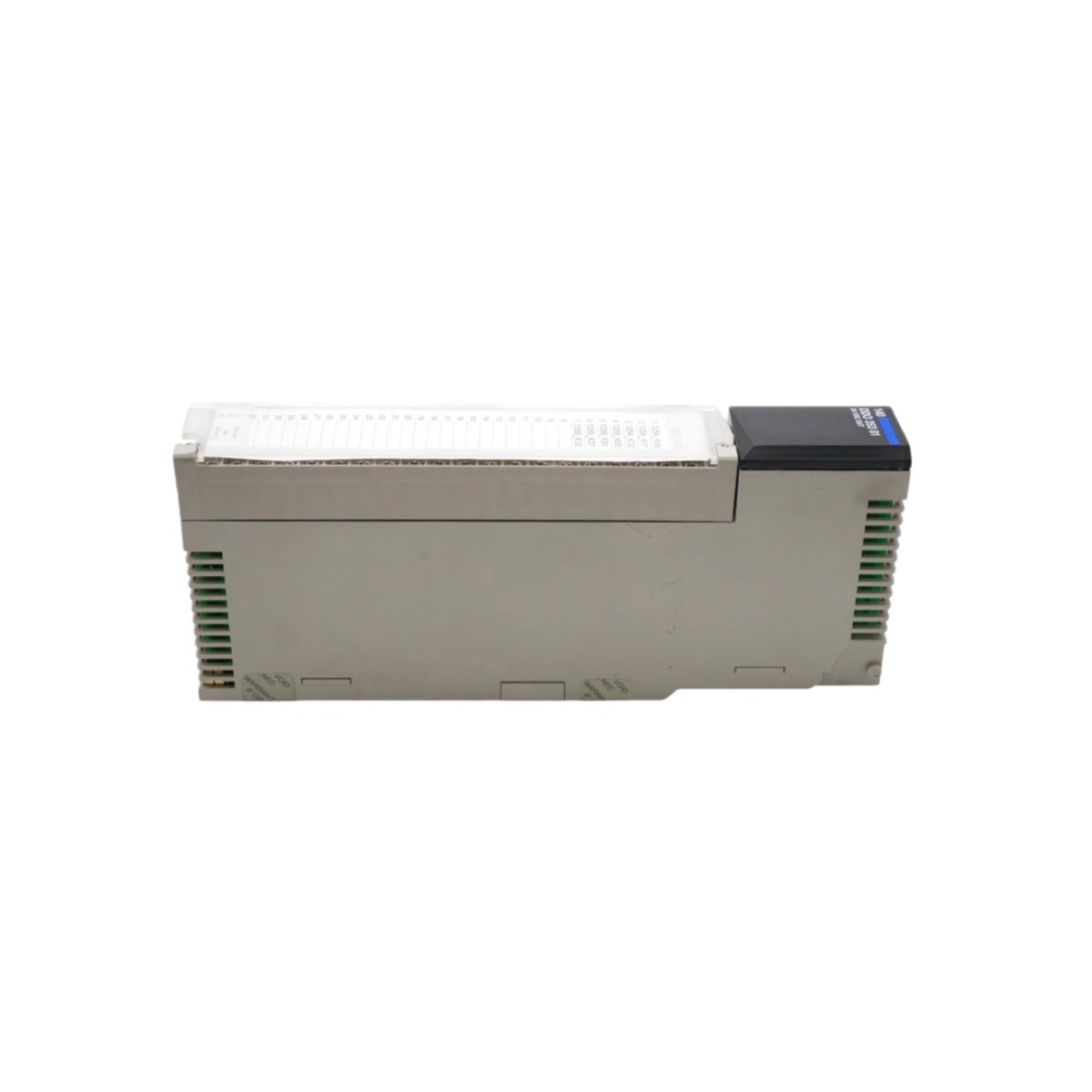

The Schneider Electric 140DDO35301 is a high-density DC output module for industrial control. Part of the Modicon series, it provides 32 outputs in a single compact module. Moreover, its design offers efficient and reliable switching for a wide array of 24VDC devices. Consequently, you can control numerous solenoids, indicators, and relays with precise digital commands.
High-Density Design and Logical Grouping
This module organizes its 32 output channels into four logical groups of eight. This grouping simplifies wiring and enhances electrical fault isolation. Furthermore, it utilizes positive logic for intuitive programming and troubleshooting. Therefore, engineers can efficiently manage complex output patterns within automation software.
Robust Electrical Performance for DC Loads
The 140DDO35301 delivers a substantial total output capacity of 16 Amperes per module. Each channel reliably switches standard 24 VDC industrial control voltages. Additionally, the module handles brief surge currents up to 2A for driving inductive loads. Its low leakage current ensures clean switching and prevents unintended device activation.
Detailed Technical Specifications
Below is a comprehensive table of the technical parameters for the Schneider 140DDO35301 module:
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric 140DDO35301 |
| Product Series | Modicon Discrete Output Module |
| Product Type | 32-Channel DC Output Module |
| Discrete Output Number | 32 channels |
| Channel Grouping | 4 isolated groups of 8 channels |
| Output Logic | Positive Logic |
| Output Voltage | 24 V DC |
| Absolute Maximum Voltage | 50 V DC |
| Maximum Load Current | 16 A total (distributed across all channels) |
| Surge Current | 2 A |
| Maximum Leakage Current | 1 mA at 24 V DC |
| Addressing Requirement | 2 output words in the controller’s I/O map |
| Module Weight | 0.25 lbs (0.11 kg) |
| UPC Code | 785901236238 |
| Typical Loads | PLC relays, solenoid valves, pilot lights, small DC contactors |
| Primary Benefit | High channel density for space-efficient panel design |
Optimizing Control Panel Layout and Efficiency
Integrating this high-density module significantly saves space within your control enclosure. Its grouped channel design also streamulates wiring and reduces terminal block requirements. Ultimately, the Schneider 140DDO35301 is an optimal solution for applications demanding a large number of cost-effective digital outputs.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
