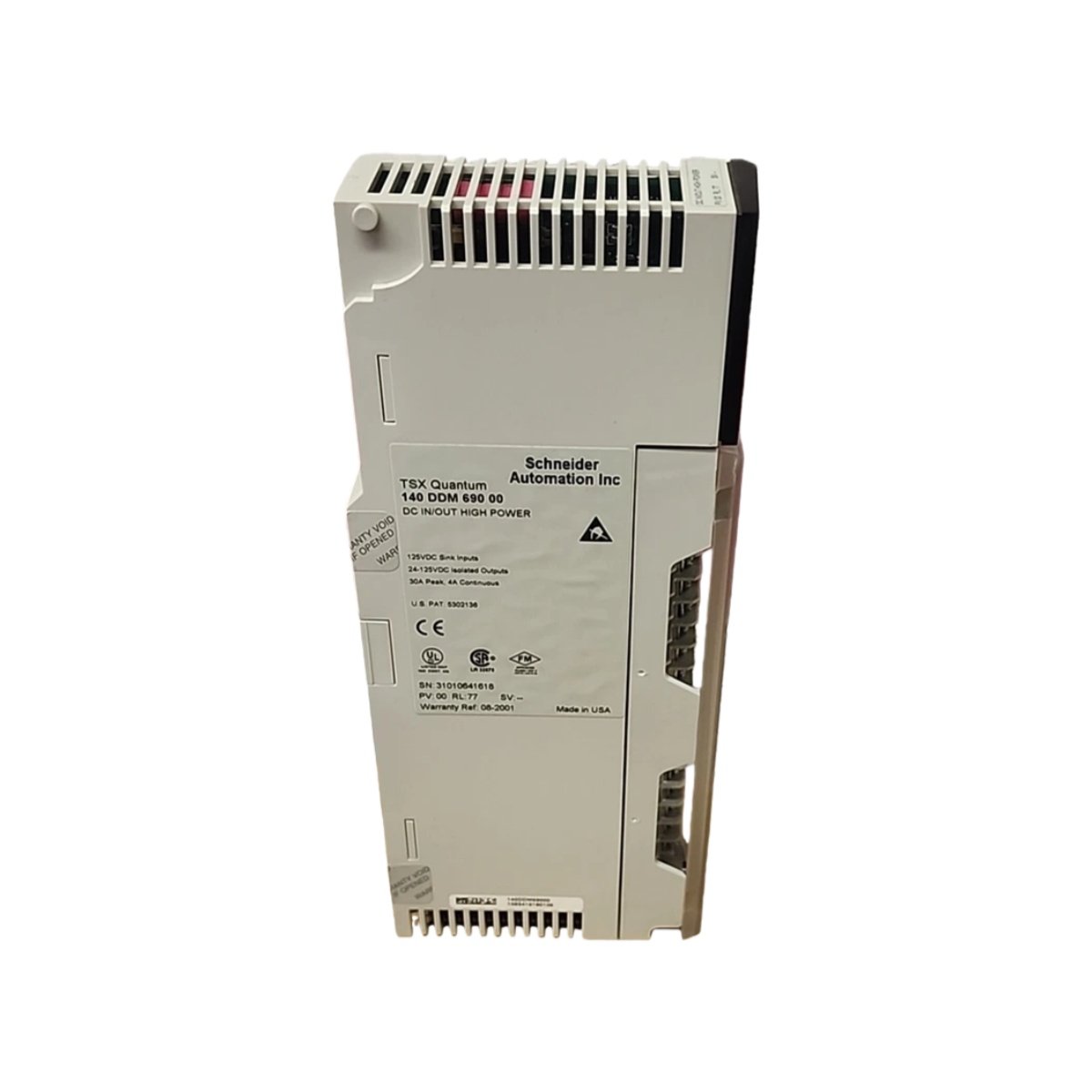

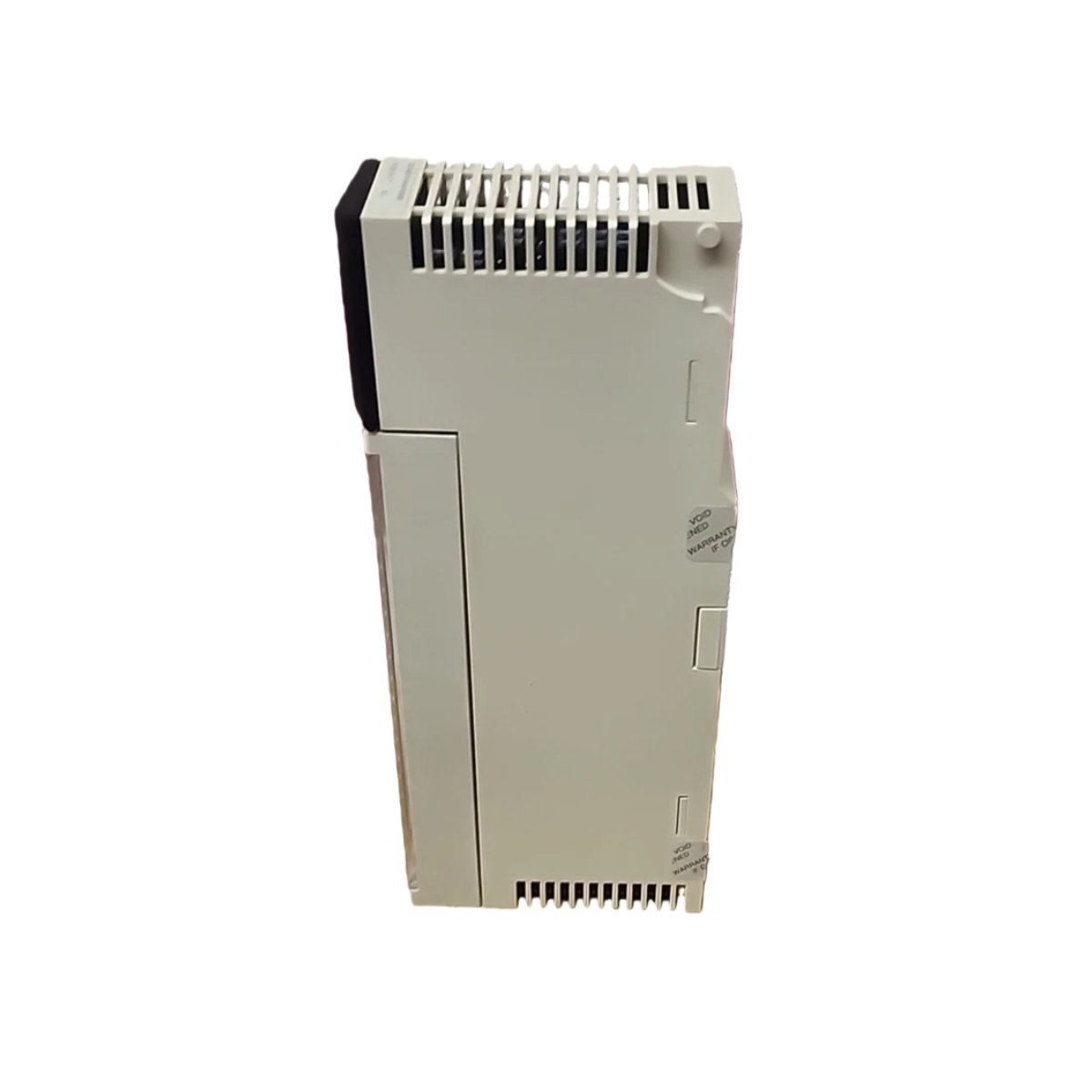

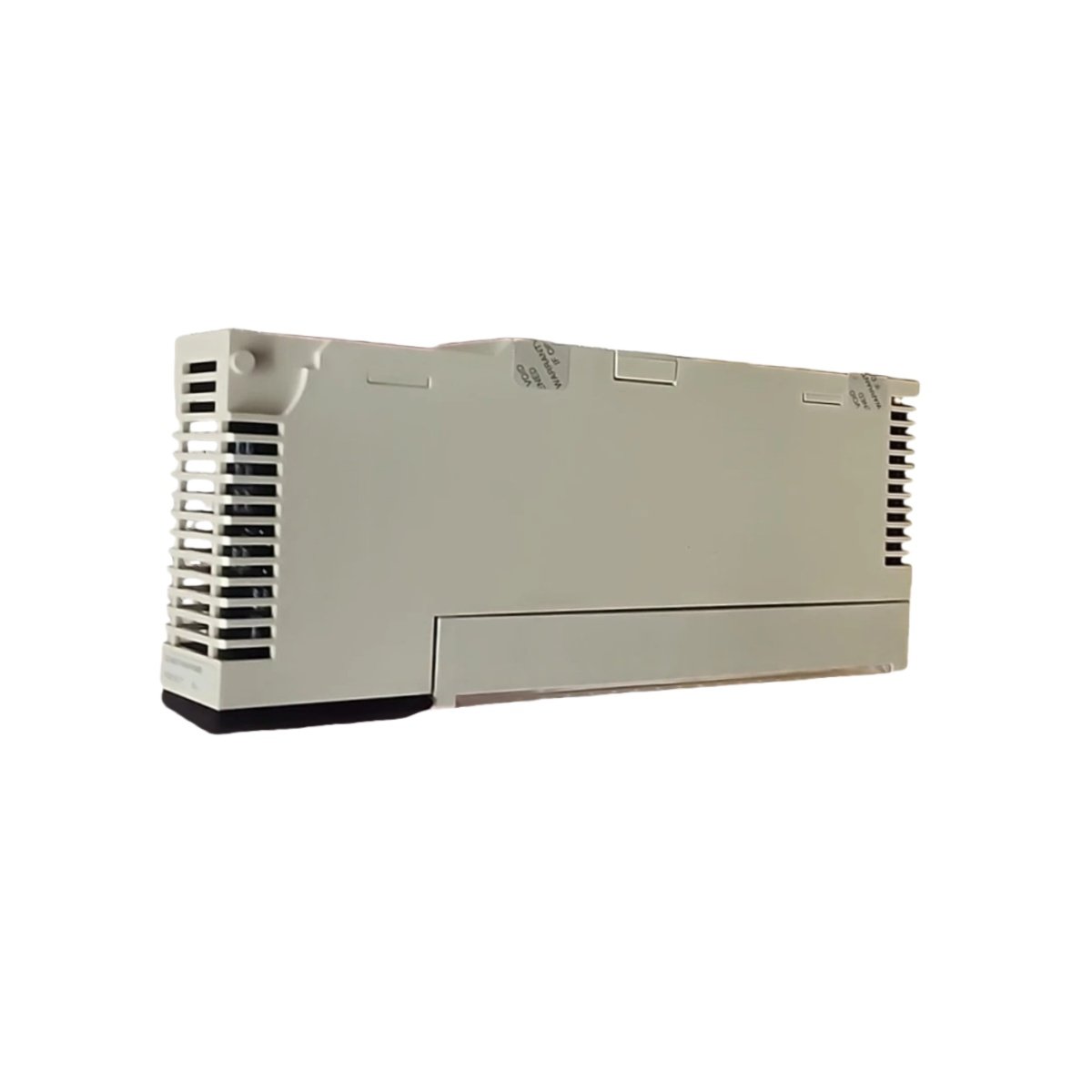

The Schneider 140DDM69000C serves as a flexible mixed discrete input and output module for the Modicon Quantum platform. It combines both sensing and control capabilities within a single compact unit. This design optimizes rack space while providing comprehensive signal interfacing for industrial machinery.
Advanced Channel Configuration and Signal Distribution
We engineer this module with 16 discrete input channels and 8 discrete output channels for maximum versatility. The inputs accept 24 VDC signals from push buttons, limit switches, and proximity sensors. The outputs drive various field devices using 24 VDC transistor technology. Consequently, engineers can manage both signal acquisition and load control from one module.
Technical Specifications and Physical Characteristics
The 140DDM69000C features optical isolation between the field wiring and the backplane logic circuits. Input channels include built-in filtering to reject electrical noise from industrial environments. Output channels utilize fast-switching transistors with short-circuit protection for reliability. This combination ensures robust performance in demanding automation applications.
| Specification | Details |
|---|---|
| Product Model | 140DDM69000C |
| Module Type | Discrete I/O Module (Mixed) |
| Input Channels | 16 discrete inputs |
| Output Channels | 8 discrete outputs |
| Input Voltage Rating | 24 VDC |
| Input Current | 7 mA typical at 24 VDC |
| Output Type | Transistor (sourcing) |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel (resistive load) |
| Isolation Voltage | 500 VDC between field and logic |
| Backplane Current Draw | 600 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Quantum format |
| Module Weight | Approximately 0.45 kg (1.0 lb) |
| Status Indicators | Green LEDs for input and output status |
| Terminal Type | Removable screw terminal block |
Seamless Integration with Quantum Control Systems
You can configure this module effortlessly using the Unity Pro software environment. The Schneider 140DDM69000C automatically maps input and output data to the processor memory. It supports both local rack mounting and remote I/O configurations via the bus. Therefore, system designers achieve tremendous flexibility when designing control networks.
Furthermore, this module excels in applications requiring mixed I/O in confined spaces. Industries like packaging, material handling, and machine building benefit from its compact design. The integrated short-circuit protection minimizes downtime by preventing output stage damage. This reliability ensures consistent operation even under fault conditions.
We source this versatile module from Schneider Electric, a trusted global manufacturer of automation solutions. As part of the Modicon Quantum series, it guarantees compatibility with existing and new installations. Choosing the 140DDM69000C means investing in efficient space utilization for your control panel.
Technical Specifications Overview
| Specification | Details |
|---|---|
| Product Model | 140DDM69000C |
| Module Type | Discrete I/O Module (Mixed) |
| Input Channels | 16 discrete inputs |
| Output Channels | 8 discrete outputs |
| Input Voltage Rating | 24 VDC |
| Input Current | 7 mA typical at 24 VDC |
| Input Response Time | < 4 ms (OFF to ON) / < 8 ms (ON to OFF) |
| Output Type | Transistor (sourcing) |
| Output Voltage | 24 VDC |
| Output Current | 0.5 A per channel (resistive load) |
| Output Response Time | < 1 ms (OFF to ON) / < 1 ms (ON to OFF) |
| Protection Features | Short-circuit protection on outputs |
| Isolation Voltage | 500 VDC between field and logic |
| Backplane Current Draw | 600 mA from 5 VDC |
| Physical Dimensions | Standard Modicon Quantum format |
| Module Weight | Approximately 0.45 kg (1.0 lb) |
| Status Indicators | Green LEDs for input and output status |
| Terminal Type | Removable screw terminal block |
| Compatible Software | Unity Pro, Concept |
| Series | Modicon Quantum |
| Manufacturer | Schneider Electric |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
