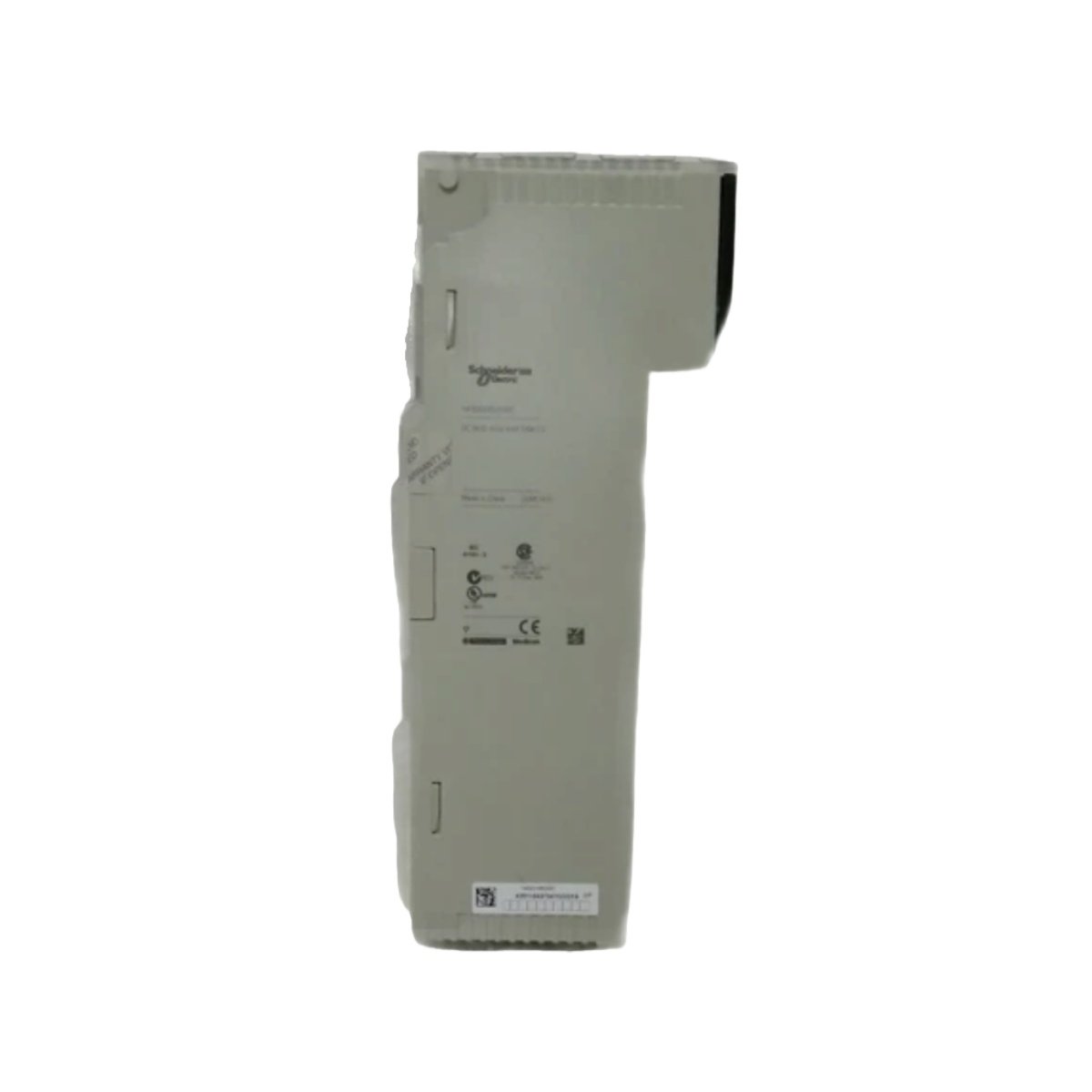

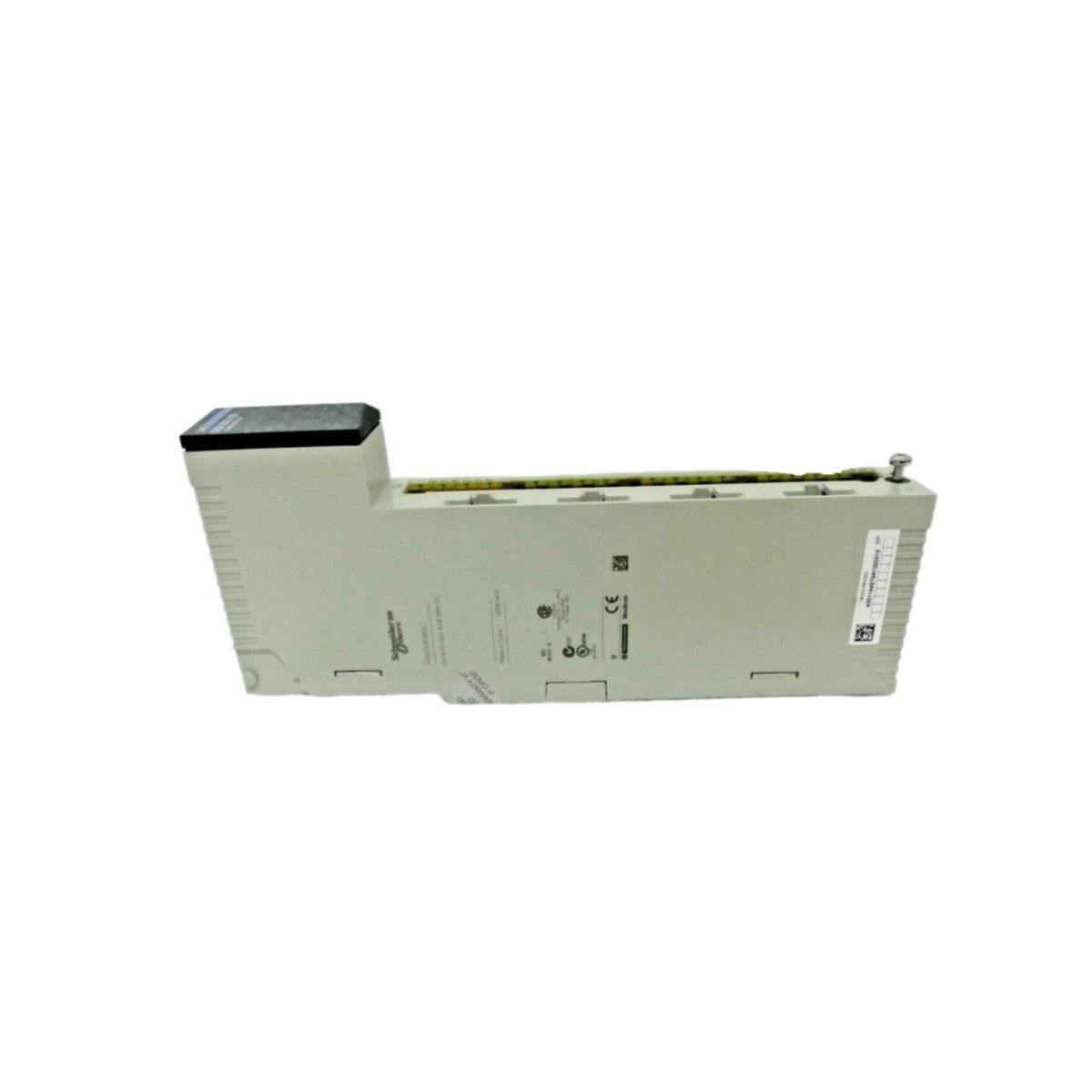

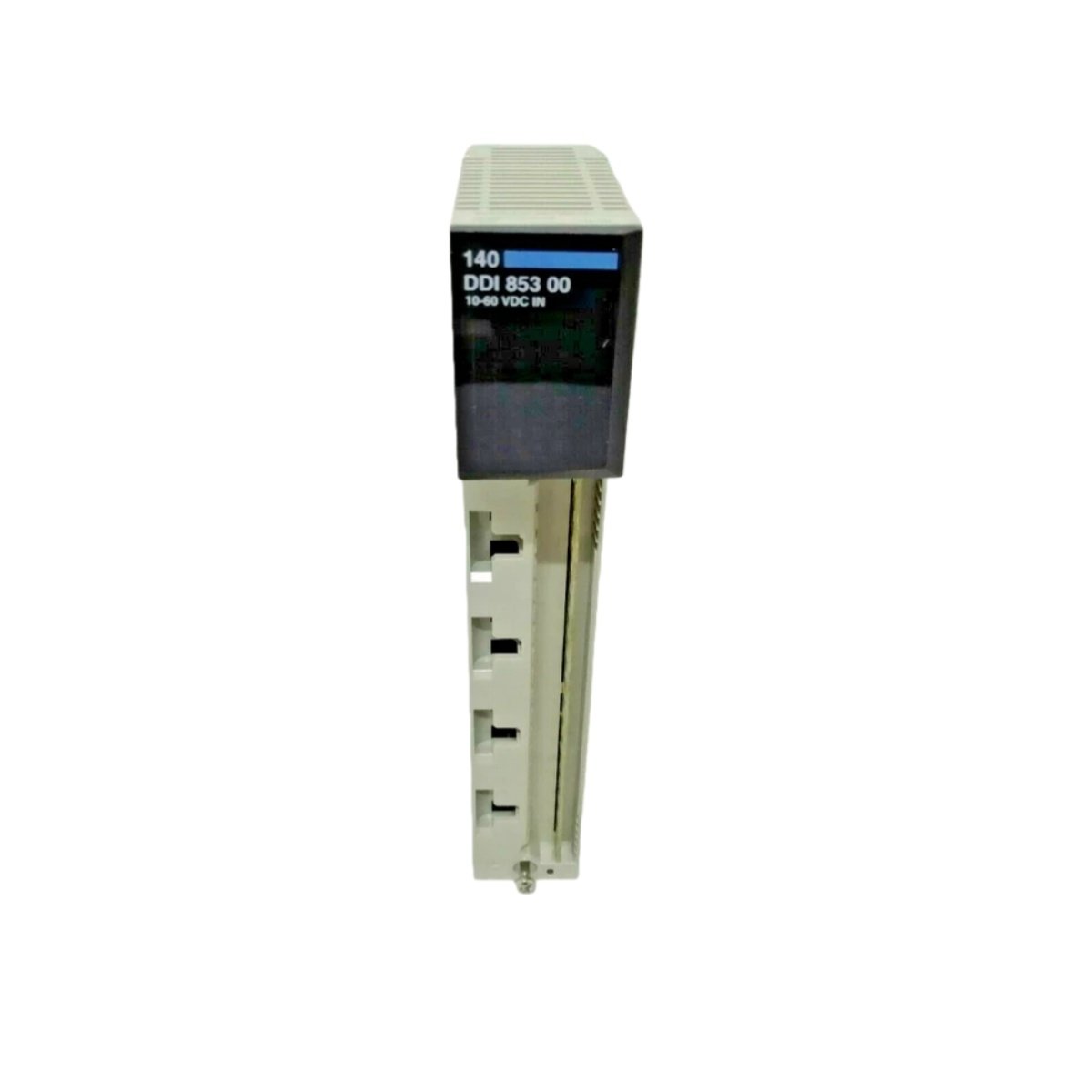

The 140DDI85300C from Schneider Electric serves as a high-density discrete input module for the Modicon Quantum automation platform. Engineers utilize this unit to connect 24 VDC field devices directly to the control system. It delivers reliable signal acquisition for sensors, pushbuttons, and limit switches.

Core Hardware Architecture and Physical Design

This input module features a standard Quantum form factor with dimensions of approximately 100 mm x 200 mm x 70 mm. The unit weighs around 0.4 kg, allowing for straightforward installation in Quantum racks. Its rugged metal housing ensures excellent electromagnetic compatibility in industrial environments. Additionally, the front panel includes a secure locking mechanism for vibration resistance.

Input Channel Configuration and Electrical Ratings

The 140DDI85300C provides 32 discrete input channels organized into four isolated groups of eight. Each channel operates on 24 VDC with typical current draw of 7 mA at nominal voltage. The input voltage range spans from 19 VDC to 30 VDC for reliable signal detection. Furthermore, the module includes programmable input filters for noise rejection.

Isolation and Protection Features

Each group of eight inputs features 500 VAC optical isolation from the backplane and other groups. This isolation prevents ground loops and protects the CPU from field-side transients. The module also incorporates reverse polarity protection on all input circuits. Consequently, it maintains reliable operation even during wiring errors.

Technical Specifications

Installation and Integration Benefits

The 140DDI85300C plugs directly into any standard Quantum rack position without special tools. Its removable terminal block simplifies field wiring and module replacement. Users can mix this input module with output and specialty modules freely. Therefore, it offers flexible configuration for large-scale control applications.
