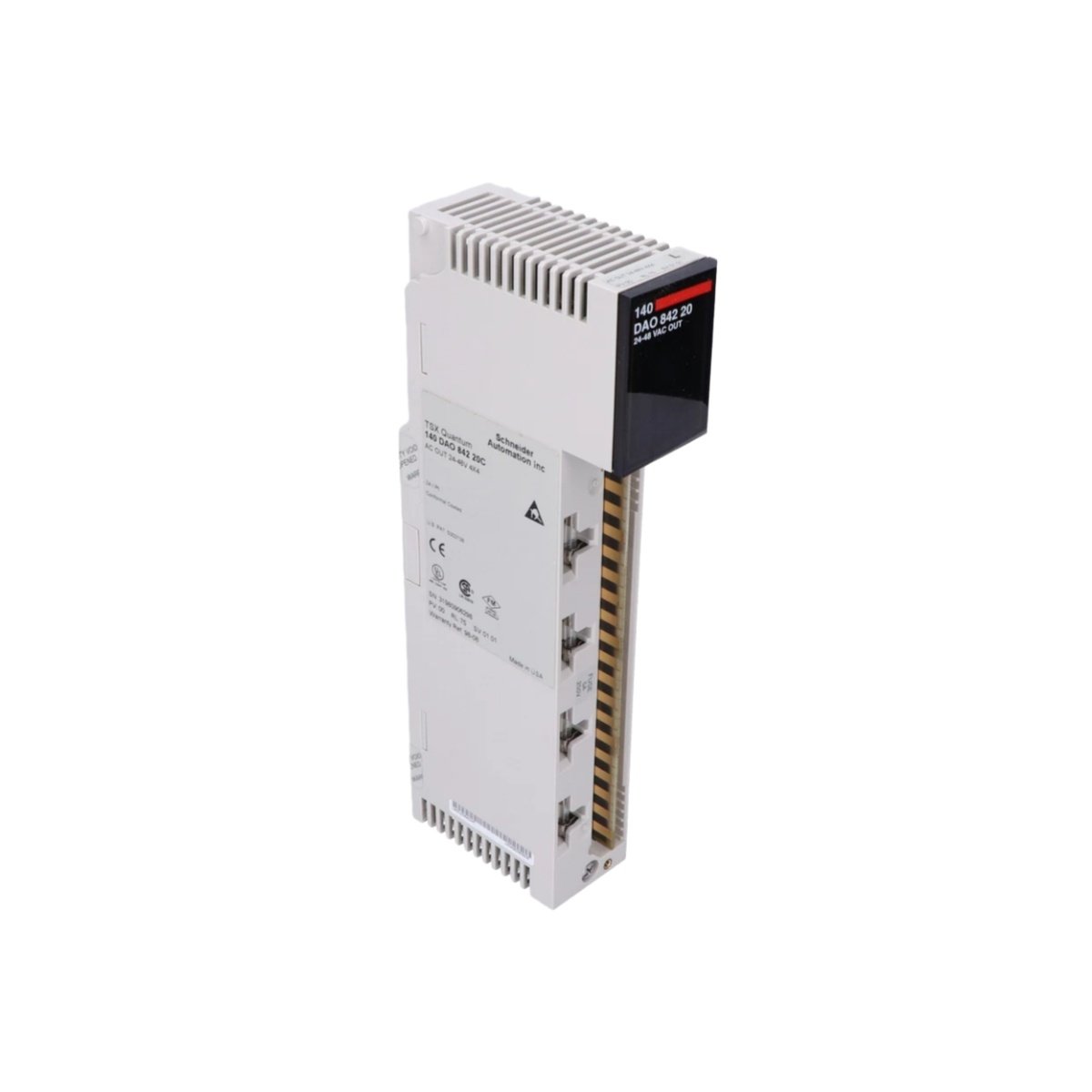

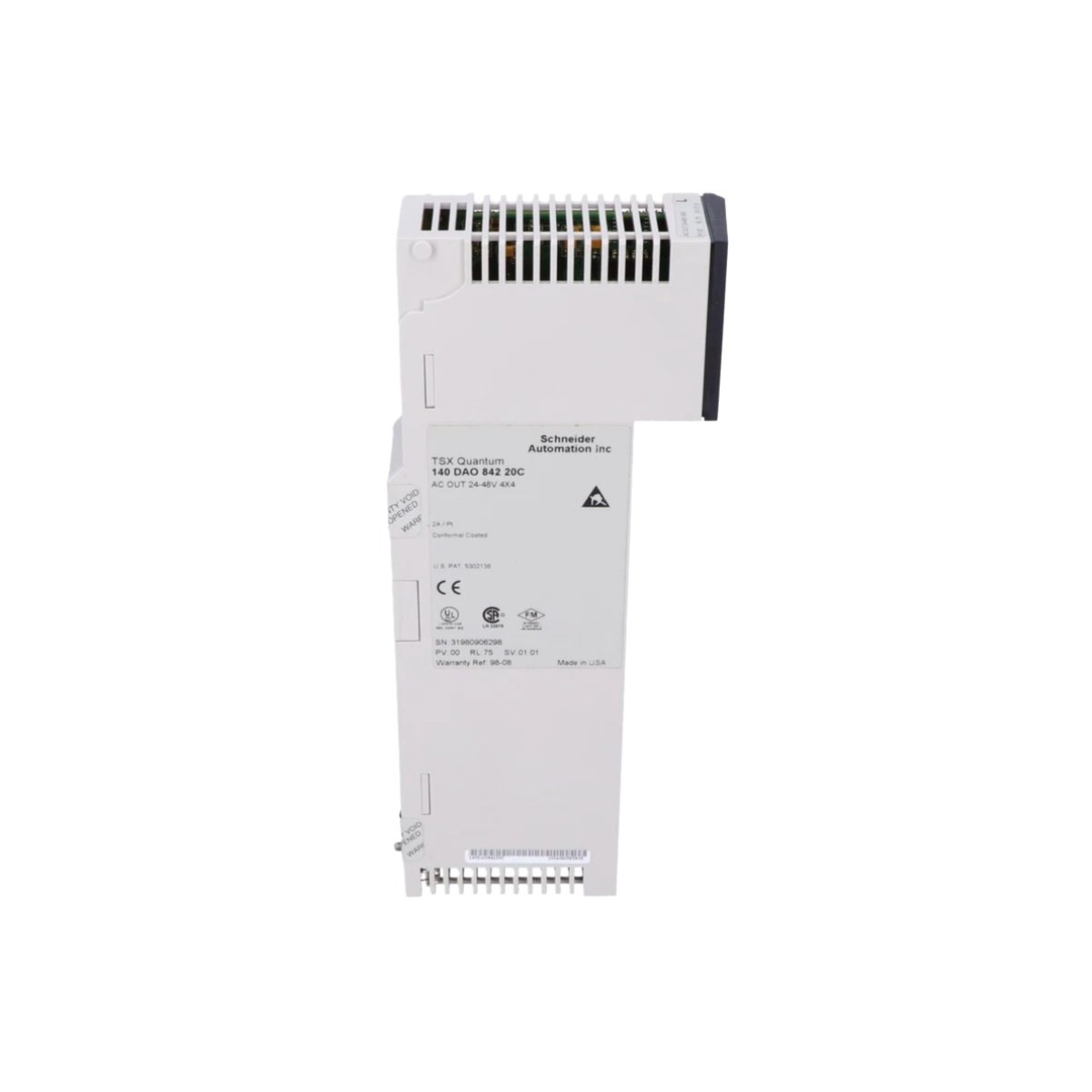

For industrial automation professionals seeking dependable control, the 140DAO84220C from Schneider Electric provides a robust solution. This discrete output module integrates seamlessly into the Modicon Quantum automation platform. It delivers precise switching capabilities for various AC loads in demanding manufacturing environments.

Engineered for Reliable AC Load Control

The 140DAO84220C features 16 independent output channels specifically designed for AC applications. It supports a wide operating voltage range from 20 to 56 volts AC, making it adaptable for global machinery requirements. Consequently, this module ensures consistent performance across different control system specifications.

Its design focuses on protecting both the module and the connected field devices. An internal RC filter and fuse provide essential protection against voltage transients. Furthermore, the module exhibits a high dv/dt of 400 V/ms, ensuring reliable commutation even with inductive loads.

Technical Specifications at a Glance

We have outlined the core technical attributes of the 140DAO84220C below to assist with your system design:

• Manufacturer: Schneider Electric

• Product Type: Discrete Output Module

• Product Line: Modicon Quantum

• Part Number: 140DAO84220C

• Form Factor: Standard

• Output Channels: 16

• Output Voltage: 20 to 56 V AC

• Max Voltage Drop: 1.5 V

• dv/dt: 400 V/ms

• Protection Type: Internal by RC filter and fuse

• Addressing Requirement: 1 output word

• Bus Current Requirement: 350 mA

• Weight: 1.13 lbs (0.51 kg)

• Marking: CE

Seamless Integration and Key Details

Integrating the 140DAO84220C into your existing Quantum system is straightforward. It requires only one output word for addressing, which simplifies the configuration process within your control software. Additionally, its standard format ensures a perfect fit in the Quantum I/O racks.

The module draws a bus current of 350 mA from the backplane. At a weight of just 1.13 lbs (0.51 kg), it adds minimal bulk to your control panel. You can find this specific module and other automation spares by searching for the part number 140DAO84220C online.

For engineers looking for replacement parts or designing new systems, the 140DAO84220C remains a reliable choice. Its robust protection circuitry and clear CE marking comply with international standards. Ultimately, this module from the Schneider Electric Modicon series offers the durability expected in industrial sectors like automotive and material handling, similar to the robust protection found in components like the RMS TSG TZ C Static Trip unit.
