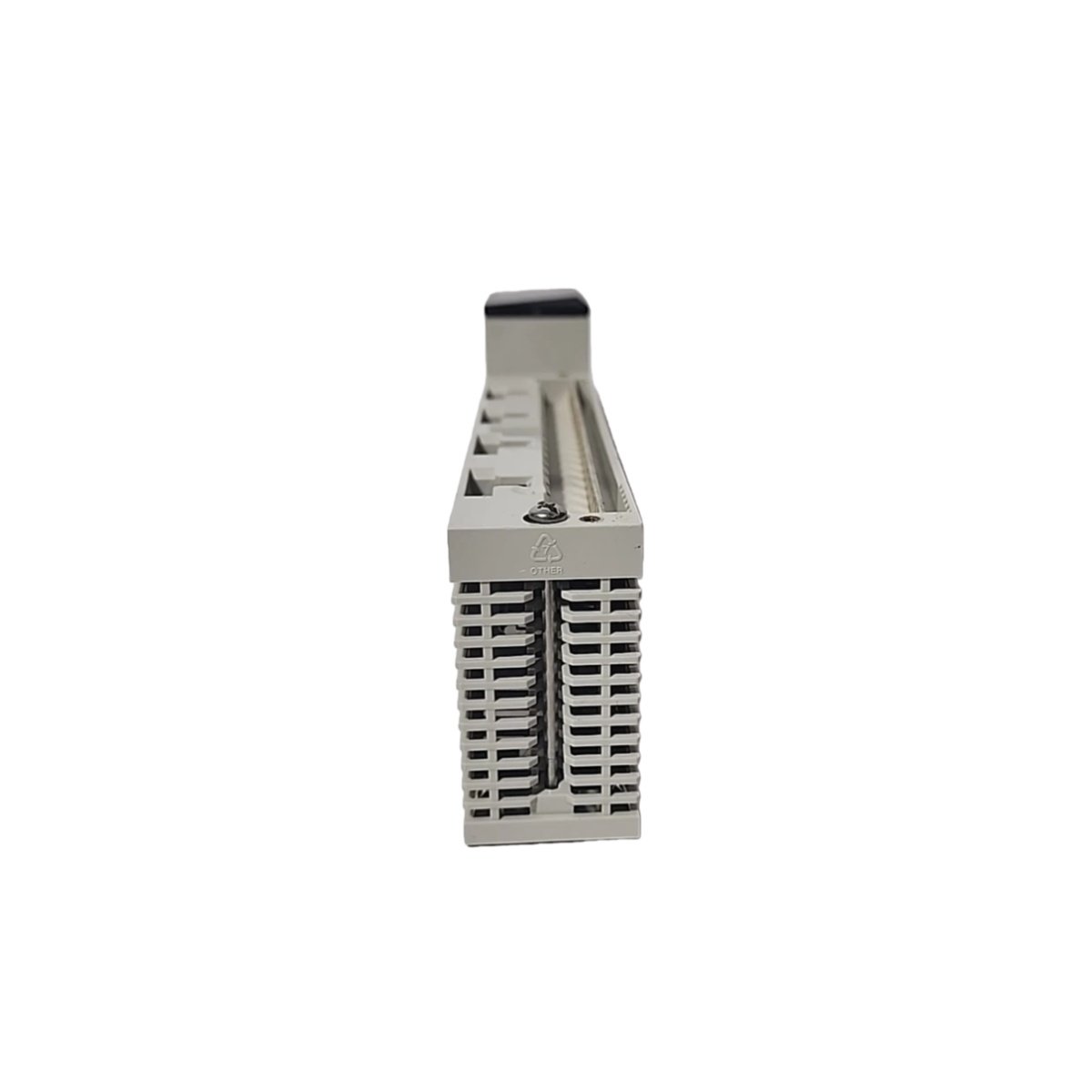

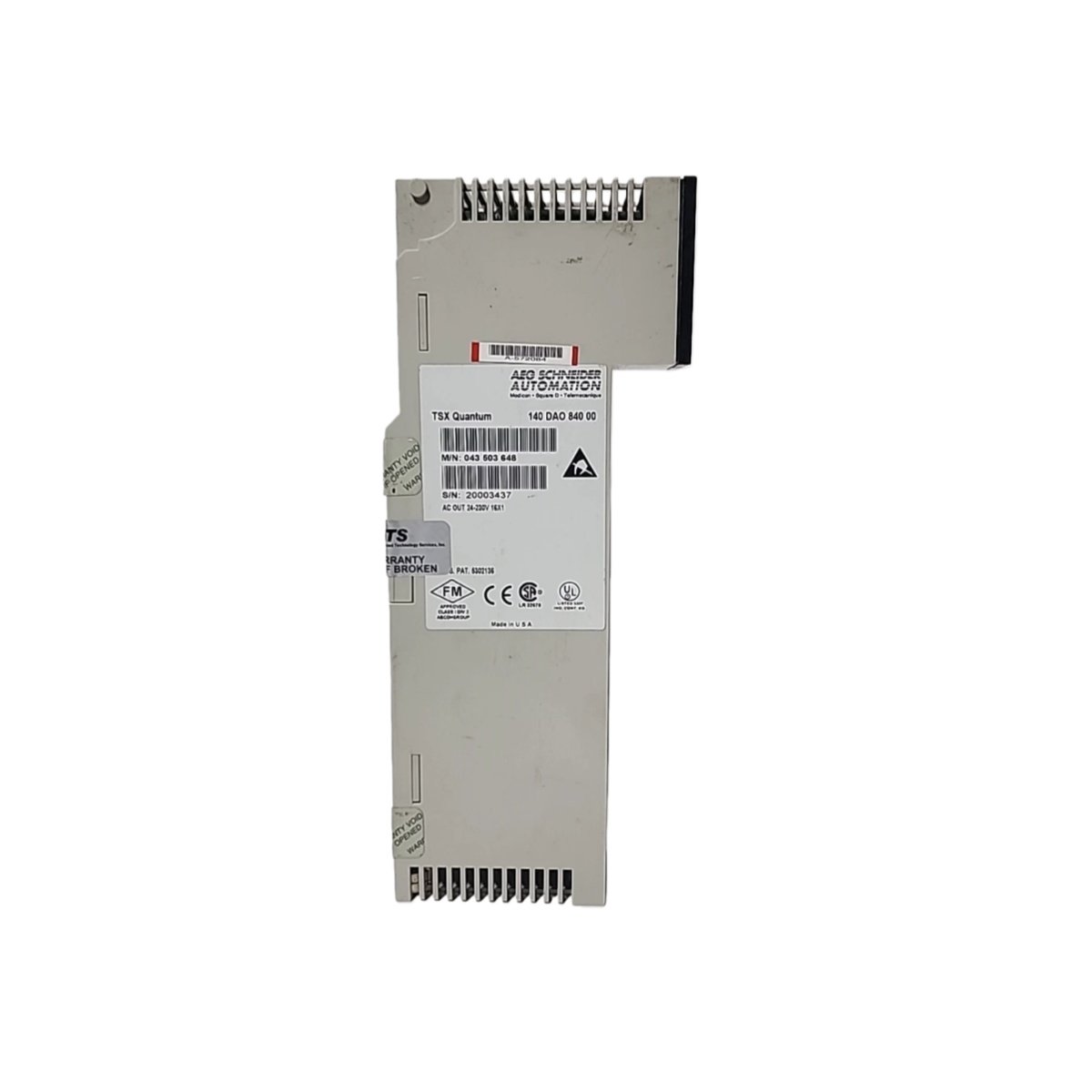

The Schneider Electric 140DAO84000 is a high-performance 16-channel AC output module. Designed for the Modicon Quantum platform, it delivers reliable control for industrial actuators. Moreover, its robust solid-state design handles significant inrush currents from inductive loads. Consequently, you can directly drive motor starters, solenoid valves, and contactors with confidence.
High-Power Switching and Rapid Response
This module excels in demanding switching applications with its high current capacity. Each output channel supports up to 4A RMS at lower voltages and 3A RMS at line voltage. Furthermore, it features an exceptionally fast response time of less than 0.5 milliseconds. Therefore, your control system achieves precise timing for fast-cycling processes and machinery.
Comprehensive Diagnostics and Robust Construction
The 140DAO84000 provides clear visual diagnostics through multiple LED indicators. Sixteen green LEDs show the real-time status of each individual output channel. Additionally, the module meets stringent certifications for use in harsh industrial environments. Its design ensures long-term reliability and easy maintenance.
Detailed Technical Specifications
Below is a comprehensive table of the technical parameters for the Schneider 140DAO84000 module:
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric 140DAO84000 |
| Product Series | Modicon Quantum Discrete Output Module |
| Number of Channels | 16 isolated output channels |
| Output Type | Solid-state AC (Thyristor), Isolated |
| Output Voltage Range | 20 to 253 Volts AC |
| Supply Frequency | 47 to 63 Hz |
| Max Load Current per Point | 4A RMS (24-115VAC) / 3A RMS (200-230VAC) |
| Max Total Module Current | 16A RMS (distributed) |
| Surge Current Capacity | 30A for 1 cycle, 20A for 2 cycles, 10A for 3 cycles |
| Response Time | < 0.5 milliseconds (ON and OFF) |
| Maximum Voltage Drop | 1.5 Volts |
| Power Dissipation | 1.85W + (1.1V x total module load current) |
| Backplane Current (5V) | 350 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 95% (non-condensing) |
| Safety Certifications | cUL, UL 508, CSA C22.2 No. 142, FM Class 1 Division 2 |
| Connection | Removable screw terminal blocks |
Simplified Panel Design and Direct Control
Integrating this module allows for a more compact control panel design by eliminating intermediary relays. Its integrated isolation and protection reduce external component count and wiring complexity. Ultimately, the Schneider 140DAO84000 is an essential component for building efficient and high-performance automation systems.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
