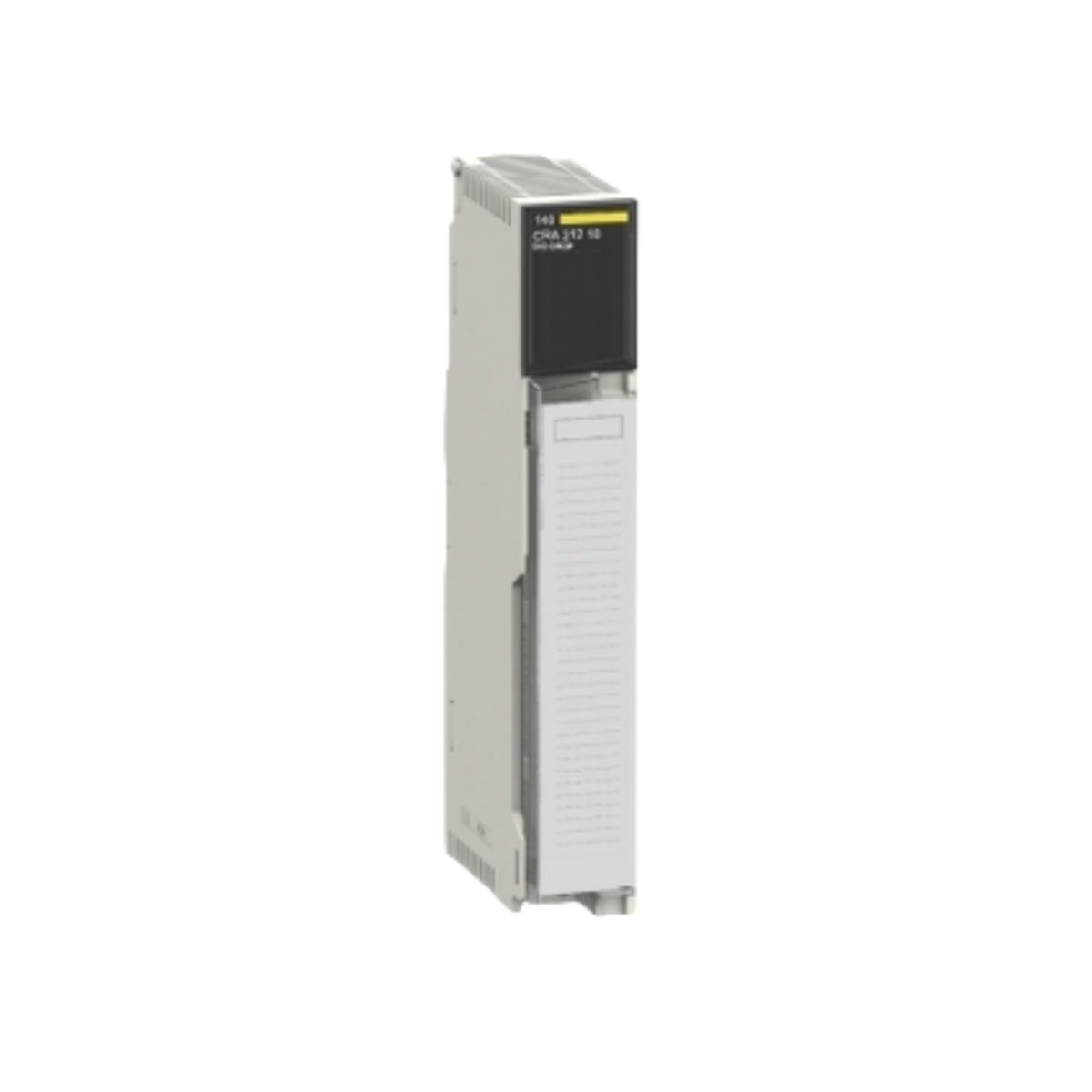

The Schneider 140CRA21210C functions as a distributed I/O drop interface module for Modicon Quantum automation platforms. We design this module to connect remote I/O racks to the main Quantum processor over a communication network. Its dedicated interface handles all communication protocol processing for reliable data exchange. This DIO drop interface enables cost-effective distributed control architectures for large industrial applications.

Key Features and Distributed Control Benefits

The Schneider 140CRA21210C delivers reliable remote I/O connectivity through its dedicated communication processor and network interface. This module manages all data exchange between remote I/O racks and the main Quantum controller. Consequently, it offloads communication tasks from the main processor for improved scan time performance. Furthermore, its compact design occupies a single Quantum rack slot while supporting extensive remote I/O capabilities.

Detailed Technical Specifications

Manufacturers construct the Schneider 140CRA21210C using industrial-grade components for continuous operation in demanding environments. The module measures approximately 130 millimeters in height, 40 millimeters in width, and 100 millimeters in depth. Its rugged design withstands the temperature extremes and vibration present in industrial control panels. Additionally, the module features status indicators for power, communication activity, and network diagnostics.

Remote I/O Communication Protocol

The 140CRA21210C implements the Modicon Quantum remote I/O protocol for reliable distributed control. It communicates with the main Quantum processor over dedicated coaxial or fiber optic cabling. The module handles all protocol overhead, including error checking and data formatting automatically. Therefore, remote I/O data transfers occur seamlessly without affecting main processor performance.

Distributed Control Architecture Benefits

Engineers designed the Schneider 140CRA21210C to enable cost-effective distributed control system architectures. This module allows I/O racks to locate near field devices rather than in a central control room. Consequently, it significantly reduces field wiring costs for large, geographically distributed facilities. Furthermore, distributed I/O improves signal integrity by minimizing long analog signal runs.

Quantum Platform Integration

The 140CRA21210C integrates seamlessly into Modicon Quantum automation platforms through standard rack mounting. It plugs directly into a Quantum rack slot and connects to the system backplane. The module appears in the Quantum configuration for easy setup and diagnostics access. Therefore, it functions as an integral component of comprehensive Quantum automation solutions.

Industrial Applications and Use Cases

Process facilities worldwide rely on the Schneider 140CRA21210C for distributed I/O in large-scale applications. Oil and gas facilities use this module for remote well pad control and pipeline monitoring stations. Water treatment plants employ it for distributed pumping stations and remote site data acquisition. This DIO drop interface enables cost-effective distributed control in all these applications.

Installation Guidelines and Best Practices

Proper installation of the Schneider 140CRA21210C ensures reliable remote I/O communication and system performance. First, insert the module into an available Quantum rack slot and secure it with the locking mechanism. Next, connect the remote I/O network cable to the module’s dedicated communication port. Finally, configure the drop address and communication parameters through the programming software before system startup.

Maintain System Reliability with Genuine Schneider Components

Choosing the genuine Schneider 140CRA21210C guarantees reliable remote I/O communication for your Quantum system. Aftermarket modules may lack the proper protocol support or network timing of authentic Schneider designs. Therefore, always source this DIO drop interface from authorized Schneider Electric distributors and partners. For additional automation components, explore our selection of control modules similar to the RMS-TSG-TZ-C Static Trip Unit.
