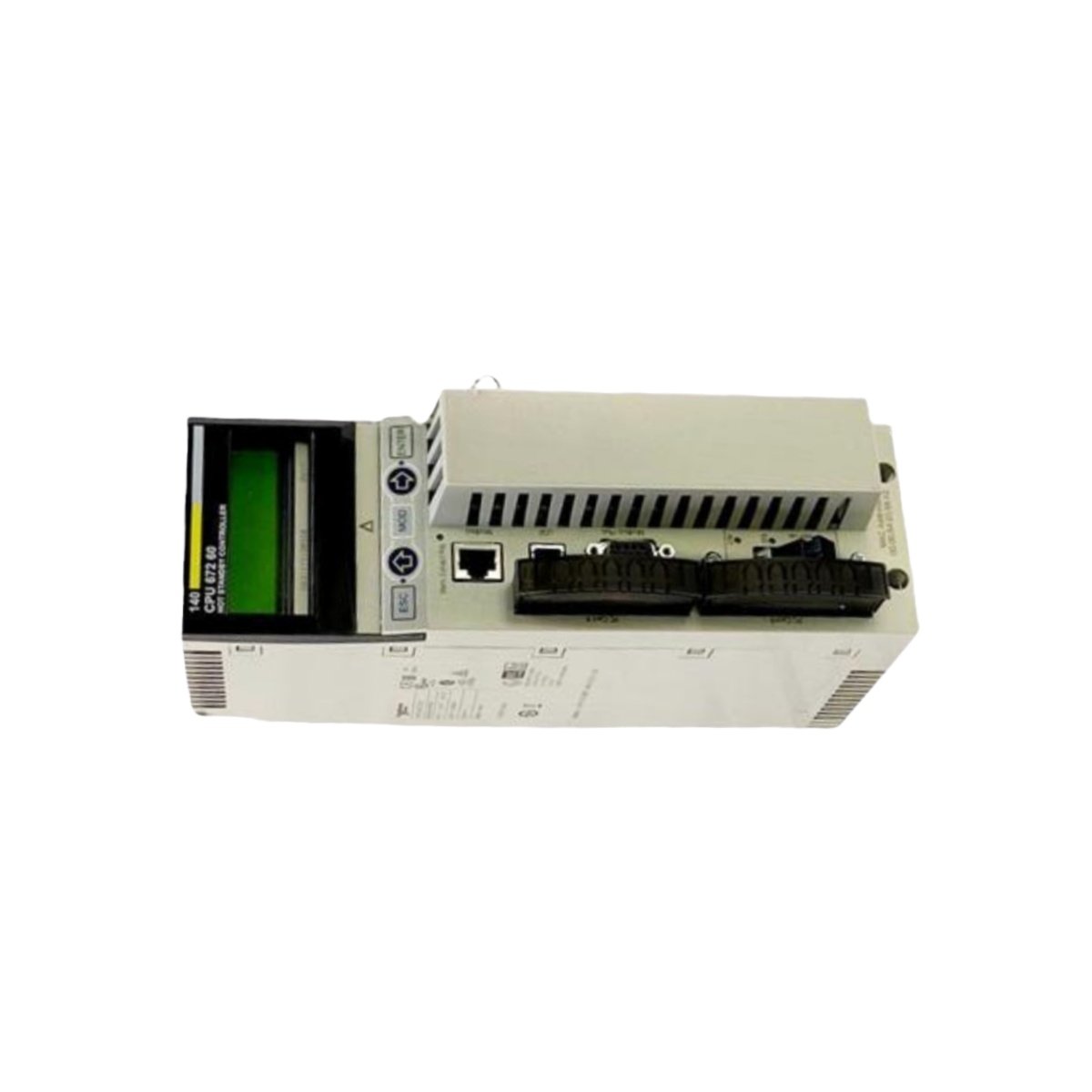

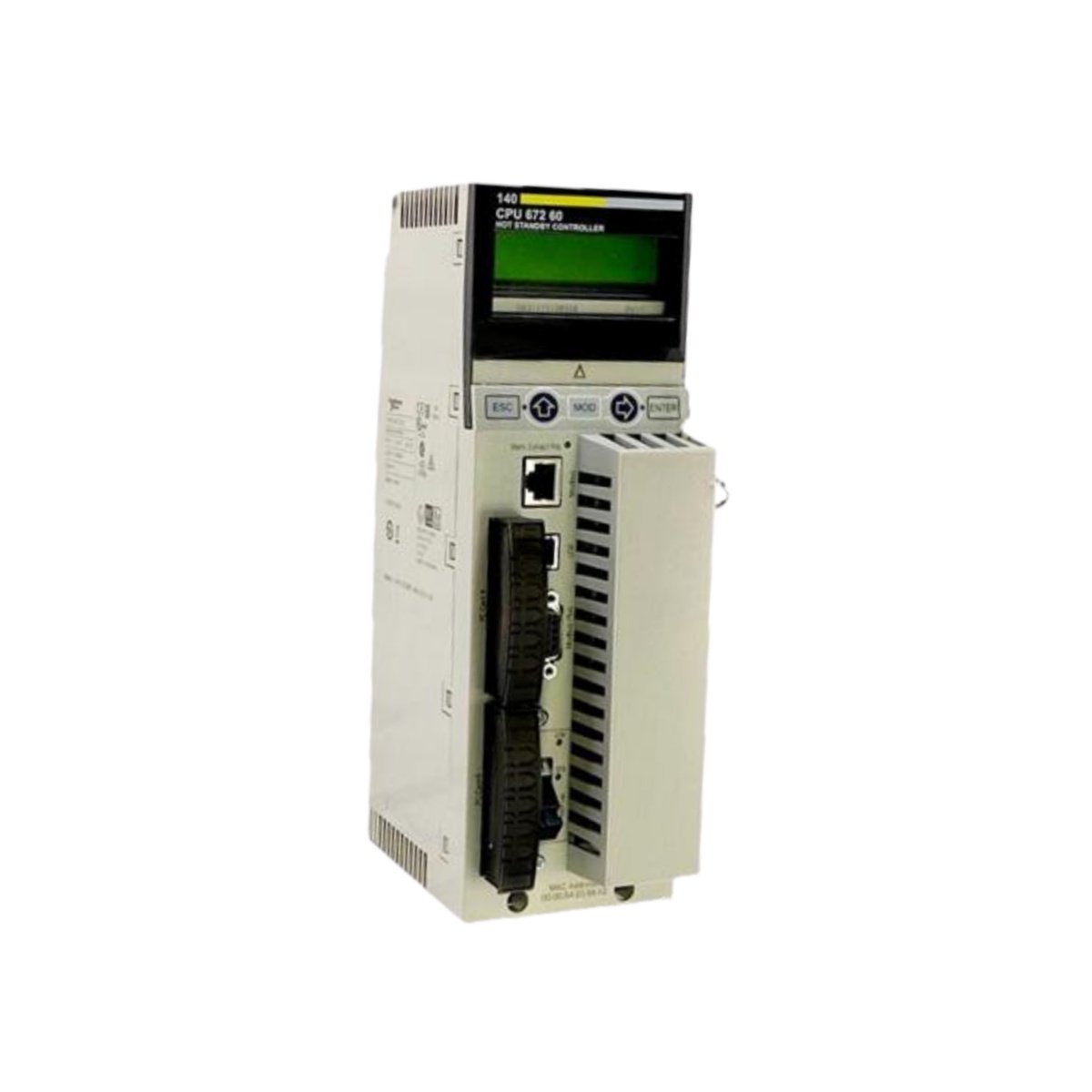

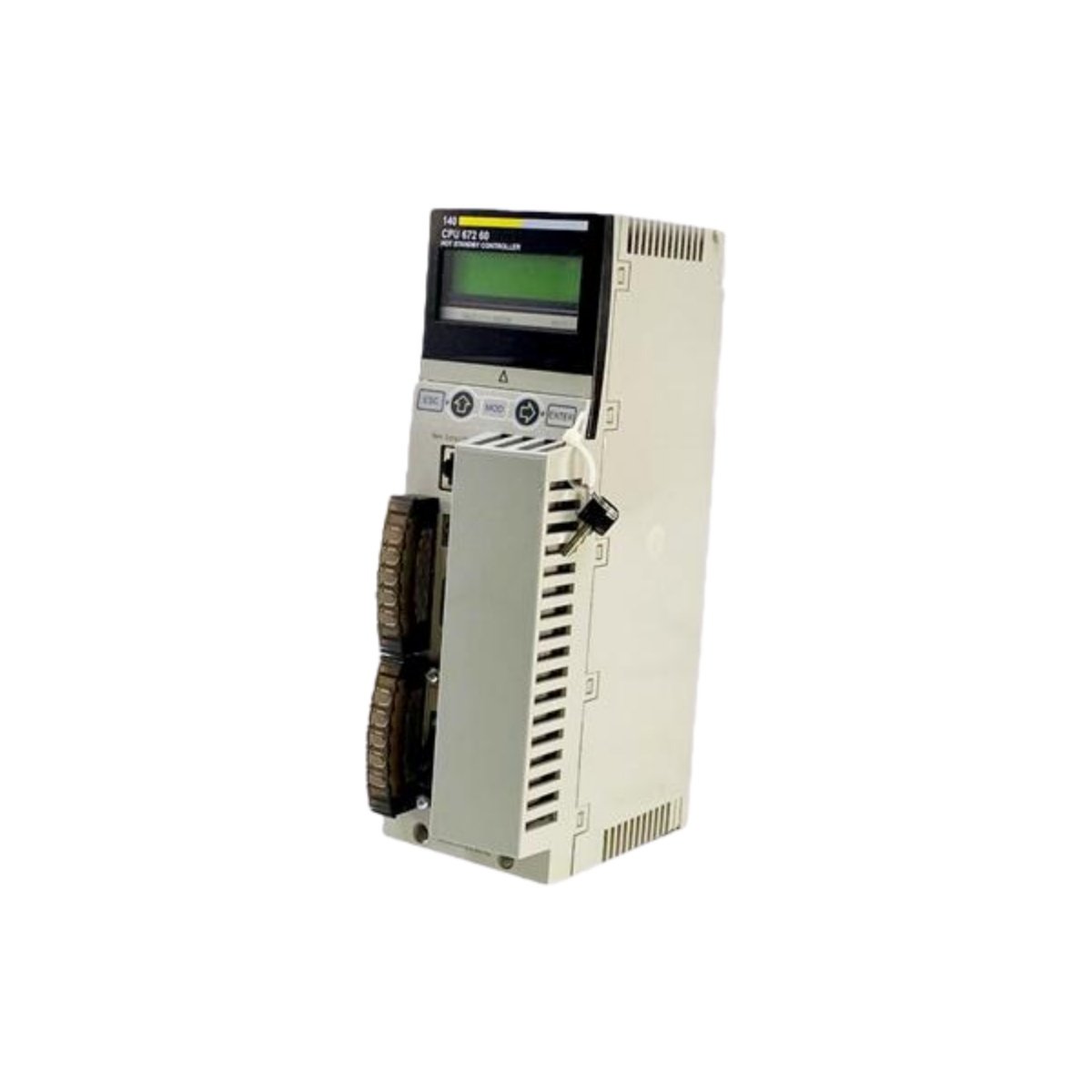

The Schneider Electric 140CPU67260 serves as a Unity Hot Standby processor for the Modicon Quantum platform. This advanced module ensures continuous operation and high system availability for critical processes. It features a multimode Ethernet port for robust network connectivity and communication. Consequently, it provides a reliable and fault-tolerant control solution for demanding industrial environments.
Core Processing and Redundancy Architecture
This processor delivers high-performance control execution and fast data processing. It implements a true hot standby architecture for seamless automatic failover. The system instantly switches to the standby processor upon detecting a primary unit fault. Therefore, it eliminates single points of failure and maximizes production uptime for essential operations.
Networking and Physical Specifications
The 140CPU67260 integrates a key multimode 100 Mbps Ethernet interface. This port supports industry-standard protocols like Modbus TCP/IP and Ethernet/IP. The processor also includes a standard backplane connector for Quantum rack integration. Its robust design ensures reliable performance within a standard industrial temperature range.
The module draws its operating power directly from the Quantum PLC backplane. It consumes a specific current to support its processing and communication functions. The physical construction features durable components for long-term reliability. Professionals sourcing such critical automation hardware can explore options on major industrial marketplaces.
Detailed Technical Specifications
Below are the primary technical parameters for the 140CPU67260 processor module.
| Parameter Category | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Series | Modicon Quantum |
| Model Number | 140CPU67260 |
| Module Type | Hot Standby Processor / CPU |
| Redundancy Mode | Unity Hot Standby (Automatic Failover) |
| Ethernet Interface | 1 x Multimode 100 Mbps Port |
| Supported Protocols | Modbus TCP/IP, Ethernet/IP, etc. |
| Processing Speed | High-performance for complex logic |
| Memory Capacity | Substantial for program & data storage |
| Communication Ports | Ethernet, Serial (via optional modules) |
| Backplane Connector | Standard Modicon Quantum |
| Power Supply | From Quantum rack backplane |
| Typical Applications | Critical process control, fault-tolerant systems |
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
