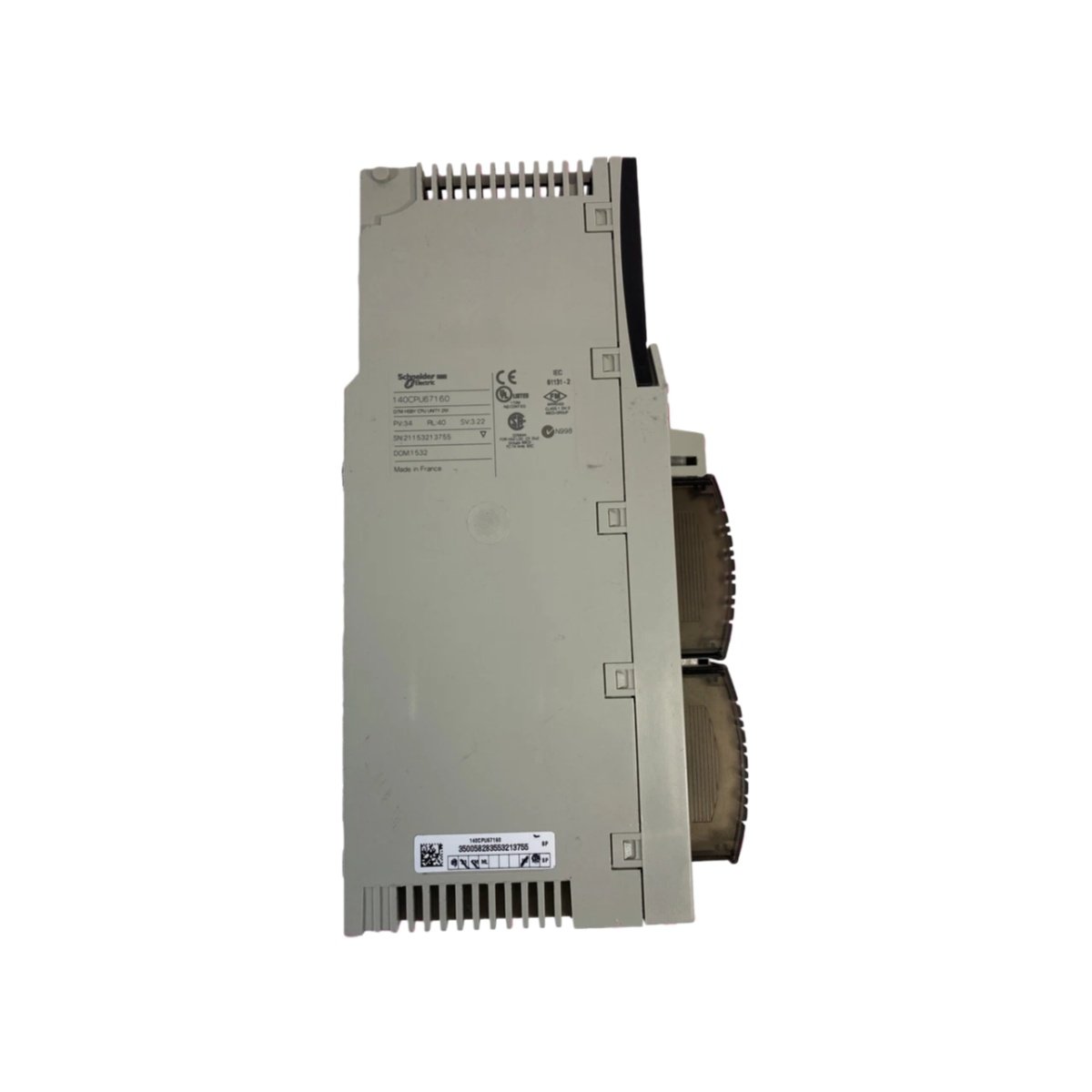

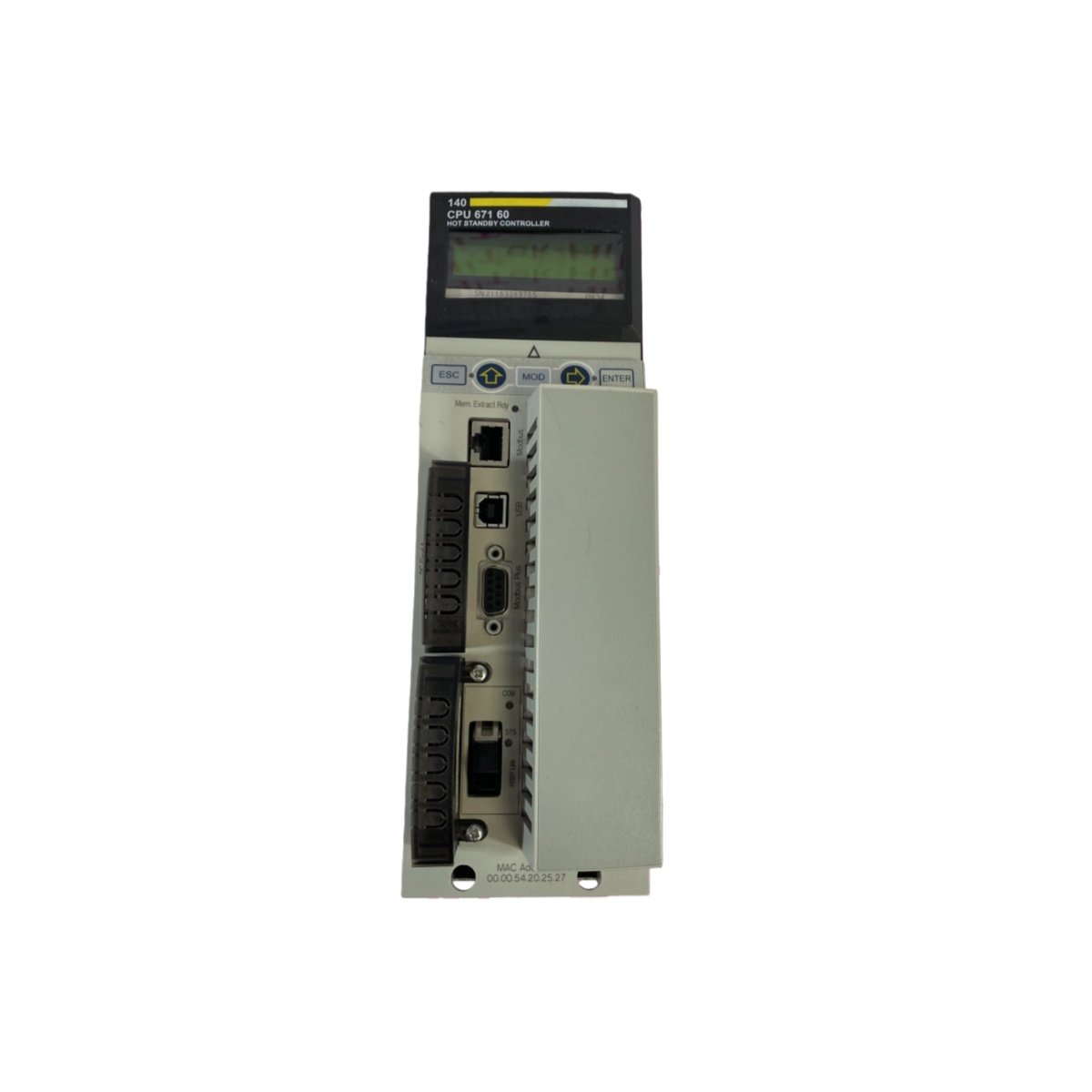

The Schneider 140CPU67160S serves as a powerful processor for critical Modicon Quantum systems. This CPU module delivers robust processing power for complex automation and control tasks. Moreover, its design specifically supports reliable hot standby operations to maximize uptime.
Core Technical Specifications and Performance Data
Engineers select this module for its balance of high speed and substantial memory capacity. It ensures seamless control logic execution and rapid data handling. The following table details its essential technical parameters for system integration.
Detailed Technical Specifications:
| Parameter | Specification |
|---|---|
| Manufacturer / Brand | Schneider Electric |
| Product Model | 140CPU67160S (Primary) / 140CPU67160 (Base Unit) |
| Product Category | Programmable Logic Controller (PLC) CPU Module |
| Processor Clock Speed | 266 MHz |
| Program Memory Capacity | 1024 kB |
| Maximum Supported Remote I/O Drops | 31 |
| Backup Power | Integrated 1200 Ah Lithium Battery |
| Module Weight | 0.94 lbs (0.43 kg) |
| Bus Current Consumption | 2500 mA (max) |
| Communication Interfaces | USB Port, Optional Ethernet Module Slot |
| Integrated Display | Yes, Backlit LCD for diagnostics |
| Primary Function | Hot Standby (Redundant) Controller |
| Compatible Racks | Modicon Quantum Single Rack |
| Safety Certification | CE Marked |
System Integration and Redundant Operation
This CPU module installs directly into the primary slot of a Modicon Quantum rack. The 140CPU67160S variant actively pairs with a standby unit for continuous operation. Therefore, if the primary CPU fails, the system switches control with zero interruption.
The integrated USB port allows for straightforward programming and maintenance connectivity. For complete configuration details, always consult the official manuals from Schneider Electric. This processor is a cornerstone for building fault-tolerant systems in essential industrial processes.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
