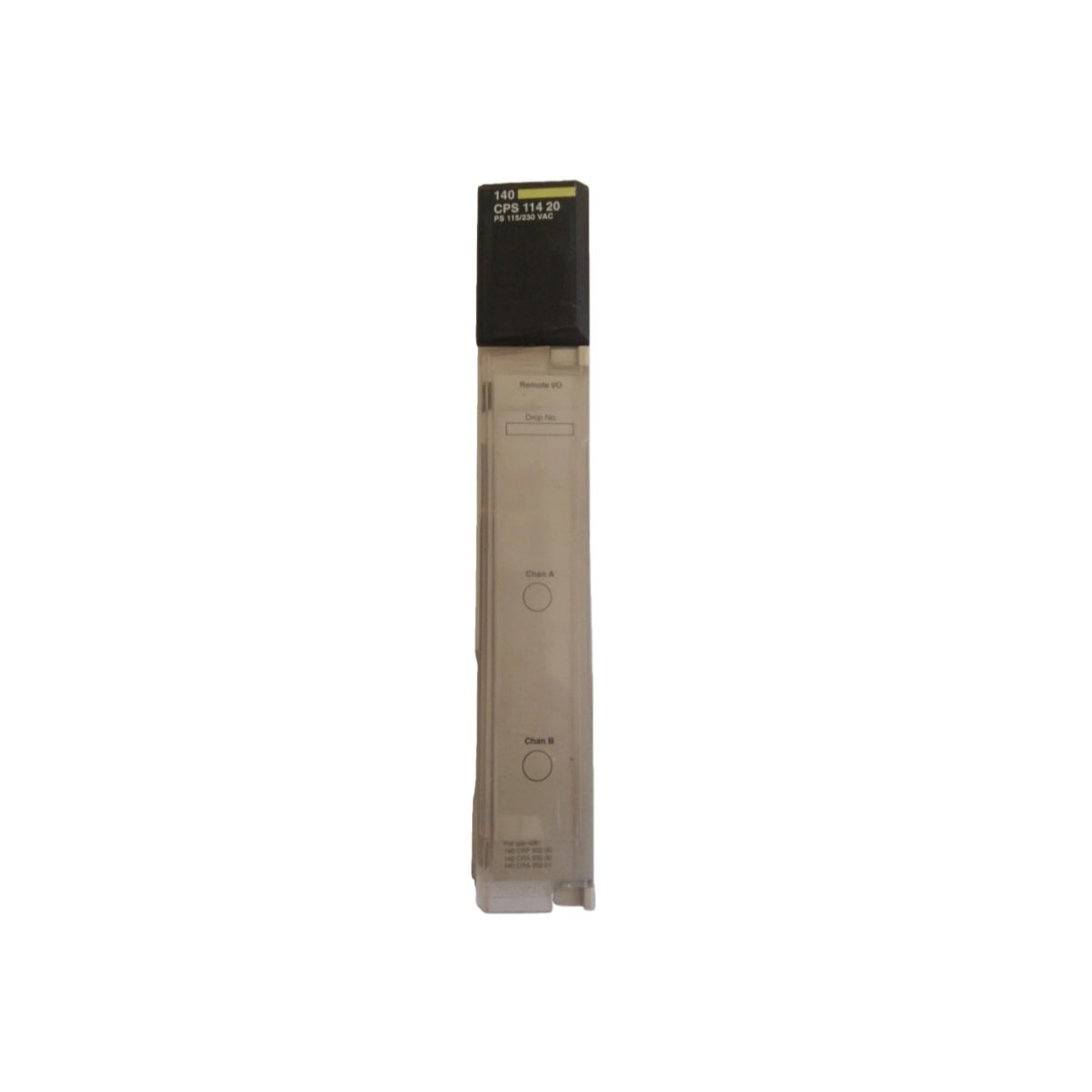

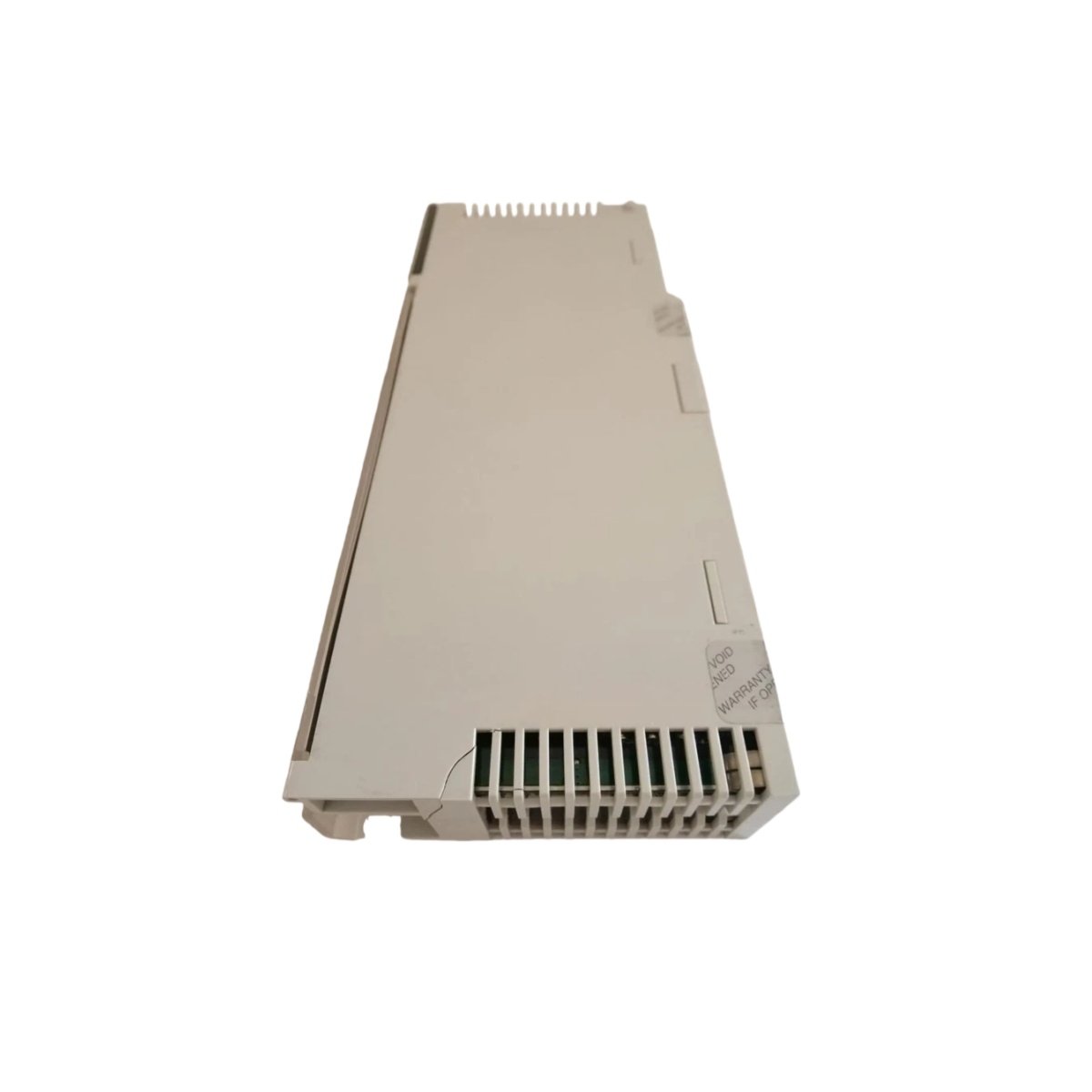

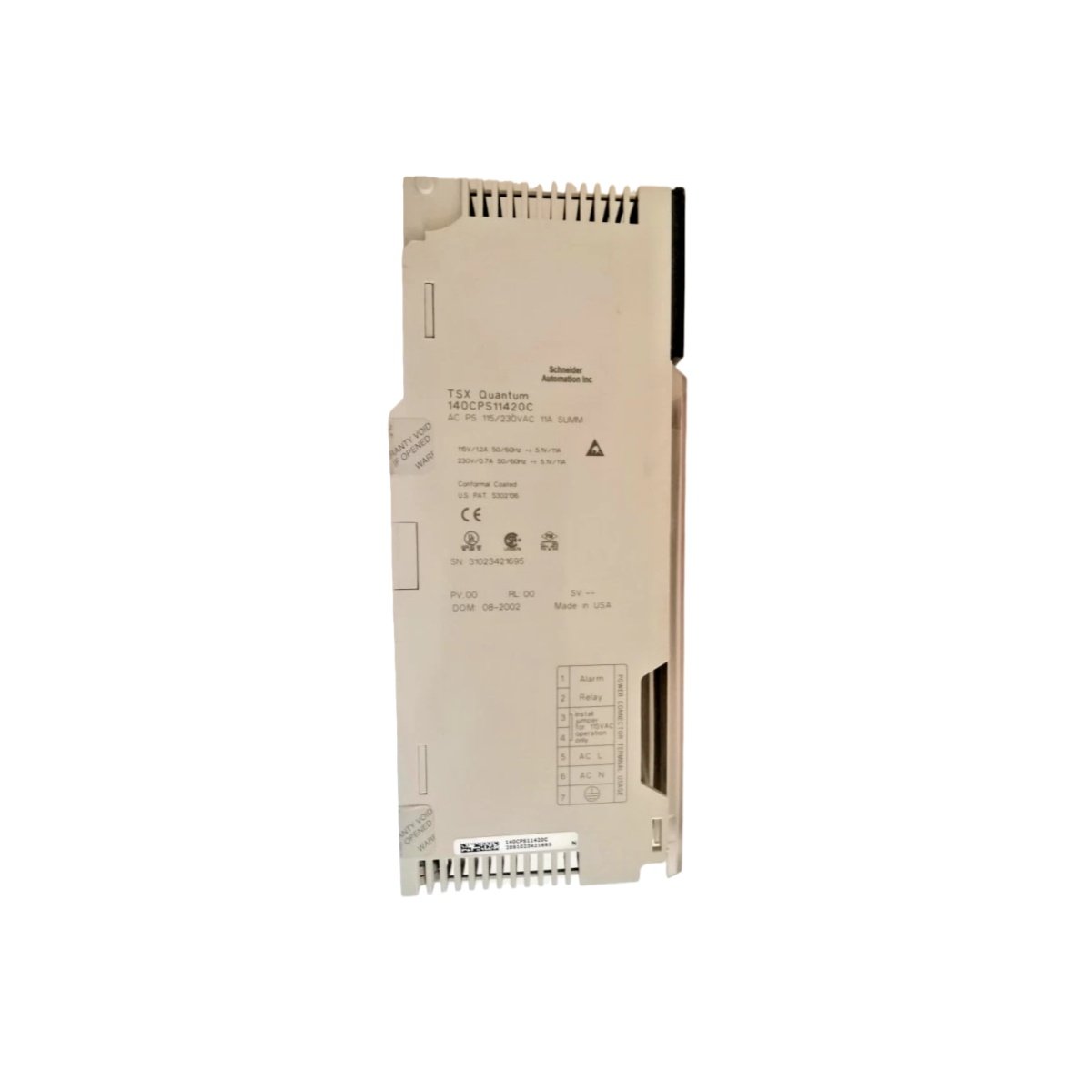

The Schneider 140CPS11420C provides reliable DC power distribution for Modicon Quantum automation platforms. This module converts incoming AC line voltage into regulated DC for rack-mounted modules. Consequently, it ensures stable operation of processors, communication interfaces, and I/O cards in industrial environments.
Technical Specifications and Electrical Characteristics
System designers require accurate power ratings for proper load calculation and panel layout. Therefore, we present the complete specifications for the Schneider 140CPS11420C:
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | Power Supply Module |
| Series | Modicon Quantum |
| Input Voltage | 115/230 VAC selectable |
| Input Voltage Range | 93-132 VAC or 187-264 VAC |
| Input Frequency | 47-63 Hz |
| Output Voltage | 5 VDC and 24 VDC |
| 5 VDC Output Current | 11 A maximum |
| 24 VDC Output Current | 1.7 A maximum for field power |
| Total Output Power | 80 Watts maximum |
| Energy Storage | 20 ms hold-up time at full load |
| Inrush Current | < 30 A peak at 115 VAC |
| Efficiency | > 80% at nominal load |
| Dimensions | 110 mm x 40 mm x 140 mm |
| Weight | 0.65 kg |
| Protection Features | Overcurrent, overvoltage, overtemperature |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | Quantum rack mounting (leftmost slot) |
Advanced Power Management Features
The 140CPS11420C delivers both logic power at 5 VDC and field power at 24 VDC simultaneously. Additionally, it includes a built-in cooling fan for reliable operation at maximum load currents. This module automatically selects the correct input voltage range based on user switch settings. You can integrate this power solution with protection devices like the RMS TSG TZ C static trip unit for comprehensive system safety. Furthermore, the Schneider 140CPS11420C provides LED indicators for input power presence and DC output status.
Energy Storage and System Protection
This power supply maintains output voltages during brief AC interruptions using internal storage capacitors. Its 20 ms hold-up time allows the processor to complete critical operations before shutdown. The 140CPS11420C incorporates electronic current limiting to protect both the supply and connected modules. Thermal sensors reduce output power automatically if internal temperatures exceed safe limits. Typical applications include oil and gas, water treatment, chemical processing, and automotive manufacturing systems.
Installation and Configuration Guidelines
Mount the Schneider 140CPS11420C exclusively in the leftmost slot of any Quantum rack for proper backplane connection. Set the voltage selector switch to match your local AC mains voltage before applying power. Ensure adequate ventilation around the module to maintain optimal cooling performance. Finally, verify total system current draw does not exceed 11 A on the 5 VDC output.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
