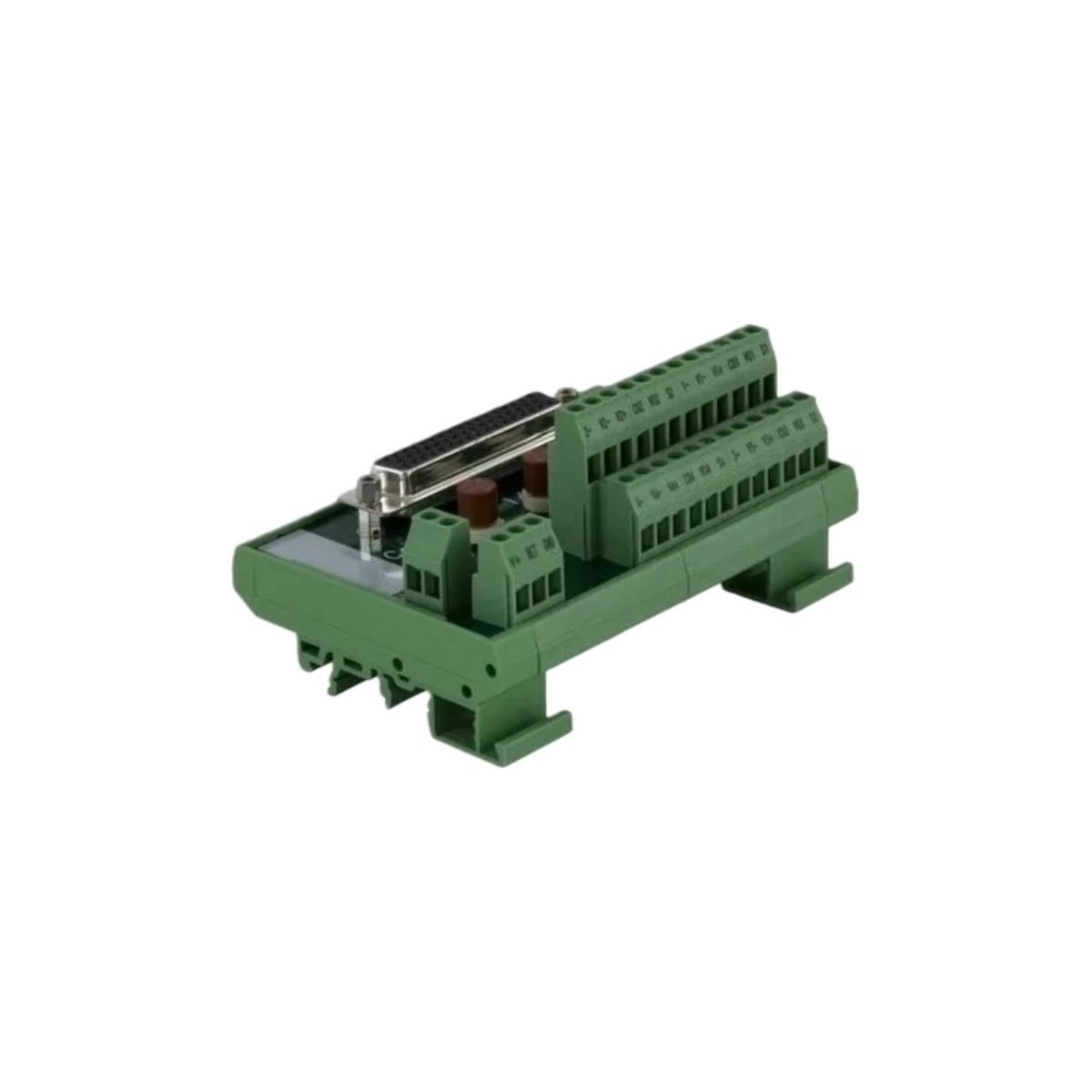

Industrial control systems require organized and protected wiring connections for reliable signal transmission. The Schneider 140CFJ00400 provides a comprehensive termination solution with integrated fuse protection for your Modicon Quantum modules. This CableFast terminal block simplifies field wiring while safeguarding sensitive I/O circuits.
Integrated Fuse Protection for Critical Signals
Circuit protection directly at the termination point prevents damage from overcurrent conditions. The 140CFJ00400 incorporates 0.063A fused point sets that protect individual signal paths from excessive current. You can therefore maintain system integrity without requiring separate external fuse arrays.
Dual Connectivity Options for Flexible Wiring
Different installation scenarios demand various connection methods for optimal convenience. The Schneider 140CFJ00400 features a SUB-D50 connector alongside additional screw terminals for versatile field wiring. This dual configuration consequently accommodates both pre-fabricated cables and on-site terminated wires.
| Specification | Detail |
|---|---|
| Manufacturer | Schneider Electric |
| Product Type | CableFast Terminal Block with Fuses |
| Part Number | 140CFJ00400 |
| Connection Points | 4 contacts |
| Connector Type | SUB-D50 with additional screw terminals |
| Fuse Configuration | 0.063A fused point sets |
| Mounting Type | Standard DIN rail |
| Compatible Modules | 140ACO02000 |
Designed for Standard DIN Rail Mounting
Panel builders value components that install quickly and securely without special hardware requirements. The 140CFJ00400 mounts directly onto standard DIN rail using a simple clip-on mechanism. This mounting method reduces installation time and allows for easy repositioning during panel layout changes.
Seamless Compatibility with Analog Output Modules
System integration becomes straightforward when termination assemblies match specific I/O module requirements. The Schneider 140CFJ00400 specifically interfaces with the 140ACO02000 analog output module from the Modicon Quantum series. This engineered compatibility ensures correct signal routing and simplifies troubleshooting procedures.
Space-Efficient 4-Contact Configuration
Control cabinets benefit from compact termination solutions that maximize available wiring space. The 140CFJ00400 organizes four connection points in a single DIN rail-mounted housing. This consolidated approach reduces panel clutter while maintaining clear identification of field wiring terminations.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
