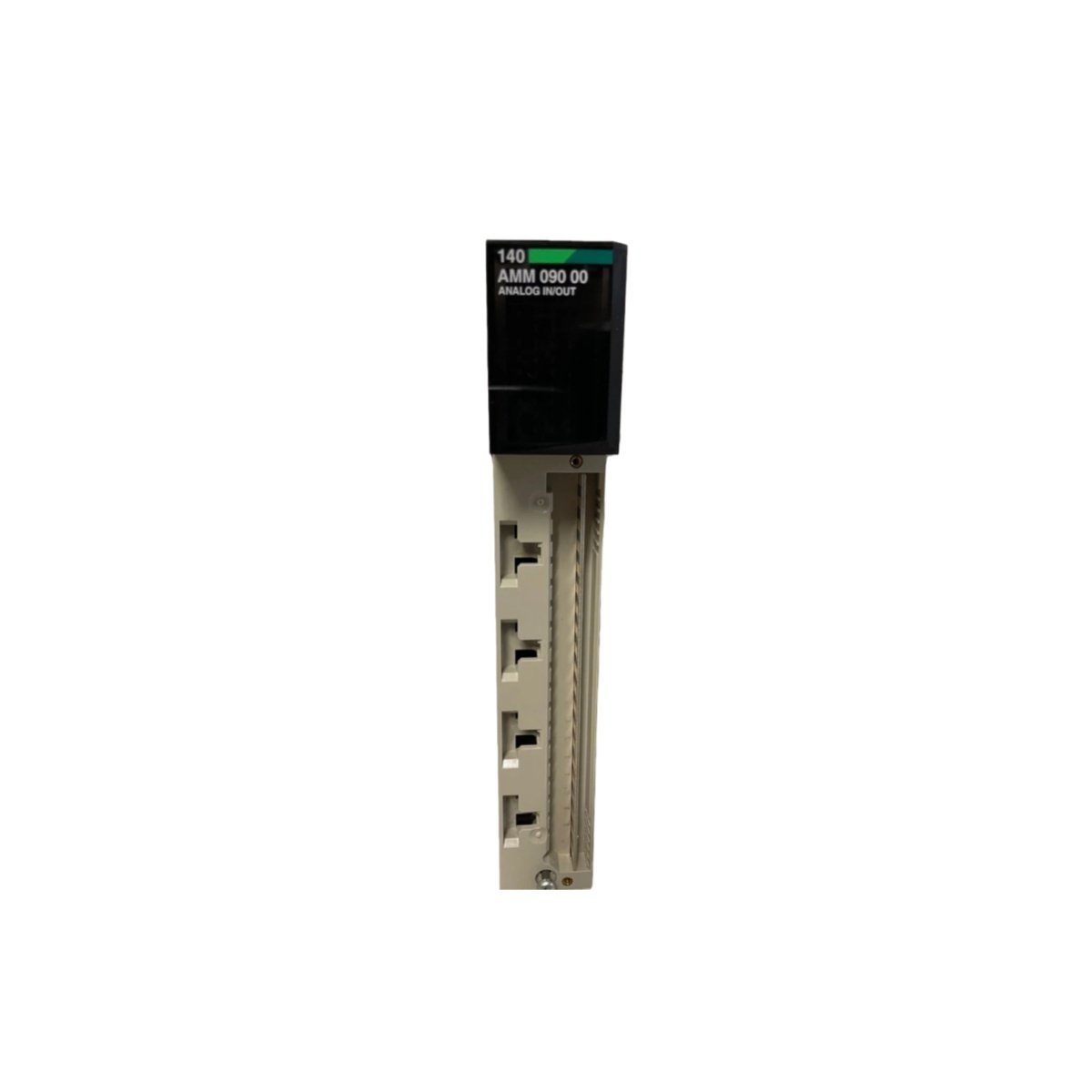

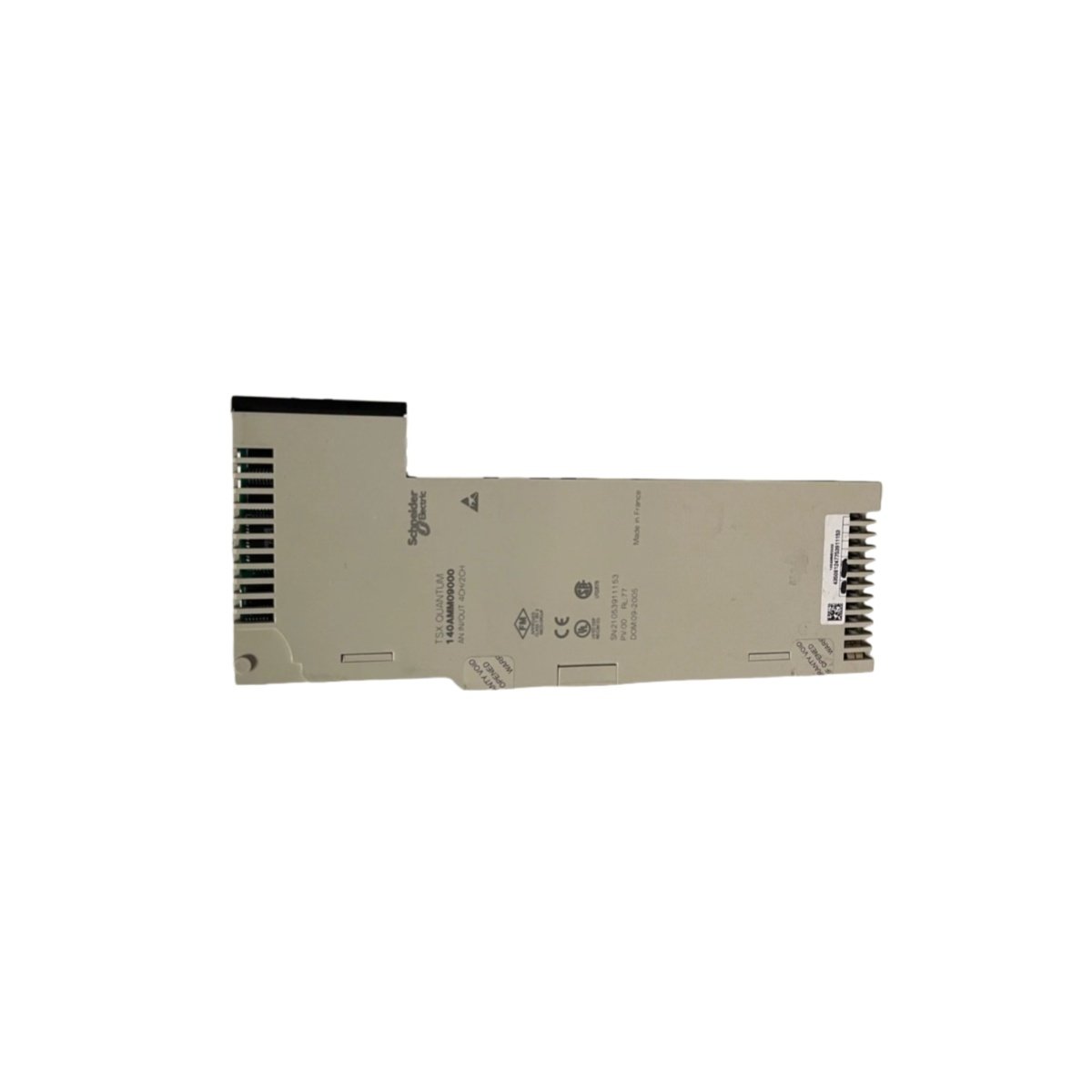

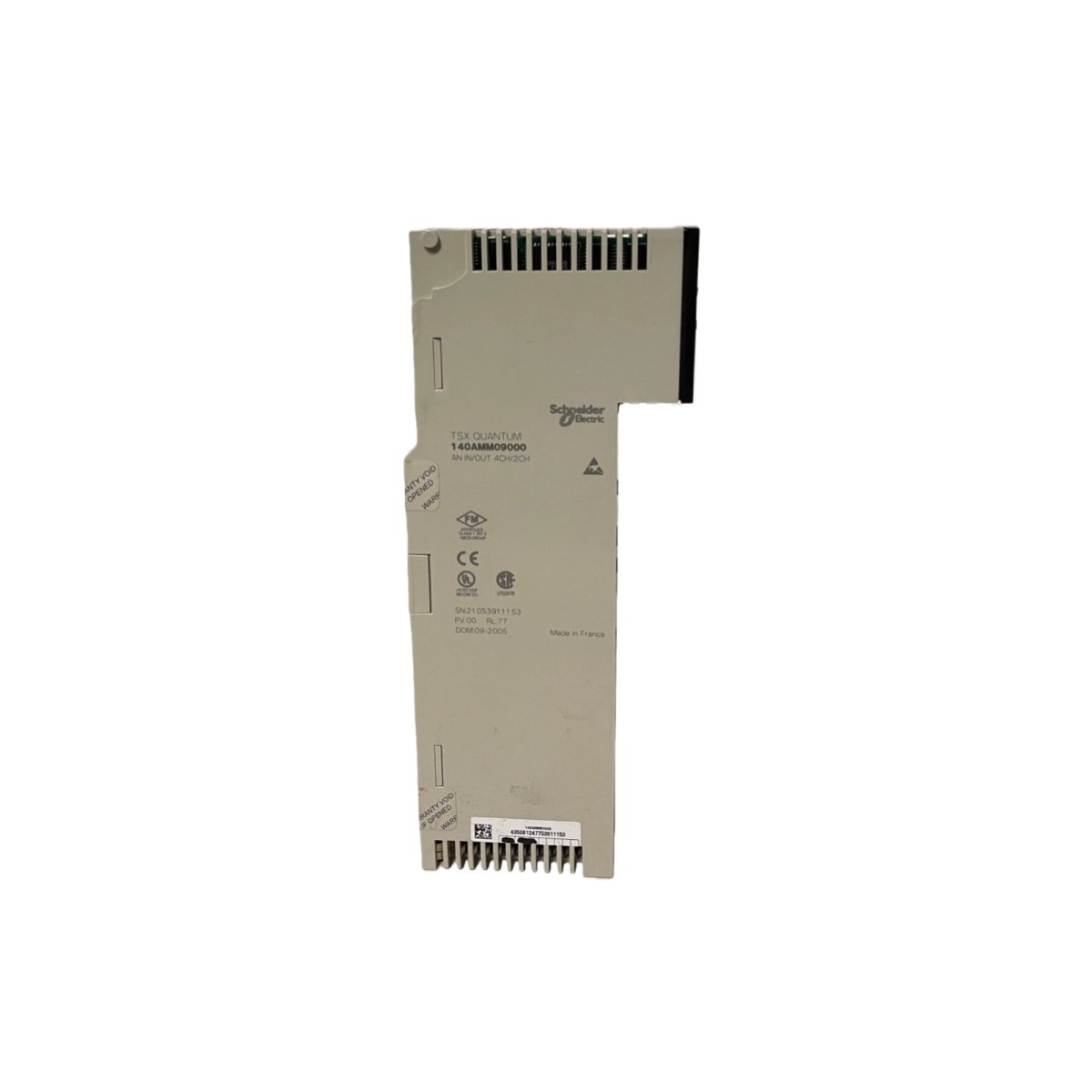

The Schneider 140AMM0900 provides flexible analog signal interfacing for control systems. This versatile module combines both input and output channels on a single board. It is specifically engineered for the robust Modicon Quantum automation platform.
A Versatile Solution for Complete Analog Control Loops
This single module can read process variables and issue control commands simultaneously. Consequently, it enables compact and efficient solutions for closed-loop control applications. The Schneider 140AMM0900 handles both standard voltage and current signal types.
Complete Technical Specifications
The following table details the core configuration and performance parameters of the Schneider 140AMM0900 module.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric 140AMM0900 |
| Compatible Platform | Modicon Quantum PLC System |
| Product Type | Analog Mixed (Input/Output) Module |
| Analog Input Channels | 8 Channels (Typical Configuration) |
| Analog Output Channels | 2 Channels (Typical Configuration) |
| Signal Ranges (Typical) | 4-20 mA, 0-10 VDC (Configurable) |
| Resolution | 12-bit or 14-bit (Channel Dependent) |
| Isolation | Channel-to-Channel and Channel-to-Bus |
| Update Rate | Optimized for real-time process control |
| Diagnostic Indicators | Module Status and Channel Fault LEDs |
| Configuration | Via Unity Pro or Concept Programming Software |
| Bus Current Requirement | Dependent on active channel count |
Optimized for Space-Efficient System Design
System integrators value this module for reducing hardware footprint in control cabinets. Furthermore, its integrated design simplifies wiring and lowers overall system complexity. The 140AMM0900 is ideal for applications requiring both monitoring and analog actuation.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
