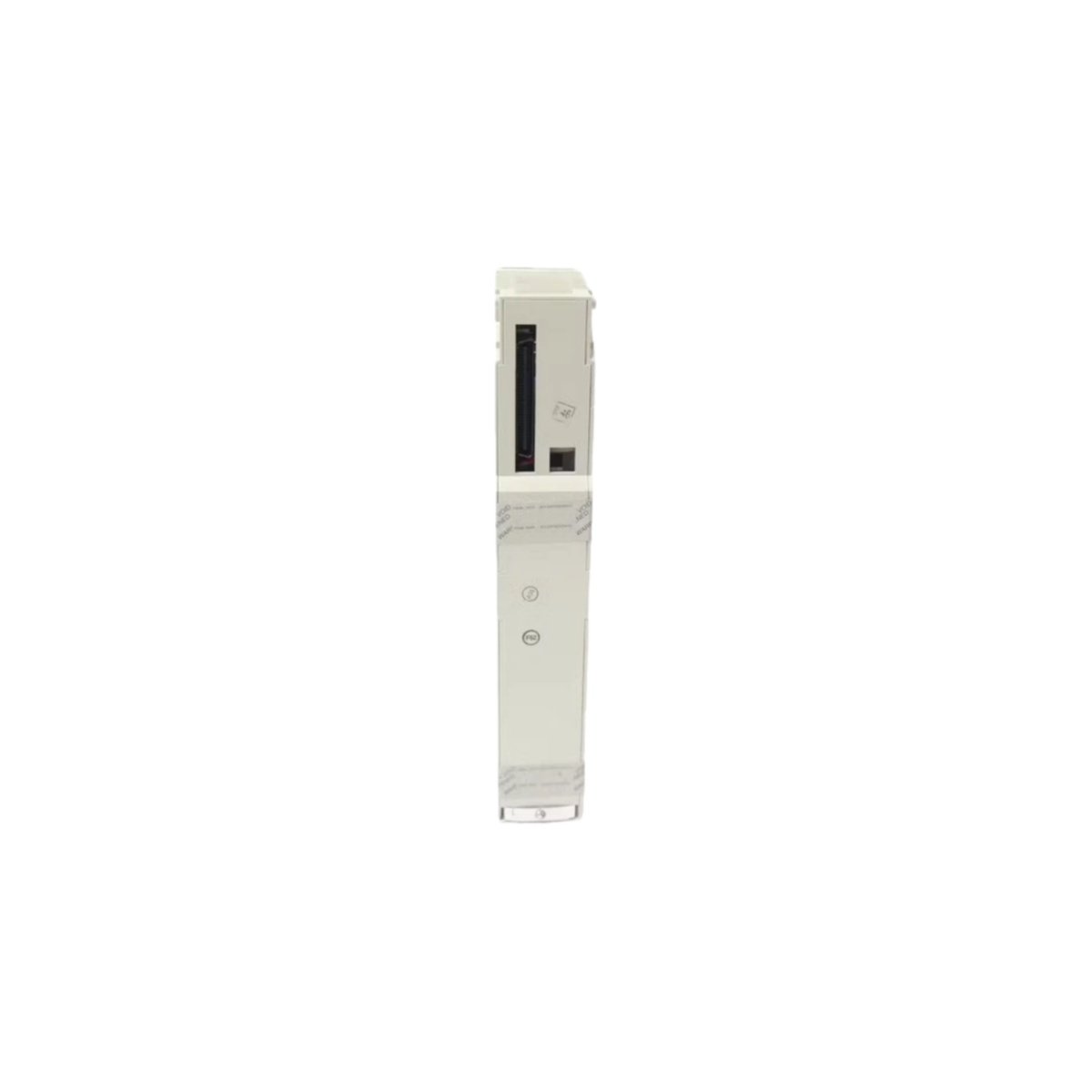

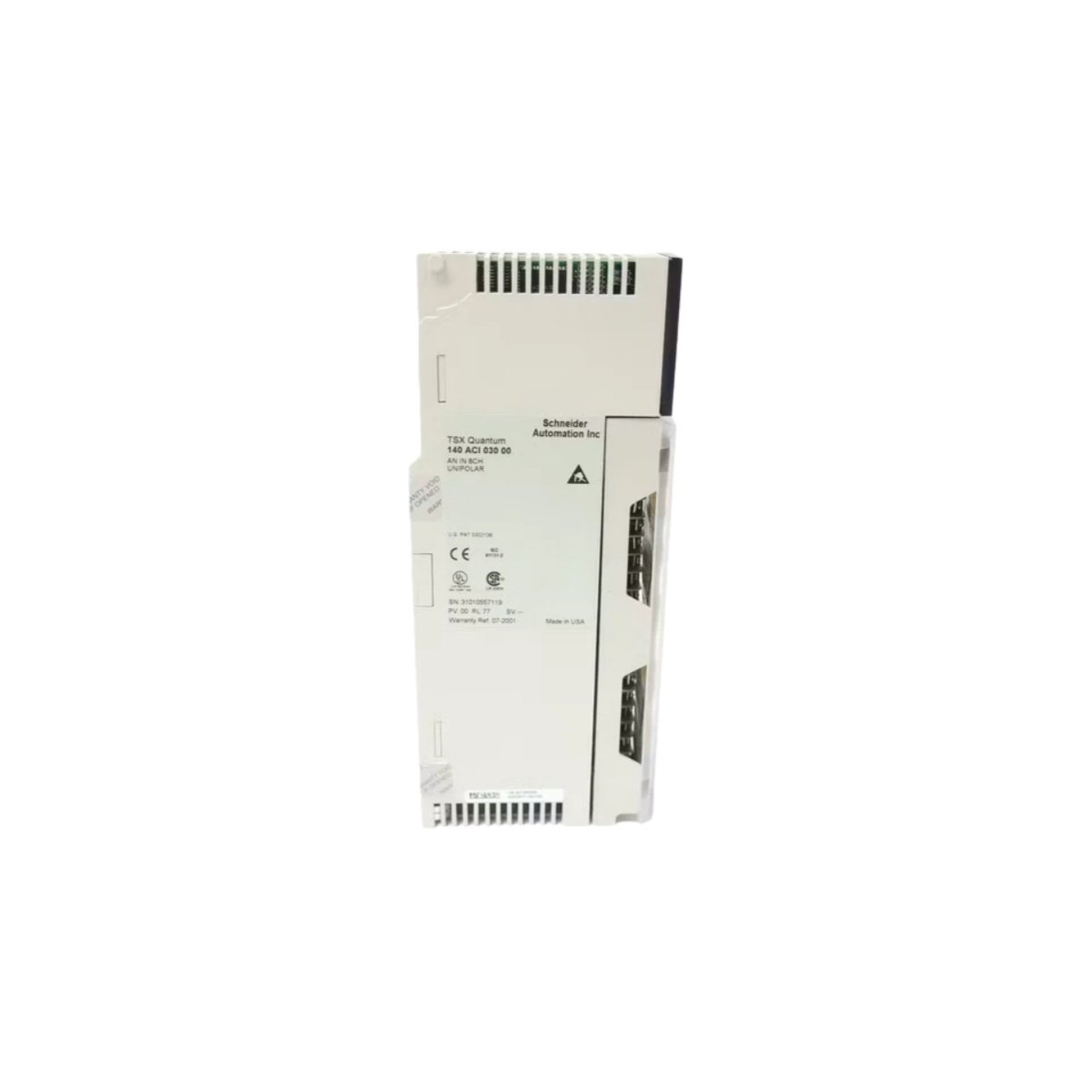

The Schneider 140ACI03000 acquires analog process signals with high precision and stability. This 8-channel module serves as a critical data acquisition interface for Schneider’s automation systems. It handles both voltage and current inputs from a wide array of field transmitters and sensors.
Designed for Accurate Signal Acquisition and Noise Rejection
Each differential input channel features excellent common mode noise rejection. Consequently, the module delivers clean and reliable data in electrically noisy industrial environments. A built-in low-pass filter ensures stable readings by minimizing high-frequency interference.
Complete Technical Specifications
The following table details the electrical, functional, and environmental parameters of the Schneider 140ACI03000.
| Parameter Category | Specification Details |
|---|---|
| Manufacturer & Model | Schneider Electric 140ACI03000 |
| Product Type | 8-Channel Analog Input Module |
| Input Channels | 8 Differential Inputs |
| Input Signal Ranges | 1…5 VDC or 4…20 mA (Selectable) |
| Input Resolution | 12-bit |
| Input Impedance | >20 MΩ (Voltage), 250 Ω (Current) |
| Update Time | 5 ms |
| Filter Type | Single Pole Low-Pass (3 dB at 15 Hz) |
| Linearity Error | ±0.04% |
| Common Mode Rejection | >72 dB at 60 Hz |
| Channel Isolation | 30 V DC |
| Diagnostics | Broken Wire (4-20mA), Under-range (1-5V) |
| Bus Current | 240 mA |
| Power Dissipation | 2 W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
A Reliable Interface for Critical Process Monitoring
Engineers select this module for its high input impedance and fast update rate. Furthermore, its integrated diagnostics promptly identify sensor wiring faults or signal loss. The 140ACI03000 is an ideal choice for monitoring pressure, temperature, flow, and level in process control.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
