Product Overview

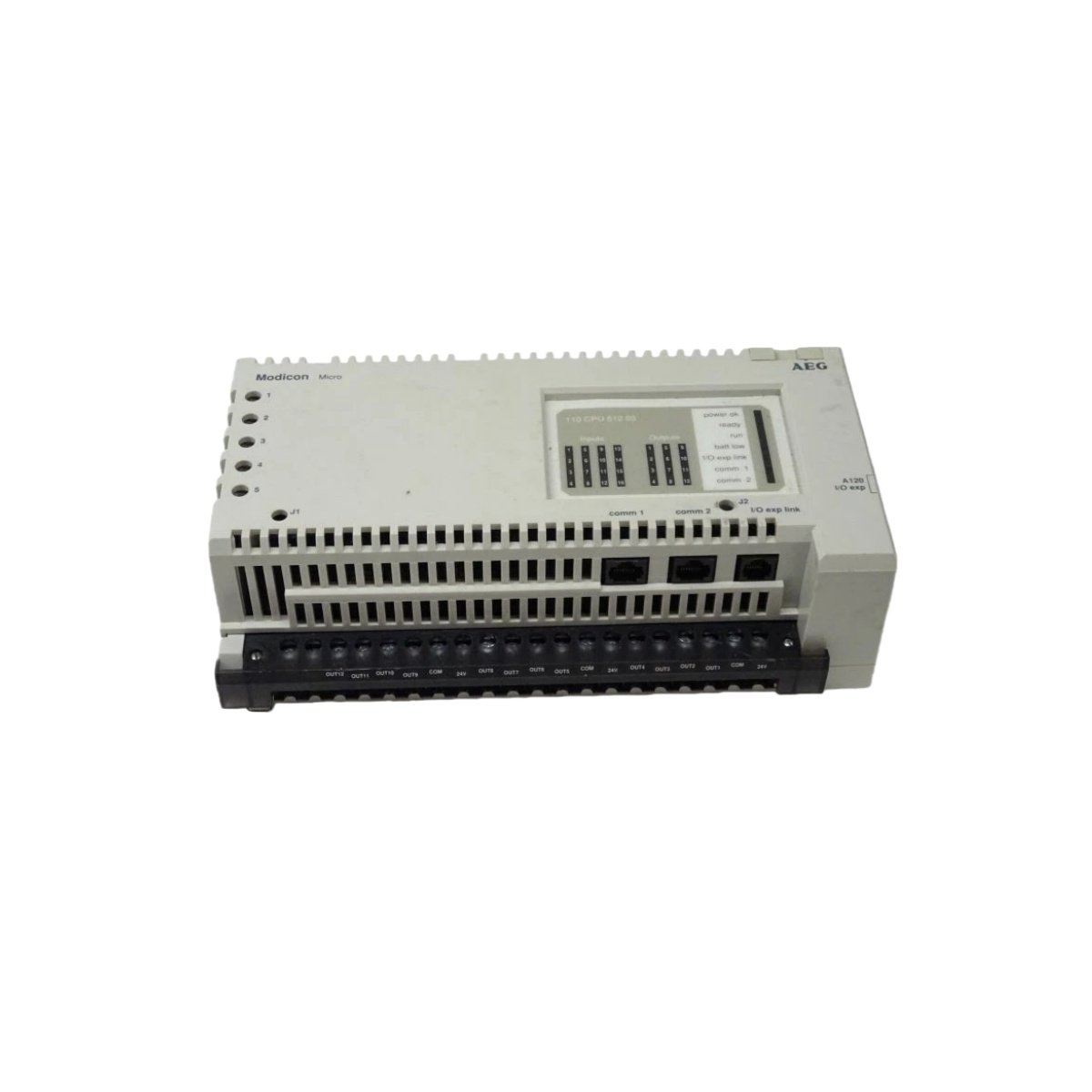

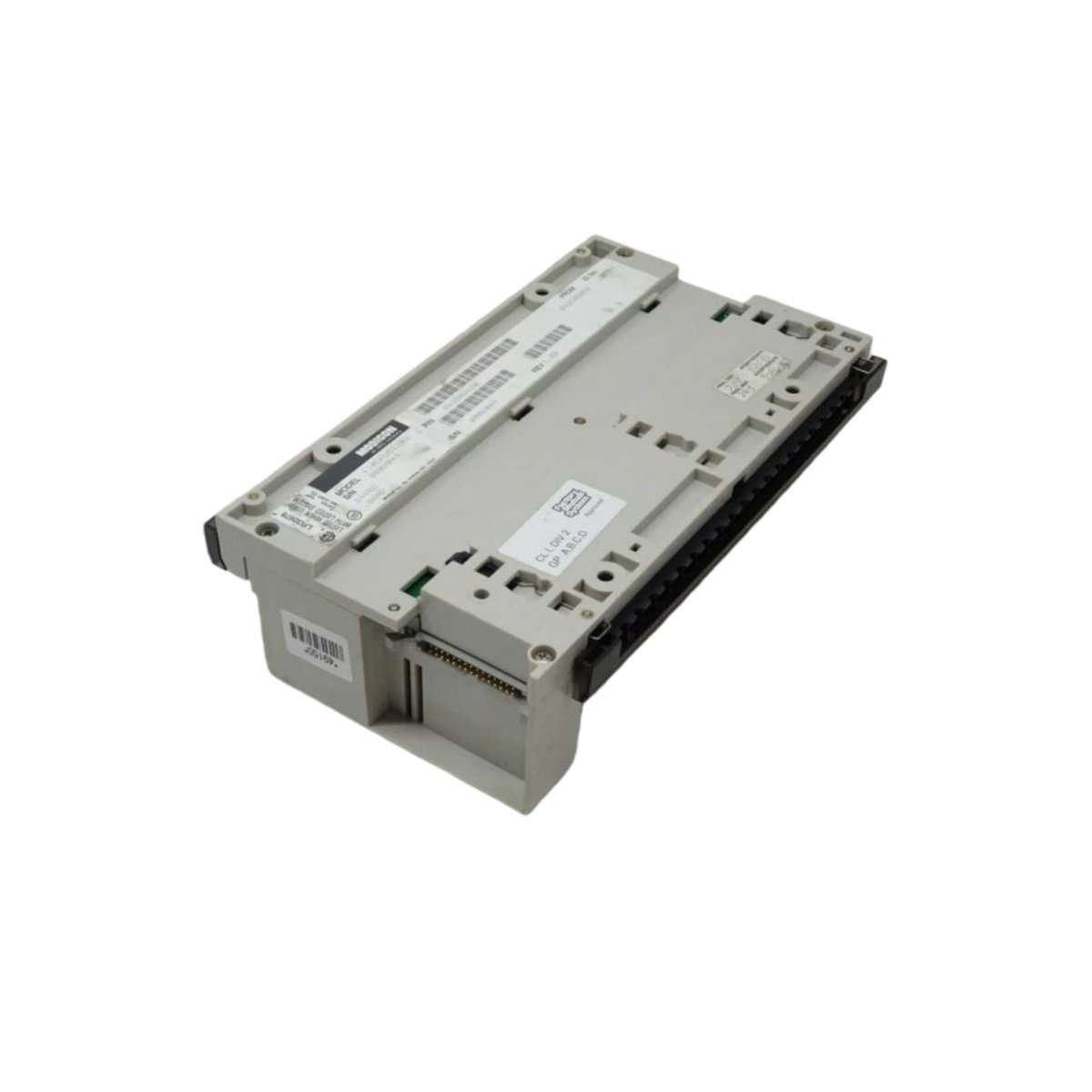

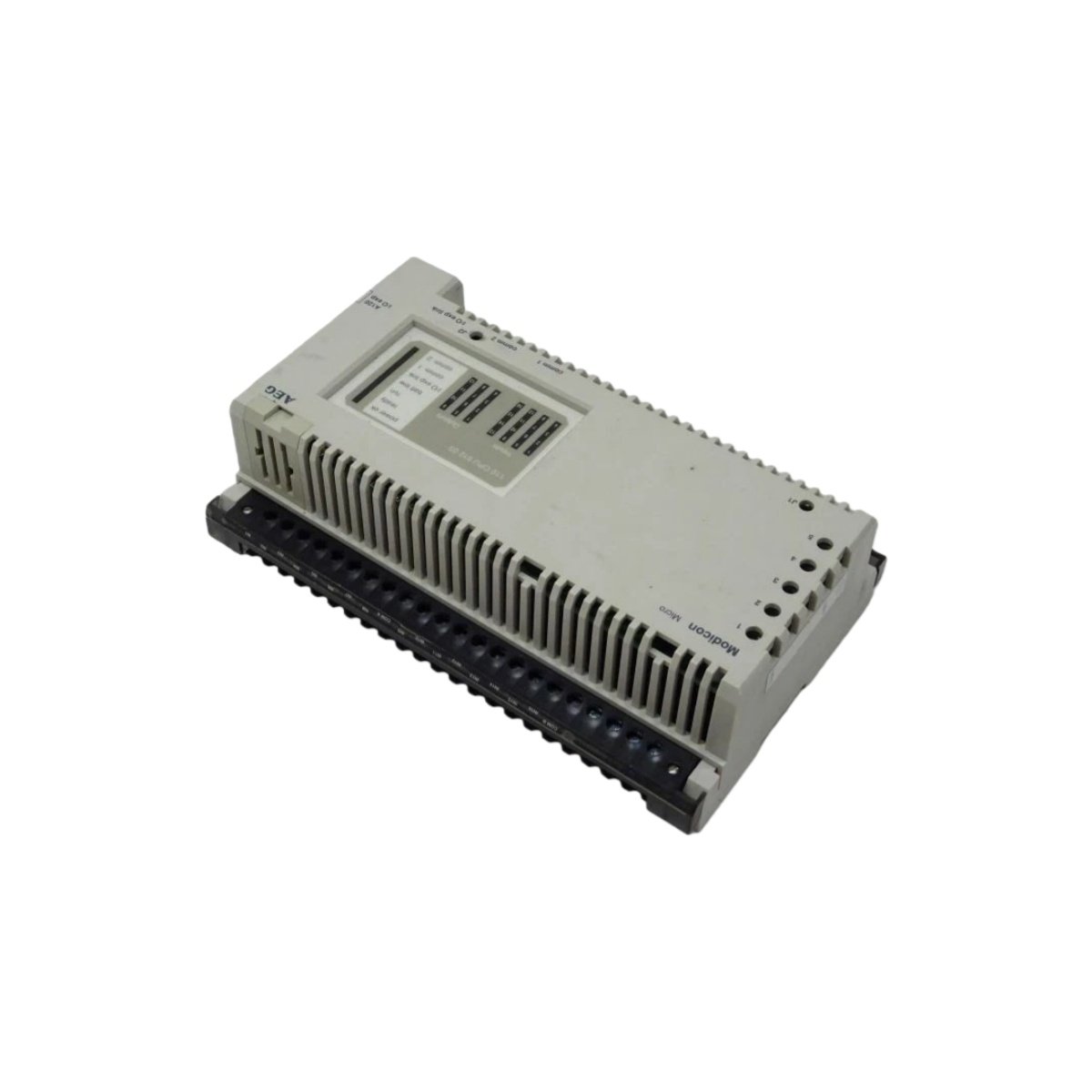

This Schneider 110CPU51203 central processing unit forms the heart of a compact and reliable automation solution. It integrates 16 digital inputs and 12 digital outputs directly on the main unit, simplifying installation. This PLC operates on a standard 24 VDC power supply, making it ideal for machine control and small to medium-sized automation tasks.
Key Technical Specifications
We design this CPU module for demanding industrial environments, ensuring consistent performance. Its compact form factor saves valuable panel space without compromising on I/O count. Below, you will find the detailed technical parameters.
| Specification | Details |
|---|---|
| Product Type | Programmable Logic Controller (PLC) CPU Module |
| Discrete Inputs | 16 digital inputs (typically sink/source, 24 VDC) |
| Discrete Outputs | 12 digital outputs (typically relay or transistor type) |
| Power Supply | 24 VDC external power supply required |
| Processor Type | Embedded CPU for fast logic execution |
| Built-in I/O | Integrated inputs and outputs for compact applications |
| Communication Ports | Typically includes built-in ports for programming (e.g., Mini USB) |
| Mounting | Designed for easy snap-on mounting onto standard DIN rails |
| Dimensions (Approx.) | Compact size to fit in standard electrical enclosures |
Detailed Features and Benefits
Integrated I/O for Space-Saving Design
This Schneider 110CPU51203 module eliminates the need for separate I/O modules in smaller applications. Consequently, it reduces both wiring complexity and the overall footprint of your control panel. The 16 discrete inputs reliably read signals from sensors and switches.
Reliable Digital Output Control
Furthermore, the 12 integrated outputs directly drive actuators, relays, and indicators. This configuration provides a cost-effective solution for managing machine operations. You can easily expand the system with additional modules if your application grows.
Seamless Programming and Integration
You can program this CPU using the manufacturer’s standard software suite, such as EcoStruxure Machine Expert. Therefore, developing, debugging, and maintaining your application code becomes straightforward. The module ensures seamless integration with other Schneider Electric automation components.
Details
| Weight | 0.91 kg |
|---|---|
| Dimensions | 110 × 55 × 90 mm |
