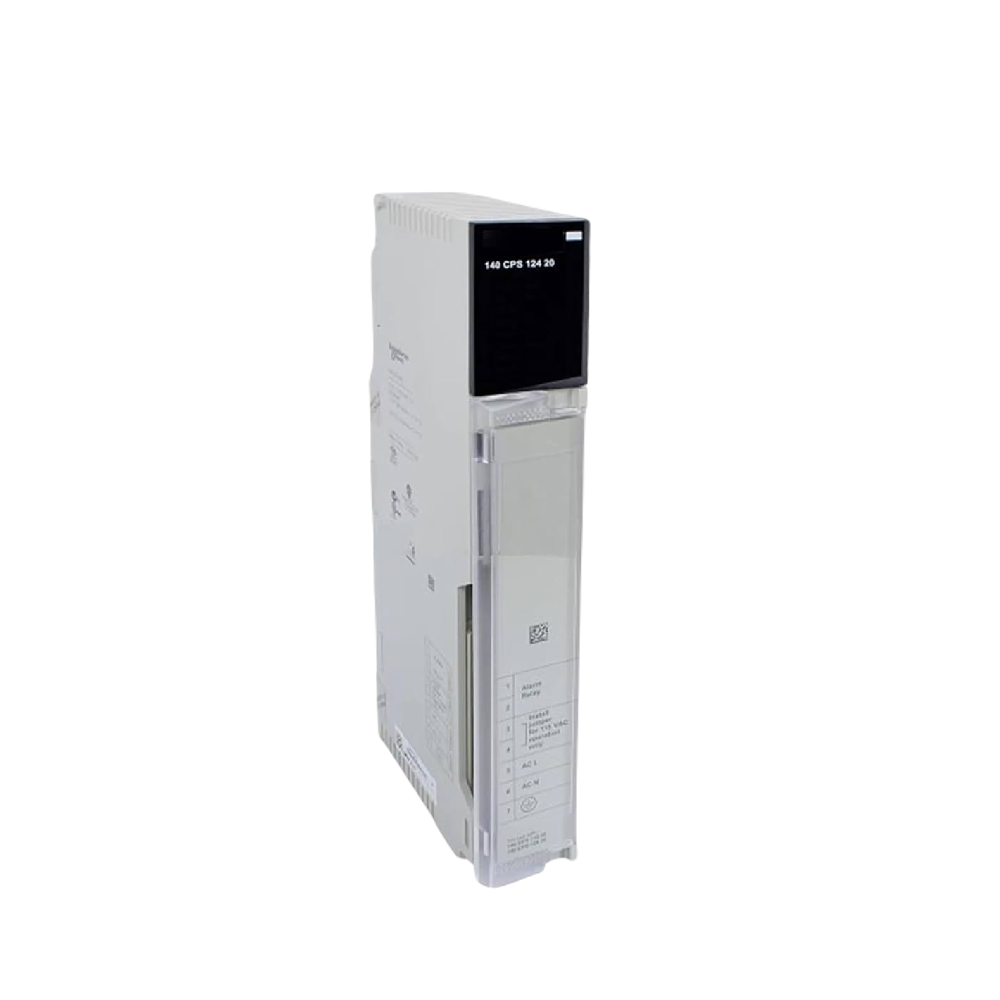

• Product Name: Power Supply Module for Modicon Quantum
• Product Code: 140CPS12420
• Automation Platform: Modicon Quantum
• Power Supply Type: Redundant

Electrical Specifications:

• Input Voltage:
  • 230 V AC: 170…276 V, 47…63 Hz
  • 115 V AC: 93…138 V, 47…63 Hz
• Input Current:
  • 1100 mA at 115 V AC
  • 600 mA at 230 V AC
• Inrush Current:
  • 19 A at 230 V AC
  • 38 A at 115 V AC
• Rated Power: 130 VA
• Fuse Rating: 2 A slow-blow
• Harmonic Distortion: <= 10% of fundamental rms value

Output Specifications:

• Output Voltage: 5.1 V DC
• Output Current:
  • 11 A (standalone, 60°C)
  • 10 A (redundant, 60°C)
• Output Protection:
  • Overvoltage: Internal protection
  • Overload: Internal protection
• Power Dissipation: 6+(1.5×Iout)6 + (1.5 times I_{out})6+(1.5×Iout​) (where IoutI_{out}Iout​ is in A)

Alarm & Signaling:

• Alarm Output: 1 NC, 6 A, 220 V (Power Supply Fault)
• Local Signaling: 1 LED (green) for power status (PWR OK)

Physical Specifications:

• Module Format: Standard
• Weight: 0.65 kg

Environmental and Compliance Information:

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 85°C
• Humidity: 95% without condensation
• Operating Altitude: Up to 5000 m
• Electrostatic Discharge Resistance: 4 kV (contact), 8 kV (air), conforming to IEC 801-2
• Electromagnetic Fields Resistance: 10 V/m, 80…2000 MHz, conforming to IEC 801-3

Certifications and Standards:

• Standards:
  • CSA C22.2 No 142
  • UL 508
• Product Certifications: CUL
• Marking: CE
