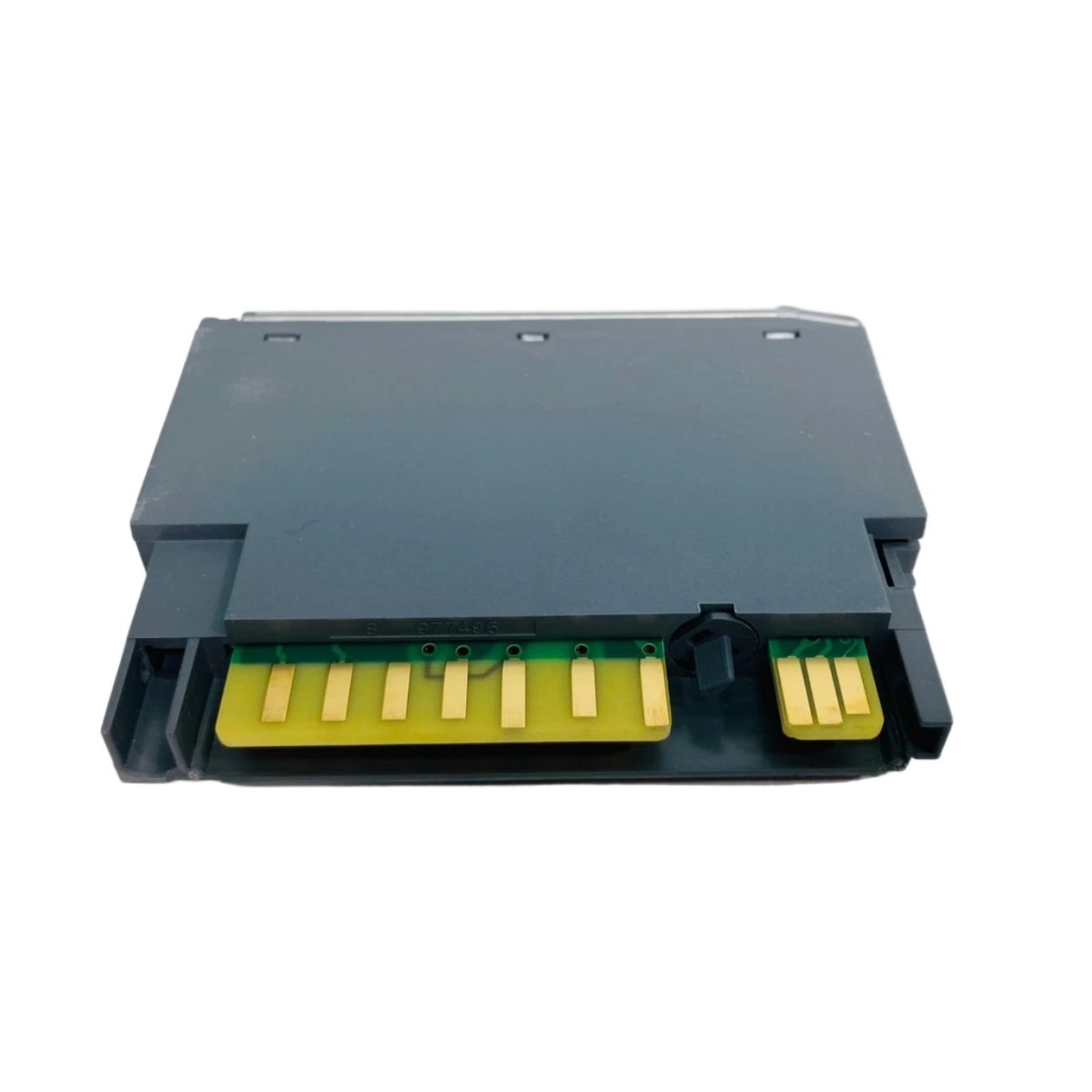

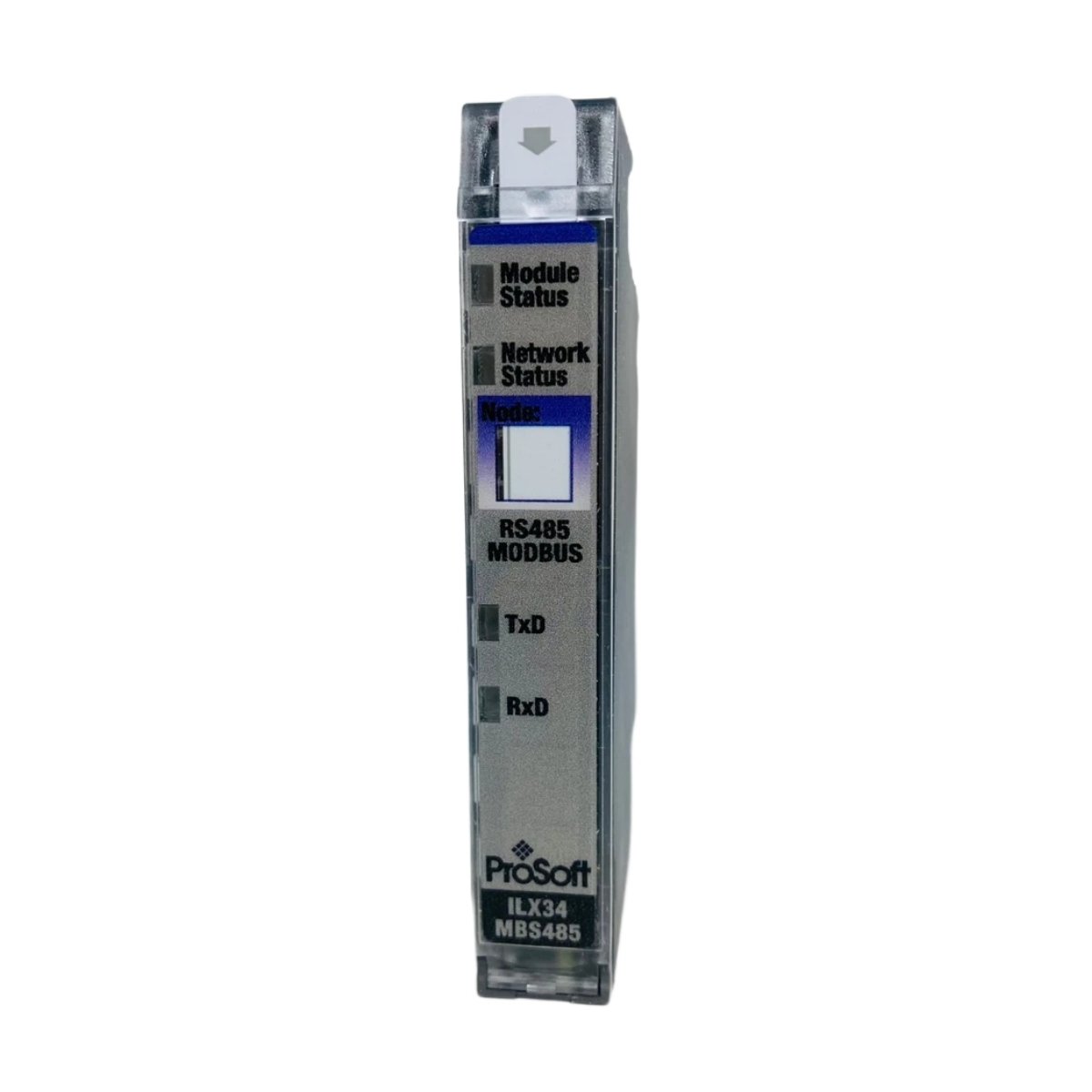

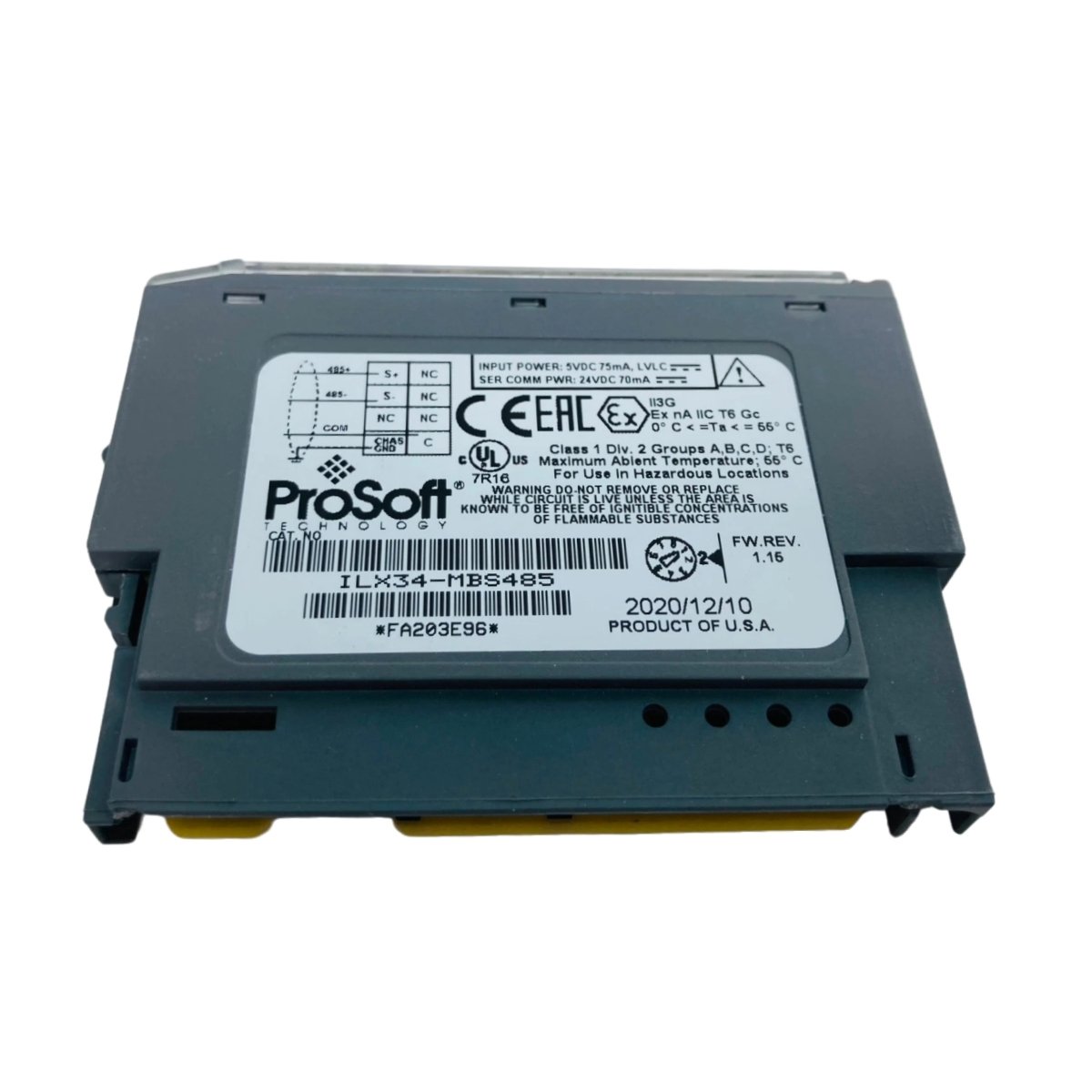

The ILX34-MBS485 by ProSoft Technology delivers a robust communication solution for CompactLogix L1 processors and 1734 Point I/O adapters. It enables seamless Modbus connectivity across SCADA networks and remote field devices up to 4,000 feet (1,219 meters) from the processor. Engineers can configure the module as either a Modbus Master or Modbus Slave, providing exceptional flexibility for distributed automation systems.
Efficient Communication and Control
The ILX34-MBS485 simplifies system design with its easy integration into RSLogix 5000 or Studio 5000 environments. It automatically creates User-Defined Tags (UDTs) for I/O, status, and control data, improving clarity and reducing programming time. Diagnostic information appears directly in the controller tags, allowing operators to monitor node health and react quickly to communication issues.
High Flexibility and Configuration Options
You can enable or disable the serial port directly through ladder logic, giving operators greater runtime control. The module supports up to 1,000 words of data, 30 Modbus commands, and 36 words per command, ensuring reliable data exchange even in demanding applications. It supports both RTU and ASCII Modbus modes, offering wide compatibility with industrial devices.
Reliable Industrial Performance
Designed for harsh automation environments, the ILX34-MBS485 ensures consistent operation in SCADA systems and distributed control applications. Its diagnostic tools, configuration backup, and fanless design make it a stable, low-maintenance communication solution for long-term operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ILX34-MBS485 |
| Manufacturer | ProSoft Technology / Rockwell Automation |
| Compatible Systems | CompactLogix L1, 1734 Point I/O |
| Configuration Software | RSLogix 5000 / Studio 5000 |
| Communication Distance | Up to 4,000 ft (1,219 m) |
| Baud Rate Options | 2400, 4800, 9600, 19200, 38400 |
| Stop Bits | 1 or 2 |
| Data Bits | 7 or 8 |
| Parity | None, Even, Odd |
| Modbus Modes | RTU (8-bit only), ASCII (LRC error checking) |
| Node Address Range | 1–247 |
| Supported Function Codes | 1, 2, 3, 4, 5, 6, 8, 15, 16 |
| Maximum Commands | 30 Modbus commands |
| Maximum Words per Command | 36 words |
| Data Capacity | 1,000 words |
| Serial Configuration | Modbus Master or Modbus Slave |
| Diagnostics | Available via controller tags |
| Design | Industrial fanless design |
Dimensions and Weight
| Parameter | Specification |
|---|---|
| Dimensions | 75 mm × 12 mm × 100 mm |
| Weight | Approx. 0.2 kg |
Country of Origin
United States
Key Advantages
- Supports both Modbus RTU and ASCII communication modes.
- Integrates seamlessly with RSLogix 5000 and Studio 5000 environments.
- Offers flexible configuration through ladder logic.
- Provides reliable data exchange over long distances.
- Ideal for SCADA and field device integration.
Details
| Weight | 0.2 kg |
|---|---|
| Dimensions | 75 × 12 × 100 mm |
