Overview

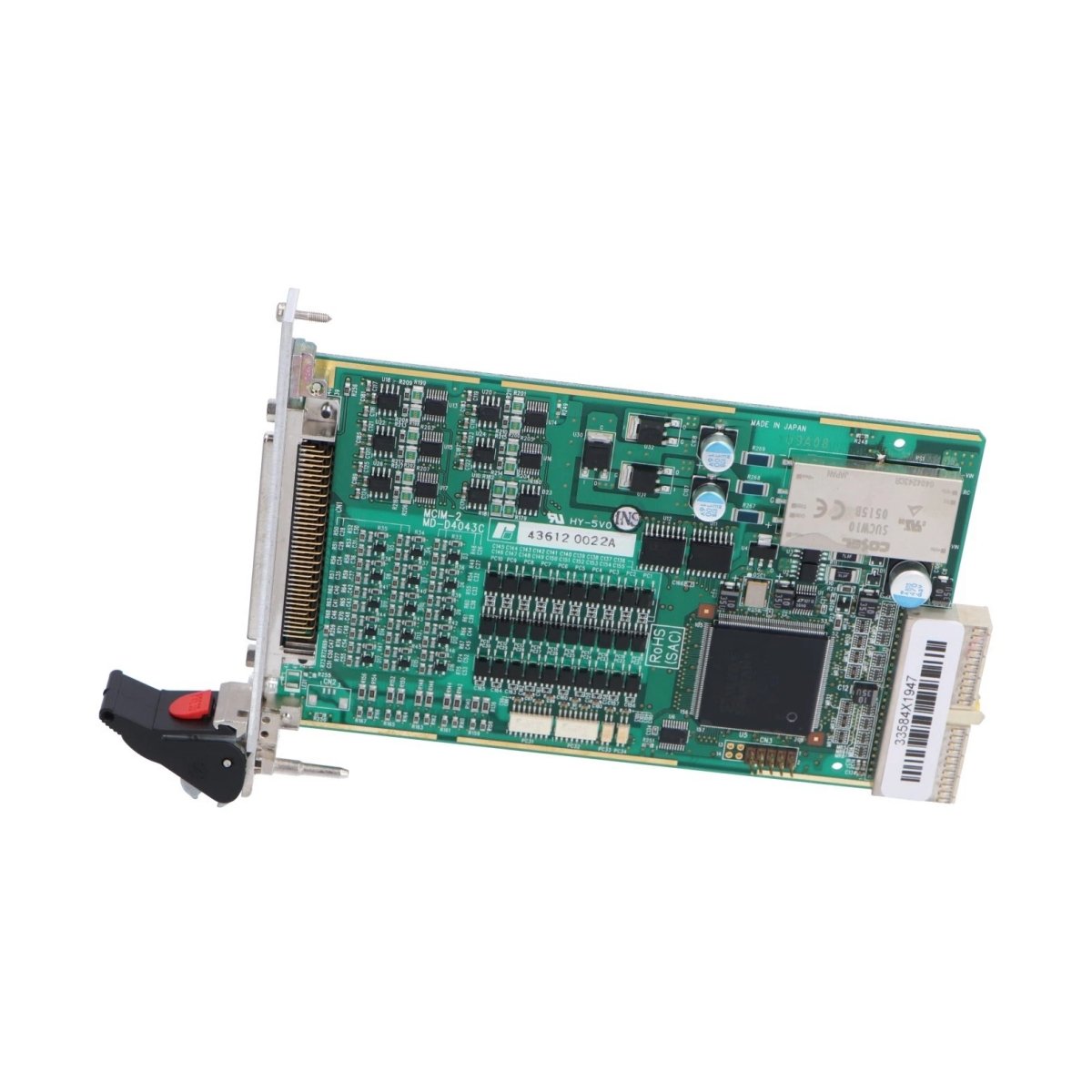

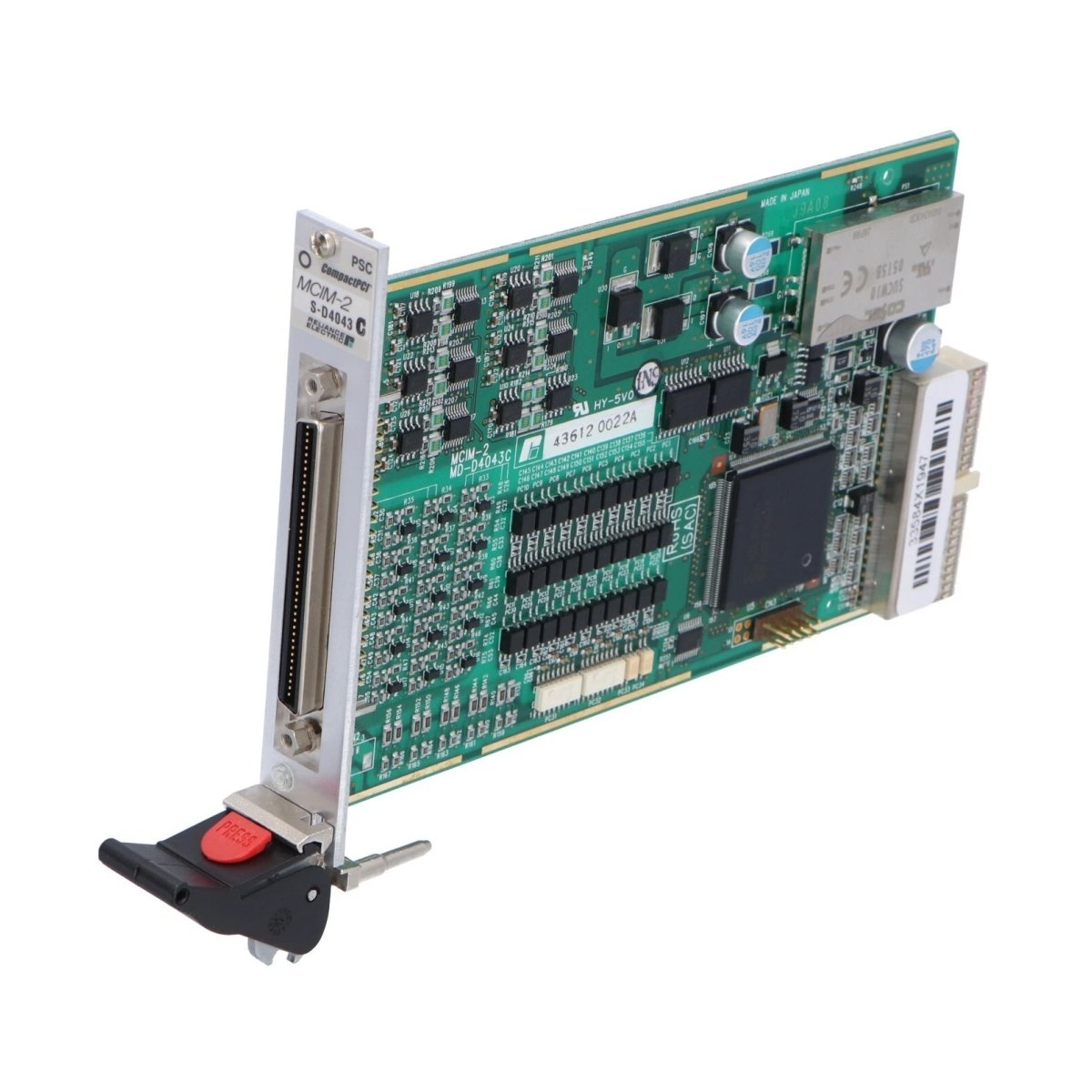

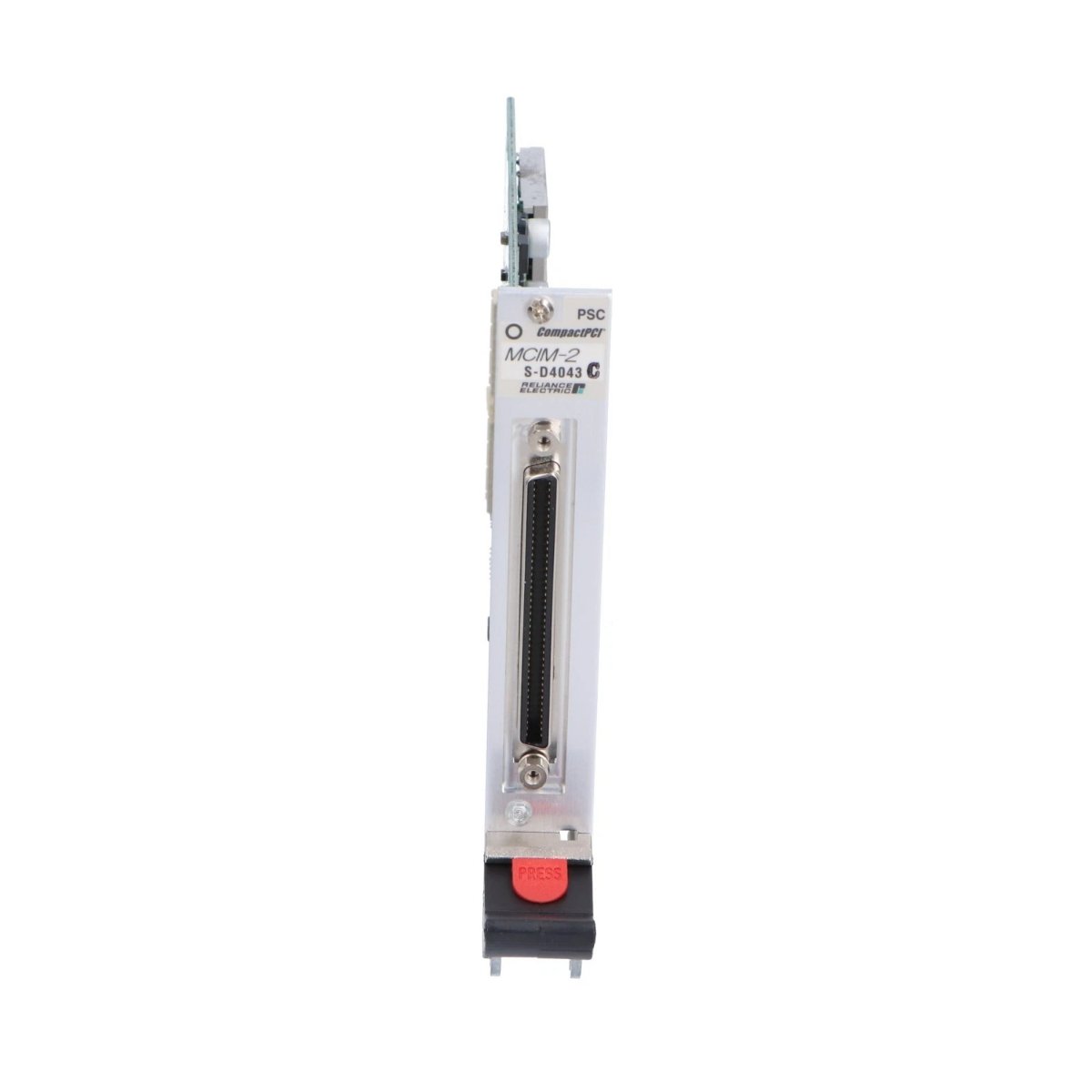

The Reliance PSC7000 MCIM-2 PG Module (S-D4043) delivers reliable signal conversion and precise voltage control for industrial automation systems. Designed for PSC7000 series, this module mounts easily in slots 1 or 2 of the motherboard chassis, ensuring efficient installation and maintenance. Engineers choose MCIM-2 for its compatibility with both 5V and 12V PSC7000 systems.
Key Features
- Dual compatibility: 5V and 12V PSC7000 configurations
- Lightweight module: only 164 grams, reducing chassis load
- Stable ON/OFF voltage control enhances system reliability
- Compact design fits PSC7000 mother chassis without occupying extra space
- Ideal for industrial automation applications requiring precise voltage management
Electrical Specifications
| Parameter | 5V System | 12V System |
|---|---|---|
| Standard Voltage | 2.5V, 8mA | 10V, 9mA |
| Alternative Voltage | 3.0V, 13mA | N/A |
| Impedance | 300 Ω | 1.1 K Ω |
| ON Voltage | 6.5V ± 1V | 6.5V ± 1V |
| OFF Voltage | 5.5V ± 1V | 5.5V ± 1V |
Physical Specifications
- Weight: 164 grams
- Mounting: Slot 1 or 2 on PSC7000 motherboard chassis
- Dimensions: 250mm*150mm*40mm
- Construction: Industrial-grade materials for durability and reliability
Advantages
The Reliance MCIM-2 PG Module provides precise voltage control for PSC7000 industrial automation systems. Its dual compatibility supports both 5V and 12V systems, offering flexible integration. Lightweight and compact, it reduces chassis space usage while maintaining robust electrical performance. Slot-based mounting allows technicians to install or replace modules quickly, minimizing downtime. This module is essential for engineers seeking consistent signal conversion and efficient power management.
Manufacturer & Origin
- Manufacturer: Reliance
- Series: PSC7000
- Model: MCIM-2 (S-D4043)
- Origin: USA
Details
| Weight | 0.164 kg |
|---|---|
| Dimensions | 250 × 150 × 40 mm |
