Product Overview

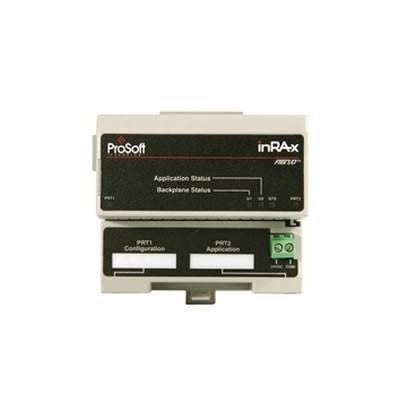

The MVI94-ADM is a FLEX backplane-compatible module built for custom application development in ‘C’ language. It provides a flexible platform for integrating proprietary algorithms and ASCII data communications with Rockwell Automation FLEX I/O processors.

Key Features and Benefits

Custom Development

• Enables user-developed ‘C’ applications to run directly on FLEX I/O platforms.
• Supports proprietary protocols and specialized data handling.

Versatile Serial Ports

• PRT1 (Application/Debug/Config): RS-232.
• PRT2 (Application): RS-232, RS-422, or RS-485.
• Jumper configuration supports direct or multi-drop communication.

Flexible Operation

• Independent port operation for versatile integration.
• Debugging and monitoring supported via configuration file and debug port.

Seamless Integration

• Simple ladder logic control for smooth PLC integration.
• Full monitoring with LED status indicators.

Specifications

General

• Flex Compatibility: Single-slot, 1794 backplane compatible.
• Power Requirements:
  • Backplane: 20 mA @ 5V
  • External: 12–24VDC (340mA to 170mA)
• Temperature Range:
  • Operating: 0°C to 55°C (32°F to 140°F)
  • Storage: -40°C to 85°C (-40°F to 185°F)
• Durability:
  • Shock: 30g operational, 50g non-operational
  • Vibration: 5g (10–150 Hz)
  • Humidity: 5–95% (non-condensing)

Dimensions

• Size with base: 3.7″ H × 3.7″ W × 2.7″ D (94 × 94 × 69 mm).

Indicators

• LED indicators for:
  • Module status
  • Backplane transfer status
  • Application status
  • Serial activity and errors

Communication Ports

• PRT1 (Config/Debug): RS-232, Mini-DIN, hardware handshaking.
• PRT2 (Application): RS-232/422/485, Mini-DIN, 500V optical isolation from backplane.

Functional Specifications

Development Environment

• Operating System: DOS 6-XL.
• Compilers: Digital Mars C++ V8.49 (included), Borland C++ V5.02.

APIs

• Serial Port API: Controls serial communication.
• Backplane API: Provides low-level control.
• Debug Port API: Includes debug, database, timer, transfer, LED, and flash read functions.

Applications

• Barcode scanner integration.
• Legacy ASCII protocol connections.
• Terminal emulation.
• Alarm/status printer drivers.
• Customized communication protocols.

Ordering Information

• Product Code: MVI94-ADM
• Description: ‘C’ Programmable Application Development Module.
