Overview

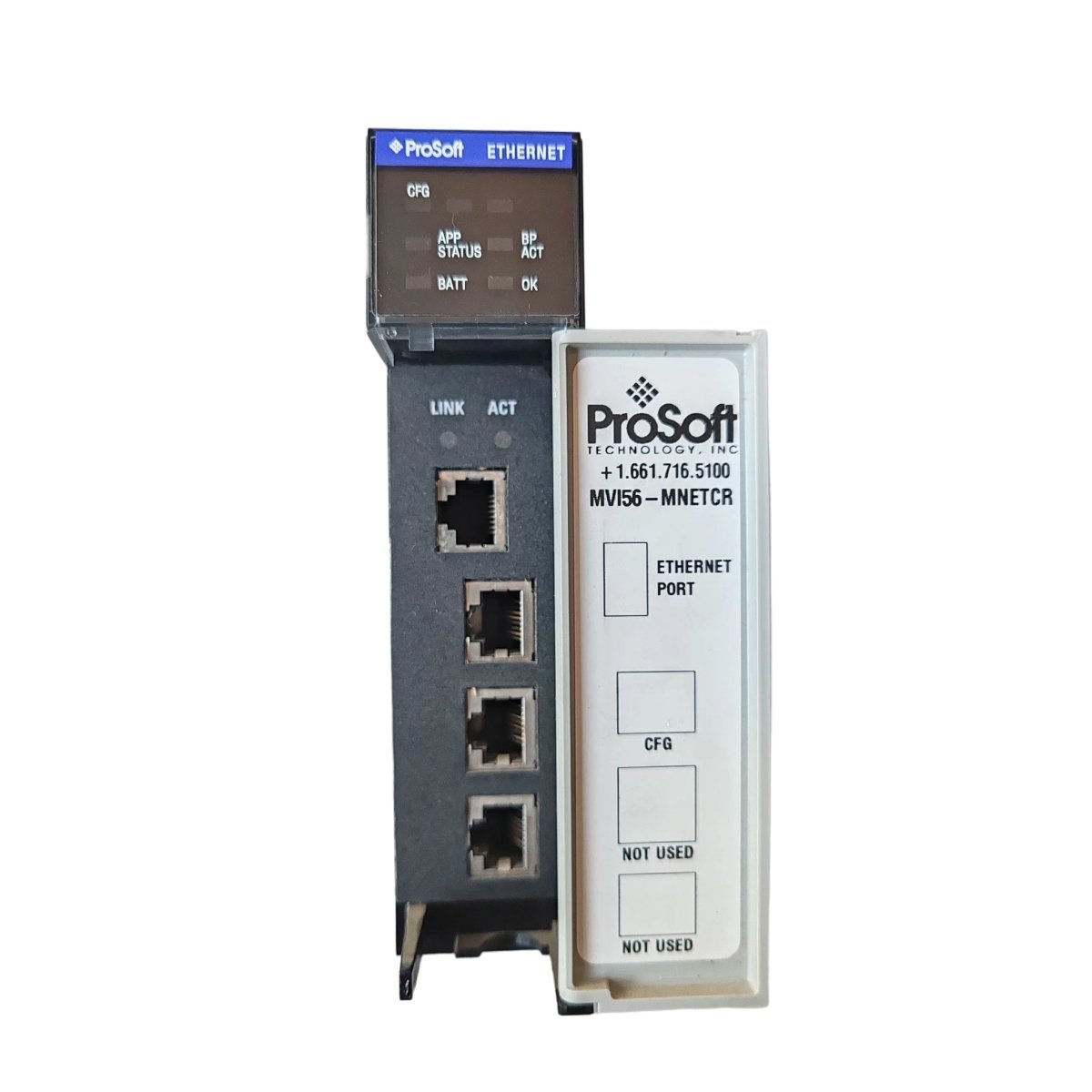

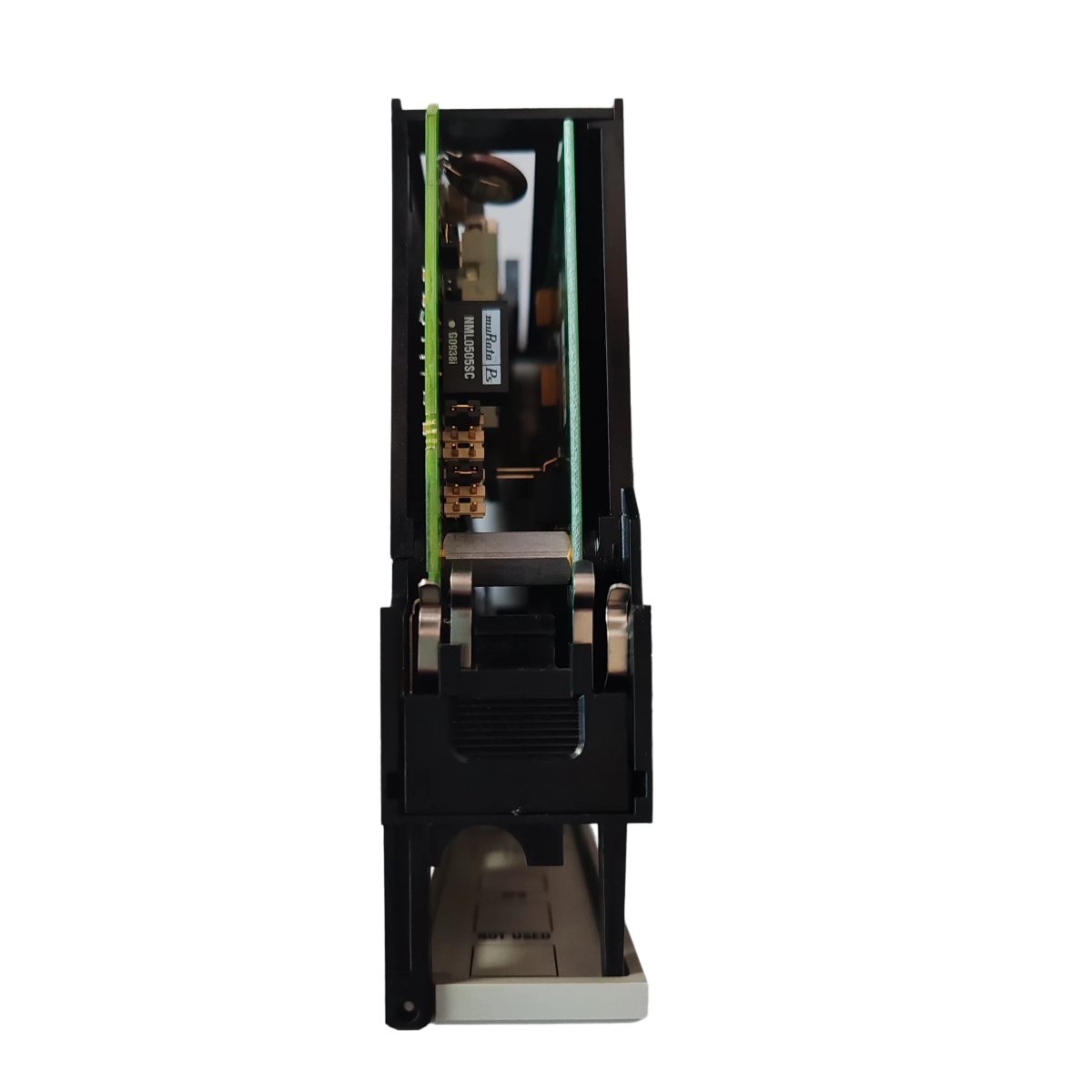

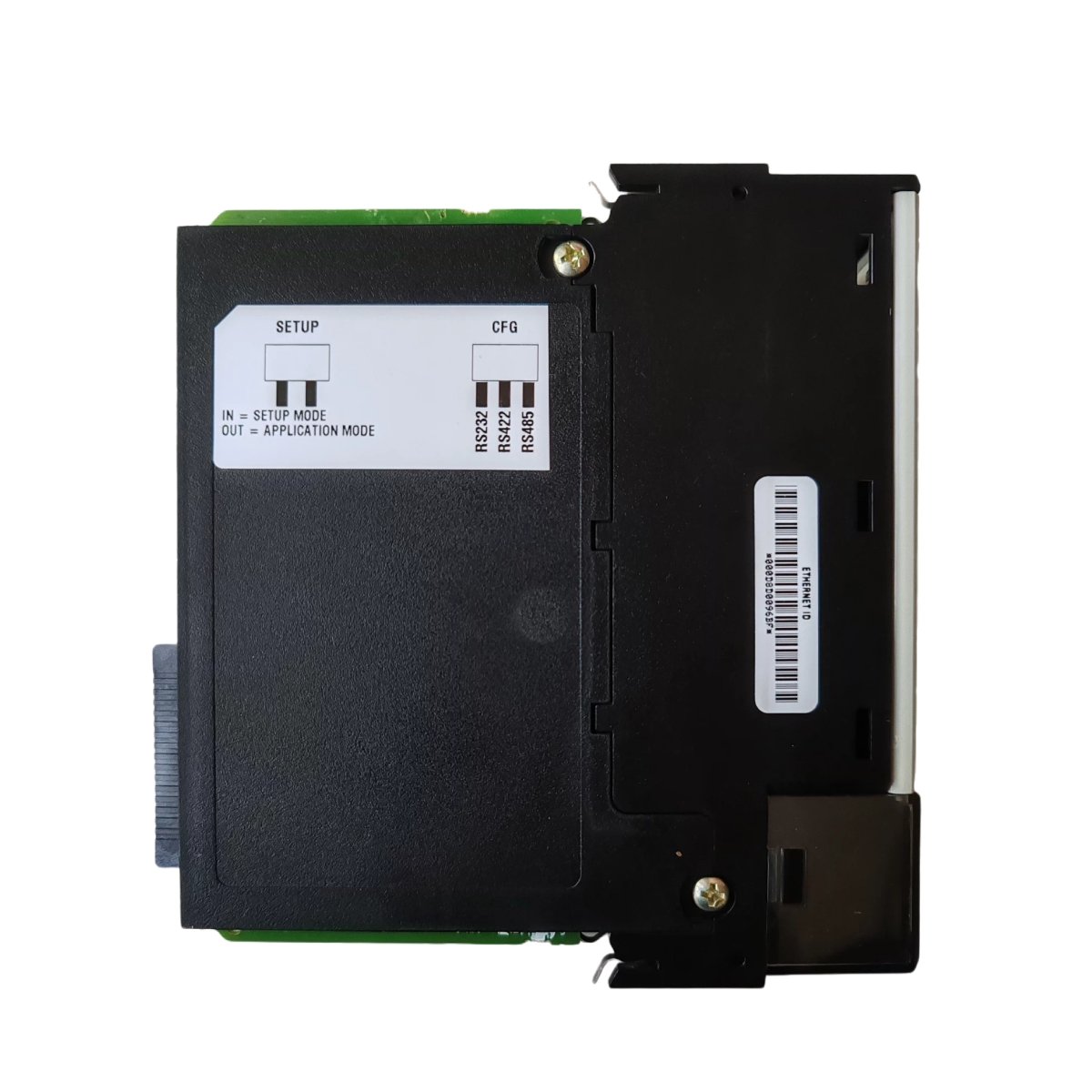

The MVI56E-MNETCR by ProSoft Technology enables ControlLogix PACs to communicate seamlessly with multiple Modbus TCP/IP server-compatible devices. This multi-client enhanced module supports up to 30 clients, delivering high network performance for remote chassis applications. It improves system efficiency by minimizing I/O data transfer delays through a reduced data block design.
Key Features
- Supports up to 30 simultaneous Modbus TCP/IP clients for multi-device control.
- CIPconnect technology bridges communication between ControlNet and EtherNet/IP networks.
- Built-in web server provides access to documentation, diagnostics, and firmware updates.
- User-configurable module data mapping supports up to 5000 16-bit registers.
- 4-character alphanumeric LED display reports module status and diagnostics in plain English.
- Personality Module on a non-volatile CF card stores network configuration for rapid field replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Backward Compatibility | Compatible with MVI56-MNETCR previous versions |
| Backplane | Single-slot 1756 ControlLogix |
| Ethernet | 10/100 Mbps, auto crossover detection, configurable application port |
| Data Memory | Up to 5000 user-definable 16-bit registers |
| Configuration Software | ProSoft Configuration Builder (PCB), Windows GUI |
| Sample Programs | Ladder logic and Add-On Instructions (AOI) for data transfer |
| Web Server | Provides module documentation, status, diagnostics, firmware updates |
| LED Display | 4-character alphanumeric scrolling display for status and diagnostics |
| Discovery Software | ProSoft Discovery Service (PDS) for network location and temporary IP assignment |
| Personality Module | Industrial-grade CF card storing network and module configuration for disaster recovery |
| Mounting | Remote chassis slot compatible |
| Network Protocol | Modbus TCP/IP Multi Client |
| CIPconnect | Supports bridging via ControlNet and EtherNet/IP |
| Data Transfer | Uses reduced I/O data block for efficient communication |
Dimensions and Weight
- Height: 110 mm
- Width: 32 mm
- Depth: 132 mm
- Mass: approx. 0.35 kg
Origin
- Made in USA
Details
| Weight | 0.35 kg |
|---|---|
| Dimensions | 110 × 32 × 132 mm |
