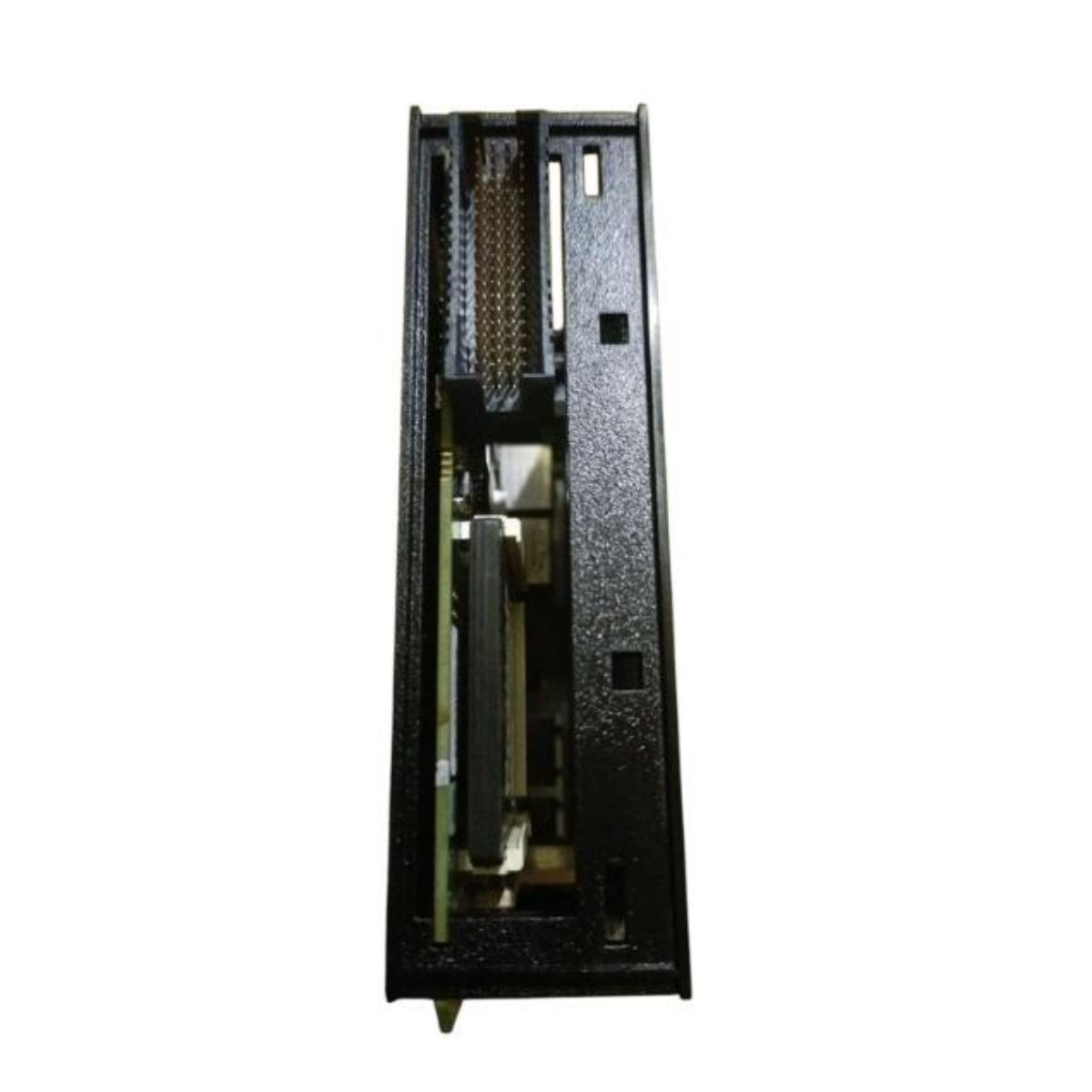

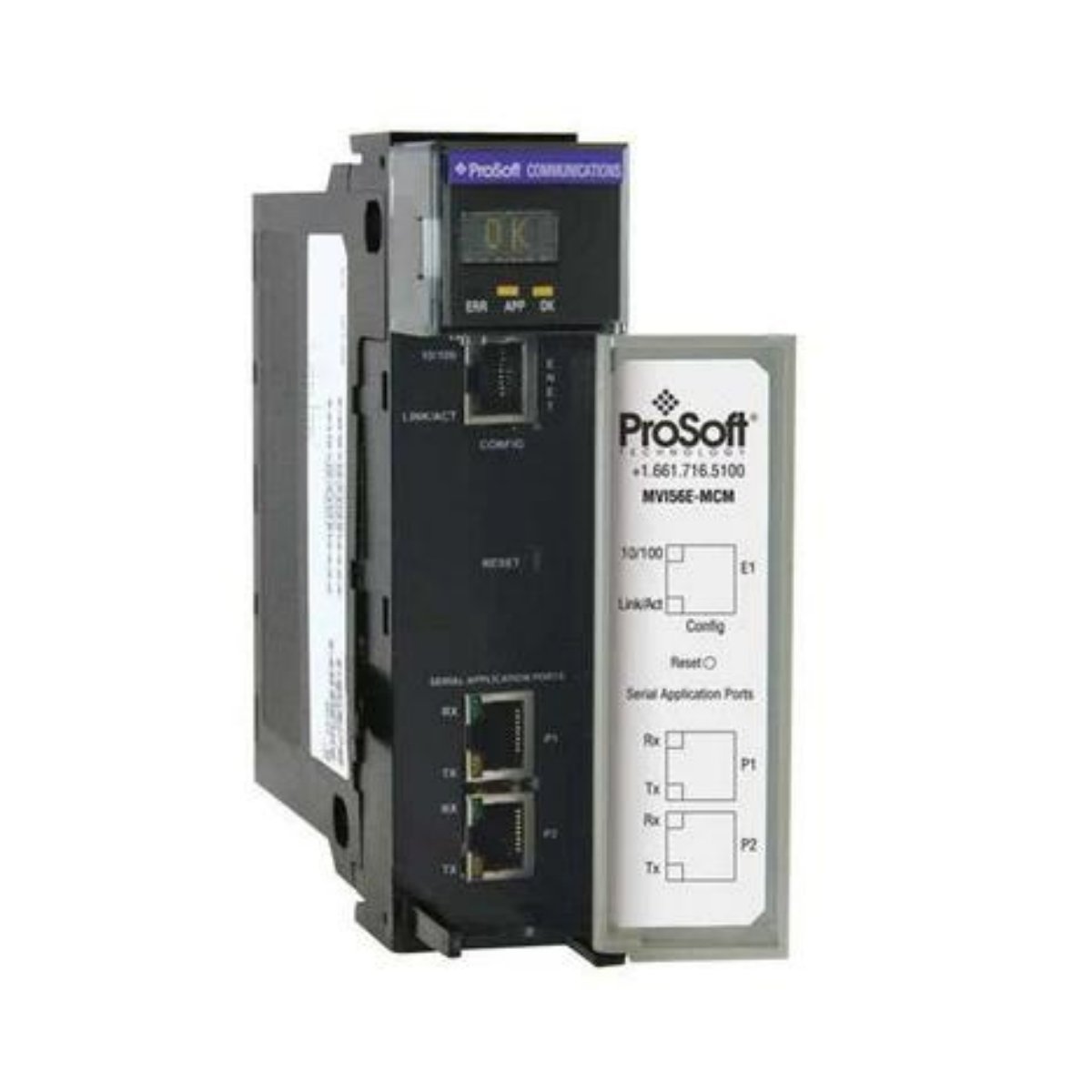

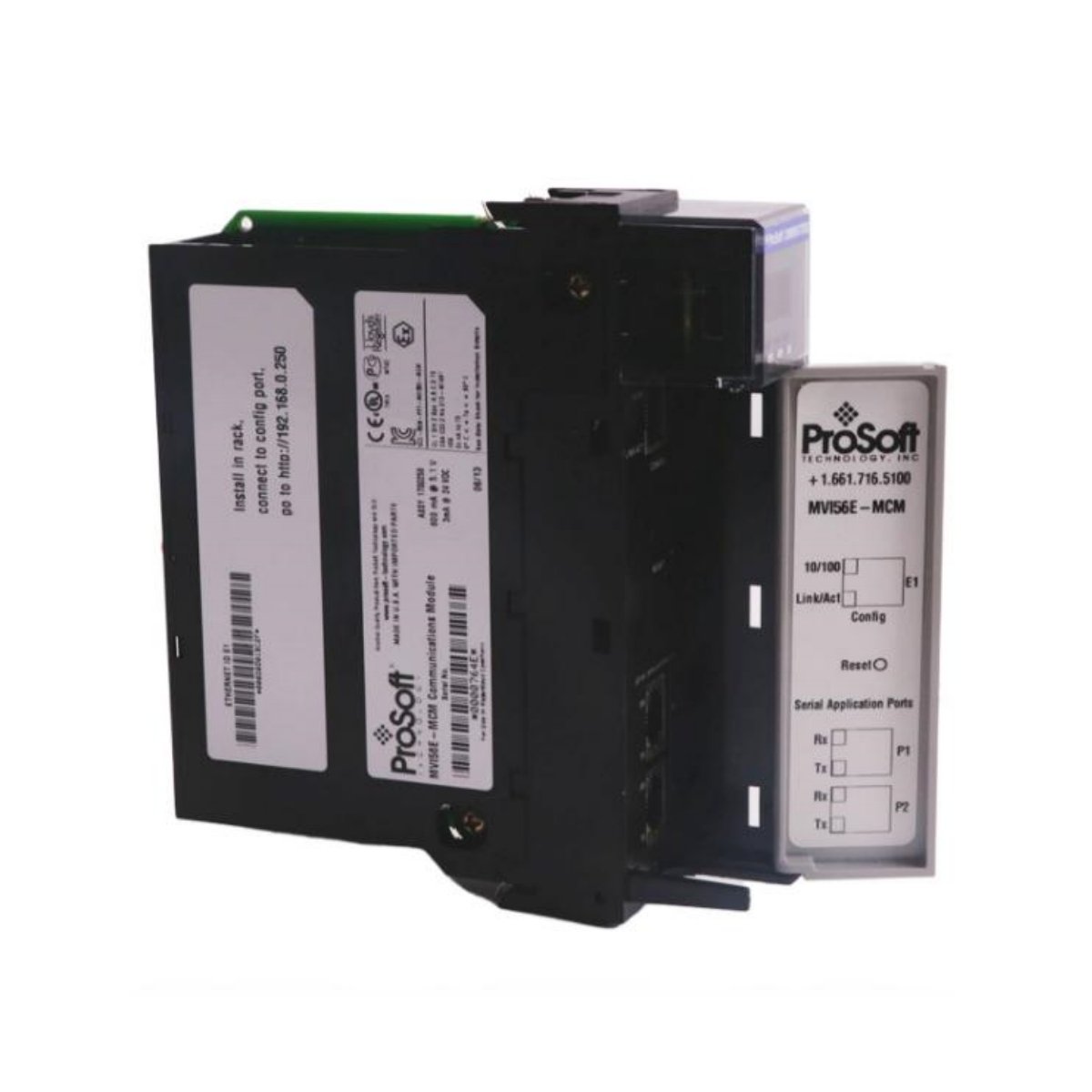

The ProSoft MVI56E-MCM module delivers reliable Modbus RTU Master/Slave communication for the Allen-Bradley ControlLogix® platform. Designed for seamless integration, it enhances communication performance while maintaining full compatibility with Studio 5000® (formerly RSLogix™ 5000) software. This enhanced module supports high-speed data exchange and efficient control in complex automation environments.
High-Performance Communication
The MVI56E-MCM module supports both Modbus Master and Slave modes, enabling smooth data exchange between PLCs and Modbus devices. Its dual RJ-45 Ethernet ports simplify network connections and reduce downtime. The module’s robust design ensures dependable operation in demanding industrial conditions.
Seamless System Integration
Thanks to ProSoft’s licensed Allen-Bradley® backplane technology, the module integrates effortlessly into existing ControlLogix architectures. Users can configure and monitor communication directly from the Studio 5000® interface, minimizing setup time and improving overall efficiency.
Reliable and Durable Design
Built for industrial reliability, the MVI56E-MCM operates within a wide temperature range and resists vibration and humidity. It meets multiple international certifications, guaranteeing long-term stability and global compliance in control systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | ProSoft Technology |
| Series | ControlLogix® Platform |
| Model | MVI56E-MCM |
| Function | Modbus RTU Master/Slave Enhanced Communication |
| Communication Ports | 2 × RJ-45 Ethernet (Category 5) |
| Communication Protocols | Modbus-RTU |
| Maximum Baud Rate | 115.2 kbaud |
| Operating Temperature Range | 0 °C – 60 °C |
| Storage Temperature Range | −40 °C – 85 °C |
| Maximum Relative Humidity | 95 % RH (non-condensing) |
| Vibration Resistance | 5 m/s² up to 150 Hz |
| Certifications | ATEX, CE, C-CSA-US, C-ETL-US Listed, GOST-R, RoHS, C-UL-US, CSA |
| Component Type | PLC & I/O Communication Module |
Origin, Dimensions, and Weight
- Country of Origin: USA
- Dimensions: Approximately 145 mm × 35 mm × 110 mm
- Weight: Around 0.45 kg
Key Benefits
- Enhances ControlLogix communication flexibility
- Supports Modbus RTU Master and Slave configurations
- Easy configuration using Studio 5000® software
- Industrial-grade durability and certified compliance
- Simplifies network design with dual Ethernet ports
Details
| Weight | 0.45 kg |
|---|---|
| Dimensions | 145 × 35 × 110 mm |
