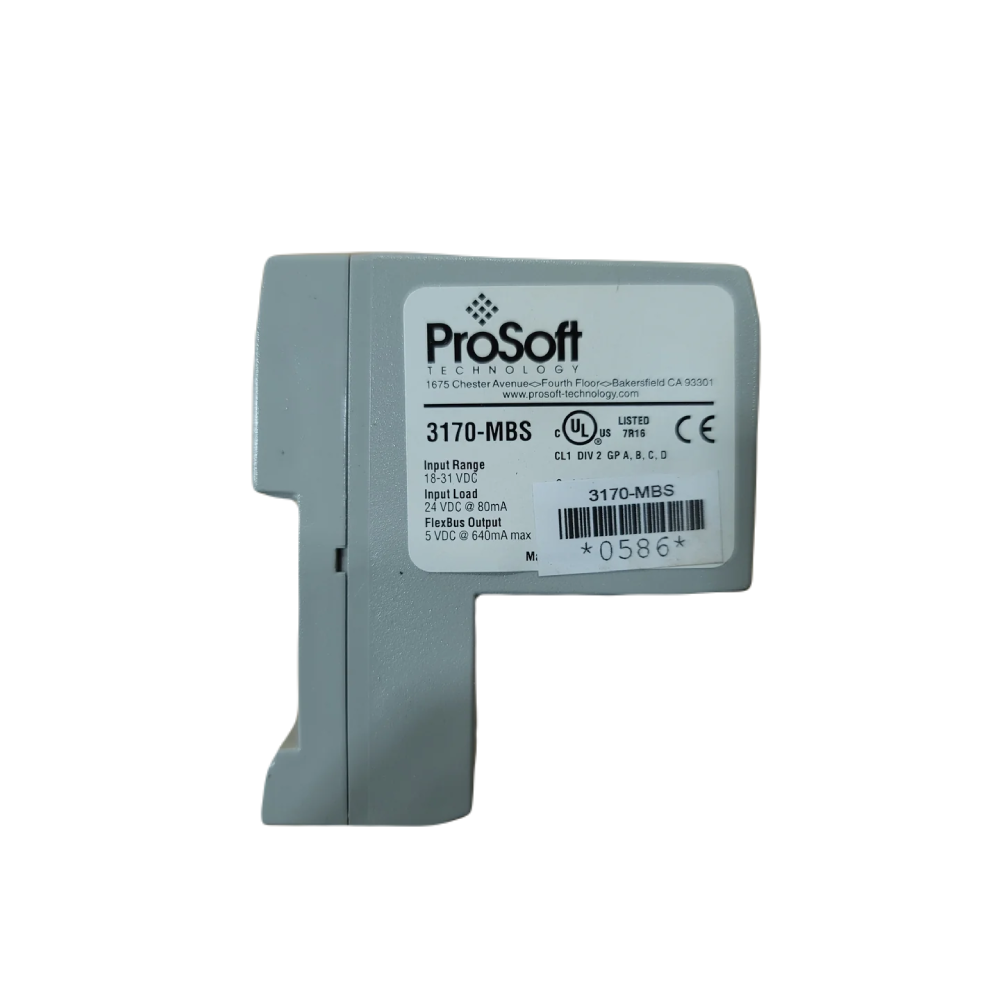

The ProSoft 3170-MBS Modbus Slave Communication Adapter is designed to interface up to 8 Rockwell Automation FLEX and/or Integra I/O modules with any Modbus Master. It offers a seamless solution for integrating FLEX I/O into applications that use devices from other manufacturers.

Key Features

• Multi-drop Communication: Supports RS-485 link for multi-drop configurations with other Modbus-compatible devices.
• I/O Interface: Directly interface Analog and Discrete I/O to a Host system.
• Flexibility: Add FLEX I/O to applications with existing devices from other manufacturers.
• Ease of Use: Simple dip-switch configuration options.
• Pre-mapped Data Images: Pre-mapped Flex and Integra data simplify Modbus read/write operations using standard commands.
• Full Functionality: Supports read/write access to all FLEX and Integra modules, supporting Function Codes 1, 2, 3, 4, 5, 6, and 16.

General Specifications

Modbus Specifications

• Supported Modes:
  • RTU mode (binary) with CRC-16 error checking
  • ASCII 7 and 8-bit modes with LRC error checking
  • Broadcast commands from the Master
• Supported Function Codes:
  • 1: Read Output Coils (Horizontal addressing only)
  • 2: Read Discrete Inputs (Horizontal addressing only)
  • 3: Read Multiple Holding Registers
  • 4: Read Multiple Input Registers
  • 5: Force (Write) Single Coil (Horizontal addressing only)
  • 6: Preset (Write) Single Holding Register
  • 16: Preset (Write) Multiple Holding Registers
• Modbus Memory Map: Pre-assigned
• Configurable Parameters (via dip switches):
  • Address: 1 to 247
  • Parity: None, Odd, or Even
  • Stop Bits: 1 or 2
  • Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 62500
